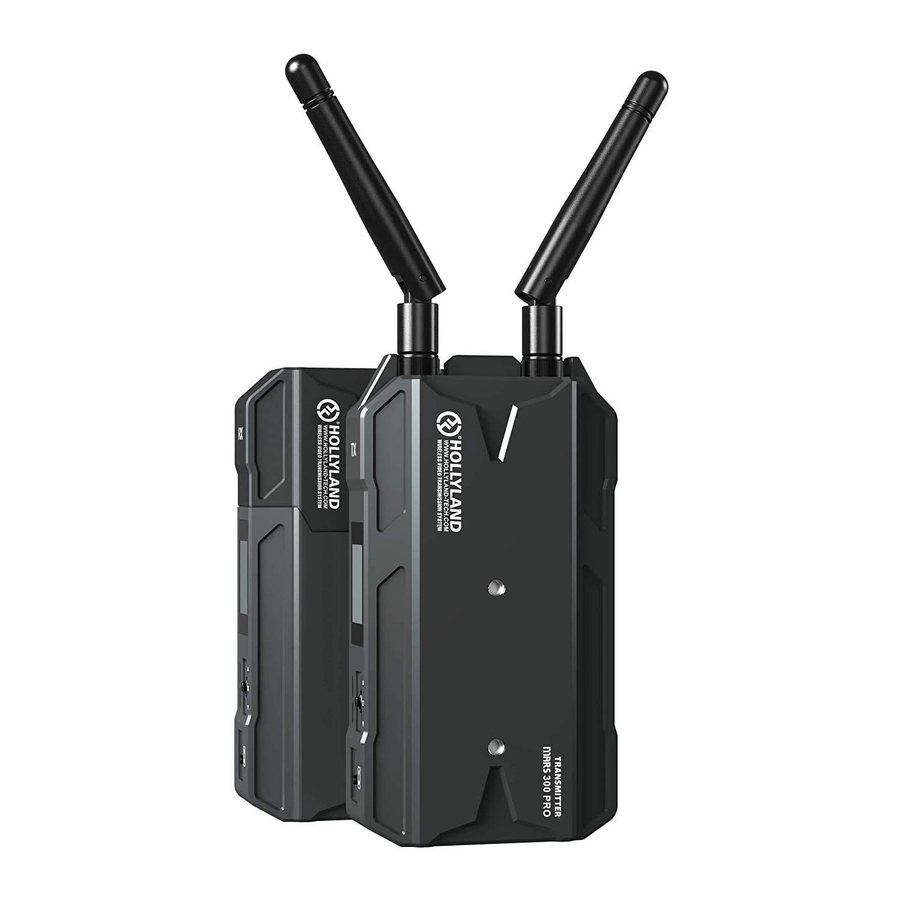

Hollyland MARS 300 PRO Manual
Also See for MARS 300 PRO:
  • Faq (11 pages)

Advertisement

Hollyland MARS 300 PRO Manual

TYPICAL SETUP

Typical Setup

PRODUCT INTERFACES

Overview

  1. TRANSMITTER
    1. Antenna Interface
    2. OLED Screen
    3. Wheel Button
    4. Power Switch
    5. Mounting Hole of the Expansion Accessory
    6. HDMI Loopout
    7. HDMI Input
    8. USB Type-C Interface
    9. 1/4 Screw Hole
  2. RECEIVER
    1. Built-in Antenna
    2. OLED Screen
    3. Wheel Button
    4. Power Switch
    5. Mounting Hole of the Expansion Accessory
    6. HDMI Out
    7. USB Type-C Interface
    8. 1/4 Screw Hole

INSTALLATION

Installation

  1. Install the antennas as demonstrated.
  2. Vertical Installation:
    Secure the cold shoe with 1/4 screw hole at the bottom of the transmitter and mount it to the camera.
    Horizontal Installation:
    Connect the expansion accessary to the transmitter's mounting hole and secure the cold shoe with hole at the expansion accessary. Then install them on the camera.
  3. Connect the HDMI input of the transmitter with camera's by HDMI cable.
  4. Connect to a power supply (Compatible with NP-F970 or the same series of batteries).
  5. Turn on the devices.

QUICK GUIDE

  • ENTER MENU
    Long press the wheel button for about 3 seconds to enter the root menu interface.
    Push up or down the wheel button to switch the menu page, press down the wheel button to confirm.
  • CHANNEL CHANGE
    Push up or down the wheel button to change the channel at receiver or transmitter. Press down the wheel button to confirm the channel, the channel of the transmitter and receiver will be changed automatically and synchronously.
  • IOS System and Android System Installation and Connection
    1. "HollyView" APP Download

play.google.com

apps.apple.com

  1. Enter the WiFi connection interface of the phone. Find the device's WiFi (WiFi names as "HLD+Device ID"). Input WiFi password to connect (Factory default password: 12345678). After the WiFi connection is successful, enter the APP to monitor the screen.

SUPPORT

If encounter any problems in using the product or need any help, please follow these ways to get more technical support:
Hollyland Products User Group
HollylandTech
support@hollyland-tech.com
www.hollyland-tech.com
