Xiaomi Buds 5 (M2341E1) Manual

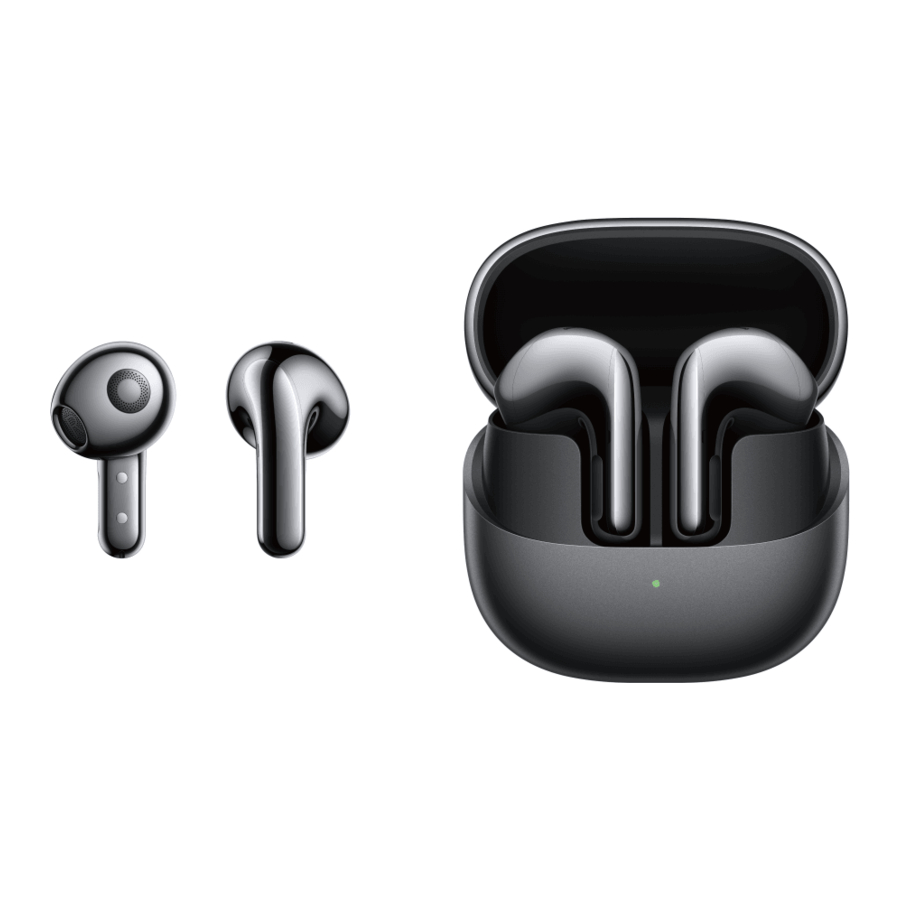

Product Overview

Read this manual carefully before use, and retain it for future reference.
Product Overview

Package Contents

Wearing

Wearing

Turning on

When opening the charging case, the earbuds will automatically turn on.

Sleep Mode

Sleep Mode
Place the earbuds back into the charging case and close the lid, the earbuds will disconnect and go into sleep mode automatically.

Charging

Charging

  • To charge the earbuds: Insert the earbuds into the charging case and close the lid to start charging.
  • Charging the case: Use the included Type-C cable. The indicator light turns solid green when fully charged.

Connect & Pair

Connect & Pair

  1. Open the case lid, hold the function key for 2 seconds until the light flashes, putting the earbuds in pairing mode.
  2. Activate your device's Bluetooth, find and connect to the earbuds in the menu.

Note:
Opening the case lid for the first time automatically activates pairing mode.
In daily use, opening the charging case lid will automatically reconnect the earbuds to the last paired Bluetooth device. (Bluetooth device must be within earbuds' connection range.)

Dual-Device Connection

Dual-Device Connection
Connect the earbuds to two Bluetooth devices simultaneously for added convenience. After connecting the earbuds to the first device, place them in the charging case with the lid open. Press and hold the function button for 2 seconds until the indicator light blinks white, indicating the earbuds are ready to pair with a second device.
Note:
Dual device connection is off by default, if you need to use it, please turn on this function in the Xiaomi Earbuds App.

Restoring Factory Settings

Restoring Factory Settings
Press and hold for 10 seconds until the orange light flashes three times.

Function Overview

Function Overview

Connecting with App

  1. Scan the QR code to download and install Xiaomi Earbuds to enable more features.
  2. Follow the instructions on the app to connect the earbuds.
    Note: During the connection process, please make sure that the smartphone's Bluetooth is enabled.
    Put the earbuds into the charging box, open the lid, and ensure that your smartphone is near the box.

*Xiaomi Earbuds app supports mobile phones with Android 6.0 and above and iOS 14.0 and above.
*Please upgrade the app to the latest version.

Specifications

Name: Wireless Earphones
Wireless Connectivity: Bluetooth® 5.4
Model: M2341E1
Operating Temperature: 0°C to 45°C
Charging Port: Type-C
Wireless Range: 10 m (open space without obstacles)
Earbuds Input: 5 V 100mA
Operation Frequency: 2400MHz to 2483.5MHz
Charging Case Input: 5 V 1200mA
Maximum Transmit Power: <13 dBm (for EU)
Charging Case Output: 5 V 200mA
Compatible with: This product only supports certain Android or iOS systems. For detailed information, please check the product page on www.mi.com.
Note: Due to the connection characteristics of the Bluetooth signal, in dense environments with 2.4 GHz electromagnetic signal interferences, there may be occasional disconnects or no sound.
The power delivered by the charger shall be between min 0.2 Watts required by the radio equipment, and max 4.5 Watts in order to achieve the maximum charging speed.

Important Safety Information

Before using and operating this device, read the following precautions to ensure an optimal device performance and avoid dangerous use or unauthorized operations.

  • Product information and certification marks are located in the charging case.
  • Do not use the earbuds while driving, and comply with the relevant regulations in your region or country. Only use the power adapters that comply with the local safety standards or certified and supplied by qualified manufacturers.
  • Do not disassemble, strike, crush or throw the product into fire, as it may cause an explosion.
  • The product has a built-in battery that can not be removed or replaced. To avoid damage to the battery or the product, do not disassemble or modify the battery by yourself. The battery can only be replaced by the authorized service providers and must be replaced with the same type. Replacement of a battery with an incorrect type may defeat a safeguard (such as catching fire, explosion and leakage of corrosive electrolyte). Do not put the battery in trash that is disposed of in landfifills. When disposing of the battery, comply with local laws or regulations.
  • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
  • Do not use this product during thunderstorms. Thunderstorms may cause the product to malfunction and increase the risk of electric shocks.
  • Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
  • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
  • These earbuds and their accessories may contain small parts. Please keep them out of the reach of children.
  • Please stop using the product immediately and seek medical assistance if the contact area on your skin shows signs of redness or swelling.
  • Enabling noise canceling may affect your awareness of surrounding sounds and alarms. Ensure that you are in a safe environment before using this function.

To prevent possible hearing loss, do not use this product at high volume for long periods of time.
The symbol indicates DC voltage.

For further information, please go to www.mi.com
