Xiaomi Mi Sports - Bluetooth Earphones Manual

Getting started

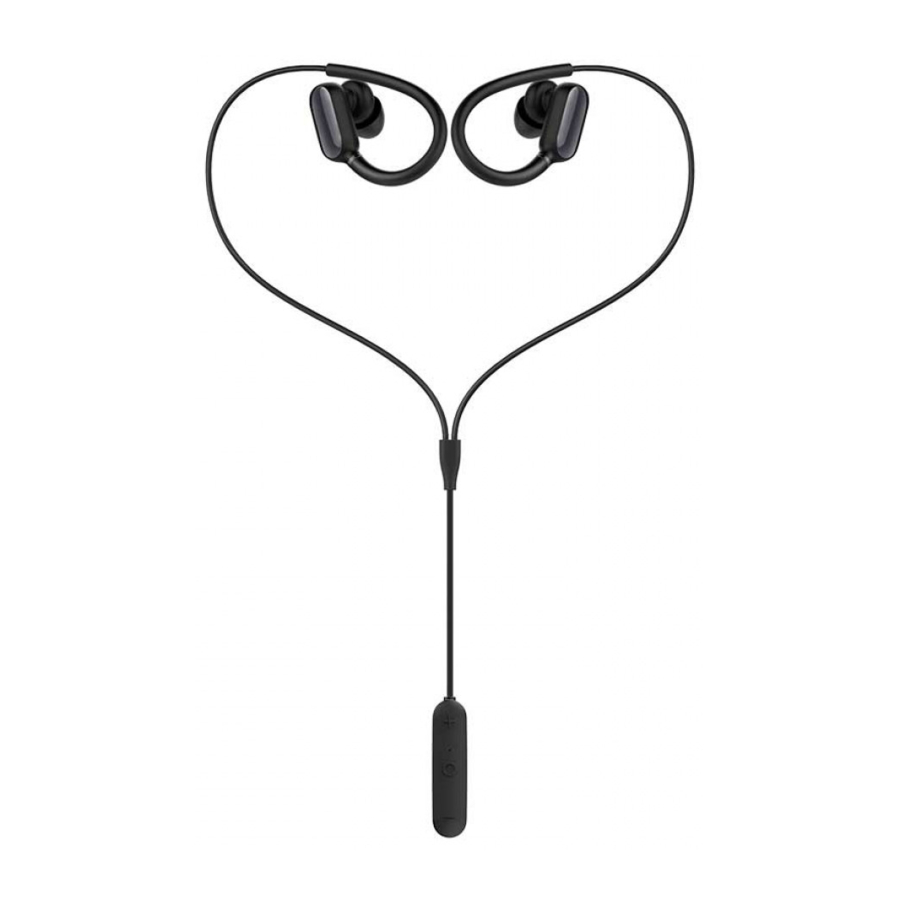

Device Overview

  1. Select and install ear tips
    Ear tips Overview
    Medium ear tips suit most people, try them before you decide to switch to a different size.
  2. Find your fit
    Find your fit
    Put the earhook over the back of your ear and insert the earphone into the ear canal. Adjust by twisting into position if the fit isn't right.
    Adjust by twisting into position
    Move the microphone closer to your mouth for better sound during phone conversations.
  3. Pair with the phone
    The earphones are ready to be paired when you use them for the first time. To pair again, press and hold the button until the light turns white and starts blinking.
    Pairing with a phone - Step 1
    Find "Mi Sports Bluetooth Earphones mini" among the devices on your phone and connect.
    Pairing with a phone - Step 2

Charging

When the power is low, the light will turn red and start blinking. You'll hear a notification sound as well.
Charging

Factory reset

When the earphones are charging, press and hold the multifunction button until the light starts blinking
Blinking alternately.
Factory reset

Features

Answer calls

Press the multifunction button once when the light turns white and starts flashing.
Features Overview - Part 1 - Answer calls

Reject calls

Press and hold the multifunction button when the light turns white and starts flashing.
Features Overview - Part 2 - Reject calls

Redial last outgoing number

Double press the multifunction button in standby mode
Note: This feature might work differently with some carriers.
Features Overview - Part 3 - Redial

Mute

Double press the multifunction button during the conversation.
Features Overview - Part 4 - Mute

Connect 2 phones

  1. Connect to the first phone and turn off the earphones.
  2. Press and hold the button until the light turns white and starts blinking. Find "Mi Sports Bluetooth Earphones mini" among the devices on the second phone and connect.
    Connect 2 phones - Step 1
  3. After the second phone is connected, confirm the connection on the first phone.
    Connect 2 phones - Step 2

Accept calls from 2 phones and switch between conversations

When you receive a call on the second phone while in conversation on the first phone, double press the multifunction button to put the first call on hold and switch to the second one. Double press the multifunction button every time you want to switch between calls.

Switch between earphones and receiver
Press and hold the multifunction button for 1 second during a call to switch between the earphones and your phone's receiver.

Play/Pause
Press the multifunction button while in standby mode to play music, press again to pause.

Voice assistant
Press and hold the multifunction button for 1 second to trigger your phone's voice assistant (for example, Siri).

Product features

Bluetooth 4.1 is compatible with most phones and tablets
CSR Bluetooth chip
Earhooks optimized for workouts
aptX audio technology

Specs

Product name: Mi Sports Bluetooth Earphones mini
Model: YDLYEJ02LM
Size: 445×80×26mm
Charging time: 2h
Standby time: 200h
Bluetooth version: 4.1
Battery type: Lithium-ion polymer
Weight: 14.5g
Operating range: 10m
Maximum playback time: 5h
Battery capacity: 80mAh
Bluetooth profiles: HFP/A2DP/HSP/AVRCP

Precautions

  1. Please read the user manual before using, and keep it for your future reference;
  2. Make sure to fully charge the product on its first use;
  3. Charge the product when left unused for over 2 weeks;
  4. Use only certified chargers supplied by qualified manufacturers;
  5. If your device cannot locate Mi Bluetooth Headset Basic, please check if the headset is in pairing mode. The headset will turn off if it fails to pair for a long time. Reboot your phone or the headset, or factory reset the headset, should any program errors occur.

Warnings

  1. Do not dismantle or configure the product in case of fire. Electron puncture may damage the product completely;
  2. Do not expose the product in environments where temperature is extreme (lower than 0 or higher than 45);
  3. Keep the LED indicator away from the eyes of children or animals;
  4. Do not use the product during thunderstorms. Thunderstorm may cause the product to malfunction and result in an increased risk of electric shock;
  5. Do not wipe the product with oil and other volatile liquid;
  6. Keep away from water or other liquid.

By using Mi Sports Bluetooth Earphones mini, you agree to be bound by the terms and conditions set forth at www.mi.com/us/abou/agreement/, which include, but are not limited to, the Xiaomi user agreements, collectively, the "Agreements". Each Mi Sports Bluetooth Earphones mini comes with a one-year limited warranty.
Details are available at http://www.mi.com/us/supports/.
