Emmett Wine Cabinet
Customer Service:
Item#:38408175
800-747-2660
Ver. 01 09 /22/2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Emmett Wine Cabinet and is the answer not in the manual?

Questions and answers

Related Manuals for Atlantic Emmett Wine Cabinet

Summary of Contents for Atlantic Emmett Wine Cabinet

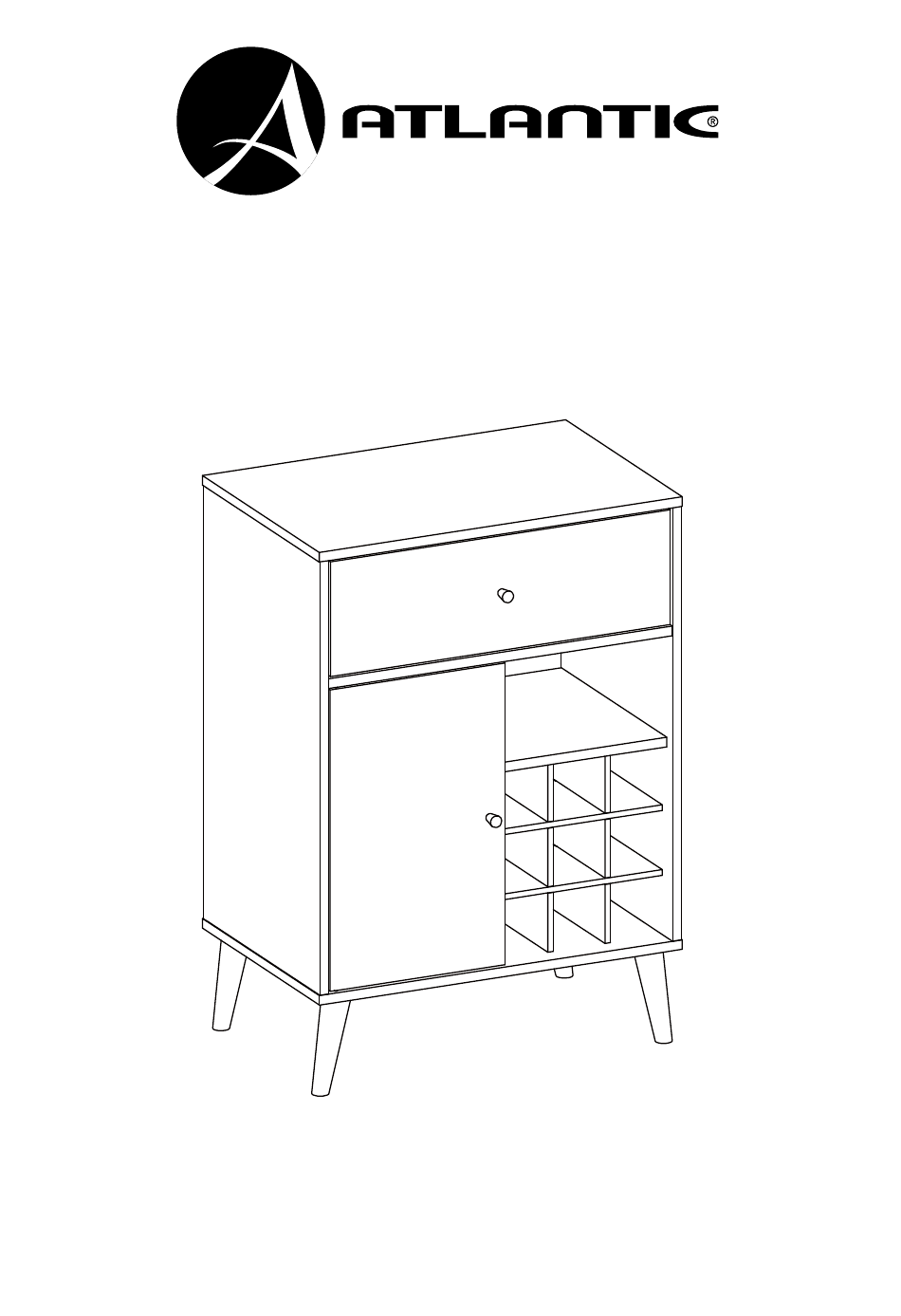

  • Page 1 Emmett Wine Cabinet Customer Service: Item#:38408175 800-747-2660 Ver. 01 09 /22/2...

  • Page 2: Assembly Tips

    Assembly Tips: Become familiar with the instructions and all parts. Make sure that all parts are in the box and in good condition. Assemble the product on an open flat carton or a rug to protect the product and your floor. DOT NOT over-torque cam locks.
  • Page 3 . . D 归...
  • Page 4 Part Label Parts List Part Label Parts List...
  • Page 5 Part Label Parts List Part Label Parts List...
  • Page 6 Screw in two cam screws (1) onto panel (M) opposite to the pre-drilled peg holes. Atornille dos tornillos de leva (1) en el panel (M) opuesto a los orificios de clavija previamente perforados. Vissez deux vis à cames (1) sur le panneau (M) opposé...
  • Page 7 Insert four cam locks (2), two into panel (F) and two into panel (H). Insert four wood dowels (3), two on panel (F) and two onto panel (H). Screw on two cam screws (1) onto panel (M), opposite side from step 1. Inserte cuatro bloqueos de leva (2), dos en el panel (F) y dos en el panel (H).
  • Page 8 Place eight cam locks (2), four onto the top of panel (E), two onto each of panels (F & H). Insert eight wood dowels (3), four onto each panel (C & D). Coloque ocho bloqueos de leva (2), cuatro en la parte superior del panel (E), dos en cada uno de los paneles (F y H).
  • Page 9 Using four wood dowels (5), insert them into pre-drilled holes of four base feet (L). Apply each base foot (L) onto underside of base panel (B), then screw in four bolts (6) in each corner of panel (B) top using an Allen wrench.
  • Page 10 Slide in back support panel (P) in the available notch above and between panel (C & D). Deslizar en el panel de apoyo trasero (P) en la notcha disponible arriba y entre panel (C & D). Glissez dans le panneau de support arrière (P) dans l' encoche disponible ci-dessus et entre le panneau (C &...
  • Page 11 Insert four cam locks (2) into panels (C & D), two in each panel. Insert four wooden dowels (3) onto panel (A), then place panel (A) as top of built unit. Insertar cuatro cerraduras de cámara (2) en paneles (C & D), dos en cada panel. Insertar cuatro dobles de madera (3) en panel (A), luego colocar panel (A) como parte superior de la unidad construida.
  • Page 12 Insert four cam locks, onto panels (S & T), two per panel. Attach panels (S & T) onto panel (R), using a Phillips screwdriver, rotate the cam locks (8) to lock all parts together. Then slide in base support panel (V) into the provided notches. Insertar cuatro cerraduras de cámara (2) en paneles (C &...
  • Page 13 Using a Phillips, screw in drawer handle (10) with accompanying screw, onto panel (R). Usando un Phillips, tornillo en la manija del cajón (10) con tornillo acompa?ante, en panel (R). à l'aide d'un Phillips, visser la poignée du tiroir (10) avec vis d'accompagnement, sur le panneau (R).
  • Page 14 Insert metal pegs into available pre-drilled holes, for panel shelf (G) to sit on, adjust to your liking. Insertar las clavijas metálicas en agujeros pretaladrados disponibles, para que se sienten en el estante del panel (G) y se ajusten a su gusto. Insérer des chevilles métalliques dans des trous pré-percés disponibles, pour que le plateau du panneau (G) s'asseoir, ajuster à...
  • Page 15 Screw in metal part (13) with two accompanying short screws, using a Phillips screwdriver. Then with two sticker pads (14), apply them onto panel (N). Al diablo en la parte metálica (13) con dos tornillos cortos que acompa?an, utilizando un destornillador Phillips. Luego con dos pastillas de etiqueta (14), aplíquelas en panel (N).
  • Page 16 Product Warranty Thank you for your Atlantic Inc. purchase. This Limited Warranty covers any defects in material or workmanship for purchases made in the U.S.A and Canada, and excludes claims from conditions, malfunctions or damage not resulting from defects in material or workmanship.
