Atlantic QUEEN E-65403 Assembly Instruction

Please note that you will require a Phillips screwdriver and an Allen wrench.
please contact Atlantic Furniture at service@atlanticfurniture.com or 1-800-955-3726

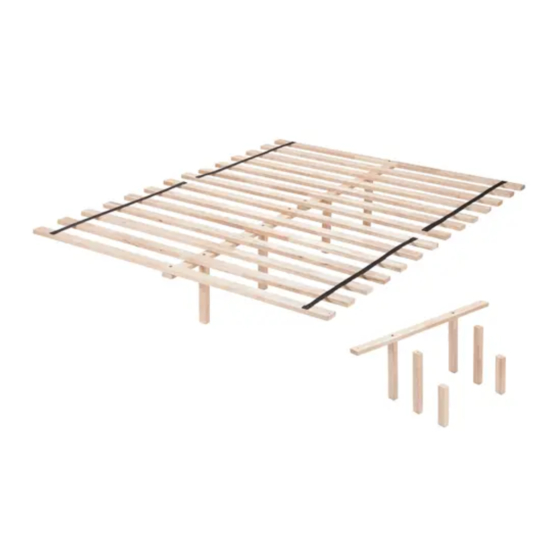

PARTS LIST

01
SLAT SECTION
02
SUPPORT RAIL
03
TALL SUPPORT LEG
04
SHORT SUPPORT LEG
A
1 1/2" Allen screw - 8 pcs
Spare - 1 pc

Step 1

Assemble bed frame according to assembly instructions.
If using mattress and foundation set the bed up low and use short support leg (04).
If using storage drawers choose the tall support leg (03).
PO :

Step 2

Assemble support legs (03 or 04) and support rail (02).
Using Allen screw (A).
Tighten with the Allen wrench (C).
Repeat for other support rail.
C
Allen wrench
SLAT KIT QUEEN OR KING
ASSEMBLY INSTRUCTION
( QUEEN E-65403, KING E-65503 )
Before assembling your bed slat kit, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
B
03 / 04
2 SET
2 PCS
4 PCS
Adult assembly
4 PCS NOTE: WE INCLUDE SPARE HARDWARE IN CASE THE
ALLEN WRENCH, ALLEN SCREW, OR WOOD SCREWS
ARE DAMAGED DURING ASSEMBLY.

HARDWARE

1 1/4" Wood screw - 8 pcs
Spare - 2 pcs
C
A
03 / 04
Customer supplied
Phillips
screw driver
C
Allen wrench - 1 pc
Spare - 1 pc
A
02
READY
TO
ASSEMBLE
Allen wrench
Adult assembly
A
2 1/2" Allen screw
Page 1 of 2
