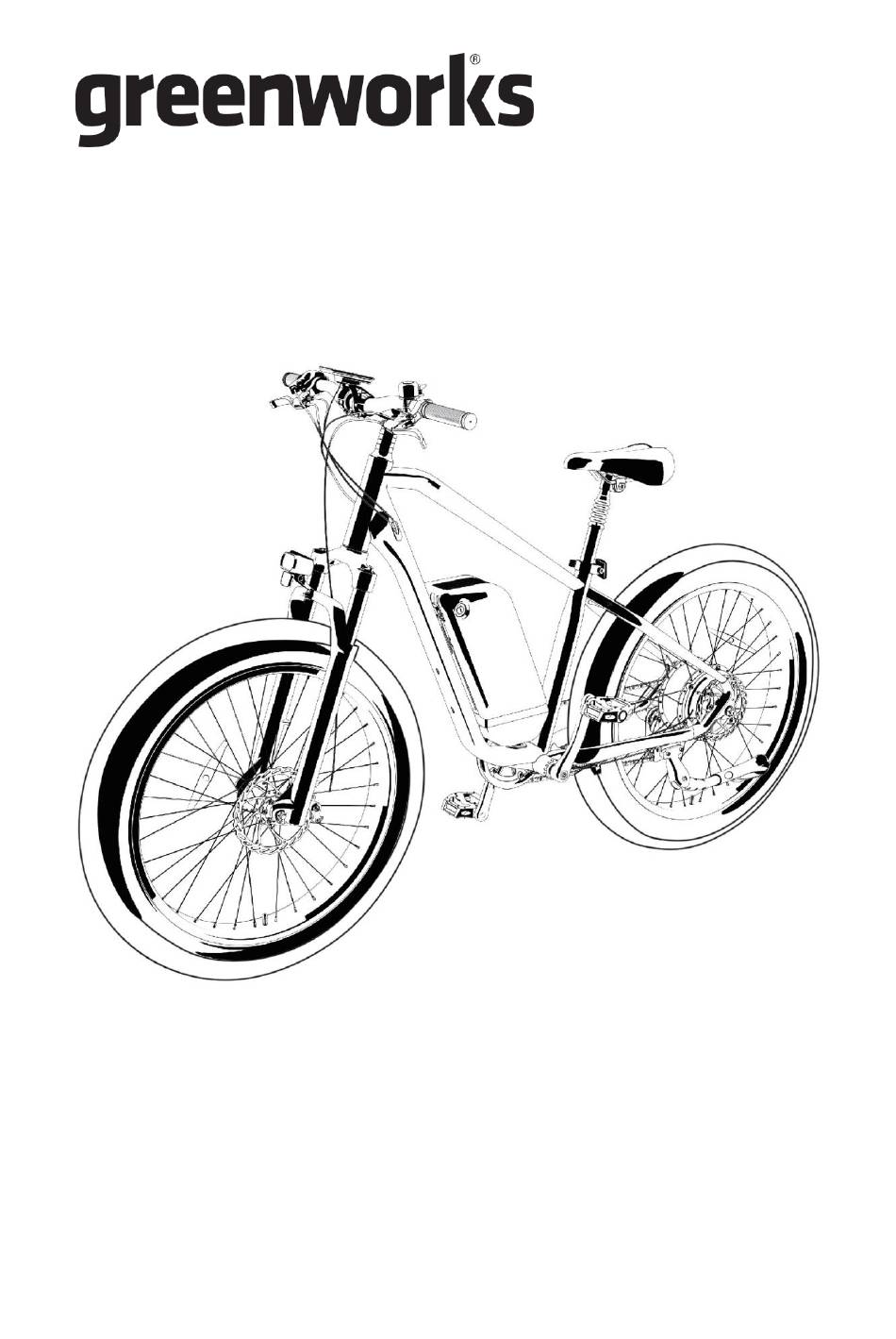

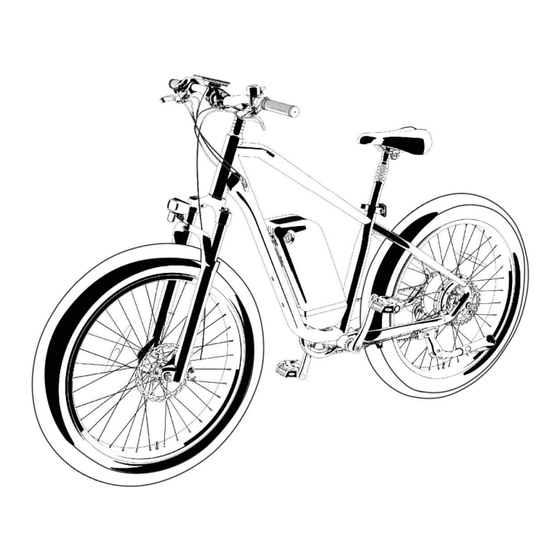

- Page 1 80V E-BIKE 26INCHES SERVICE MANUAL OVB916 www.greenworkstools.com REV1.0...
-
Page 2: Table Of Contents
CONTENTS General Information LABELS-WARNING/SAFETY ....................3 LABELS-BRAND/MODEL ...................... 5 Body and Structures System FRAME ASSEMBLY....................... 7 BATTERY COVER ASSEMBLY ..................... 8 Electrical System CONTROLLERS PARTS ....................... 9 WIRE HARNESS ASSEMBLY ..................... 10 METER PARTS ........................11 LIGHTS PARTS ........................12 OTHERS .......................... -
Page 3: Labels-Warning/Safety
LABELS-WARNING/SAFETY 11-01 11-02 11-03 11-04 11-05 11-06 11-1 REV1.0... - Page 4 ITEM NO. PART NO. DESCRIPTION 11-01 R0207508-00 No Passengers – Warning Label 11-02 R0207509-00 Under 14 Years Of Age Prohibited – Warning Label 11-03 R0207510-00 Anti-scald - Warning label 11-04 R0108553-00 Bluetooth Module – Warning Label 11-05 R0208022-00 Tire Pressure Label 11-06 R0207507-00 Anti-scald - Warning Label...
-
Page 5: Labels-Brand/Model
LABELS-BRAND/MODEL 12-01 12-02 12-03 12-04 12-1 REV1.0... - Page 6 ITEM NO. PART NO. DESCRIPTION 12-01 R0207505-00 Grade Label 12-02 R0208023-00 Nameplate Label 12-03 R0207514-00 GW Logo Label 12-04 R0208018-00 SN Label 12-2 REV1.0...
-
Page 7: Frame Assembly
FRAME ASSEMBLY ITEM NO. PART NO. DESCRIPTION 21-01 R0206498-00 Bell 21-02 R0206502-00 Pedal 21-03 R0207736-00 Chains 21-04 R0207737-00 Kickstand 21-05 R0207558-00 Wheel reflector 21-1 REV1.0... -
Page 8: Battery Cover Assembly
BATTERY COVER ASSEMBLY ITEM NO. PART NO. DESCRIPTION 22-01 R0207559-00 Upper Cover Assembly 22-1 REV1.0... -
Page 9: Controllers Parts
CONTROLLERS PARTS ITEM NO. PART NO. DESCRIPTION 31-01 R0206495-00 Controller 31-1 REV1.0... -
Page 10: Wire Harness Assembly
WIRE HARNESS ASSEMBLY ITEM NO. PART NO. DESCRIPTION 32-01 R0206503-00 Waterproof Cable 32-1 REV1.0... -
Page 11: Meter Parts
METER PARTS ITEM NO. PART NO. DESCRIPTION 33-01 R0206499-00 Display 33-1 REV1.0... -
Page 12: Lights Parts
LIGHTS PARTS ITEM NO. PART NO. DESCRIPTION 34-01 R0206500-00 Headlight 34-1 REV1.0... -
Page 13: Others
OTHERS ITEM NO. PART NO. DESCRIPTION 35-01 R0207561-00 Speed Control Handle 35-1 REV1.0... -
Page 14: Wheel Assembly
WHEEL ASSEMBLY ITEM NO. PART NO. DESCRIPTION 41-01 R0207050-00 Tire 41-02 R0207051-00 Tube 41-03 R0207738-00 Wheel Hub 41-1 REV1.0... -
Page 15: Drive Motor And Transmission Parts
DRIVE MOTOR AND TRANSMISSION PARTS ITEM NO. PART NO. DESCRIPTION 42-01 R0206496-00 Motor Wheel 42-02 R0207739-00 Chainwheel 42-03 R0207565-00 Cogset 42-1 REV1.0... -
Page 16: Seat
SEAT ITEM NO. PART NO. DESCRIPTION 51-01 R0206497-00 Saddle 51-1 REV1.0... -
Page 17: Braking System
BRAKING SYSTEM ITEM NO. PART NO. DESCRIPTION 52-01 R0206494-00 Disc Plate 52-02 R0207566-00 Brake Handle 52-1 REV1.0...
