You can access the user manual in the app by clicking on the icon
installation. If the module is already installed, go to the "Settings" tab in the "My Pool Extender" sub-menu.
This manual is also available online:
• Please observe the installation and operating conditions in the user manual. You can download this
manual through the MyIndygo app.
• POOL EXTENDER is exclusively for use with private family pools.
• Only accredited professionals can install and carry out maintenance operations, as per applicable
standards.
• During work, the electrical power supply must be shut down.
1
– Overall presentation
POOL EXTENDER is a smart management module for private pools enabling automatic, intelligent
management for the four auxiliary equipment items – operations and programming (lighting, heat
pump, robotic pool cleaner, water treatment, etc.).
You can control POOL EXTENDER locally via Bluetooth or remotely by linking it to the LR-MB-POOL
communication gateway to connect it to the Internet.
2
– Unit installation and wiring
There are several ways to connect the unit to
install POOL EXTENDER. View the user manual
available on the mobile app at the beginning of
the installation for more details.

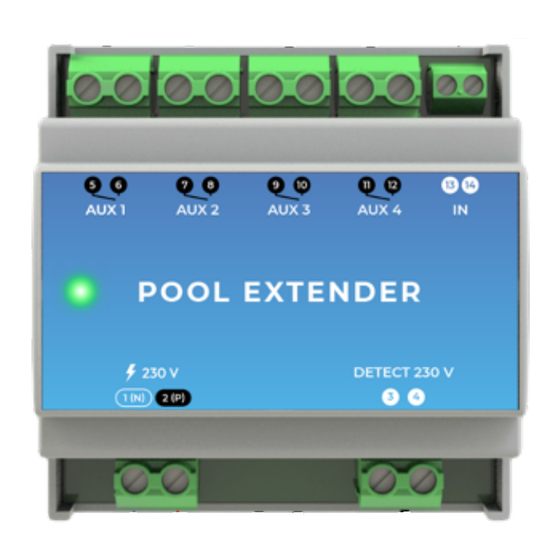

The product must be powered with 230 VAC
(terminals 1-2)
It has :
•
4 x 16 A auxiliary relays to control the four
auxiliary equipment items
(terminals 5-6, 7-8, 9-10 et 11-12)
•
1 x 230 VAC detection input
to slave the auxiliary equipment items in a
given mode: heat pump/robotic pool
cleaner/water treatment/other
•
1 x NO-NC dry contact input
14)
to control auxiliary equipment items in a given mode: lighting/other
You can access the controls and data in the MyIndygo app or https://myindygo.com/.
The connections for other types of equipment are given in the user manual.
myindygo by SOLEM - 5, rue Georges Besse - 34830 Clapiers
ACCESSING THE USER MANUAL
https://support.myindygo.com
REMINDER
(terminals 3-4)
(terminals 13-
POOL EXTENDER
QUICK START GUIDE
in the top right at the start of module
60NOTIGUIDELREXTEN[-0922-]
QUICK GUIDE LR-EXT
EN
