Summary of Contents for Solem LR-OL

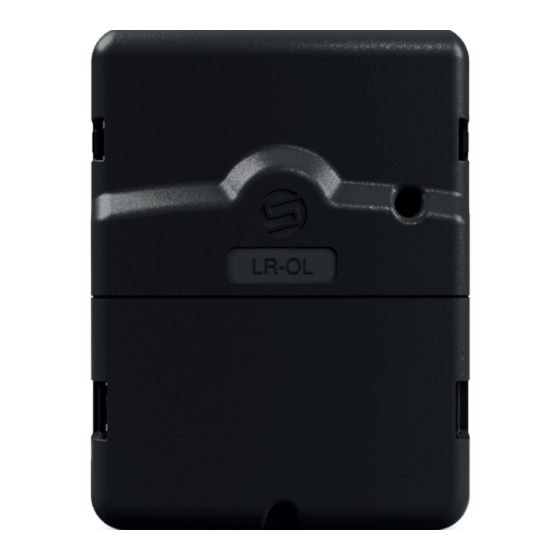

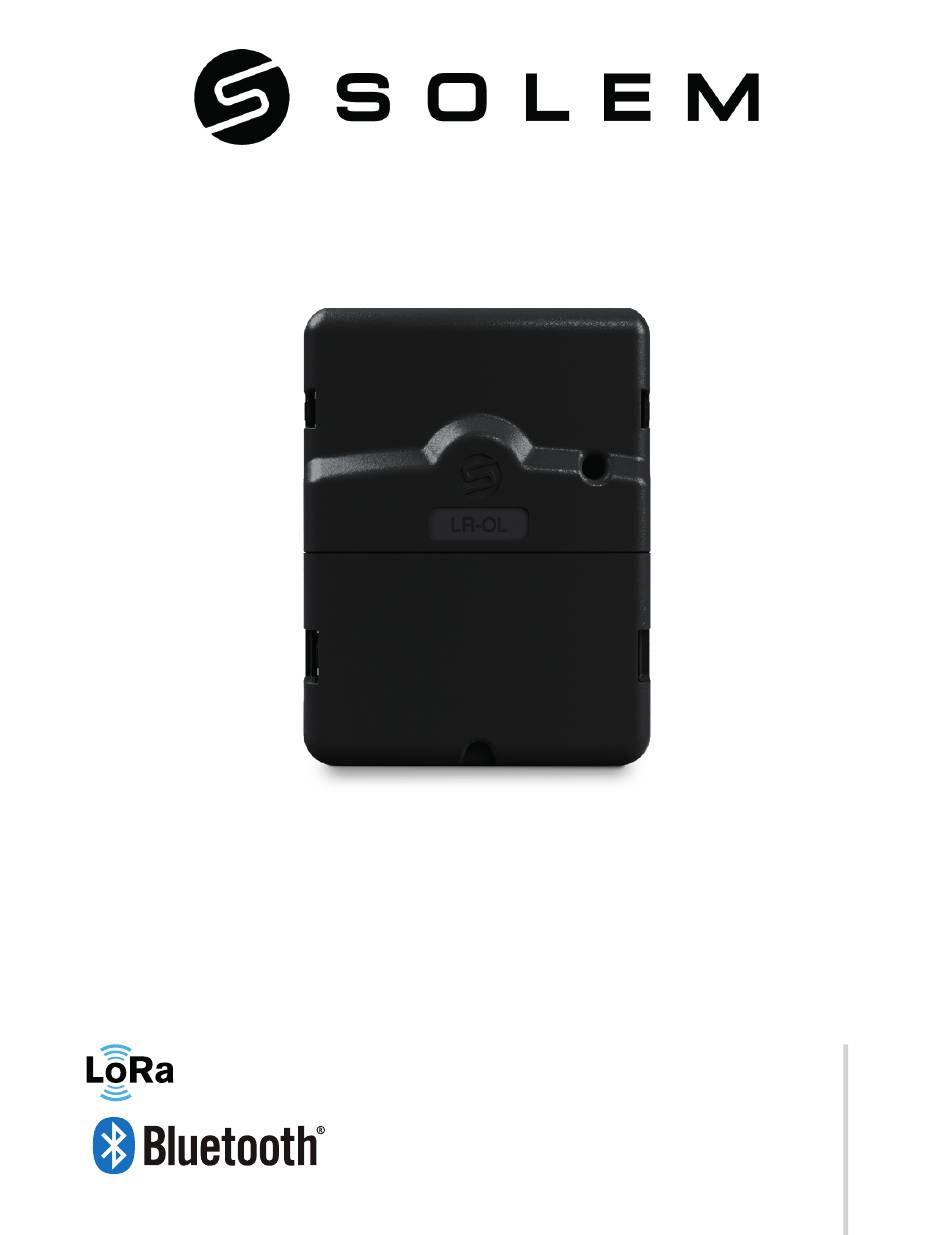

- Page 1 THE CONNECTED IRRIGATION EXPERT LR-OL QUICK INSTALLATION GUIDE...
-
Page 2: Create An Account
(lighting, swimming pool, fountain) from a single application. Simple and practical, it is the ideal solution to ingeniously illuminate your garden. The LR-OL can be controlled by bluetooth or paired with an LR-MB10 or LR-MB30 (Wi-Fi/LoRa relay) or an LR-BST. Étape 1 DOWNLOADING 1. - Page 3 Step 2 PAIRING 1. Remove the lower hatch from the LR-OL to reveal the terminal block. 2. Plug in the 220V/24Vac power supply provided. 3. Start the MySOLEM app from your smartphone and/or tablet. 4. Press the «Add a Controller» button or the «+» button.
- Page 4 Once the combination is complete, you can test the connection between your LR-MB10/30 and your LR-OL: 6. Go back to «Remote access» screen of LR-OL, previously seen. 7. Press the button to start the test.
- Page 5 5. Select the original LR-BST from the list. Once the combination is complete, you can test the connection between your LR-BST and your LR-OL 6. Go back to «Remote access» screen of LR-OL, previously seen. 7. Click on the button to start the test.
-
Page 6: Installation
Several types of installation are possible for your LR-OL. Choose the example that you think is best for your situation. The LR-OL product has 4 relays (250V 16A), which can connect up to 3500 W on a single line. To avoid overheating and deterioration of the device, it is not necessary to exceed 4000 W distributed over the 4 relays. - Page 7 2. Simple installation without power contactor Pump Pump < 400W Pompe Pompe < 400W < 400W Terre Bleu 3. Simple installation with power contactor When there is a greater need for power, including starting (e.g., a pool pump Rouge with a power of more than 400W), you can inteleave a power contactor or water heater delay between the controller and your device.
- Page 8 What are the features required for the Bluetooth® product to work? Android 4.3 and top phones and tablets equipped with Bluetooth Smart 4.0 and higher. Apple iPhone or iPad with iOS 9.0. How can I resume the association or start-up procedure from scratch? To resume an initialization procedure, simply unplug and reconnect the power supply.
-
Page 9: General Information
GENERAL INFORMATION READ THE FOLLOWING SAFETY INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR USING THE LR-OL. BE SURE TO STRICTLY FOLLOW THE PRECAUTIONS OF USE. The LR-OL must be installed indoors or under cover. Install your product so that the socket outlet base is close to the material. -
Page 10: Technical Features
TECHNICAL FEATURES DIMENSIONS Width: 11 cm Height: 14,3 cm Depth: 4,2 cm INSTALLATION Indoors or under cover. Connection: 4 relay 250VAC 16A . 3500W Max per relay. Temperature of use: from -20C to 60C Qualifying humidity: 90% (relative humidity). POWER SUPPLY : transformer : 230V ~ 50Hz / OUTPUT : 24V ~ 0.75A 50Hz FEATURES Bluetooth...
