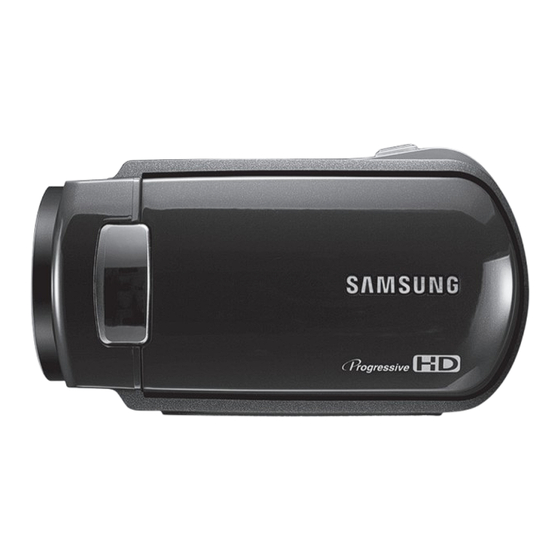

SC-HMX10 SC-HMX10A SC-HMX10C High Definition Digital Camcorder user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register...
Page 2 key features of your HD camcorder The HD camcorder is capable of recording and playing back both High Definition (HD: 1280x720p) and Standard Definition (SD: 720x480p) image quality. Select the recording image quality, HD (high definition) or SD (standard definition), before recording.
Page 3 • This HD camcorder supports Anynet+. Anynet+ is an AV network system that enables you to control all connected Samsung AV devices with an Anynet+ supported Samsung TV remote control. Refer to the corresponding TV’s user manual for more details.
Page 4: Safety Warnings
safety warnings What the icons and signs in this user manual mean; Means that death or serious personal injury is a risk. WARNING Means that there is a potential risk for personal injury or material damage. CAUTION To reduce the risk of fire, explosion, electric shock, or personal injury when using your HD camcorder, follow these basic safety precautions: CAUTION Means hints or referential pages that may be helpful when operating the HD camcorder.
Page 5: Important Safety Instructions
important safety instructions 1. Read these instructions. 12. Use only with the cart, stand, tripod, bracket, or table specified by the 2. Keep these instructions. manufacturer, or sold with the apparatus. 3. Heed all warnings. When a cart is used, use caution when 4.
Page 6 important safety instructions 17. POWER SOURCES: 70-1984, provides information with respect to proper The CAMCORDER should be operated only from the grounding of the mast and supporting structure, type of power source indicated on the label. If you are grounding of the lead-in wire and supporting structure, not sure of the type of power supply at your home, grounding of the mast and supporting structure, consult your appliance dealer or local power company.
Page 7 22. POWER LINES: a. When the power-supply cord or plug is damaged. An outside antenna system should not be located in b. If any liquid has been spilled onto, or objects have the vicinity of overhead power lines or other electric fallen into the CAMCORDER.
Page 8 TO LOCAL, STATE OR FEDERAL LAWS. For details see FCC Warning The user is cautioned that changes or modifications not lamprecycle.org, eiae.org, or call 1-800-Samsung (7267864) expressly approved by the manufacturer could void the user’s authority to operate the equipment.
Page 9: Important Information On Use
Play back your trial recording to make sure the video and audio have been recorded properly. • The recorded contents cannot be compensated for: - Samsung cannot compensate for any damage caused when a recording cannot be played back because of a defect in the HD camcorder or memory card.
Page 10 The SC-HMX10A and SC-HMX10C have a 4GB and 8 GB built-in flash memory respectively but also use memory cards. The SC-HMX10 does not have built-in flash memory and uses memory cards exclusively. Although some features of SC-HMX10, SC-HMX10A and SC-HMX10C are different, they operate in the same way.
Page 11: Precautions When Using
precautions when using IMPORTANT NOTE • Handle the liquid crystal display (LCD) with care: - The LCD is a very delicate display device: Do not press its surface with force, hit it or prick it with a sharp object. - If you push the LCD surface, unevenness in display may occur. If unevenness does not disappear, turn the camcorder off, wait for a few moments, and then turn it on again.
Page 12 precautions when using • Be careful of ambient temperature: - Using the HD camcorder in a place where the temperature is over 140°F (60°C) or under 32°F (0°C) will result in abnormal recording/playback. - Do not leave the HD camcorder on a beach or in a closed vehicle where the temperature is very high for a long time: This could cause a malfunction.
Page 13: Table Of Contents
contents INTRODUCTION TO BASIC FEATURES What’s included with your HD camcorder GETTING TO KNOW YOUR HD Front & left view CAMCORDER Right & top view Rear & bottom view PREPARATION Using the remote control Installing the button type battery Using the cradle Holding the HD camcorder Charging the battery pack Basic HD camcorder operation...
Page 14 contents RECORDING Recording movie images Taking photo images Recording with ease for beginners (EASY Q mode) Capturing still images during movie images playback Using the external microphone Zooming Self record using the remote control PLAYBACK Changing the playback mode Playing movie images Viewing photo images CONNECTION Connecting to a TV...
Page 15 EDITING MOVIE IMAGES Deleting a section of a movie image Dividing a movie image Combining two movie images Playlist IMAGE MANAGEMENT Protection from accidental erasure Deleting images Copying images (SC-HMX10A/HMX10C only) Moving images (SC-HMX10A/HMX10C only) PRINTING PHOTO IMAGES DPOF print setting Direct printing with a PictBridge printer CONNECTING TO A PC System requirements...
Page 16 contents MAINTENANCE & ADDITIONAL Maintenance Additional information INFORMATION Using your HD camcorder abroad TROUBLESHOOTING Troubleshooting SPECIFICATIONS WARRANTY 04_ English...
Page 17 introduction to basic features This chapter introduces you to the basic features of your HD camcorder. See the reference pages below for more information. Step 1 Preparation INSERT INSERT BATTERY BATTERY • Charging the battery pack page 13 PACK PACK •...
Page 18: What's Included With Your Hd Camcorder
 Parts and accessories are available at your local Samsung dealer.  * : Not included with your camcorder. To buy this optional accessory, contact your nearest Samsung dealer.  A memory card is not included. See page 29 for memory cards compatible with your HD camcorder.
Page 19 FRONT & LEFT VIEW Recording indicator COMPONENT / AV / S-Video ( ) jack LED Light RESET button Remote sensor HDMI jack Lens Jack cover Internal microphone TFT LCD screen (Touch panel) Built-in speaker Recording start/stop button ) / iCHECK button Display ( Zoom (W/T) button LCD enhancer (...
Page 20 getting to know your HD camcorder RIGHT & TOP VIEW CLOSE OPEN PHOTO button Battery pack / Memory card cover Zoom (W/T) lever Grip belt hook Battery pack slot Grip belt BATT. RELEASE switch Swivel handle Memory card slot Lens open / close switch 08_ English...
Page 21 REAR & BOTTOM VIEW MODE button / Mode indicator POWER switch External microphone (MIC) jack (Movie ( ) / Photo ( ) / Play ( ) mode) Charging (CHG) indicator EASY Q button Tripod receptacle DC IN jack Recording start/stop button Cradle receptacle English _09...
Page 22: Using The Remote Control
preparation This section provides information on using this HD camcorder; such as how to use the provided accessories, how to charge the battery, how to setup the operation mode and initial setup. USING THE REMOTE CONTROL START/STOP button DISPLAY button Skip ( ) button Stop (...
Page 23: Installing The Button Type Battery
INSTALLING THE BUTTON TYPE BATTERY Installing the button type battery in the remote control 1. Turn the battery holder counterclockwise (as indicated with () mark) using your fingernail or a coin to open it. The battery holder opens. 2. Insert the battery into the battery holder with the positive (+) terminal facing down and press it firmly until you hear a locking sound.
Page 24: Holding The Hd Camcorder
preparation HOLDING THE HD CAMCORDER Attaching the grip belt Insert your right hand from the bottom of the HD camcorder up to the base of your thumb. Put your hand in a position where you can easily operate the Recording start/stop button, PHOTO button, and the Zoom lever.
Page 25: Charging The Battery Pack
• It is recommended you purchase one or more additional battery packs to allow continuous use of your HD camcorder. Use only Samsung-approved battery packs. Do not use batteries from other manufacturers. Otherwise, there is a danger of overheating, fire or explosion.
Page 26: Charging Indicator
• Measured times shown above are based on model SC-HMX10A. (Times for SC-HMX10/HMX10C are almost the same) • The time is only for reference. Figures showed above are measured under Samsung’s test environment, and may differ from your actual use.
Page 27 • Gently slide the BATT. RELEASE switch in the direction as shown in the figure. 3. Slide and close the battery pack cover. • Additional battery packs are available at your local Samsung dealer. • If the HD camcorder will not be in use for a while, remove the battery pack from the HD camcorder.
Page 28 • The recording time is affected by temperature and environmental conditions. • We recommend only using the original battery pack that is available from your Samsung retailer. When the battery reaches the end of its life, please contact your local dealer.
Page 29: Basic Hd Camcorder Operation
BASIC HD CAMCORDER OPERATION Set the appropriate operation mode according to your preference using the POWER switch and MODE button. Turning the HD camcorder on and off You can turn the camcorder on or off by sliding the POWER switch downward. Mode indicator •...
Page 30: Screen Indicators
preparation SCREEN INDICATORS Movie record mode Movie record mode Operating mode (STBY (standby) or  (recording)) Time counter (movie recording time) / Self timer* Warning indicators and messages STBY 00:00:00 [44Min] Remaining recordable time Storage media (built-in memory (SC-HMX10A/HMX10C only) or memory card) Battery info.(remaining battery level/time) Movie image quality Open Lens Cover...
Page 31 Movie play mode Movie play mode Operating status (Play/Pause) File name (file number) 00:00:20 / 00:10:00 Time code (elapsed time / recorded time) 100-0001 Warning indicators and messages/Volume control JAN/01/2007 Storage media (built-in memory (SC-HMX10A/ 12:00 AM HMX10C only) or memory card) Battery info.(Remaining battery level/time) Memory full! LCD enhancer...
Page 32 preparation Photo record mode Photo record mode Self timer* Warning indicators and messages 7697 Image counter (total number of recordable photo images) Storage media (built-in memory (SC-HMX10A/ HMX10C only) or memory card) Open Lens Cover Battery info.(remaining battery level/time) LCD enhancer JAN/01/2007 12:00 AM Cont.
Page 33: Photo Play Mode
Photo play mode Photo play mode Slide show / Playback zoom 1 / 12 File name (file number) 100-0001 Image counter JAN/01/2007 (current image / total number of recorded images) 12:00 AM Storage media (built-in memory (SC-HMX10A/ HMX10C only) or memory card) Battery info.
Page 34: Using The Lcd Enhancer
preparation USING THE DISPLAY ( )/iCHECK BUTTON Switching the information display mode You can switch between the on-screen information display modes: Press the Display ( )/iCHECK button. The full and minimum display modes will alternate. • Full display mode: All information will appear. •...
Page 35: Using The Lcd Screen
USING THE LCD SCREEN Adjusting the LCD screen 1. Open up the LCD screen 90 degrees with your finger. 2. Rotate it to the best angle to record or play. Do not lift the HD camcorder by holding the LCD screen. WARNING •...
Page 36: Selecting The Osd Language
preparation INITIAL SETTING: OSD LANGUAGE & DATE AND TIME To read the menus or messages in your desired language, set the OSD language. To store the date and time during recording, set the date/time. STBY 00:00:00 [44Min] Selecting the OSD language You can select the desired language to display the menu screen and the messages.
Page 37: Setting The Date And Time
Setting the date and time Set the date and time when using this HD camcorder for the first time. STBY 00:00:00 [44Min] 1. Touch Menu ( ) tab. 2. Touch Settings ( ) tab. 3. Touch up ( )/down ( ) tab until “Date/Time Set”...
Page 38: Selecting The Storage Media (Sc-Hmx10A/Hmx10C Only
before recording SELECTING THE STORAGE MEDIA (SC-HMX10A/HMX10C only) You can record movie and photo images on the built-in memory or a memory card, so you should select the desired storage media before starting recording or playback. Using the built-in memory •...
Page 39: Inserting/Ejecting A Memory Card
INSERTING/EJECTING A MEMORY CARD Inserting a memory card 1. Slide and open the memory card cover. 2. Insert the memory card into the slot until it softly clicks. • Make sure that the terminal portion is facing up and the camcorder is placed as shown in the figure.
Page 40: Recordable Time And Number Of Images
Approx. 78121 Approx. 156242 • The above figures are measured under Samsung’s standard recording test conditions and may differ depending on actual use. • The HD camcorder provides five quality options for movie recordings: “[HD] Super Fine,” “[HD] Fine,” “[HD] Normal,”...
Page 41: Selecting A Suitable Memory Card
SELECTING A SUITABLE MEMORY CARD • You can use a SDHC memory card and MMCplus cards. - You can also use a SD memory card, but we recommended that you use a SDHC memory card and MMCplus with your HD camcorder. (SD card supports upto 2GB.) •...
Page 42: Before Recording
• Be careful to keep memory card out of the reach of children, who might swallow it. Note on use • Samsung is not responsible for data loss due to misuse. • We recommend using a memory card case to avoid losing data from moving and static electricity.
Page 43: Recording Movie Images
recording Basic procedures to record a movie or photo image are described below and on the following pages. RECORDING MOVIE IMAGES • You can record movie images in Movie mode only. page 17 • This HD camcorder provides two Recording start/stop buttons. One is on the rear side of the camcorder and the other is on the LCD panel.
Page 44 recording • Movie images are compressed in H.264 (MPEG-4.AVC) format. • Eject the battery pack when you have finished recording to prevent unnecessary battery power consumption. • For on-screen information display, see page 18. • For approximate recording time, see page 28. •...
Page 45: Taking Photo Images
TAKING PHOTO IMAGES • You can take photo images in Photo mode only. page 17 1. Slide the POWER switch downward to turn on the power and press the MODE button to set Photo ( ). page 17 • Set the appropriate storage media. (SC-HMX10A/HMX10C only) page 26 (If you want to record on a memory card, insert the memory card.) ��...
Page 46: Recording With Ease For Beginners (Easy Q Mode
recording RECORDING WITH EASE FOR BEGINNERS (EASY Q MODE) • The EASY Q function is only available with the Movie and Photo modes. page 17 • With the EASY Q function, most of the HD camcorder settings are automatically adjusted, which frees you from making detailed adjustments. 1.
Page 47: Capturing Still Images During Movie Images Playback
CAPTURING STILL IMAGES DURING MOVIE IMAGES PLAYBACK • This function works only in Play mode. page 17 • If you press the PHOTO button during playback, the camcorder stops playing and saves one image of the current movie scene that is paused. •...
Page 48: Using The External Microphone
recording USING THE EXTERNAL MICROPHONE Connect external microphone (optional-user provided) to the external microphone jack of this HD camcorder for clearer audio recordings. Turn on the switch on microphone and start recording. • This HD camcorder cannot use a plug-in power type microphone (power supplied from camcorder).
Page 49: Self Record Using The Remote Control
SELF RECORD USING THE REMOTE CONTROL • The SELF TIMER function works only in Movie and Photo modes. page 17 • When you use the SELF TIMER function on the remote control, recording begins automatically in 10 seconds. 1. Press the SELF TIMER button. •...
Page 50: Changing The Playback Mode
playback You can view recorded movie and photo images in thumbnail index view and play them in various ways. CHANGING THE PLAYBACK MODE • You can set the movie recording, the photo recording and the play mode in turn with the MODE button. •...
Page 51: Playing Movie Images
PLAYING MOVIE IMAGES • This function works only in Play Mode. page 17 • You can find a desired movie image quickly using thumbnail index views. • You can also use the playback related buttons on the remote control. page 40 1.
Page 52: Various Playback Operations
playback Various playback operations Playback / Pause / Stop • Play and Pause functions alternate when you touch Playback ( )/Pause ( 00:00:20 / 00:30:00 tab during playback. Touch Return ( ) tab to stop playback. 100-0001 • You can do the same operation by using the remote control. ( •...
Page 53: Viewing Photo Images
VIEWING PHOTO IMAGES • This function works only in Play mode. page 17 • You can play back and view photo images recorded on the storage media. 1. Slide the POWER switch downward to turn on the power and press the MODE button to set Play ( •...
Page 54: Zooming During Playback
playback Zooming during playback You can magnify the playback image from about 1.1 to 8 times the original size. Magnification can be adjusted with the Zoom lever or the Zoom button on LCD panel. 1. Touch the image to want to magnify. �...
Page 55: Connecting To A Tv
The HDMI jack on your HD camcorder is for output use only. • You can use the Anynet+ function by connecting the HD camcorder to a Samsung Anynet+ supported TV with the HDMI cable. Refer to the corresponding TV’s user manual for more details.
Page 56 connection Connecting to a normal TV (16:9/4:3) • The connection is used when downconverting recorded HD images to SD for playback. • When playing back HD-quality (1280x720) movie images on a SDTV, the images are down-converted to 720x480. • The multi-AV cable does not support HD-quality images so it down-converts them to SD-quality images. •...
Page 57: Viewing On Tv Screen
Viewing on TV screen 1. Slide the POWER switch downward to turn on the power and press the MODE button to set Play ( page 17 2. Turn on the TV and set the input source on the TV to the input connection the HD camcorder is connected to. •...
Page 58: Dubbing Images On A Vcr Or Dvd/Hdd Recorder
connection • Adjust the sound volume on the TV. • The remote control is useful when operating the HD camcorder while viewing an image on a TV screen. • Information that the HD camcorder is recording will appear on the TV screen: You can switch between the on-screen information display modes.
Page 59: Handling Menus And Quick Menus
using the menu items You can operate the HD camcorder more usefully by setting menus related to recording, playback and setting. HANDLING MENUS AND QUICK MENUS • You can change the menu settings to customize your HD camcorder. Access the desired menu screen by following the steps below and change the various settings.
Page 60: Using The Menu Items
using the menu items STBY 00:00:00 [44Min] ✪ Follow the instruction below to use each of the menu items listed after this page. For example: setting the White Balance in movie mode When using Menu ( ) tab; 1. Touch Menu ( ) tab.
Page 61: Menu Items
MENU ITEMS • Accessible items in menu vary depending on the operation mode. • For operation details, see the corresponding page. : Possible  Recording menu items ( : Not possible Operating mode Movie ( Default value Page Photo ( Scene Mode (AE) Auto ...
Page 62 using the menu items Setting menu items ( Operating mode Default value Page Date/Time Set Date/Time File No. Series LCD Control Bright 18 / Contrast 18 Storage Info Format Beep Sound Shutter Sound Auto Power Off 5 min LED Light Rec Lamp Remote USB Connect...
Page 63: Quick Menu Items
QUICK MENU ITEMS • Accessible items in quick menu vary depending on the operation mode. • For operation details, see the corresponding page. : Possible  Recording menu items : Not possible Operating mode Movie ( Photo ( Default value Page Storage* Memory...
Page 64: Recording Menu Items
using the menu items RECORDING MENU ITEMS You can setup the menu items for movie and photo images recording. Scene Mode (AE) This HD camcorder automatically sets the shutter speed and aperture according to the subject brightness for optimum recording: You can also specify one of five modes depending on subject conditions, recording environment or purpose of filming.
Page 65: White Balance
White Balance This HD camcorder automatically adjusts the color of subject. Change the white balance setting depending on the recording conditions. On-screen Settings Contents display Auto This option is generally used to control the white balance automatically. None This controls the white balance according to the outdoor ambience, especially for Daylight close up and when the subject is of one dominant color.
Page 66 using the menu items • A subject can be shot under various types of lighting conditions indoors (natural, fluorescent, candlelight, etc.). Because the color temperature is different depending on the light source, the subject tint will differ depending on the white balance settings. Use this function for a more natural result. •...
Page 67 Manual exposure is recommended in situations listed below: • When shooting using reverse lighting or when the background is too bright. • When shooting on a reflective natural background such as at the beach or when skiing. • When the background is overly dark or the subject is bright. •...
Page 68: Digital Effect
using the menu items Digital Effect The digital effect enables you to give a creative look to your recording. Select the appropriate digital effect for the type of picture that you wish to record and the effect you wish to create. There are 4 different digital effect options.
Page 69 Focusing manually during recording This HD camcorder automatically focuses a subject from close-up to infinity. Focus However, the correct focus may not be obtained depending on the recording condition. In this case, use the manual focus mode. 1. Touch “Focus”  “Manual.” •...
Page 70 using the menu items Shutter The HD camcorder automatically sets the shutter speed depending on the subject brightness. You can also manually adjust the shutter speed according to the scene conditions. On-screen Settings Contents display Auto The HD camcorder automatically sets the appropriate aperture value. None Shutter speed can be set to 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, or Manual...
Page 71: Tele Macro
• If you manually change the shutter speed value when “Scene Mode (AE)” function is selected, manual changes are applied first. • The image may not seem smooth when a high shutter speed is set. • This function will be set to “Auto” in the EASY Q mode. •...
Page 72: Wind Cut
using the menu items Quality • You can select the quality of a movie to be recorded. • Regarding detailed image capacity, see page 28. On-screen Settings Contents display [HD] Super Fine Records in the HD format the highest quality mode. (Approx. 12Mbps) [HD] Fine Records in the HD format high quality mode.
Page 73: Back Light
Back Light When subject is lit from behind, this function will compensate for lighting so that the subject is not too dark. On-screen Settings Contents display Disables the function. None - Backlight compensation is executed. - Backlight compensation brightens the subject quickly. Back lighting influences recording when the subject is darker than the background: - The subject is in front of a window.
Page 74: Digital Zoom
using the menu items Fade in Press the Recording start/stop button when “Fader” is set to “On.” Fade in (approx. 3 seconds) Recording starts with a dark screen and then the image and sound are faded in. (fade in). Fade out When you want to stop recording with fade out, set “Fader”...
Page 75 Resolution You can select the resolution of photo images to record. On-screen Settings Contents display 2048x1536 Select to record at high resolution. Select to record at medium resolution. 1440x1080 Select to record at low resolution. 640x480 • See page 28 for information on the camcorder’s image storage capacity. •...
Page 76: Playback Menu Items
using the menu items Guideline • Guideline displays a certain pattern on the LCD screen so that you can easily set the image composition when recording movie or photo images. • The HD camcorder provides 3 types of guidelines. • Positioning the subject at the cross point of the guideline makes a balanced composition.
Page 77: File Info
• The images are captured continuously while the PHOTO button is pressed. - The number of the captured images varies depending on how long the PHOTO button is pressed. - The interval that the images are captured continuously varies according to the continuous capture option. •...
Page 78: Setting Menu Items
using the menu items SETTING MENU ITEMS You can setup the date/time, OSD language, video output, and display settings of the HD camcorder. Date/Time Set Set the current date and time so they can be recorded correctly. page 25 Date/Time You can set to set the date and time to display on the LCD screen.
Page 79: Storage Info
You can view the used space, available space, and the recordable time on the built-in memory. You can view the used space, available space, and the recordable time on the memory card. Card The memory card’s information appears by touching “Storage Info.” (SC-HMX10 only) English _67...
Page 80: Beep Sound
• A memory card with the protection tab set to lock will not be formatted. page 29 • Format does not perform if the battery is low. • The memory card format is executed by touching “Format.” (SC-HMX10 only) Beep Sound You can turn the beep sound on or off.
Page 81: Auto Power Off
Auto Power Off You can set the HD camcorder to automatically turn off when there is no operation for 5 minutes. On-screen Settings Contents display The HD camcorder does not turn off automatically. None For power saving purposes, the HD camcorder will automatically turn off if there is no 5 min None operation for 5 minutes only in standby mode.
Page 82: Usb Connect
• TV type is set to on automatically when an HDMI cable is connected, so this function is deactivated. Anynet+ (HDMI-CEC) Anynet+ is an AV network system that enables you to control all connected Samsung AV devices with an Anynet+ supported Samsung TV’s remote control. You can use the Anynet+ function by connecting the HD camcorder to an Anynet+ supported TV with an HDMI cable and by setting “Anynet+ (HDMI-CEC)”...
Page 83: Default Set
Component Out You can set the component video output to match the TV you have connected. On-screen Settings Contents display The video signals are output in the same format as the recorded file. Use this setting Auto only when connecting to an HDTV. When “Auto” is selected, an indicator does not None appear on the screen.
Page 84: Deleting A Section Of A Movie Image
editing movie images You can edit recorded movie images in various ways. To use Partial Delete, Divide, or Combine 10MB of extra space is needed on the storage media. Movie image editing cannot be performed when the battery is low. DELETING A SECTION OF A MOVIE IMAGE •...
Page 85: Dividing A Movie Image
DIVIDING A MOVIE IMAGE • This function works only in Play mode. page 17 Edit • You can divide a movie image as many times as you want in order to delete a section you no longer need. The movie images will be divided in groups of two. Partial Delete To divide a movie image Divide...
Page 86 editing movie images Example: You can divide a movie image into two in order to delete a section you no longer need. Before dividing 0~60 seconds The movie image is divided into two movie images. After image is divided at 30 second point 0~30 seconds 31~60 seconds After deleting first...
Page 87: Combining Two Movie Images
COMBINING TWO MOVIE IMAGES • This function works only in Play mode. page 17 • You can combine two different movie images. 1. Touch Menu ( ) tab  “Edit”  “Combine.” • If the movie image thumbnail you want to edit is not on the screen, touch up ( ) or down ( ) tab to scroll to the next group of options.
Page 88: Playlist
editing movie images PLAYLIST What’s the “Playlist?” The playlist is created by gathering your favorite recorded movie images. Since the playlist is not created by copying data, it will consume little of the storage capacity. When creating or deleting a playlist, the original movie image will not be erased.
Page 89: Creating The Playlist
Creating the playlist • This function works only in Play mode using the Q.MENU button. page 47 Storage Copy Delete • You can create a playlist on this HD camcorder by gathering your favorites from the recorded movie images. Since the playlist is not created by copying Edit Playlist Highlight...
Page 90 editing movie images Arranging the order of movie images within a playlist You can arrange movie images within a playlist by moving them to desired positions. Arrange 1. Touch “Playlist”  “HD” or “SD” (arranging playlist according to movie quality) ...
Page 91: Protection From Accidental Erasure
image management This chapter describes information about movie or photo file management tools such as protection, deletion, copy, and move. Image management cannot be performed when the battery is low. PROTECTION FROM ACCIDENTAL ERASURE • This function works only in Play mode. page 17 •...
Page 92: Deleting Images
image management DELETING IMAGES • This function works only in Play mode. page 17 • You can erase the images recorded on the storage media. • An image that has been deleted cannot be recovered. 1. Touch Movie ( ) tab or Photo ( ) tab.
Page 93: Copying Images (Sc-Hmx10A/Hmx10C Only
COPYING IMAGES (SC-HMX10A/HMX10C ONLY) • This function works only in Play mode. page 17 • You can copy images between the built-in memory and a memory card. • Images are copied to the destination storage while leaving original images in Play Option Play Option the source storage.
Page 94: Moving Images (Sc-Hmx10A/Hmx10C Only
image management MOVING IMAGES (SC-HMX10A/HMX10C ONLY) • This function works only in Play mode. page 17 • You can move images between built-in memory and memory card. • Images are moved to the destination storage. The original images (except read- only files) in the source storage are deleted.
Page 95: Dpof Print Setting
printing photo images You can print photo images by inserting the DPOF setting card to a DPOF-compatible printer or connecting the HD camcorder to the PictBridge printer. DPOF PRINT SETTING • Print Mark (DPOF) can be set only on photo images stored in the memory card. •...
Page 96: Direct Printing With A Pictbridge Printer
printing photo images DIRECT PRINTING WITH A PICTBRIDGE PRINTER If your printer is compatible with PictBridge, photo images can be HD camcorder printed easily by connecting the camcorder with the USB cable directly to the printer. DPOF setting can also be used. page 83 NOTICE: After selecting “PictBridge”...
Page 97: Pictbridge Menu
PictBridge menu Setting the date/time imprint option Touch Menu ( ) tab  “Date/Time”  “Off,” “Date,” “Time”, or “Date & Time”  Return ( ) tab. Date/Time To print using the DPOF setting If the printer is compatible with DPOF, you can use the DPOF setting. page 83 1 / 1 •...
Page 98: System Requirements
connecting to a PC This chapter explains how to connect the camcorder to a PC using the USB cable for various functions. ✪ When connecting a USB cable to a PC, refer to the software installation instructions and PC specifications below. SYSTEM REQUIREMENTS CyberLink DVD Suite The following requirements must be satisfied to use CyberLink DVD Suite.
Page 99: Installing The Cyberlink Dvd Suite
INSTALLING THE CyberLink DVD Suite DVD Suite is software for easily editing MPEG, AVI, and other video files, still images, and other contents for creating a movie. Before you begin: Quit any other software you are using. (Check that there are no other application icons on the status bar.) 1.
Page 100 5. “Customer Information” screen appears. • Click “Next.” 6. “Choose Destination Location” screen appears. • Choose the destination location which you want to install. • Click “Next.” 7. “Setup status” screen appears. • The installation progresses in order as follows “Power Starter”  ”Power DVD”  “Power Director”...
Page 101: Connecting The Usb Cable
CONNECTING THE USB CABLE To copy the movie files and photo files to your PC, connect your HD camcorder HD camcorder to the PC with a USB cable. 1. Set the “USB Connect” to “Mass Storage.” page 70 2. Connect the HD camcorder to the PC with a USB cable. •...
Page 102: Viewing The Contents Of Storage Media
connecting to a PC VIEWING THE CONTENTS OF STORAGE MEDIA 1. Slide the POWER switch downward to turn the HD camcorder on. • Set the “USB Connect” to “Mass Storage.” page 70 (It is set to “Mass Storage” by default when you purchase the HD camcorder.) •...
Page 103 Structure of folders and files on the storage media MISC • The folder and file structure for storage media is as follows: VIDEO • Don’t arbitrarily change or remove the folder or file name. It may not be playable. 100VIDEO •...
Page 104: Transferring Files From The Hd Camcorder To Your Pc
connecting to a PC Image format Movie image • Movie images are compressed in H.264 format. The file extension is “.MP4.” • The image size is 1280x720 (HD) or 720x480 (SD). page 60 Photo image • Photo images are compressed in JPEG (Joint Photographic Experts Group) format. The file extension is “.JPG.” •...
Page 105: Cautions When Storing
maintenance & additional information MAINTENANCE Your HD camcorder is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years. •...
Page 106: Additional Information
- Do not touch the metal parts. • Copy the recorded files to your PC. Samsung shall not be responsible for any lost data. (It is recommended that you copy the data from your PC to other media for storage.) •...
Page 107 - Remove from charger or powered unit when not in use, as these components may use current even when switched off. • It is recommended that only genuine Samsung batteries are used in this camcorder. Using generic non- Samsung batteries can cause damage to the internal charging circuitry.
Page 108: Using Your Hd Camcorder Abroad
maintenance & additional information USING YOUR HD CAMCORDER ABROAD • Each country or region has its own electric and color systems. • Before using your HD camcorder abroad, check the following items. • Power sources The provided AC adaptor features automatic voltage selection in the AC range from 100 V to 240 V. You can use your camcorder in any countries/regions using the AC power adaptor supplied with your camcorder within the AC 100 V to 240 V, 50/60 Hz range.
Page 109: Troubleshooting
TROUBLESHOOTING Before contacting a Samsung authorized service center, perform the following simple checks. They may save you the time and expense of an unnecessary call. Warning indicators and messages Battery pack Message Icon Informs that... Action The battery pack is almost discharged. • Replace with a charged battery or connect the AC Low Battery power adaptor.
Page 110 troubleshooting Message Icon Informs that... Action The write protection tab on an SD or Card Locked • Release write protection tab. SDHC card has been set to lock. The memory card has some problem Card Error • Change memory card to another one. and can not be recognized.
Page 111 Message Icon Informs that... Action Activate remote control. Remote function was set to off. • Set “Remote” function to “On.” Number of video files is Folder and files have reached capacity • Set “File No.” to “Reset.” full. Cannot record video. and you can not record.
Page 112 Note before sending your camcorder for repair. • If these instructions do not solve your problem, contact 1-800- SAMSUNG for your nearest Samsung authorized service center. • Depending on the problem, the built-in memory may need to be initialized or replaced and the data will be deleted.
Page 113: Symptoms And Solutions
✪ If these instructions do not solve your problem, contact your nearest Samsung authorized service center. Symptoms and solutions Power Symptom Explanation/Solution • The battery pack may not be installed on your HD camcorder. Insert a battery pack to the HD camcorder.
Page 114 troubleshooting Displays Symptom Explanation/Solution The TV screen or LCD display has • It can occur when recording or viewing a 16:9-ratio image on a 4:3-ratio distorted images or has stripes at the TV, or vice versa. For more details, see the display specification. top/ bottom or on the left/right.
Page 115 Symptom Explanation/Solution • There is no more free space for recording on the storage media. Back up important files on your PC and format the storage media or delete the unnecessary files. • If you make recordings or delete files frequently, the performance of The recording stops automatically.
Page 116 troubleshooting Symptom Explanation/Solution There is a time difference between the point where you press • On your camcorder, there may be a slight time delay between the point Recording start/stop button and when you press Recording start/stop button and the actual point the point where the recorded movie where the recorded movie starts/stops.
Page 117 Adjusting the image during recording Symptom Explanation/Solution • Set “Focus” to “Auto.” page 56 • The recording conditions are not suitable for auto focus. Adjust the focus manually. page 57 Focus does not adjust automatically. • The lens is dusty on the surface. Clear the lens and check the focus. •...
Page 118 troubleshooting Symptom Explanation/Solution Photo images stored on a storage • Photo images recorded on other device may not appear in the actual media are not displayed in the actual size. This is not an error. size. • Check if the AC power adaptor or battery back is properly connected Playback is interrupted unexpectedly.
Page 119 Symptom Explanation/Solution The image appears distorted on a • This happens when TV type of the HD camcorder is different from the TV. Set the TV type to match the aspect ratio of your TV. page 70 You cannot view the image or hear •...
Page 120 troubleshooting Connecting to a computer Symptom Explanation/Solution • You can not use the HD camcorder with a Macintosh. The computer does not recognize • Disconnect the USB cable from the computer and camcorder, restart your HD camcorder. the computer, then connect it again correctly. •...
Page 121 Overall operations Symptom Explanation/Solution • Has the camcorder been left unused for a long period of time? The date and time are incorrect. The backup built-in rechrgeable battery may be discharged. page 25 The camcorder does not turn on, or does not operate by pressing any •...
Page 122: Specifications
Model name: SC-HMX10/HMX10A/HMX10C System Video signal NTSC H.264 (MPEG-4.AVC) Picture compression format AAC (Advanced Audio Coding) Audio compression format Image device 1/4.5” CMOS (Complementary Metal-Oxide Semiconductor) (Max/Effective : 1.61M/1.56M pixels) Lens F1.8 10x (Optical), 2x (Digital) Electronic zoom lens Focal length 3.3 ~ 33mm...
Page 123: Warranty
SAMSUNG LIMITED WARRANTY SAMSUNG Electronics America Inc. (SEA), warrants that this product is free from defective material and workmanship. SEA further warrants that if product fails to operate properly within the specified warranty period and the failure is due to improper workmanship or defective material, SEA will repair or replace the product at it’s option.
Page 124 If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center Samsung Electronics America, inc. 1-800-SAMSUNG (726-7864) www.samsung.com/us RoHS compliant Our product complies with “The Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment”, and...

This manual is also suitable for:

Sc-hmx10a Sc-hmx10c

Samsung SC-HMX10 User Manual

Table of Contents

Using the Menu Items

Troubleshooting

Specifications

Warranty

Quick Links

user manual

Chapters

Related Manuals for Samsung SC-HMX10

Summary of Contents for Samsung SC-HMX10

This manual is also suitable for:

Table of Contents
