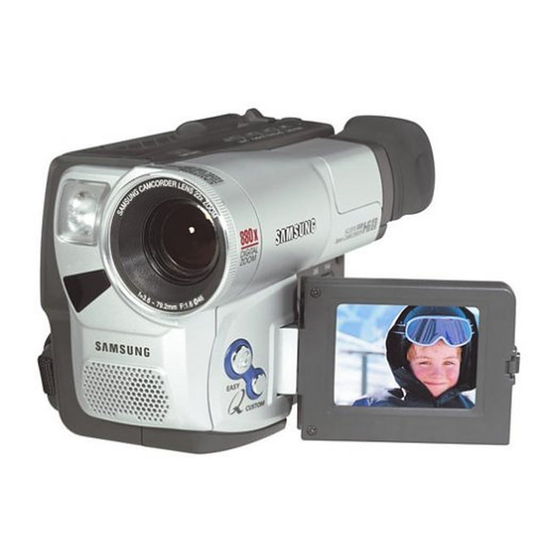

Samsung SC-L810 Owner's Instruction Manual

8ram color lcd
Hide thumbs Also See for SC-L810:

Advertisement

Quick Links

Download this manual
[ENGLISHI
Video Camcorder
8ram
COLOR LCD
SCL810/L860/L870
Hi[] SCL810/L860/L870
Owner's Instruction
Book
Before operating the unit, please read
this instruction
book thoroughly, and retain it for
future reference.
El

Advertisement

loading

Related Manuals for Samsung SC-L810

Summary of Contents for Samsung SC-L810

  • Page 1 [ENGLISHI Video Camcorder 8ram COLOR LCD SCL810/L860/L870 Hi[] SCL810/L860/L870 Owner's Instruction Book Before operating the unit, please read this instruction book thoroughly, and retain it for future reference.
  • Page 2 IENGLISHI Contents Features ... Descd ptions • Front View/Side View/Rear View ... 13, 14, 15 • OSD (On Screen Display._... Accessories Supplied with the _.amcorder... Remote Control (S_CL860/L870only) ... • Sett Timer Recording ... Adiustin£ the Hand Strap and Shoulder Strap ... 20 Lithium #attery Installation ...
  • Page 3 DSE in PLAYER mode ... Multi Playback (Using the PAL60 System) ... 61 Installing USB Media 2.0 Program ... Cleaning and Takingcare of the Camcorder ... 66 • Cleaning theViewfinder ... • Cleaning the LCD Panel... • Cleaning the Video Heads ...
  • Page 4 Instructions Please rotatethe LCD screen carefullyas illustrated. Unintended rotationmay cause damageto the inside of the hinge that connects the LCD screen to the Camcorder. 1) LCD screen closed. 2) Standard recordingby using the LCD screen. 3) Makinga recordingby looking at the LCD screen from the top.

  • Page 5: Features

    • When you take the camcorder from cool temperature inside to hot temperature outside during the summer. 2) If the "DEW" protectionfeature is activated,leave the camcorder in a dry,warm roomwith the cassette compartmentopened and the battery removed. If the "DEW" protection feature is activated unexpectedly, and you want to override it, detach, then reinstall the battery pack and lithium battery.
  • Page 6 4" Topreserve battery power,keep your camcorderturned off when you are not operatingit. ÷ When your camcorder is in CAMERAmode, if it is left in STANDBYfor more than 5 minutes withoutoperation, it will automaticallyturn off to protect against unexpectedbattery discharge. ÷...
  • Page 7 Notices and Safety Instructions 1) The LCD monitor is manufacturedby using high precision technology. However,there may be some tiny specks (red, blue or green in color) that appear on the LCD monitor.These specks are normal and do not affect the recorded picture in any way, 2) When using the LCD monitoroutdoors in direct sunlight, it may be difficult to view.If this occurs, use the viewfinder.
  • Page 8 DOnot pfaca this CAMCORDER on an unstable cart, stand, tripod, bracket or table. The CAMCORDER may fall, causing serious injury to a child or adag, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the CAMCORDER.
  • Page 9 CAMCORDER and to protect it from overheating. These openings must not be biockod or covered, Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register.
  • Page 10 If any liquidhas been spilled onto, or objects have fallen into the CAMCORDER. c. If the CAMCORDER has been exposed to rain or water, d. If the CAMCORDER does not operate normally by following the operating instructions, adjust only these...
  • Page 11 Notices and Safety Instructions NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to call the CATV system instal_er's attention to Article 82040 of the NEC that provides guidelines for propergrounding and, in particular, specifies that the cable ground sha_lbe connected to the grounding system of the building as close to the point of cable entry as practical.
  • Page 12 Youhaveto adjustthe zoom fully wide for macrorecording.(see page 34) This mode enables eventhe beginner to easily make a recording.(see page 37) PAL6O i_ a special output signal format with which a tape recorded on this camcorder(NTSCformat) can be viewed on a PALTV.
  • Page 13 Getting to Know Your Camcorder 3. REC SEARCH _ (REW) 2. PLAY/STILL (LIGHT), 6.TAPE EJECT' 13. VIDEO LIGH1 I. LENS 9. Remote Sensor 8. MIC Lens (see page 72) PLAY/STILL (LIGHT) (see page 58) PLAY/ST_LLworks in PLAYER mode. LIGHT works in CAMERA mode.
  • Page 14 IENGLISHI Getting to Know Your Camcorder 24. BLC 23, FADE 20. SPEAKER 22. LCD Open -- 14. MENU ON/OFF(see page 30) MENUON/OFFworks in CAMERAand PLAYERmode. 15. ENTER (MF) (see page 30) ENTER works in MENU mode. MF works in CAMERA mode. (see page 40) 16.
  • Page 15 30. Hand Strap (see page 20) 31. POWER Switch (see page 22) - CAMERA : Select to record. - OFF : Select to turn off the camcorder. - PLAYER : Select to playback. 32. START/STOP (see page 28) START/STOP works in CAMERA mode, 25.
  • Page 16 [ENGLISH Getting to Know Your Camcorder •t, Youcan turn the OSD on/off by setting the Displaymenu on/off. •t, The TITLE, DATE/TIME,EASY and CUSTOMfunctions can be operated evenafter the OSD is turned off, •t, The OSD is displayed in the viewfinder and the LCD monitor.
  • Page 17 Indicates the recorded title you have set. It is superimposed on the scene, Self diagnosis (see page 68 Displays different diagnostic indicators concerning the camcorder's operation, m. DSE (Digital Special Effect see page 44 Indicates the DSE mode is activated.
  • Page 18 ENGLISH] Getting to Know Your Camcorder Make sure that the following basic accessoriesare supplied with your camcorder, 1, AC PowerAdapter.(see page 22) 2, AC cord. (see page 22) 3, BatteryPack. (see page 23) 4, Audio/VideoCable. (see page 57) 5. Shoulder strap, (see page 21) 6, InstructionBook.
  • Page 19 Getting to Know Your Camcorder 1. Start!Stop (see page 27) 2. SettTimer 3. Still (see page 59) 4. WIDE (see page 34) 5. TELE (see page 34) 6. Display(see page 16) 7. _- (Play) (see page 58) 8. m-m- (FF) (see page 59) 9.
  • Page 20 It is very important to adjustthe hand strap for better recording. ÷ The hand strap enables you to: - Holdthe camcorder in a stable,comfortable position. - Pressthe Zoom and the red Record buttonwithout having to changethe positionof your hand, 1. Pullopen the Hand Strap coverand releasethe Hand Strap, adjust its length and stick it back onto the Hand Strap cover, 2.
  • Page 21 AC power adapter is removed. The lithium battery for the camcorder lasts about 8~10 months under normal operation from the time of installation. 4" When the lithium battery becomes weak or dead, the date/time indicator flashes for about 5 seconds when you set the power switch GoCAMERA.

  • Page 22: Using The Battery Pack

    2, Connect the AC cord to a wall socket. Note: The plug andwall socket type may be different dependingon regional conditions. 3, Connect the other end of the DC cable to DC jack of the camcorder. 4, To set the camcorderto the CAMERAmode, a, Holddown the tab of the powerswitch and push the switchto CAMERAmode, b, Makesure that the LensCap is open.
  • Page 23 2, Connectthe AC PowerAdapter to the AC cord and connect the AC cord to a wall socket, 3, Connectthe DC cable to the DC jack of the camcorder, 4, Turnoff the camcorderpower,and the recharging indicator will start blinking and begin recharging, Blinking once a second : indicates lessthan 50% has been charged.
  • Page 24 ENGLISH 1 Preparing Model SCL810 LCD ON, LCD OFF, Type EVF OFF EVF ON SS-L110A Approximately Approximately 90 minutes 130 minutes SB-L160 Approximately Approximately 130 minutes 190 minutes SB-L320 Approximately Approximately 260 minutes 390 minutes 4" The continuous recording times given in the table are approximate. Actual recording time depends on usage, Notes: ÷...
  • Page 25 25°C(77°F). As the environmentaltemperature and conditions may be differentwhen you actually use the camcorder, the remaining battery time may not be the same as the approximatecontinuous recordingtimes given in these instructions.
  • Page 26 IENGLISHI Preparing 4" There are several cassette types,dependingon: Color systemused Recording/playbacktime. ÷ Checkto see if the battery pack is in place or the AC adapter is connected. 1. Press the EJECT button, The compartmentopens automatically. insertthe cassettewiththe transparentwindowfacingoutward and the protection tab toward the top. 2.
  • Page 27 Basic Recording Please make these preparations before recording. • Did you connect a power source? (Battery Pack or AC Power Adapter) • Did you set the power switch to CAMERA position? • Did you insert a cassette?(see page 26) • Open the LCD monitorand makesure that STANDBYis displayedin the OSD (if the red tab of the cassette is opened, STANDBYwill not be displayed) •...
  • Page 28 ENGLISH Basic Recording b. Tostop recording,press the red START/STOPbutton again, When Recordingstops,STANDBYshould be displayed on the LCD, •t, Youcan view a recordedpicture withthe REC SEARCH _, G function in STANDBYmode,REC SEARCH G allowsyou to reverseand REC SEARCH _ allows you to forward,for as long as you keep pressing. •t, If you pressthe REC SEARCH (_ button briefly in STANDBYmode, your camcorderwill play back in reversefor 3 secondsand return to...
  • Page 29 1. Hold the camcorderfirmly with the hand strap, (see page 20) 2. Place your right elbow against your side, 3. Place your left hand under the camcorder to support it. Do not touch the built-in microphone. 4. Choose a comfortable,stable position forthe shots.
  • Page 30 Basic Recording 4" Yourcamcorder is equipped with a 2.5 inch color Liquid Crystal Display(LCD)screen,which allowsyou to view recordingor playbackdirectly. 4, Dependingon the conditions in which you are using the camcorder (indoors or outdoors for example), you can adjust: • Brightness •...
  • Page 31 Basic Recording 9, Turnthe UP/DOWNdial to adjust the LCD color setting. f0. Press ENTER. • For further adjustment, repeatsteps 7, 8, 9. 11. Pressthe MENU ON/OFFbuttonto end the setting. Notes: • If you don't press a button within 30 seconds, the setting will disappear. •...
  • Page 32 You can see the video you recorded on the LCD, • To stop the PLAY operation, press the • (STOP) button. Note: You can a(so monitor the picture on a TV screen, after connecting the camcorder to a TV or VCR. (see page 57)
  • Page 33 Basic Recording The LCD adjustment method in PLAYERmode is identicalto step number 4 of page 30, exceptthe powerswitch must be set to PLAYER. ÷ When you use the LCD monitor while playing back, you can hear sound from the Speaker, ÷...
  • Page 34 [ENGLISHI Advanced Recording ÷ Zoom works in CAMERAmode only. ÷ Zooming is a recordingtechnique that lets you change the size of the sub)ectin the picture.For more professional lookingrecordings,do not use the zoom function too often. ÷ Youcan also choose from two zoom speeds to suit different needs : •...

  • Page 35: Digital Zoom

    Advanced Recording 4, Digital Zoomworks in CAMERAmode only. 4, Zooms morethan 22x are performeddigitally, 4, The picture quality deterioratesas you go towards the "T"side, 4, We recommendthat you use the DiS (SCL860/L870)feature with the DIGITALZOOM for picture stability. (see page 39) 1, Set the power switchto CAMERAmode,(see page 22) •...
  • Page 36 IENGLISHI Advanced Recording ÷ The DIGITALZOOM feature is explainedon page 35, 1, Set the power switchto CAMERAmode.(see page 22) 2, Pressthe MENU ON/OFFbutton, • The MENU list will appear. 3, Turnthe UP/DOWNdial to D. ZOOM. 4, PressENTER, • The DIGITALZOOM setting will change, 5, Pressthe MENU ON/OFFbuttonto end setting.
  • Page 37 Advanced Recording ÷ Evena beginner can easily make a recording using the EASY mode. • The EASY mode only operates in CAMERA mode, 1. Set the powerswitchto CAMERAmode (see page22), 2. By pressing the EASYbutton, all the functions of the camera willbe set to off and the recording settingswill be set to the following basic mode, •...
  • Page 38 [ENGLISHI Advanced Recording •t, Youcan customizethe settingsand save them for future use, • The CUSTOMfunction only operates in CAMERAmode, 1, Set the power switchto CAMERAmode. 2, Pressthe MENU ON/OFFbutton, to bring up the MENU list. 3, Turn the UP/DOWNdial until CUSTOM SET is highlighted. 4, Pressthe ENTER button,the CUSTOMmenu will appear.
  • Page 39 Recording ÷ The DISfunction works in CAMERA mode only. ÷ DIS (Digital Image Stabilizer)is a handshake compensationfunction that compensatesfor any shakingor moving of the hand holding the camcorder(within reasonablelimits). ÷ It providesmorestable pictures when: • Recordingin the Zoom In mode •...
  • Page 40 ÷ In the following situations,you should obtain better results by adjusting the focus manually. a. A picture containingseveralobjects, some close to the camcorder, others further away. b. A personenveloped in fog or surroundedby snow. c. Very shiny or glossy surfaceslike a car.
  • Page 41 Advanced Recording 4. Turnthe UP/DOWNdial up or down until the object is focused. 5. Youwill obtain a sharp picture after zoomingout. 6. TOreturn to AF(Auto Focus),press the MF buttonagain. MF iconwill disappear. Note: The MF function will not operate in EASY mode, BLCworks in the CAMERA mode.
  • Page 42 IENGLISHI Advanced Recording 4. The PROGRAMAE function works inthe CAMERAmode only. 4. The PROGRAMAE modes allow you to adjust shutter speeds and apertureto suit different recordingconditions, They give you creative controIover the depth of the field, 4. There are 6 automatic exposure modes, 1.
  • Page 43 Advanced Recording Set the power switch to CAMERA mode, Press the PAE button, the ( _ ) symbol will be displayed, 3. Pressthe PAE buttonuntilthe appropriate symbolis displayed, • No Display: Full Auto mode. Notes: • The £AE mode chosen will be recordedon the tape. •...
  • Page 44 [ENGLISHI Advanced Recording The digital effects enable you to give a creative look to your recording by adding various special effects, 4" Se(ectthe appropriate digital effect for the type of picturethat you wish to record, 4, There are severalDSE modes. (SCL8f0;...
  • Page 45 Advanced Recording 1, Set the powerswitchto CAMERA mode. 2, Pressthe DSE button,GHOST or SEPIAwill be displayed, 3, Keep pressingthe DSE button, untilthe desired mode is displayed. 4, Pressthe START/STOP button to start recording, 5, To exit the DSE functions,press the DSE buttononce or several times until no DSE mode is displayedon the LCD.
  • Page 46 [ENGLISH 1 Advanced Recording ÷ Setting and recording the date/time feature works in the CAMERA mode only. ÷ You can record the date/time on your tapes, so you will know when it was made, The date and time are recorded whenever they are displayed on the viewflnder or LCD.
  • Page 47 To recordthe date and time, press the DATE/TIMEbuttontwice. 4. Press the START/STOPbuttonto record the DATE/TIMEon your recording. Notes; • If your date and timesettings are not maintained in the camcorder, it means the installedLITHIUM BATTERYis discharged.(see page21) • Youcannot concealthe recordeddate or time during playback.
  • Page 48 Advanced Recording ÷ Selectingand recordinga TITLE is possiblein the CAMERA modeonly, ÷ The TITLE feature allowsyou to se{ecta preset tiUestored in the camcorder'smemory. ÷ Youcan also select the languageof the tittes. •t, SeIectinga language is possiblein CAMERASTANDBYmode only. •t, The factory default language is ENGLISH.
  • Page 49 Advanced Recording 6. Turnthe UP/DOWNdial to select the appropriatelanguage, • Youmay select languagesfrom ENGUSH/FRENCH/ GERMAN/ITALIANISPANISH/RUSSIAN. 7. Press ENTER. • Then, the titte fist in the language you chose witl appear. 8. Turn UP/DOWNdial to whicheverTITLE you desire, 9. Press ENTER. •...
  • Page 50 IENGLISHI Advanced Recording ÷ The FADE function works in CAMERA mode only. ÷ You can give your films a professional look by using special effects such as fading in and out at the beginning or end of a sequence. 1, Beforerecording,hold down the FADEbutton, The picture and sound gradually disappear (fadeout).
  • Page 51 Advanced Recording • t, The PIP(Picture-in-Picture)feature works in combinationwith the DIGITALZOOM function by using a small, superimposedscreen to showan imagethat is wider than the image being recorded. This should help you to get a more clear idea of what you are recording, The PiP function works in CAMERAmode on{y.
  • Page 52 [ENGLISH Advanced Recording ÷ With the SNAP SHOTfeature, your camcorderfunctions like a regular film camera, al{owing you to take singlestill pictures. The SNAP SHOTfunction operates in the CAMERAmode, 1, Set the power switchto CAMERA mode, 2, Aim the Cameraat the image you want to record and pressthe SNAP SHOT button, •...
  • Page 53 Advanced Recording •I. WHITE BALANCEis a recordingfunction that preservesthe uniquecolor of the object in any recordingcondition, •I. Youmay select the appropriateWHITE BALANCEmode to obtain good image color quality. AUTO:This mode is generallyused to control the WHITE BALANCEautomatically. INDOOR (-,o:):Controls WHITE BALANCEaccording to the indoor ambience. OUTDOOR(-:_-):Controls WHITE BALANCEaccordingto the outdoor ambience, 1, Set the power switchto CAMERA mode.
  • Page 54 Demonstrationautomaticallyshows you the major functions that are includedwith your camcorderso that you may use them more easily. The DEMO function is only availablein CAMERA modewhen tape is not in the camcorder. The Demonstrationoperates repeatedlyuntil the POWERswitchis set to OFE Set the power switch to CAMERA mode.
  • Page 55 Advanced Recording 1. Set the powerswitchto CAMERA mode.(see page 22) 2. Pressthe MENU ON/OFFbutton, • The MENUlist will appear, 3. Turn the UP/DOWNdial to D/TITLE COLOR...__WHITE. 4. Press ENTER. • A listof availablecolorswill appear, 5. Turn the UP/DOWNdial to select the appropriatecolor. 6.
  • Page 56 IENGLISH] Advanced Recording 4. When you use your camcorder,there are only two possiblerecordingenvironments, Youwill be recordingoutdoors (Normal recordingor through an ND(NeutralDensity)filter), Youwill be recordingindoors (Video light recommendedor required). 4. The single greatest influence on picture quality is the level of brightness, measuredin lux.

  • Page 57: To Watch With Lcd

    Playing back a Tape Toview a tape that you haverecorded, Ptaybackfunction works in PLAYERmode only. There are two waysto see a tape; • Towatch with LCD:recommendedfor outdoor use. • Towatch withTV monitor: recommendedfor indooruse. Toviewa tape using the LCD monitor,(see page 32) It is practicalto use a TV monitor to viewtapes indoors.
  • Page 58 • Vibration from the built-in speaker can cause picture distortion. • It is best to turn the built-in speaker off when your camcorder is connected to the TV. • The system (Hi8/Smm) is selected automatically, depending on the tape format.
  • Page 59 Playing back a Tape Press INI (PLAY/STILL)button during playback. To resumeplayback, press INI (PLAY/STILL)buttonagain. Note: Your camcorderwill automaticallystop if it is left for morethan 5 minutes in STILL mode withoutoperation in order to preventtape and head-drumwear, Press m-m- (FF) or <.4 (REW) buttonsduring playback. To resumenormal playback, releasethe buttons, ÷...
  • Page 60 PLAYERinstead of CAMERA.Pleaserefer to pages 44 and 45, Note: The GHOST,STROBE, NEG., MIRROR,MOSAIC,CINEMA and 16:9(WIDE)effectswill not operate when your camcorder is in PLAYERmode, ÷ Pressingthe DSE buttonwill scroUthrough the availablesettings, pat the one you require,...
  • Page 61 2, When an NTSC tape is being played back, the picture on the PAL monitor screen may shrink in the Vertical direction, 3, If the signal recorded on the tape is in bad condition,the PAL60playbacksystem may malfunction, 4, A PAL recordedtapecan not be played back on this camcorder, [ENGLISH 1...
  • Page 62 •_ YOU can easilytransfer a still image from a camera,tape, memory to a PC without additionaladd-on cards via a USB connection. •_ If you transfer data to a PC,you need to install the software(Driver,Editing software)supplied with the camcorder, • CPU : Intel ® PentiumIP processor compatib(eor better • Operating system : Windows ®98/98SEIME/2OOOIXP •...
  • Page 63 USB interface (SCL870 only) Do not connect the camcorderto PC before installing the program. If another camera or scanner is connected, please disconnectit in advance, This explanationis based on Windows®98SE OS. 1, The installprogram automaticallyoperate when the CD is inserted into CD-ROM If the installprogramdoes not operate,please double click InstalLexein CD-ROM Drive, 2.
  • Page 64 USB interface (SCL870 only) 4. The below window displays the folder to install the program, • Basically the program is installed in the following folder, C:\Programfiles\Samsung\USB Media 2.0 • Click to change the folder, 5. Connect the camcorder to PC, 6.
  • Page 65 In this case, however, a noise may be produced depending on the PC. • If you disconnect the USB cable from the PC or the camcorder while transferring, the data transmission will stop and the data may be damaged. •...
  • Page 66 1, Youmust detach the BATTERYPACKfrom the camcorderwhen storing. 2, Keepthe camcorder in a ventilated,dry andwarm place. 3, Donot keep the camcorder in a place where the temperatureoften changes,such as ina car, pthe camcorder in a stable place. ..I,...
  • Page 67 Each country or area has its own electric and TV color system, Before using your camcorder abroad, check the following: • Youcan use your camcorder in any countryor area that uses 100V to 240V,50/60 Hz. • Use a commerciallyavailableAC plug adapter,if necessary,dependingon the power used, •...

  • Page 68: Moisture Condensation

    TAPE END! slow its end. TAPE END! the tape reached its end TAPE[ slow there is no tape in the camcorder, the tape is protected PROTECTION! slow from recording, D.EMG slow the camcorder has some C.EMG...
  • Page 69 Troubleshooting If you run into any problem using the camcorder, use the following tableto troubleshoot the problem. Ifthese instructionsdo not allowyou to solvethe probIem,take a note of: • The model and serial number marked on the bottomof the camcorder. •...
  • Page 70 [ENGLISH Troubleshooting A vertical stripe appears when The contrastbetweenthe subjectand the backgroundis too greatfor the you recorda bright subject camcorderto operate normally.Make the backgroundbright to reduce the against a dark background contrast or use the BLCfunction while you are recording.(see page 41) (candleflame, for example).
  • Page 71 If the camcorder is brought directlyfrom a cold place to a warm place, moisture may condense inside the camcorder,on the surfaceof the tape, or on the lens, In this condition,the tape may stick to the head drum and be damagedor the unit may not operate correctly,...
  • Page 72 [ENGLISH] Specifications •I, These technical specifications and design may be changed without notice, Recordingsystem Video: 2 rotary heads Helical scanning FM Audio: FM monauralsystem Video signa! NTSC color, EIA standard Usable cassette Hi8 or 8ram Tapespeed SP: 14.345mm/sec Speed mode Record: SP only Playback:SP only Recordingtime P6-120:120 rain,...
  • Page 73 Index il!!_; i iii i !i; i;i!!i ill i iiiiiiii_ iii_i:i i lii!ii;i!!iiii! !i;!!!!!! ill! !!! iii!!i!_!:iA!ii_ ii_ili_: i i i i i i i i!!:!ii! i lii ¸ iii!iill i ilii !ii!! i;! ABROAD ... 67 AC POWER ADAPTER ... 22 ADJUSTING ...
  • Page 74 ENGLISH 1 Index ND FILTER ... 56 NEAR NEG ... 44 NTSC ... 67 OPERATION MODE ... 17 OSD ... 16 PIP ... 51 PLAY ... 58 PLAYER ... 58 PORTRAIT MODE ... 42 POWER CONSUMPTION ... 72 POWER REQUIREMENT ... 72 POWER SWITCH ...
  • Page 75 SEA will repairor replacethe product at it's option. All warranty repairs must be performedby a SEA authorizedservice center,The name and addressof the location nearestyou can be obtained by calling toll free: 1-800 SAMSUNG(1-800-726-7864). Labor 90 days carry-in...
  • Page 76 THIS CAMCORDER IS MANUFACTURED BY: SAMSUNG Electronics America Inc. 400 VaUey Road, Suite 201, Mount Arlington, NJ 07856 Tel: 1-800-SAMSUNG (1-800-726-7864) *Samsung Electronics'InternetHome Page http:/h,vww.sa m sangusa,com AD68-00607B...
