Buckleys WET ROOF PRO2 Instruction Manual

Flat roof leak detector kit
Hide thumbs Also See for WET ROOF PRO2:

Advertisement

Quick Links

Flat roof leak detector kit
Instruction manual
Please read this manual before using the equipment
11/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WET ROOF PRO2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Buckleys WET ROOF PRO2

  • Page 1 Flat roof leak detector kit Instruction manual Please read this manual before using the equipment 11/24...
  • Page 2: Table Of Contents

    Generator (Wet Roof Mode) ..................6 Detector ........................11 Generator (Wet Sponge Mode) ................15 Wet Roof Leak Detection Operation Principle ..........18 Using the Wet Roof Pro2 ................. 21 Overview ........................21 Surveying ........................24 Battery charger ....................26 Operation ........................
  • Page 3: General Description

    The Wet Roof Pro2 leak detector compliments the Buckleys Dry Roof Pro2 test instrument to provide a complete roof test system for all occasions. The Wet Roof Pro2 has been designed to assist the user to detect the presence and source of leaks on roofing technologies that incorporate insulating membrane overlays.
  • Page 4: Technical Specification

    Instruction Manual Technical Specification Generator Output pulse voltage: 32 V DC Output (Wet Roof Mode) 90V, 67.5V, 24V, 9V DC Output (Wet Sponge Mode) Output power: <10 Watts Operating temperature: + 4˚ to + 40˚C Dimensions (L x H x D): 169 x 80 x 235 mm Weight: 2.1 kg –...
  • Page 5: Unpacking

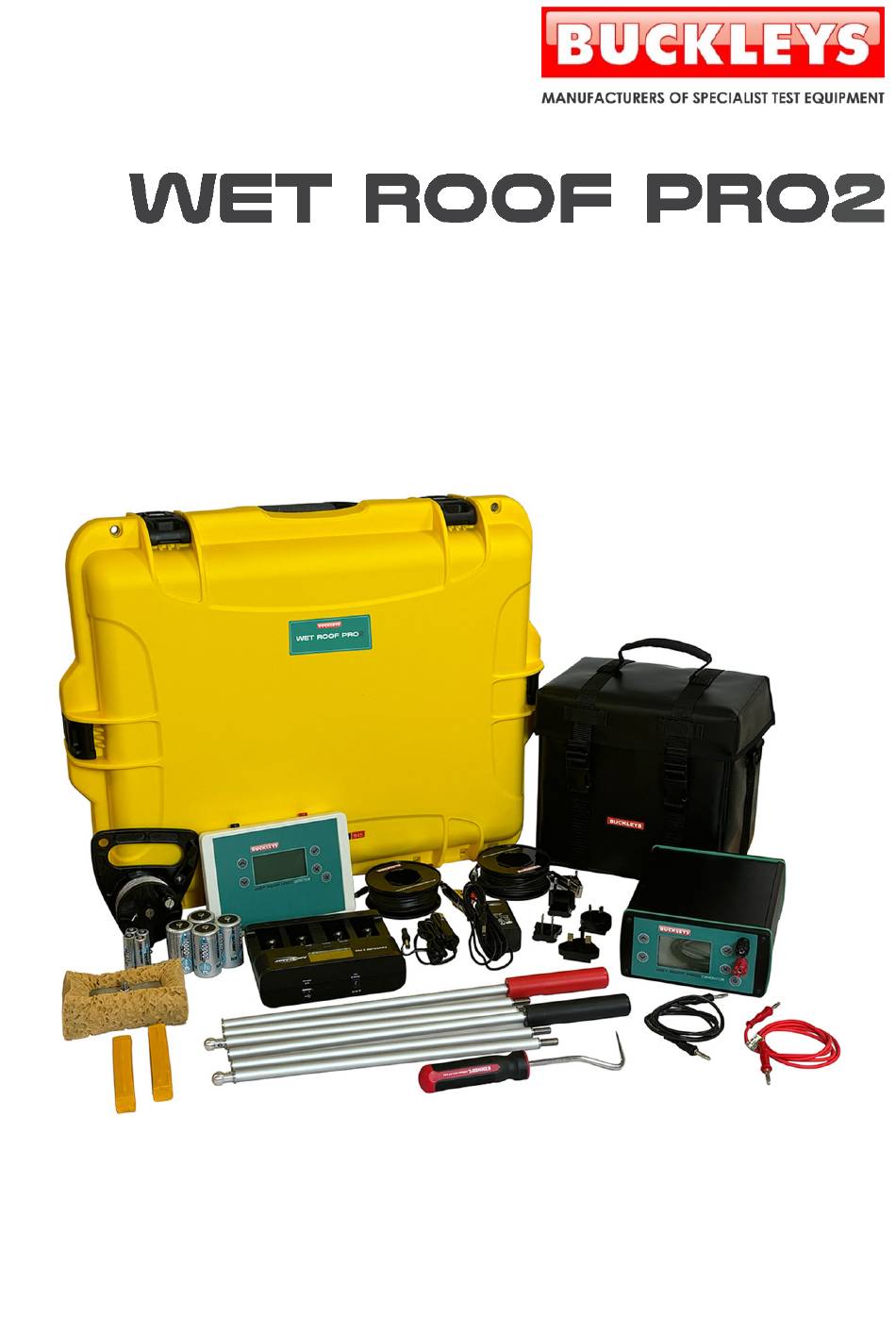

    Unpacking The Buckleys Wet Roof Pro2 leak detector kit and all associated items necessary to conduct a roof survey are supplied in a robust transit case. Retain all outer packaging to re-use in future should you need to store or return the Wet Roof Pro2 for servicing.
  • Page 6: Controls And Connections

    Controls and Connections Generator (Wet Roof Mode) The Wet Roof Pro2 generator unit is housed in a robust waterproof closure with all connections and controls mounted on the front panel. The Generator provides two functions: in addition to the standard generator application, to be used with the matching detector, a wet-sponge test function is included.
  • Page 7 The Generator output will be live whenever it is turned on. This is current-limited, and the unit will not be damaged if the output is shorted, although the alarm will sound & the screen backlight will turn red to alert you. Pressing the “Menu/Yes”...
  • Page 8 Instruction Manual Fig.4 Home screen – current applied Once the trace and ground wires are correctly connected the generator will display the current that it is supplying. If this current is greater than the threshold set in the menu (see above) then the screen backlight will be red, and the alarm signal will sound.
  • Page 9 operator to identify and locate faults within each smaller test area, without the confusion that can be caused by many faults over a large area. Fig.6 Home screen – high current You may note that the output voltage varies with the current – this is normal. Ideally the generator current will be below 100mA, this will give an optimum signal for the detector to work efficiently.
  • Page 10 Instruction Manual It is also possible that the generator will register a very low, or zero current. Fig.8 Home screen – very low current There are four possible reasons for this:  The area being tested actually does not have a fault – obviously good news but beware of false negatives! ...
  • Page 11: Detector

    Detector The Wet Roof Pro2 detector, housed in a waterproof enclosure has been designed to be worn around the operator’s neck thereby leaving both hands free to use the poles to carry out the roof survey. Detector controls and connections are shown Fig. 9.
  • Page 12 Fig 11. Electrical noise present The word “AUTOZOOM” will also appear at the bottom of the screen. This indicates that the Wet Roof Pro2 Detector is in AutoZoom mode. The default condition is for Linear display scaling, with AutoZoom. Whilst the AutoZoom mode is convenient in most situations, it may be easier to use a fixed magnification.
  • Page 13 Placing the pole tips on the waterproof layer to be tested, within the area of the trace wire will, assuming there is a leak to be found cause the direction bar to grow, and the instrument will change range to accommodate this. Use the Up and Down arrows to select a suitable range.
  • Page 14 Instruction Manual Fig.13 User Menu The “Frequency” option allows selection of the local mains frequency allowing the instrument to “tune out” mains hum – in much of the world, the frequency is 50Hz however in the Americas, and some of Asia, 60Hz is normal. Some areas, e.g. Japan, use both, and it will be useful to adjust it to obtain the most stable readings in the locality in which the testing is being carried out.
  • Page 15: Generator (Wet Sponge Mode)

    Fig.15 Scale To return to the home screen, please press the “X” button. Generator (Wet Sponge Mode) Press the On/Off button to turn the generator on. The screen will illuminate and will display the screen shown below: Fig.16 Home screen Press and hold the “Menu/Yes”...
  • Page 16 Instruction Manual Fig 17. Wet Sponge User menu A range of preset tests are available which may be selected by using the “Increase” and “Decrease” buttons to the left of the screen. Press the “Yes” button to accept the revised value and press the “Back” button to return to the Generator Screen.
  • Page 17 Fig.18 Home screen – Sponge Mode Ensure that the sponge is wet, and check that the connections are correct by touching the sponge to a known earth point. The screen will go red, and the alarm will sound. You will notice the bar graph will extend across the screen. Now start testing.
  • Page 18: Wet Roof Leak Detection Operation Principle

    Instruction Manual Wet Roof Leak Detection Operation Principle Imagine standing on a hillside, holding a survey ski-pole in each hand. You could turn around a little on the spot, placing the poles on the ground each time, and even with your eyes closed, you could work out which way the hill sloped by the difference in heights of your two hands.
  • Page 19 Fig.20 Principle of operation The Wet Roof Pro2 detector unit detects the tiny difference in voltage between the two probes, and this allows the operator to detect and locate the fault, or faults, within the test area.
  • Page 20 – a suitable test area may be 5-10 metres square. The negative output of the Wet Roof Pro2 generator is connected to a suitable earthed point of the building substrate. The Wet Roof Generator applies a voltage...
  • Page 21: Using The Wet Roof Pro2

    Using the Wet Roof Pro2 Overview Preparation  Fit batteries to both Detector and Generator  Lay trace wire around area to be tested and connect to Generator  Ensure good earth connection for Generator  Assemble poles & connect to Detector ...
  • Page 22 (see Fig.21). Fig21. Wet Roof Pro2 Generator connections Prior to using the Wet Roof Pro2 for the first time the batteries will need to be installed, once inserted the batteries can remain in the units until charging is required.
  • Page 23 Connect the 10m lead (red plug) from the trace wire to the positive output socket of the Wet Roof Pro2 generator unit with the negative output of the generator connected to a good building earth (substrate) point this time using the 10m black 4mm plug to crocodile-clip lead.
  • Page 24: Surveying

    Instruction Manual Connect each survey pole to the detector unit using the respective 1m red and black test leads (stored in a small pocket on the rear of the detector’s protective neck pouch). Surveying When all preparations as detailed above on have been completed, switch both generator and detector units on.
  • Page 25 Walk along one edge of the test area. The detector indicator will increase as you get closer to a fault and decrease as you move away. At the peak, turn 90 degrees and continue testing. When you reach the new peak, turn 90 degrees once more and continue testing until the exact location of the fault is identified.
  • Page 26: Battery Charger

    Instruction Manual Battery charger Safety  Please read these operating instructions carefully before using the charger.  Do not use the device if there are any signs of damage to the housing, plug or cable. If you do find any damage to the unit, please contact an authorised dealer.
  • Page 27: Operation

    For charging round cells  Multifunction clear LCD display with backlight  Adjustable charging current for each charging slot 400mA, 600mA, 800mA for 1- 4 rechargeable batteries 400mA, 600mA, 800mA, 1500mA, 1800mA for 1-2 rechargeable batteries  Individual charging programs for each charging slot: - CHARGE - DISCHARGE (discharges battery before charging to minimize the ‘memory effect’...
  • Page 28 Instruction Manual Please ensure that the input plug ‘clicks’ into the power supply to ensure the unit is safe to use. Connect the power supply to the charger. Finally, connect the power supply to the mains (100-240V AC 50-60Hz). To change the input plug, push the locking lug below the plug (e.g. using a pen) until the plug can be moved slightly upwards.
  • Page 29  CURRENT button Push the ‘CURRENT’ button within 8 seconds of selecting a charging program or after inserting batteries to select the charging current for the program ‘CHARGE’ or ‘TEST’. Alternatively, choose the discharging current for the program ‘DISCHARGE’ or ‘REFRESH’. ...
  • Page 30 Instruction Manual If only one or two rechargeable batteries are inserted into the charger using the two outer charging slots, in the mode ‘CHARGE’ and ‘TEST’ the charging current can be increased up to 1500mA or 1800mA with the ‘CURRENT’ button. In this case the inner charging slots are disabled and cannot be used.
  • Page 31 cases, no charging occurs. Please remove the defective batteries and dispose of these in an environmentally friendly manner. During the charging process, the pre-set parameters are displayed as mentioned under point 3 (DISPLAY). In addition, the chosen charging program and the current process (CHARGE or DISCHARGE) are shown.
  • Page 32: Maintenance

    (UVRAL) Ltd. or one of our approved service & repair agents in order to ensure it works at optimum performance, accuracy and safety. By registering your Wet Roof Pro2’s warranty at the time of first purchase, we will send annual reminders for scheduled maintenance as well as extending the warranty.
  • Page 33: Ec Declaration Of Conformity

    EC Declaration of conformity We, Buckleys (UVRAL) Ltd., as manufacturer of the apparatus listed, declare that the product Wet Roof Pro2 is manufactured in conformity with the following directives: 2014/30/EU, 2014/35/EU, 2015/863/EU and 2011/65/EU (RoHS). Authorised by: S B Dobson Managing Director, Buckleys (UVRAL) Ltd.
  • Page 34 Instruction Manual 11/24...
  • Page 35: Contact Details

    Contact details Manufacturer: Buckleys (UVRAL) Ltd Address: Buckleys House Unit G, Concept Court Shearway Business Park Shearway Road Folkestone Kent CT19 4RG, UK Tel: +44 (0)1303 278888 Website: www.buckleysinternational.com Distributor details 11/24...
  • Page 36: Product Registration

    Product registration Thank you for choosing a Buckleys product, we are sure it will provide you with many years of reliable service. Please register this product via Buckleys’ website and download the Warranty Registration Certificate. Register your product in 5 minutes...
