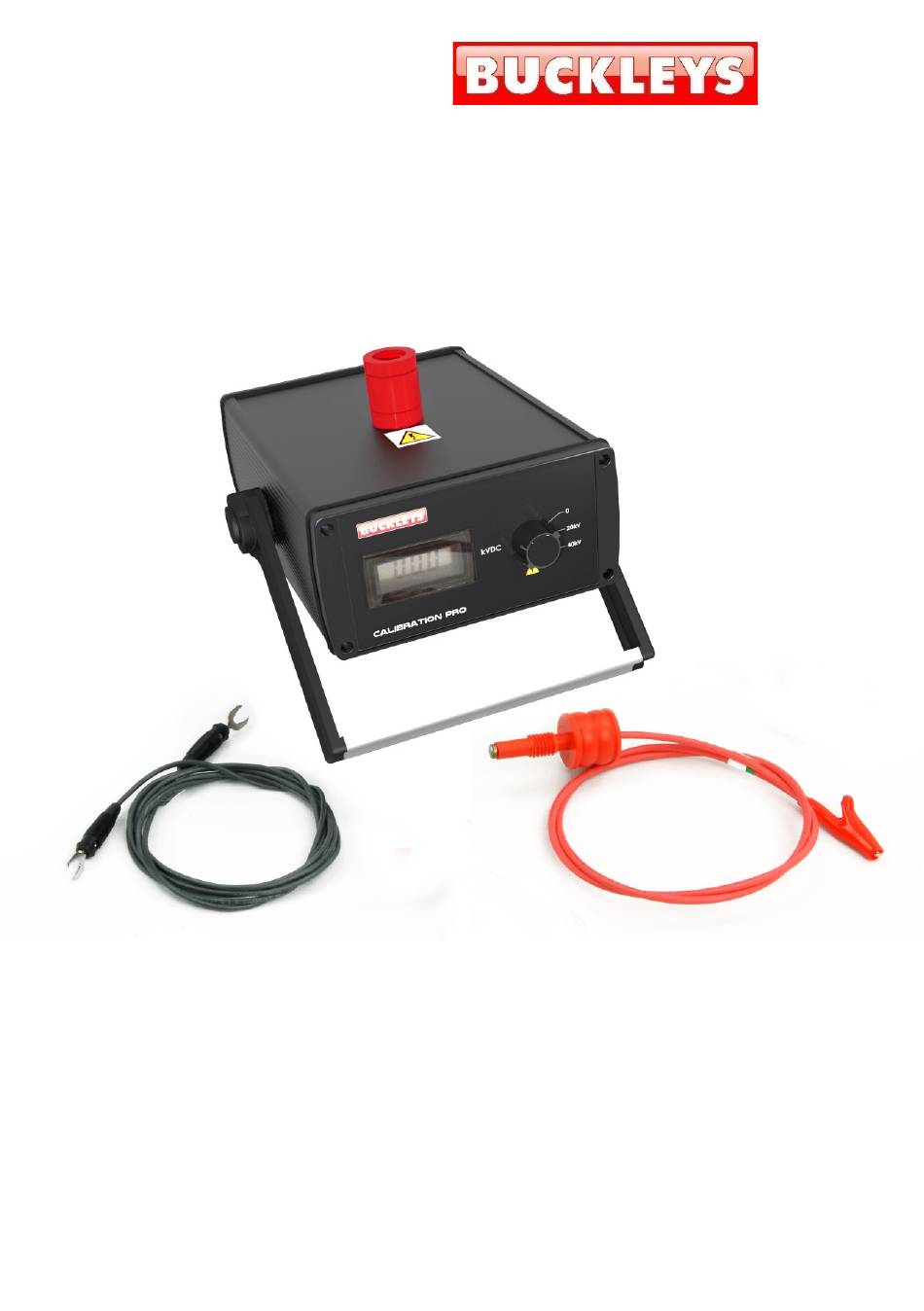

Page 1: Calibration Pro
MANUFACTURERS OF SPECIALIST TEST EQUIPMENT Calibration Pro’ Operating Instructions English Version Please read carefully before use 5830-0017 CAL PRO/IM/ENG/V.07-21... -
Page 2: Table Of Contents
Instruction Manual Contents Calibration Pro’ ........................1 Description ......................... 3 Unpacking .......................... 3 Technical Specifications ....................4 Safety Precautions ......................4 Operation ........................... 6 Maintenance & Calibration ..................... 7 Risk Assessment ........................8 Disposal information ......................9 EC Declaration of conformity ..................10 UKCA Declaration of Conformity .................. -
Page 3: Description

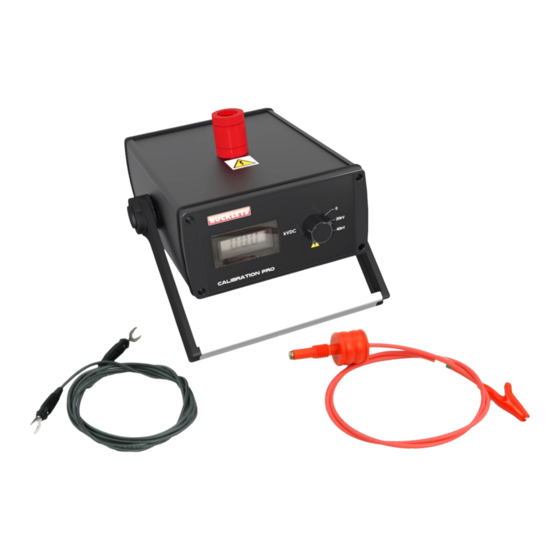

Calibration Pro’ Description The Calibration Pro’ comes complete with batteries, a high voltage lead and an earthing lead. The meter is housed in a robust aluminium case. On the front panel of the case there is: ● Rotary ON/OFF and range changing switch. -
Page 4: Technical Specifications
Read the information in this manual before using the equipment. Note: The works safety officer should approve the usage of this equipment. The Buckleys Calibration Pro’ is intended to be used for measuring very high voltages and therefore should only be used by responsible and authorised... - Page 5 WARNING: This equipment MUST be earthed. To not do so may result in electric shock. Position the HV supply and the Calibration Pro’ so that the [ON/OFF] switches are easily accessible to the operator whilst the unit is in use.
-
Page 6: Operation
Switch on the HV supply and slowly increase the output so that the display of the Calibration Pro’ is set to half the maximum. (i.e. a 20kV supply should be set to 10kV). If the Calibration Pro’s digital display does not rise as the HV supply is increased switch both units OFF and check the connecting leads and/or the batteries in the unit. -
Page 7: Maintenance & Calibration
Replace the battery drawer and make sure that the old batteries are disposed of safely. The Calibration Pro’ should be inspected before use on every occasion to check that the case, high voltage cable and earth lead have not been damaged. If damage is found, the unit must not be used, and must be returned to the manufacturer for repair. -
Page 8: Risk Assessment
Instruction Manual Risk Assessment It the user’s responsibility to complete a risk assessment before using Buckleys equipment. The following points offer some guidance but must not be assumed to be complete or sufficient. Personal safety Have all users been trained in the correct and safe use of the instruments? •... -
Page 9: Disposal Information
Calibration Pro’ Other Risks Have you checked that there are no ongoing processes in the area (eg • below the roof you’re working on) that may be dangerous – X-ray machines, other radiation? Are you certain that the instrument has not been immersed, dropped or •... -
Page 10: Ec Declaration Of Conformity
Instruction Manual EC Declaration of conformity We, Buckleys (UVRAL) Ltd., as manufacturer of the apparatus listed, declare that the product Calibration Pro’ is manufactured in conformity with the following directives: 2014/30/EU, 2014/35/EU and 2015/863/EU. Date: 01/07/2021 Authorised by: J P Hoveman CEO, Buckleys (UVRAL) Ltd. -
Page 11: Contact Details
Contact details Manufacturer: Buckleys (UVRAL) Ltd Address: Buckleys House Unit G, Concept Court Shearway Business Park Shearway Road Folkestone Kent CT19 4RG, UK Tel: +44 (0)1303 278888 Website: www.buckleysInternational.com Distributor details... -
Page 12: Product Registration
Product registration Thank you for choosing a Buckleys product, we are sure it will provide you with many years of reliable service. Please register this product via Buckleys’ website and download the Warranty Registration Certificate. Register your product in 5 minutes...
