- Page 1 MANUFACTURERS OF SPECIALIST TEST EQUIPMENT Wet Roof Pro’ Operating Instructions English Version Please read carefully before use...
-
Page 3: Table Of Contents
Wet Roof Pro’ Contents Page General Description Technical Specification Unpacking Safety Precautions and Symbols Controls and Connections Generator Detector Battery charger Operation Principle Using the Wet Roof Pro’ Preparation Surveying Maintenance Disposal Information EC Declaration of Conformity Contact Details Distributor Details... -
Page 4: General Description
General Description The Wet Roof Pro’ leak detector compliments the existing range of Buckleys Dry Roof Pro’ test instrument to provide a complete roof test system for all occasions. The Wet Roof Pro’ has been designed as an aid to identifying the source of leaks on roofing technologies that incorporate dielectric membrane overlays. -
Page 5: Technical Specification
Wet Roof Pro’ Technical Specification Generator Output pulse voltage: 32 V DC Output pulse frequency: 0.25Hz or 0.5Hz Output power: <10 Watts Operating temperature: + 4˚ to + 40˚C Dimensions (L x H x D): 169 x 80 x 235 mm Weight: 2.1 kg –... -
Page 6: Unpacking

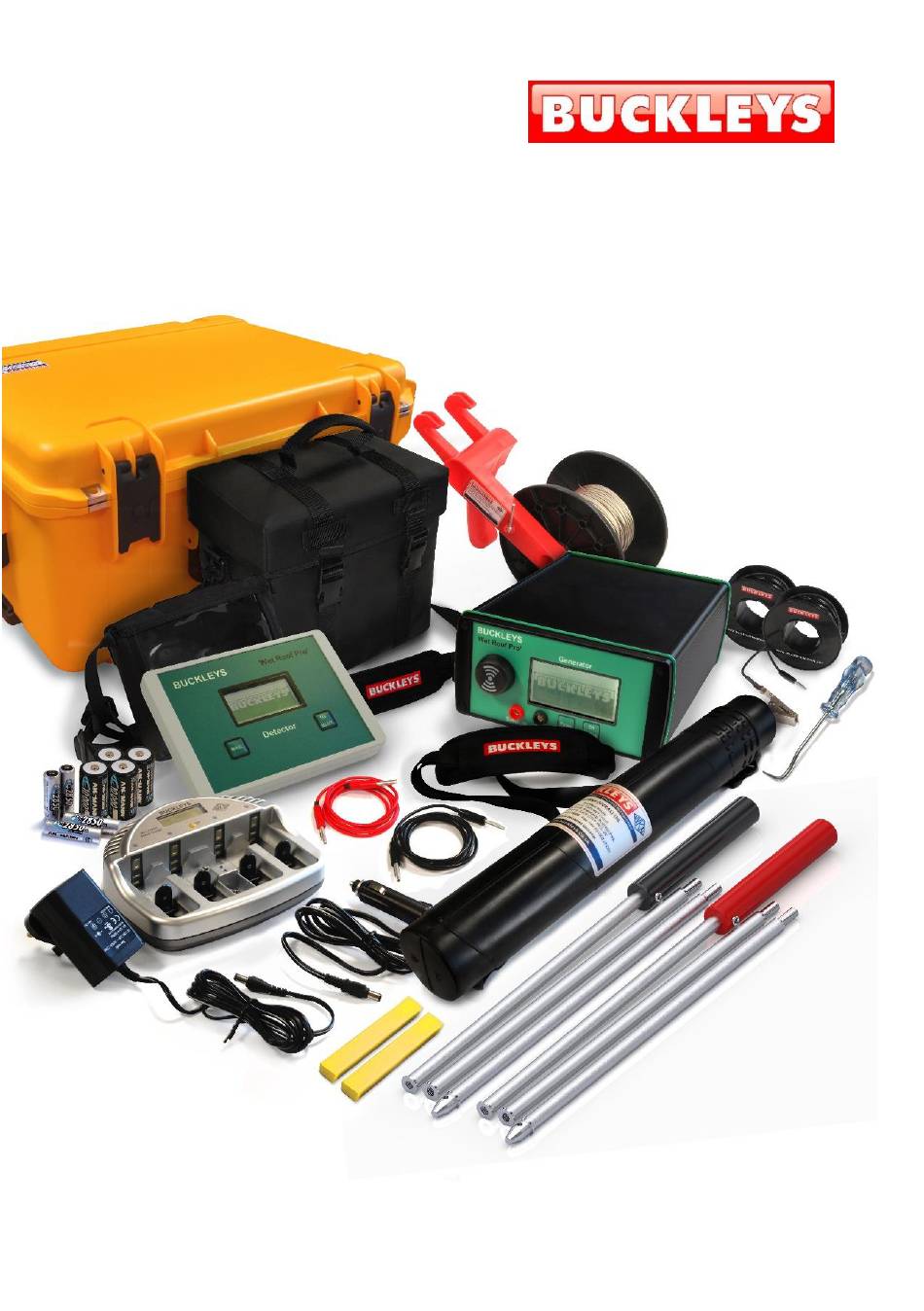

Instruction Manual Unpacking The Buckleys Wet Roof Pro’ leak detector kit and all associated items necessary to conduct a roof survey are supplied in a robust transit case. Retain all outer packaging to re-use in future should you need to store or return the Wet Roof Pro’... -
Page 7: Controls And Connections
Wet Roof Pro’ Controls and Connections Generator The Wet Roof Pro’ generator unit is housed in a robust waterproof closure with all connections and controls mounted on the front panel. Fig. 1 details the Generator front panel controls and connections. Pulse Select Fig.1 Generator front panel controls... - Page 8 Instruction Manual To switch the generator unit off press and hold the button for longer than two seconds. Fig. 2 (below), details the generator graphics display. The pulse frequency and pulse duration can be stepped through three separate settings, these are 0.25Hz at 30% duration, 0.50Hz at 30% duration and 0.50Hz at 50% duration.
- Page 9 Wet Roof Pro’ Fig.3 Pulse sequence options...
-
Page 10: Detector
Detector controls and connections are shown fig. 4. B – Graphics display C – Right-hand survey pole A – Left-hand survey pole BUCKLEYS Wet Roof Pro’ Detector MAG: SELECT D - Magnification button E - On/Off/Select button Fig.4 Detector unit... - Page 11 Wet Roof Pro’ The black and red 4mm sockets (items A & C respectively – fig. 4 connect to the colour matched survey poles (left pole = black, right pole = red) using the two short 1m leads supplied with the Wet Roof Pro’ kit. Four 1.5 volt ‘AA’...
- Page 12 Instruction Manual To reduce the contrast, briefly press the again and the vertical arrow next to the contrast icon will invert: Subsequent presses of the button will reduce the display’s contrast. To increase the brightness, briefly press the button again and the vertical arrow next to the contrast icon will invert and move down to the brightness icon: Subsequent presses of the...
-
Page 13: Battery Charger
Wet Roof Pro’ Battery charger Safety • Please read these operating instructions carefully before using the charger. • Do not use the device if there are any signs of damage to the housing, plug or cable. If you do find any damage to the unit, please contact an authorised dealer. - Page 14 Instruction Manual For charging round cells: • Multifunction clear LCD display with backlight • Adjustable charging current for each charging slot 400mA, 600mA, 800mA for 1-4 rechargeable batteries 400mA, 600mA, 800mA, 1500mA, 1800mA for 1-2 rechargeable batteries • Individual charging programs for each charging slot: - CHARGE - DISCHARGE (discharges battery before charging to minimize the ‘memory effect’...
- Page 15 Wet Roof Pro’ Please ensure that the input plug ‘clicks’ into the power supply to ensure the unit is safe to use. Connect the power supply to the charger. Finally, connect the power supply to the mains (100-240V AC 50-60Hz). To change the input plug, push the locking lug below the plug (e.g.
- Page 16 Instruction Manual • CURRENT button Push the ‘CURRENT’ button within 8 seconds of selecting a charging program or after inserting batteries to select the charging current for the program ‘CHARGE’ or ‘TEST’. Alternatively, choose the discharging current for the program ‘DISCHARGE’ or ‘REFRESH’. •...
- Page 17 Wet Roof Pro’ If only one or two rechargeable batteries are inserted into the charger using the two outer charging slots, in the mode ‘CHARGE’ and ‘TEST’ the charging current can be increased up to 1500mA or 1800mA with the ‘CURRENT’ button.
- Page 18 Instruction Manual ‘REFRESH’, the display switches between ‘Full’ and the measured discharging capacity in mAh/Ah. ‘ERR’ and ‘Lo’ are displayed alternately if the rechargeable battery inserted has an internal short-circuit and so is defective. ‘ERR’ and ‘Hi’ are displayed alternately if the rechargeable battery inserted exhibits a very high resistance or a non-rechargeable battery is inserted.
-
Page 19: Operation Principle
Wet Roof Pro’ Operation Principle Wet roof leak detection relies on the roof’s surface moisture forming an electrically conductive path to earth via the building substrate. The Wet Roof Pro’ utilises the conductive properties of water to allow the operator to locate the source or origin of a leak. This method is also known as voltage gradient mapping or vector mapping. - Page 20 Instruction Manual The stainless steel trace wire is used to form a conductive perimeter around the area of roof to be tested and is connected to the negative output of the Wet Roof Pro’ generator unit. The positive output of the Wet Roof Pro’ generator is connected to a suitable earthed point of the building substrate.
-
Page 21: Using The Wet Roof Pro
Wet Roof Pro’ Using the Wet Roof Pro’ Preparation Before conducting a survey, the roof must be wet and the trace wire needs to have been laid down to form a perimeter bordering the area to be tested. Use the 10m lead (clip to black plug) to connect the ends of the trace wire to form a closed loop. - Page 22 Instruction Manual Prior to using the Wet Roof Pro’ for the first time the batteries will need to be installed, once inserted the batteries can remain in the units until charging is required. To fit the generator unit batteries (4 x ‘D’ cell) remove the twist-grip cap from each battery tube located on the rear of the unit and slide two batteries into each battery tube (positive to cap) as shown in fig.
-
Page 23: Surveying
Wet Roof Pro’ The left and right hand survey poles comprise of three sections, an upper handle, a middle section and the lower probe-tip section. To assemble the survey poles, simply screw the sections together. Connect each survey pole to the detector unit using the respective 1m red and black test leads (stored in a small pocket on the rear of the detector’s protective neck pouch). - Page 24 Instruction Manual Fig.14 Roof survey...
-
Page 25: Maintenance
Maintenance We strongly recommend the Wet Roof Pro is serviced annually by Buckleys (UVRAL) Ltd. or one of our approved service & repair agents in order to ensure it works at optimum performance, accuracy and safety. By registering your Wet Roof Pro’s warranty at the time of first purchase, we will send annual reminders for scheduled maintenance as well as extending the warranty. -
Page 26: Ec Declaration Of Conformity
Instruction Manual EC Declaration of conformity Buckleys (UVRAL) Ltd As manufacturer of the apparatus listed, declare that the product: Wet Roof Pro’ Is manufactured in conformity with the following directives: 2104/30/EU 2014/55/EU Authorised by: J P Hoveman CEO, Buckleys (UVRAL) Ltd. -
Page 27: Contact Details
Wet Roof Pro’ Contact details Manufacturer: Buckleys (UVRAL) Ltd Address: Buckleys House Unit G, Concept Court Shearway Business Park Shearway Road Folkestone Kent CT19 4RG, UK Tel: +44 (0)1303 278888 Fax: +44 (0)1303 274331 Website: www.buckleysinternational.com Distributor details... - Page 28 Product registration Thank you for choosing a Buckleys product, we are sure it will provide you with many years of reliable service. Please register this product via Buckleys’ website and download the Warranty Registration Certificate. Register your product in 5 minutes...
