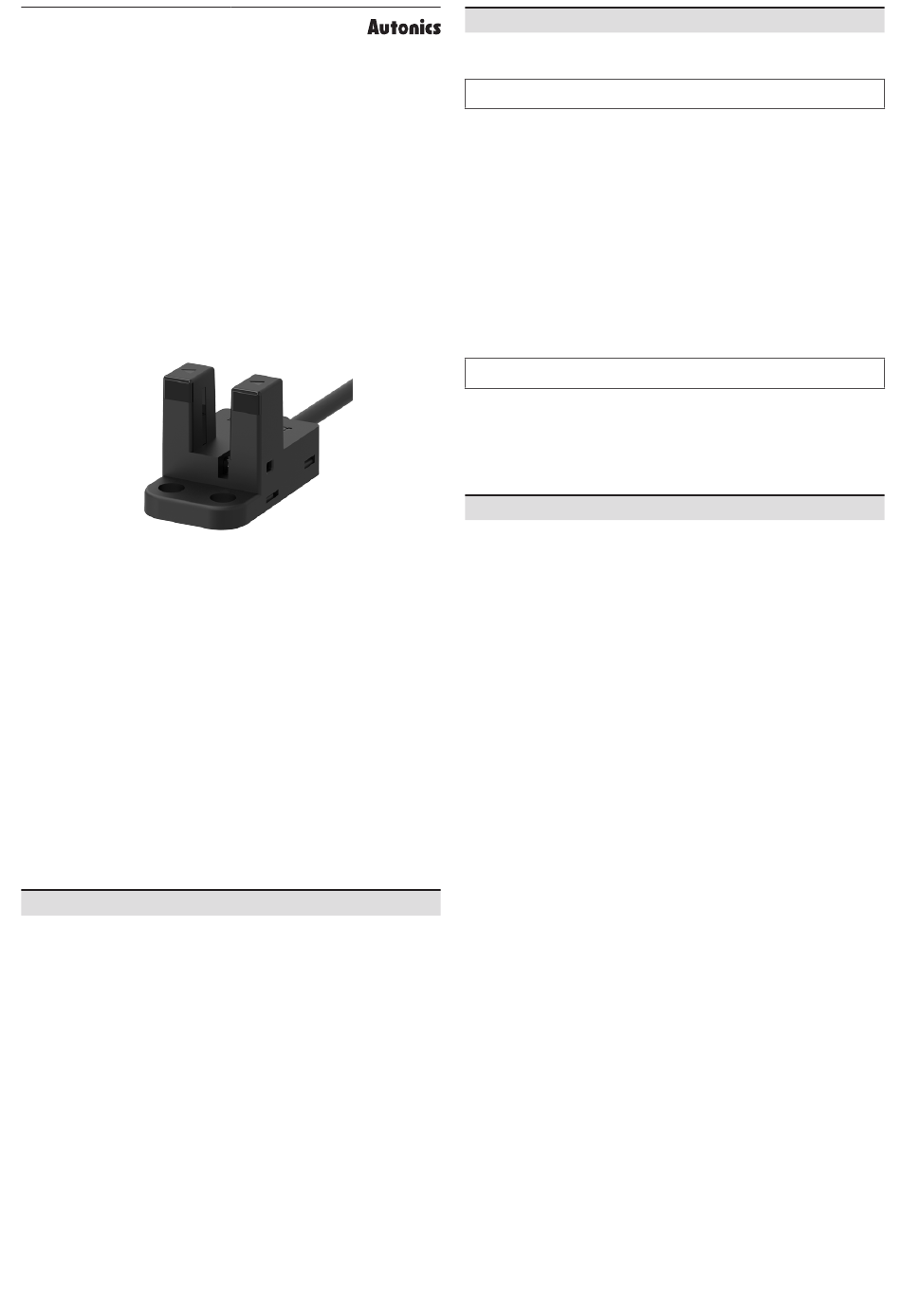

Groove-Depth 9 mm
Photomicro Sensors
BS5 Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Features
• Various shapes available for installation flexibility (K, T, V, L, Y, F, R, TA types)
• Level sensing side and body for minimal detection errors
• Operation indicators viewable from multiple directions
• Indicator ON when light received and indicator ON when light blocked models
available
• High shock and vibration resistance
• High-speed response frequency: 2kHz
• Standard and flexible type cables available
ᜢ ᜽ ᜫ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g., nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, fire or economic loss.
02. Do not use or store the unit in the place where flammable/explosive/
corrosive gas, high humidity, direct sunlight, radiant heat, vibration, impact,
or salinity may be present.
Failure to follow this instruction may result in explosion or fire.
03. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
04. Do not connect, repair, or inspect the unit while connected to a power source.
Failure to follow this instruction may result in fire.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or shortening the life cycle of the
product.
02. Use dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.
Cautions during Use
• Follow instructions in 'Cautions during Use' .
Otherwise, It may cause unexpected accidents.
• Use the product, 0.5 sec after supplying power. When using separate power supply for
the sensor and load, supply power to sensor first.
• The power supply should be insulated and limited voltage/current or Class 2,
SELV power supply device.
• Wire as short as possible and keep away from high voltage lines or power lines,
to prevent inductive noise.
• When using sensor with the equipment which generates noise (switching regulator,
inverter, servo motor, etc.), ground F.G. terminal of the equipment.
• This unit may be used in the following environments.
-
Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000m
- Pollution degree 2
- Installation category II
