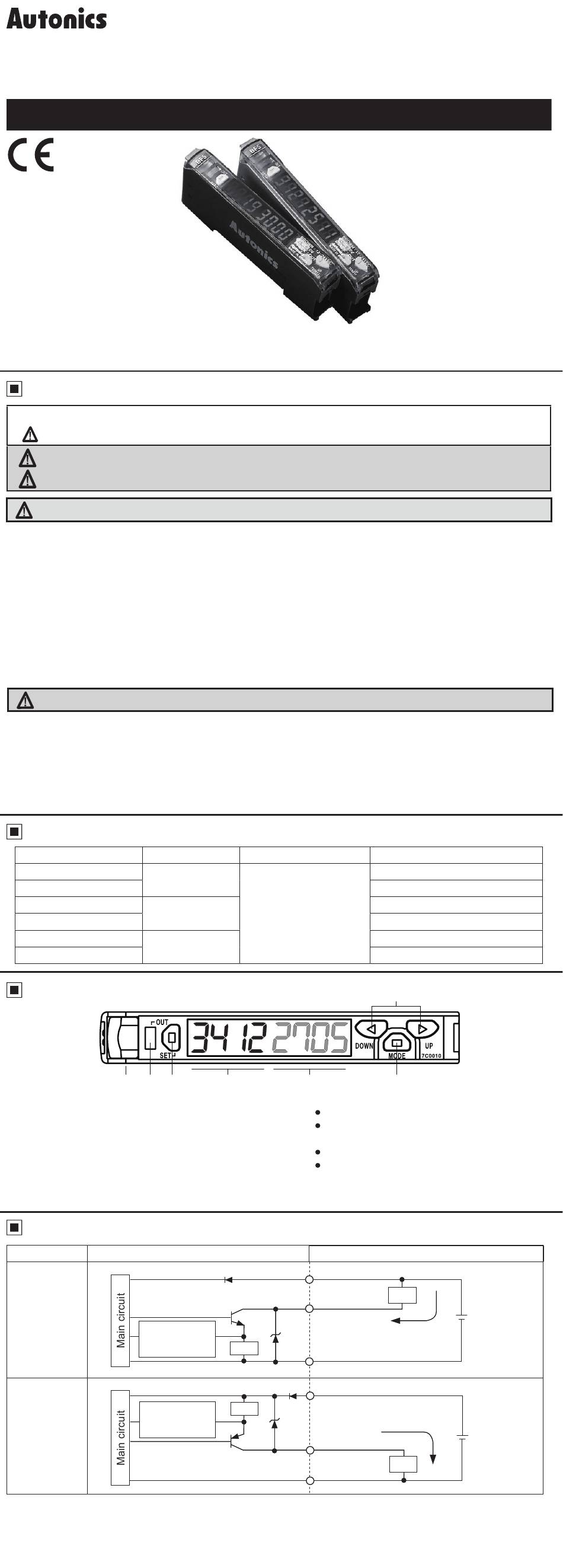

Autonics BF5 Series Instruction Manual

BF5 SERIES (Dual Display)
I N S T R U C T I O N
Thank you for choosing our Autonics product.
Please read the following safety considerations before use.
Safety Considerations
※ Please observe all safety considerations for safe and proper product operation to avoid hazards.
※
symbol represents caution due to special circumstances in which hazards may occur.
Warning
Failure to follow these instructions may result in serious injury or death.
Caution
Failure to follow these instructions may result in personal injury or product damage.
Warning
1. Fail-safe device must be installed when using the unit with machinery that may cause serious injury
or substantial economic loss. (e.g. nuclear power control, medical equipment, ships, vehicles,
railways, aircraft, combustion apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in fire, personal injury, or economic loss.
2. Install the unit on DIN rail to use.
Failure to follow this instruction may result in fire.
3. Do not connect, repair, or inspect the unit while connected to a power source.
Failure to follow this instruction may result in fire.
4. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
5. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
Caution
1. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
2. Use dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
3. Do not use the unit in the place where flammable/explosive/corrosive gas, humidity, direct sunlight,
radiant heat, vibration, impact, or salinity may be present.
Failure to follow this instruction may result in fire or explosion.
Ordering Information
Model
BF5R-D1-N
BF5R-D1-P
BF5G-D1-N
BF5G-D1-P
BF5B-D1-N
BF5B-D1-P
Unit Description
1. Control output indicator(Red)
Used to indicate control output provided by comparing SV
and actual incident light level.
2. Sensitivity setting key
Used to execute each operation and to set sensing sensitivity.
3. PV display part(4digit, Red, 7-segment)
Used to indicate incident light level and parameters.
4. SV display part(4digit, Green, 7-segment)
Used to indicate SV and setting data.
Control Output Circuit Diagram and Connections
Fiber optic sensor circuit
NPN open
collector
output
PNP open
collector
output
※ The above specifications are subject to change and some models may be discontinued
without notice.
※ Be sure to follow cautions written in the instruction manual and the technical descriptions
(catalog, homepage).
Digital Fiber Optic Sensor
Light source
Red LED
Green LED
Blue LED
7 1 2 3
Output short
over current
protection circuit
Output short
over current
protection circuit
Display part
Dual display type
4
5. Up/Down key
Used to up/down setting values
Used to fine-adjust sensitivity
6. MODE key
Used to enter into program mode / data bank mode.
Used to move each parameter.
7. Lock lever
Connection
(Brown)+V
(Black)Output
Load
(Blue)0V
(Brown)+V
Load
(Black)Output
(Blue)0V
M A N U A L
Control output
NPN open collector output
PNP open collector output
NPN open collector output
PNP open collector output
NPN open collector output
PNP open collector output
5
6
Load
Max. 100mA
Max. 100mA
Load
+
12-24VDC
-
+
12-24VDC
-
