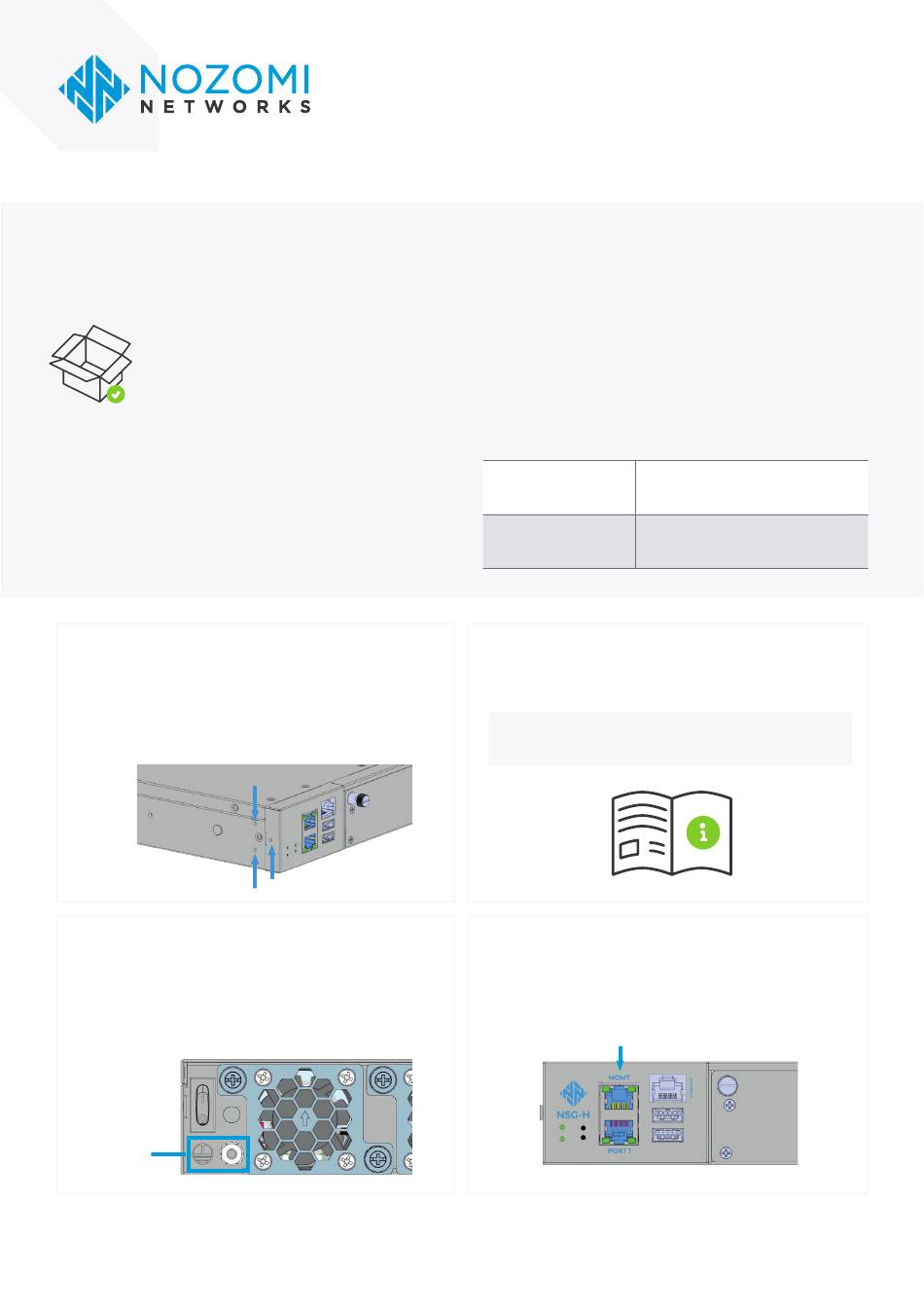

NOZOMI NETWORKS NSG-H Quick Start Manual

1. Unpacking the System
Inspect the chassis to see whether the appliance has been damaged
in any way. If the appliance appears to be damaged, please contact
Nozomi Networks support at: support@nozominetworks.com.
Box contents:
• Nozomi Networks NSG-H / HS Guardian appliance
• 2x Rack Mount Ears
• 8x Flat head screws for fixing rack mounting
brackets
• 8x M5 screws for rack mounting
• 2x Rack rails
• 1x Grounding cable
• 2x RJ45 Cat.6 straight cable (2m.)
• 1x RJ45 Console cable
• 2x Power chords
3. Unbox the appliance
Rack mounting brackets and their mounting screws are included
in the pizza box on the side of the package.
• Affix each bracket to the appliance, using four of the provided
screws
Bracket screw holes
5. Grounding
A reliable ground must be maintained at all times. To ensure this,
the rack itself should be grounded and the appliance chassis
should be connected for grounding to the rack via the provided
appliance grounding cable.
Grounding
screw
QUICK START GUIDE
Nozomi Networks NSG-H/HS Guardian Appliance
QUICK START GUIDE
Nozomi Networks NSG-H/HS
Guardian Appliance
Getting Started
2. Setup precautions and considerations
Please follow the General Safety Guidelines included in the box to
prevent potential property damage, personal injury or even death.
Furthermore, observe the following rules:
• Before performing any of the following procedures, ensure that
power has been removed from the AC or DC circuit.
• Read the installation instructions before you connect the system
to its power source.
• Warning: To prevent the system from overheating, do not operate
it in an area that exceeds the maximum recommended ambient
temperature of: 40°C (104°F).
Operating Environment
Storage Environment
4. Rack Mounting
You can now mount the appliance in a standard 19" rack. Nuts
and bolts for square holes are included in the box.
For detailed rack mounting instructions, follow the specific
guide you'll found in the box.
6. Connecting management port
Connect the management port (MGMT) (1) to the designated
network switch or equipment. One RJ45 cable is included in the
box for this purpose.
1
Temperature: 0 – 40°C (32 – 104°F)
Humidity: 20 – 90 % RH
Temperature: -10 – 70°C (14 – 158°F)
Humidity: 5 – 95 % RH @ 55°C
nozominetworks.com
