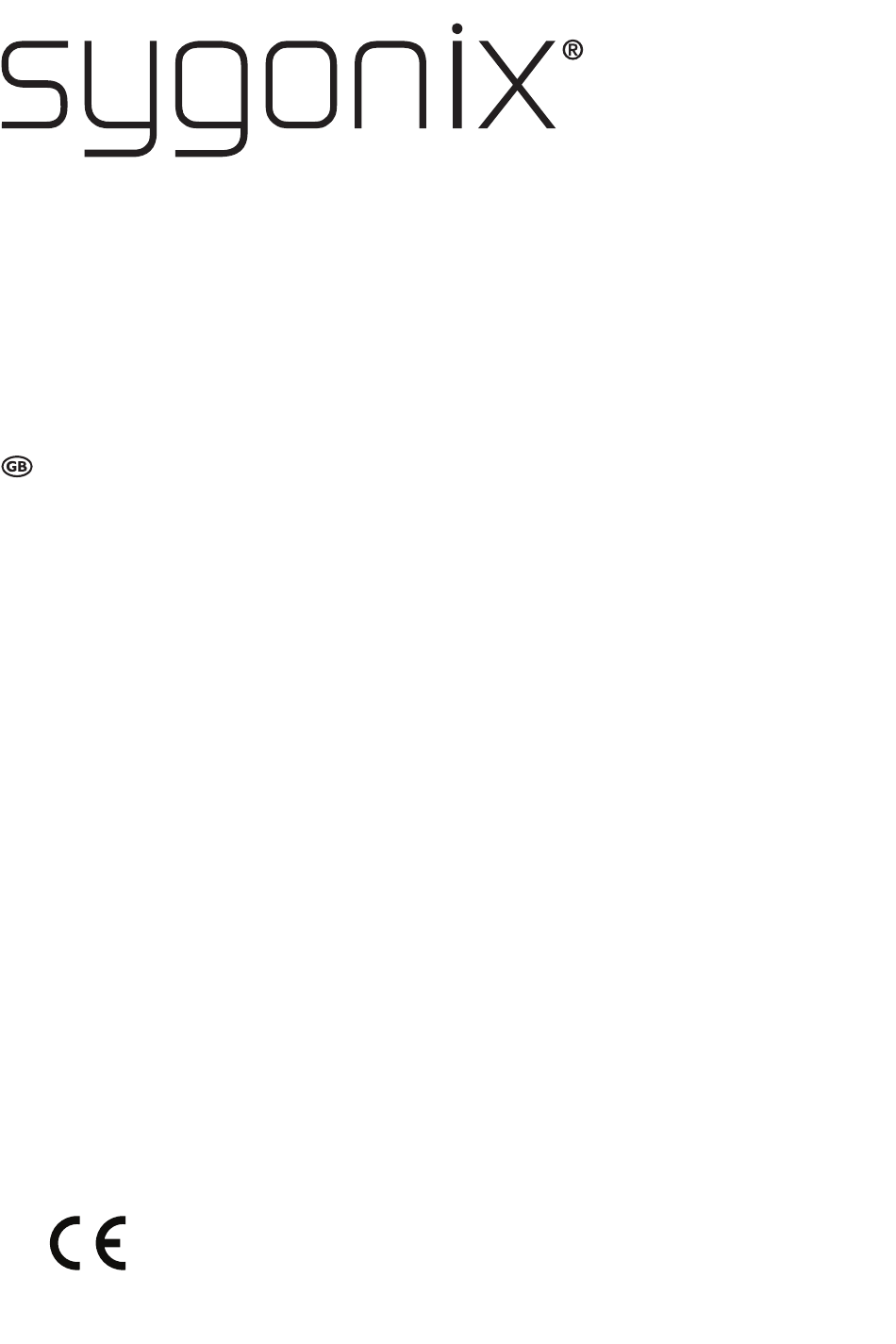

- Page 1 Operating Instructions Wi-Fi radiator thermostat Item No. 2997033 Page 2 - 30...
-
Page 2: Table Of Contents
1 Table of contents Introduction ................................4 Downloading the operating instructions .......................4 Intended use ................................4 Features and functions ............................5 Scope of supply ..............................5 Explanation of symbols ............................5 Safety instructions ...............................6 8.1 General information ............................6 8.2 Handling .................................6 8.3 Operating environment ..........................6 8.4 Operation ...............................6 Product overview ..............................7 10 Getting started and installation ..........................8... - Page 3 12.2 Manual mode .............................23 12.2.1 Activating manual mode using the thermostat ..................23 12.2.2 Activating manual mode in the app ......................23 12.3 Holiday mode .............................24 12.3.1 Setting holiday mode in the app ......................24 12.3.2 Activating holiday mode with the thermostat ...................24 12.3.3 Activating holiday mode in the app ......................24 12.4 Boost mode ..............................24 12.4.1 Activating boost mode in the app ......................24...
-
Page 4: Introduction
2 Introduction Dear customer, Thank you for purchasing this product. If there are any technical questions, please contact: www.conrad.com/contact 3 Downloading the operating instructions You can download the complete operating instructions (or new/updated versions if available) by using the link www. -
Page 5: Features And Functions
5 Features and functions LED display with white backlight Rotatable display Battery-powered (2x AA/Mignon batteries, not included) Compatible heating valves: M30 x 1.5 mm; Danfoss RA, RAV, RAVL Operating temperatures: +5 to +30 °C, increment: 0.5 °C. Functions: weekly program, automatic mode, manual mode, holiday mode, ECO mode, window detection, frost protection function and much more. -
Page 6: Safety Instructions
8 Safety instructions Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/ guarantee. -
Page 7: Product Overview
9 Product overview A Valve connection Comfort temperature status LED Wi-Fi signal strength status LED D Temperature display Manual mode status LED Automatic mode status LED G Rotary button Press briefly to switch between Auto, Manual and Holiday modes Press and hold to activate pairing mode H Temperature control knob Holiday mode status LED... -
Page 8: Getting Started And Installation
10 Getting started and installation 10.1 Inserting the batteries Slide the radiator thermostat cover off the thermostat (1) towards the valve drive (A). Insert two AA/Mignon batteries (not included) with the correct polarity (observe plus/+ and minus/-, see imprint in the battery compartment) (2). This will start the thermostat’s operating system. The display lights up, and the servomotor returns to the home position. While the motor is moving, the display shows “InS” with a rotating icon “ ”. When the display shows “AdA”, the start-up is complete. Replace the cover of the radiator thermostat (3). -
Page 9: Mounting The Device On A M30 X 1.5 Mm Standard Valve
10.3 Mounting the device on a M30 x 1.5 mm standard valve You can fit the thermostat directly to the valve if you are using a standard radiator valve with a thread size of M30 x 1.5 mm. Firstly, check the valve pin to see if it can be moved easily (4). You should be able to press it in about 2.5 to 3 mm. When the pin is pressed in, the valve is closed. -
Page 10: Using The Adaptors Provided
10.4 Using the adaptors provided This chapter is devoted solely to the installation of adaptors. Otherwise, the procedure is identical to that described in chapter 10.3 “Mounting the device on a M30 x 1.5 mm standard valve”. First, check whether you can move the valve pin (4). The thermostat installation process is the same in all cases. -
Page 11: Danfoss Rav Valve
10.4.2 Danfoss RAV valve Push the longest plastic pin provided onto the pin of the radiator valve (9). The outer edge of the valve housing has elongated notches. These notches ensure that the adaptor sits correctly when fitted. Fit the adaptor completely, ensuring that the ridge on the adaptor is aligned with the notch on the valve (7). Posi- tion the adaptor so that the fixing hole is easily accessible. The “B1”... -
Page 12: Danfoss Ra Valve
10.4.3 Danfoss RA valve Set the built-in preset thermostat controller to the maximum value “N” (11). The outer edge of the valve housing has elongated notches. These notches ensure that the adaptor sits correctly when fitted. Fit the adaptor completely, ensuring that the ridge on the adaptor is aligned with the notch on the valve (7). Posi- tion the adaptor so that the fixing hole is easily accessible. The “B1”... -
Page 13: Using The Two Plastic Pins
10.4.4 Using the two plastic pins The following situations may occur due to the dimensional and installation tolerances of the heating valve: The thermostat malfunctions and the error code “F2” is displayed. The heating valve cannot be fully closed, and the radiator is always hot. If any of these two situations occur, proceed as follows: Screw the thermostat off the heating valve. -
Page 14: Configuring The Wi-Fi Radiator Thermostat In The App
11 Configuring the Wi-Fi radiator thermostat in the app 11.1 Installing the app Open the respective app store on your smartphone. If you are using Android , open “Google Play”. If you are using an Apple device, open “App Store” from Apple. Search for the “Smart Life - Smart Living”... -
Page 15: Main Page Of The App
11.3 Main page of the app This section provides a brief overview of the controls on the main page of the app. Opens a small menu in which you can select the profile or family. This option allows you to switch directly to family management. Switches to the display of the respec- tive room. -
Page 16: Configuring The Product
11.4 Configuring the product For configuration via Wi-Fi, ensure your smartphone and the Wi-Fi camera are connected to the same network. Important: Please note that only 2.4 GHz Wi-Fi networks are supported. The Wi-Fi signal must be stable at the place of installation. If the Wi-Fi signal is weak, make sure you use a Wi-Fi repeater to improve signal quality. The thermostat must be installed, and the following information must be displayed (see screenshot). If not, remove the batteries for a few seconds and repeat the initial setup. You can add a new device manually by tapping “+” (A14) on the top right of the app’s main page and selecting the device you want to add. - Page 17 The following one or three displays with information on resetting the device do not apply to this product. Just tap the blue button to confirm. When the prompt regarding the indicator light appears, tap the “Blink Slowly” button on the left. In the next steps, you will learn how to connect your smartphone to the thermostat’s Wi-Fi hotspot.
- Page 18 The app will search for the new device and complete the setup. This can take several minutes. When setup is complete, the display should look like the right- hand screenshot. If anything went wrong, repeat the process. Tapping on the pencil icon opens a window in which you can as- sign a unique name to the new device.
-
Page 19: Basic Operation/Configuration In The App
11.5 Basic operation/configuration in the app 11.5.1 Thermostat configuration/control page Tapping on the device on the app’s main page opens the page with advanced functions and settings. You can delete the device from the app by tapping on the device on the main page until the delete button appears on the display below. - Page 20 Returns to the app’s main page. Manual temperature setting. Current temperature setting. Current thermostat temperature. Opens thermostat settings. Displays thermostat’s current mode. Opens the mode settings menu (see B8 to B11). Automatic mode (uses time/temperature pre- sets for control). You can configure the settings in menu B12. Manual mode (enables you to control the tem- perature manually using the temperature con- trol knob (H)).
-
Page 21: Thermostat Settings Page (B5)
11.5.2 Thermostat settings page (B5) Use the arrow to return to the main page of the respective device. Tapping on the pencil icon at the top right opens the app settings of the device again. Same as B16. Comfort temperature settings menu. Simply tap the button, select the desired tem- perature and confirm your selection. -
Page 22: App Settings Page Of The Respective Device (B16)
11.5.3 App settings page of the respective device (B16) Use the arrow to return to the main page of the respective device. Enables you to change the name of the device in the app or assign the device to a different room (when multiple rooms have been select- ed or created). -
Page 23: Configuration/Operation Using The Thermostat And The App
12 Configuration/operation using the thermostat and the app 12.1 Automatic mode In automatic mode, the temperature control depends on the preset heating profile. Any manual changes remain active until the next profile change. Then, the preset heating profile will be reactivated. Default temperatures: +17 °C and +21 °C Time range: 12:00 a.m. - midnight, increment: 10 minutes Temperature range: +5 to +30 °C, increment: 0.5 °C 12.1.1 Activating automatic mode with the thermostat Press the rotary button (G) until the display shows the house icon 12.1.2 Activating automatic mode in the app Open the mode settings menu by tapping the B7 button on the thermostat control page. -
Page 24: Holiday Mode
12.3 Holiday mode Holiday mode is ideal if you are not at home and want to switch off the radiators briefly or for a longer period of time. When in holiday mode, the radiators are activated automatically with the preset temperature and at the preset time. Temperature range: +5 to +30 °C, increment: 0.5 °C 12.3.1 Setting holiday mode in the app To configure the desired time and temperature settings for holiday mode, tap the B5 button on the thermostat control page to access the settings. Then, tap the C7 button to go to the holiday mode settings. Firstly, select the start and end time together with the date and time and then configure the temperature. -
Page 25: Detecting Open Windows
12.5 Detecting open windows 12.5.1 Method 1 - Detection with the aid of a door/window sensor Assuming you have a door/window sensor connected to the app, you can pair it with the thermostat via a scene. This enables intelligent temperature control when opening a window or door. Tap the second button from the left at the bottom of the app’s main page and then tap the blue button to create a scene. -
Page 26: Comfort And Eco Temperature
12.6 Comfort and ECO temperature You can easily toggle between the comfort and ECO temperature using the app. You can also do this when the thermostat is in automatic mode. The selected temperature remains active until the next program change in the heating profile. Default comfort temperatures: +21 °C Default ECO temperatures: +17 °C Temperature range (applies to both temperatures): +5 to +30 °C, increment: 0.5 °C 12.6.1 Activating/switching the comfort/ECO temperature in the app... -
Page 27: Frost Protection Mode
12.9 Frost protection mode You can activate the frost protection function when, for example, you are not at home for extended periods in winter. When this function is activated, the temperature in your home is maintained at 8 °C. Activating the frost protection function deactivates all other functions. To activate/deactivate the frost protection function, tap the B5 button on the thermostat control page to go to the thermostat settings page. -
Page 28: Voice Control
12.13 Voice control 12.13.1 Configuring the voice control Open the thermostat settings page by tapping the pencil icon at the top right (B16) of the thermostat control page in the app. Connect the app to an assistant by tapping the D3 button on the app settings page. Select “Alexa”... -
Page 29: Cleaning And Care
14 Cleaning and care Important: – Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions. They can damage the housing and can cause the product to malfunction. – Do not submerge the product in water. 1. Disconnect the product from the power supply and remove the batteries. 2. -
Page 30: Declaration Of Conformity (Doc)
16 Declaration of Conformity (DOC) Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product conforms to the 2014/53/EU directive. Click on the following link to read the full text of the EU declaration of conformity: www.conrad.com/downloads Enter the product item number in the search box. You can then download the EU declaration of conformity in the available languages. - Page 32 This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing. Copyright 2024 by Conrad Electronic SE.
