Sygonix SY-6052180 Installation Instructions

Installation Instructions

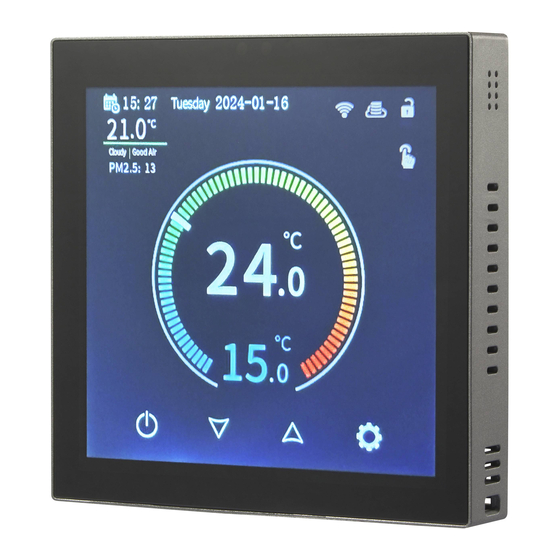

Wi-Fi Thermostat
Item no: 3026090
1 Product documentation
The product is documented by different sets of instructions:
■
Installation instructions
■
Operating instructions (for download only)
Use the link www.conrad.com/downloads
instructions (or new/current versions if available). Follow the instructions on the web page.
2 Intended use
The product is a Wi-Fi thermostat for fixed indoor installation. The product is intended to con-
trol a mains operated load via temperature control.
The product can be controlled via touch display and the Tuya mobile app Smart Life/Smart
Living.
The product is equipped with an internal and external sensor (probe). The external sensor
can be used to measure the temperature in a different location to the thermostat, such as on
the floor with an electric floor heating system.
The product is equipped with a backup battery to temporarily maintain the settings during
power outages.
This device has an IP20 ingress protection rating and is suitable for dry rooms and indoor
use. Contact with moisture, e.g. in bathrooms, must be avoided under all circumstances. The
operating conditions shown in the "Technical data" must be strictly followed.
The product is intended for indoor use only. Do not use it outdoors.
Contact with moisture must be avoided under all circumstances.
If you use the product for purposes other than those described, the product may be dam-
aged.
Improper use can result in short circuits, fires, electric shocks or other hazards.
The product complies with the statutory national and European requirements.
For safety and approval purposes, you must not rebuild and/or modify the product.
Read the installation instructions carefully and store them in a safe place. Make this product
available to third parties only together with the installation instructions.
All company names and product names are trademarks of their respective owners. All rights
reserved.
3 Delivery contents
■
Thermostat
■
External sensor
4 Description of symbols
The following symbols are on the product/appliance or are used in the text:
Read the operating instructions carefully.
The symbol warns of hazards that can lead to personal injury.
The symbol warns of dangerous voltage that can lead to personal injury by elec-
tric shock.
Protection class 2 (double or reinforced insulation, protective insulation).
This product must only be used in dry, enclosed indoor areas. It must not become
damp or wet.
1
(alternatively scan the QR code) to download the
■
2x Mounting screws
■
Installation instructions
5 Safety instructions
Read the installation instructions carefully and especially observe the
safety information. If you do not follow the safety instructions and informa-
tion on proper handling, we assume no liability for any resulting personal
injury or damage to property. Such cases will invalidate the warranty/guar-
antee.
5.1 General
■
The product is not a toy. Keep it out of the reach of children and pets.
■
Do not leave packaging material lying around carelessly. This may become dangerous
playing material for children.
■
If you have questions which remain unanswered by this information product, contact our
technical support service or other technical personnel.
■
Maintenance, modifications and repairs must only be completed by a technician or an
authorised repair centre.
5.2 Electrical installation
WARNING! Safety hazard!
The product should only be installed by people with relevant electrical knowledge and exper-
ience! *)
If it is not installed properly, you risk:
■
your own life
■
the life of user of the electrical device
■
severe damage to property, e.g., by fire
■
personal liability for personal injury and material damage
Always consult an electrician!
*) Technical knowledge required to perform the installation:
For the installation, the following specialist knowledge is required in particular:
■
The "Five safety rules": Disconnect from the mains; protect against accidental switch-on;
ensure there is no voltage; earth and short-circuit; cover or protect adjacent live parts
■
Use of suitable tools, measuring devices and personal protective equipment, where ne-
cessary
■
Analysis of measurement results
■
Use of electrical installation materials to meet the requirements for disconnection
■
IP protection ratings
■
Installation of electrical installation materials
■
Type of power supply (TN system, IT system, TT system) and the corresponding con-
nection criteria (classic earthing, protective earthing, necessary additional measures etc.)
If you are not a professional, do not do it yourself, have it performed by a specialist.
5.3 Handling
■
Handle the product carefully. Jolts, impacts or a fall even from a low height can damage
the product.
5.4 Operating environment
■
Do not place the product under any mechanical stress.
■
Protect the appliance from extreme temperatures, strong jolts, flammable gases, steam
and solvents.
■
Protect the product from high humidity and moisture.
■
Protect the product from direct sunlight.
5.5 Operation
■
Consult an expert when in doubt about the operation, safety or connection of the
product.
■
If it is no longer possible to operate the product safely, take it out of operation and pro-
tect it from any accidental use. DO NOT attempt to repair the product yourself. Safe op-
eration can no longer be guaranteed if the product:
– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods in poor ambient conditions or
– has been subjected to any serious transport-related stresses.
5.6 Battery
■
Correct polarity must be observed while inserting the battery.
■
The battery should be removed from the device if it is not used for a long period of time
to avoid damage through leaking. Leaking or damaged batteries might cause acid burns
when in contact with skin, therefore use suitable protective gloves to handle corrupted
batteries.
■
Batteries must be kept out of reach of children. Do not leave batteries lying around, as
there is risk, that children or pets swallow them.
■
Batteries must not be dismantled, short-circuited or thrown into fire. Never recharge non-
rechargeable batteries. There is a risk of explosion!
