- Page 1 AMCOL CORPORATION 6000-VIC VARIABLE INPUT CONTROLLER TECHNICAL DESCRIPTION AND OPERATOR’S MANUAL...

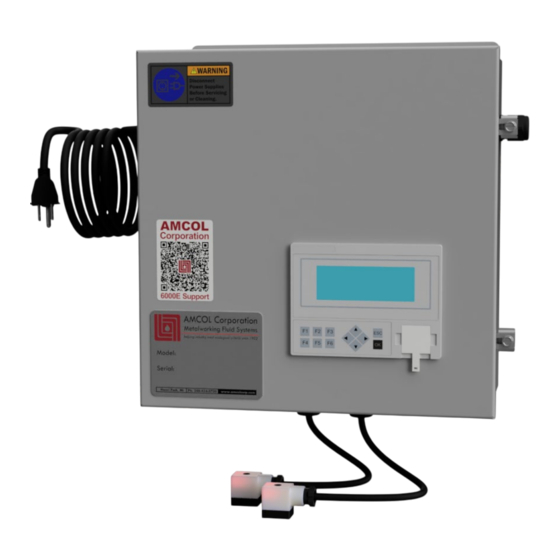

- Page 2 Figure 1 The 6000-VIC Variable Input Controller The 6000-VIC program allows a variable electronic pulse input such as an encoder wheel to control a corresponding variable output. This allows the 6000E series Precision Lubrication system to increase and decrease output as machine speed varies. This combination is ideal for coating a metal strip as it moves through a production process such as roll forming, welded tube production, or stamping.
- Page 3 Installing the 6000-VIC To incorporate this technology, an AMCOL 6000E Precision Applicator is required. The two- solenoid control package is available on new AMCOL 6000 Series Spray equipment and can also be retrofitted to older model single air source systems.
- Page 4 Setting Up the 6000-VIC 1. Plug in the power cord. 2. Press F6 on the keypad and login to the system. The default password is 6000. The screen should momentarily flash green when logged in. The password can be changed by entering a different password while logged in and holding the OK button.
-
Page 5: Operating Modes
Operating the 6000-VIC OPERATING MODES Automatic – This is the standard mode that can be turned on by pressing the right arrow (>) button on the LCD. The system will dynamically adjust injection timing as the input speed fluctuates. Manual – Manual mode can be turned on by pressing the left arrow (<) button on... - Page 6 There is a retrofit kit available including a template used to modify the steel enclosure that houses the T60A Injectors and pneumatic controls and connections. Please remember this controller is only applicable for use with an AMCOL 6000E Series Precision Spray Applicator with the two-solenoid control package.
-
Page 7: Wiring Diagrams
Wiring Diagrams 6000-VIC-24-E 6000-VIC-24-A 6000-VIC-24-E-LLI 6000-VIC-24-A-LLI AMCOL Corporation 21435 Dequindre, Hazel Park, MI 48030 248-414-5700 fax: 248-414-7489 www.amcolcorp.com P A G E | 7 VARIABLE INPUT CONTROLLER FOR 6000E SYSTEMS TD-OM...
