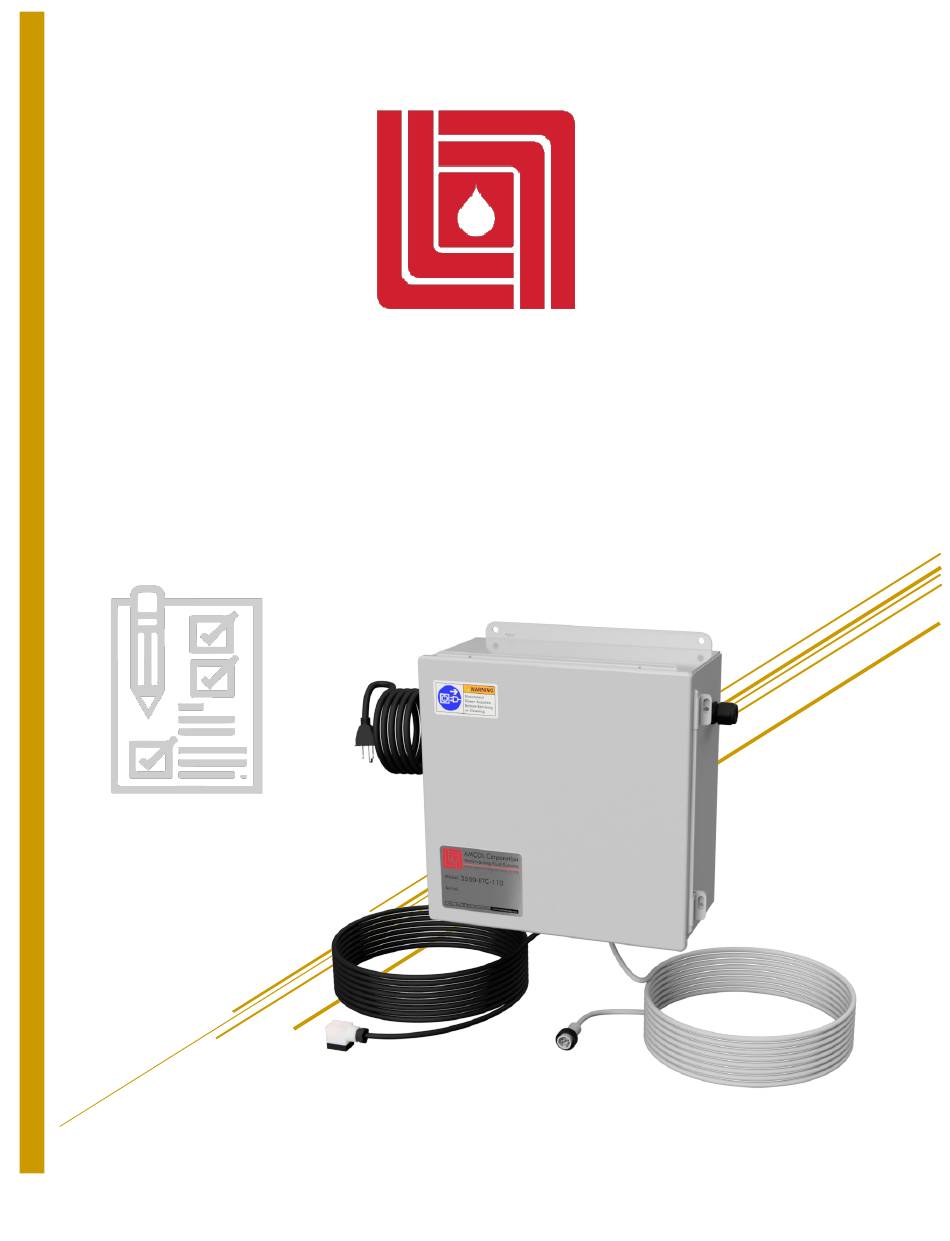

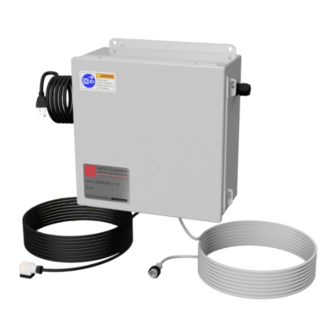

- Page 1 AMCOL CORPORATION 3500-ETC ELECTRONIC TIMING CONTROLLER Technical Description...
- Page 2 3 Description of Components ..................4 4 System in Detail ......................5 5 How to Order ......................6 6 Additional Information ....................7 AMCOL Corporation 21435 Dequindre, Hazel Park, MI 48030 248-414-5700 fax: 248-414-7489 www.amcolcorp.com 3500-ETC Technical Description P a g e |1...
- Page 3 To solve this problem, AMCOL has created a simple package to effectively control a 3500E system with a single PLC output. If used properly, the 3500-ETC will allow for consistent, repeatable coatings with settings that can be easily seen and changed where necessary.
- Page 4 When the 3500-ETC receives a signal from your machine controls (24V DC or 110V AC), it triggers one cycle of the 3500E. The ETC uses two output signals to operate the 3500E, and an additional output can be wired to control the dust collection system.
- Page 5 3 Description of Components Each 3500-ETC comes standard with the following components: 1. Preprogrammed Allen Bradley PLC 2. 6’ grounded power cord with plug 3. Open cable gland to insert the machine PLC control output 4. NEMA 12/13 sealed steel electrical enclosure 5.
- Page 6 3500 are operating correctly. This controller is made to operate with standard AMCOL 3500E Electrostatic Powder Coating Systems. For more information about the 3500E, see the AMCOL 3500E Electrostatic Powder Dispensing System Technical Description. 3500-ETC Technical Description...
- Page 7 5 How to Order Control Voltage specifies the signal voltage coming from your machine or PLC output. 3500-ETC-110 3500-ETC-24 3500-ETC Technical Description P a g e |6...
- Page 8 6 Additional Information For information regarding installation, operation, and maintenance please refer to the AMCOL 3500-ETC Operator’s Manual. AMCOL Corporation 21435 Dequindre, Hazel Park, MI 48030 248-414-5700 fax: 248-414-7489 www.amcolcorp.com 3500-ETC Technical Description P a g e |7...
