EXPLORE HOME UNIVERSAL SIENNA U400657 Instruction Sheet

U400657
U400A657
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts that may have come loose inside the carton during shipment.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the
assistance of one or more persons in order to prevent personal injury and to insure parts are not damaged
during the assembly process. If dirty, clean finished parts with mild dishwashing liquid and water solution
applied on a damp cloth. The cloth should not be excessively wet. Polish finish with a soft cloth and an industry
recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for
stain residue and rough surfaces and also check for staples or nails left after removing the packaging material.
The manufacturer will not be held responsible if preventative steps are not taken prior to installation.
(3) Unpack and dispose of all packing material but be careful not to throw away any assembly parts
or hardware. Read the instruction sheet and parts list carefully. Remove all staples and screws used for
packaging carefully using pliers and or screwdrivers to prevent injury and scratching or damaging flooring.
(4) During normal use everyday, screws, bolts, nuts and wooden plugs may loosen up. They should
be periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or
cause injury. Always check to be sure all hardware on this list and the above mentioned components is
attached to the furniture properly and kept tightened at all times.
PARTS LIST:
# Description
A
Dining Table Top
C
Leg
E
Table Leaf
Asse mbly Procedure
Unpack, inspect, and read assembly instruction carefully. Lay out the parts and hardware. Make sure
the quantity of each is correct.
Step 1: Install the leg (B) to the leg (C) using Hex head Bolt (2), Spring Washer (3) and Flat
Washer (4). Secure all bolts by screwdriver (not provided) as sketch.
Step 2: Detach mounting plate (D) off table top (A) using wrench (5), keep the bolts, spring washers
and flat washers for step 4.
Step 3: Attach the mounting plate (D) to the legs (B+C) using Hex head Bolt (1), Spring Washer (3)
and Flat Washer (4). Tighten all bolts securely with Wrench (5).
Step 4: And then attach mounting plate (D) to table top (A) with the bolts, spring washers and flat
washers from step 2.
Step 5: Turn the table upright. Unlock table top (A), take off the table leaf (E) and put it in leaf bag (F)
when leaf is not in use. Then lock the table top. Use adjustable leveler as necessary.
Note: If handled improperly, the act of installing and removing table leaf may damage the table.
Please use caution and delicate handling when installing and removing table leaf to prevent
damaging the table top surface and edges. It is best two persons are involved when installing or
removing table leaf.
Assembly is now complete.
INSTRUCTION SHEET
Qty. #
B
1pc
D
1pc
F
1pc
: (Please follow the sketches below).

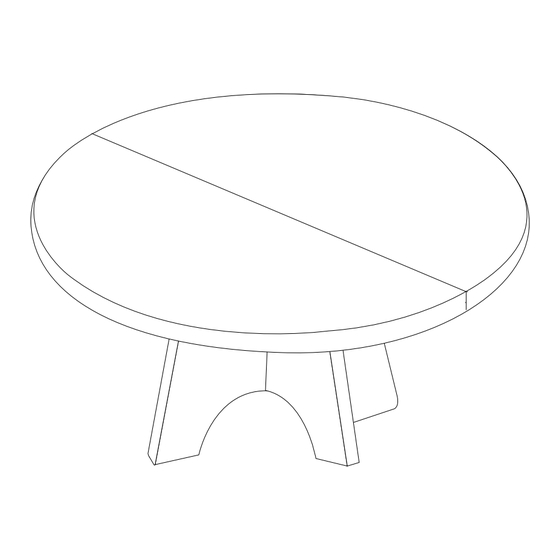

SIENNA ROUND DINING TABLE
CANYON ROUND DINING TABLE
Description
Leg
Mounting Plate
Leaf bag
Qty.
1pc
1pc
1pc
