EXPLORE HOME UNIVERSAL CANYON U400A626 Instruction Sheet

U400A626
Thank you for purchasing this quality product. Be sure to check all packing material carefully
for small parts that may have come loose inside the carton during shipment.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the
assistance of one or more persons in order to prevent personal injury and to insure parts are not
damaged during the assembly process. If dirty, clean finished parts with mild dishwashing liquid and
water solution applied on a damp cloth. The cloth should not be excessively wet. Polish finish with a
soft cloth and an industry recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of
furniture for stain residue and rough surfaces and also check for staples or nails left after removing
the packaging material. The manufacturer will not be held responsible if preventative steps are not
taken prior to installation.
(3) Unpack and dispose of all packing material but be careful not to throw away any
assembly parts or hardware. Read the instruction sheet and parts list carefully. Remove all staples
and screws used for packaging carefully using pliers and (or) screwdrivers to prevent injury and
scratching or damaging flooring.
(4) During normal use everyday, screws, bolts, nuts and wooden plugs may loosen up.
They should be periodically inspected and re-tightened to prevent damage to the furniture and (or)
personal property or cause injury. Always check to be sure all hardware on this list and the above
mentioned components is attached to the furniture properly and kept tightened at all times.
PARTS LIST:
Description
A Chair Back Frame
C
Front Legs
Assembly Procedure
Unpack, inspect, and read assembly instruction carefully. Lay out the parts and hardware. Make sure
the quantity of each is correct.
Step 1: Assemble Chair Seat (B) to Chair back (A) using Hex head Bolt (2), Spring Washer (4) and
Flat Washer (5). Tighten with Wrench (6).
Step 2: Then Assemble Chair Seat (B) to Chair back (A) using Hex head Bolt (3), Spring Washer (4)
and Flat Washer (5). Tighten with Wrench (6).
Step 3: Assemble Front Legs (C) to Chair Seat (B) using Hex head Bolt (1), Spring Washer (4) and
Flat Washer (5). Tighten with Wrench (6).
Assembly is now complete.
INSTRUCTION SHEET
Qty.
1pc B
2pcs
: (Please follow the sketches below.)

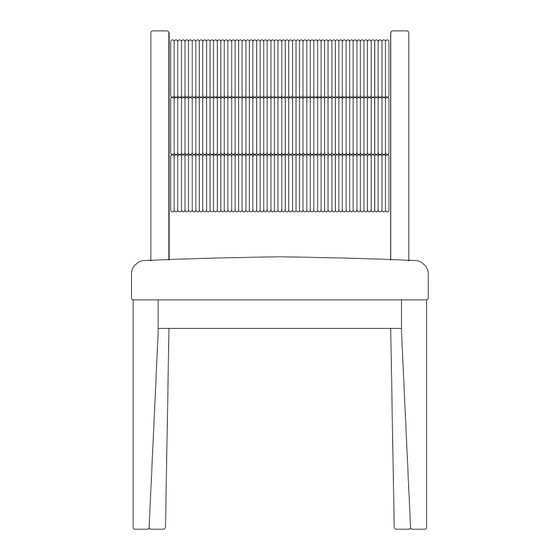

CANYON SIDE CHAIR
Description
Chair Seat
Qty.
1pc
