Related Manuals for i-SENS CareSens S Fit BT
Summary of Contents for i-SENS CareSens S Fit BT
- Page 1 User Manual Blood Glucose Monitoring System Easy Data Transfer by Bluetooth Connection Indicate Blood Glucose Range with Intuitive Symbols Ketone Testing Alarm...
-
Page 2: Bluetooth Wireless Technology
The CareSens S Fit BT meter is designed to work with the SmartLog mobile app. When using the CareSens S Fit BT System, we suggest you pair your CareSens S Fit BT meter with your smartphone and track your results. -
Page 3: Table Of Contents
The Bluetooth® word mark and logos are registered trademarks Preparation owned by Bluetooth SIG, Inc. and any use of such marks by i-SENS, Setting Up Your System ........................21 Inc. is under license. All other trademarks and trade names are Setting the Strip Expiration Date Indicator ................ -
Page 4: Important Information: Read This First
CE Mark Intended use: Authorised representative in the European Community/ CareSens S Fit BT Blood Glucose Monitoring System is intended European Union for the quantitative measurement of glucose in fresh capillary whole blood from the fingertip. -
Page 5: Specifications
6 seconds no-coding function. Sample type Fresh capillary whole blood • The CareSens S Fit BT blood glucose meter should be used only with the CareSens S Test Strips. Calibration Plasma-equivalent • An abnormally high or low red blood cell count (hematocrit level... -
Page 6: Operating Ranges
Test strip 10–90 % * Carrying Case • Check all the components after opening the CareSens S Fit BT Blood Glucose Monitoring System package. The exact contents are listed on the main box. • Please contact the Spirit Health 24/7 Freephone Support Line for a free data transmission cable at 0800 881 5423 or go to www.spirit-health.com. -
Page 7: Inserting Or Replacing The Battery
Inserting or Replacing the Battery The CareSens S Fit BT meter uses one 3.0 V lithium battery. Before Note using the meter, check the battery compartment and insert a Removing the meter battery will not affect your stored results. battery if empty. -
Page 8: Caring For Your System
• Do not apply samples other than capillary whole blood or control solution to the test strip. • Store the meter in a cool and dry place between 0–50 °C. 14 www.i-sens.com 14 www.i-sens.com www.i-sens.com 15 www.i-sens.com 15... -
Page 9: Caresens S Blood Glucose Test Strip
CareSens S Blood Glucose Test Strip The CareSens S Fit BT Blood Glucose Monitoring System measures Warning blood glucose quickly and accurately. It automatically absorbs the • The CareSens S test strips should be used only with fresh small blood sample applied to the narrow edge of the strip. -

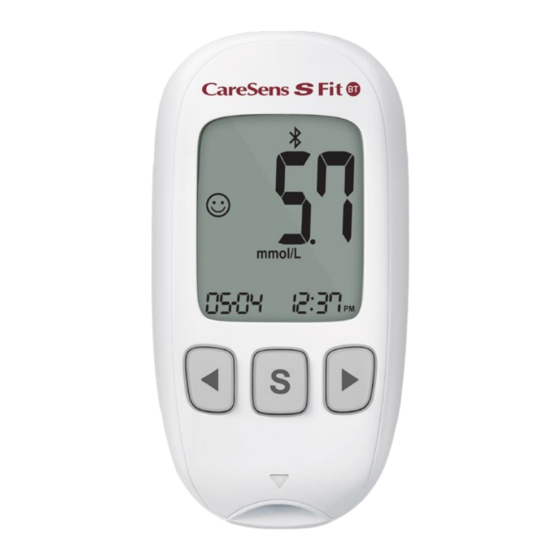

Page 10: Caresens S Fit Bt Blood Glucose Meter
CareSens S Fit BT Blood Glucose Meter CareSens S Fit BT Blood Glucose Meter Display Data Port Display Used to transfer data Shows results from the meter to and messages a computer with a cable 14 15 16 , Button... -
Page 11: Setting Up Your System
Do and install the SmartLog mobile app on your smartphone. not use the meter if the display screen does not exactly match the illustration as the meter may show incorrect results. 20 www.i-sens.com www.i-sens.com 21... -
Page 12: Setting Up Bluetooth
Smartphone: Enter the PIN number into the SmartLog mobile app and touch ‘OK’. Make sure the PIN you enter on your smartphone matches the PIN on your meter screen. 22 www.i-sens.com 22 www.i-sens.com www.i-sens.com 23 www.i-sens.com 23... - Page 13 Press the button to confirm your selection and to go to the next step. Some smartphones, especially those that are not tested or approved by i-SENS, may be incompatible with your meter. Visit www.i-sens.com/smartlog for more information about supported smartphones.
- Page 14 Press the or button until the correct minute appears. After setting the minute, press the Note button to go to the next step. symbol is displayed only when the sound is set to OFF. 26 www.i-sens.com 26 www.i-sens.com www.i-sens.com 27 www.i-sens.com 27...
- Page 15 If the expiration date is set to October of 2026, the meter will display 'EP' at the start of November, 2026. 28 www.i-sens.com 28 www.i-sens.com www.i-sens.com 29 www.i-sens.com 29...
- Page 16 • If your blood glucose is measured to be more than 13.3 mmol/L, you may also have ketones. • The CareSens S Fit BT meter is not intended to detect ketones. • If you see ‘KET’ displayed on your meter, ask your healthcare professional when and how you should test for ketones.
-
Page 17: Setting The Strip Expiration Date Indicator
• Before using the control solution, shake the bottle, discard the confirm the month and turn off the meter. first few drops and wipe the tip clean. • Close the control solution bottle tightly and store at a temperature between 8–30 °C. 32 www.i-sens.com 32 www.i-sens.com www.i-sens.com 33 www.i-sens.com 33... - Page 18 The meter may switch off if the control solution sample is not applied within 2 minutes of the symbol appearing on the screen. If the meter turns off, remove the strip, reinsert, and start from step 1. 34 www.i-sens.com 34 www.i-sens.com www.i-sens.com 35 www.i-sens.com 35...
- Page 19 If results continue to fall outside the range printed on the test strip vial, the CareSens S test strip and CareSens S Fit BT meter may not Note be working properly. Do not use your system and contact Spirit The CareSens S Glucose Control Solution can be purchased Health 24/7 Freephone Support Line at 0800 881 5423.
-
Page 20: Using The Lancing Device
Replace lancing Note device tip. Repeated puncturing at the same sample site may cause pain or skin calluses (thick hard skin). Choose a different site each time you test. 38 www.i-sens.com 38 www.i-sens.com www.i-sens.com 39 www.i-sens.com 39... - Page 21 Note 0 = least penetration of lancet into the skin. 5 = most penetration of lancet into the skin. 40 www.i-sens.com 40 www.i-sens.com www.i-sens.com 41 www.i-sens.com 41...
- Page 22 (actual size of malfunction. Follow the warning information provided below to 0.5 μL: prevent possible damage to the meter. • Do not apply the blood sample directly to the test strip port. 42 www.i-sens.com 42 www.i-sens.com www.i-sens.com 43 www.i-sens.com 43...
- Page 23 If you do not want to add any flags on the test result, remove the strip after the test result is displayed. Blood glucose test result No flag Pre-meal flag Post-meal flag Fasting flag 44 www.i-sens.com 44 www.i-sens.com www.i-sens.com 45 www.i-sens.com 45...
-
Page 24: Hi And Lo Messages
0800 881 5423 or go to www.spirit-health.com, if such messages Caution are displayed even if you do not have hyperglycaemia or hypoglycaemia. The lancet is for single use only. Never share or reuse a lancet. Always dispose of lancets properly. 46 www.i-sens.com 46 www.i-sens.com www.i-sens.com 47 www.i-sens.com 47... -
Page 25: Target Blood Glucose Ranges
Target Blood Glucose Ranges Transferring Test Results Using Cable Test results stored in the CareSens S Fit BT meter Reminders Your target ranges from your can be transferred from the meter to a computer healthcare professional Time of day using SmartLog software and cable. The meter screen displays ‘PC’... -
Page 26: Meter Memory
Meter Memory The CareSens S Fit BT meter can save up to 1,000 glucose test Step 3 results with time and date. If the memory is full, the oldest test Use the button to scroll back through the averages seen result will be deleted and the latest test result will be stored. -
Page 27: Setting The Alarm Function
Setting the Alarm Function Viewing Test Results Stored in Memory Four types of alarms can be set in the CareSens S Fit BT meter: one post-meal alert (PP2 alert) and three time set alarms (alarm 1–3). Step 1 The PP2 alert goes off 2 hours after setting the alert. The alarms ring... - Page 28 On pressing the button, the ‘alarm 1’ is set and ‘On’ is displayed on the screen. Press the button again to cancel the ‘alarm 1’. The ‘OFF’ will blink on the screen. 54 www.i-sens.com 54 www.i-sens.com www.i-sens.com 55 www.i-sens.com 55...
-
Page 29: Understanding Error Messages
This error message may appear when the wrong blood glucose test strip is used instead of CareSens S blood glucose test strip. › Repeat the test with a CareSens S test strip. 56 www.i-sens.com 56 www.i-sens.com www.i-sens.com 57 www.i-sens.com 57... -
Page 30: General Troubleshooting
System has been evaluated in laboratory and in clinical tests. • Check whether the test strip is inserted Accuracy: The accuracy of the CareSens S Fit BT Blood Glucose with the contact bars facing up. Check Monitoring System (Model: GM01NBE) was assessed by comparing... - Page 31 15–65 %. Precision: The precision studies were performed in a laboratory Interferences using CareSens S Fit BT Blood Glucose Monitoring Systems. The effect of various interfering substances was evaluated in whole blood samples. The presence of the following substances within the Within Run Precision given concentrations does not affect blood glucose measurements.
-
Page 32: Warranty Information
Warranty Information Manufacturer’s Warranty Interferent Concentration i-SENS, Inc. warrants that the CareSens S Fit BT meter shall be free Heparin 8000 U/dL of defects in material and workmanship in normal use for a period Ibuprofen 2.42 mmol/L of five (5) years. The meter must have been subjected to normal use. - Page 33 MEMO MEMO 64 www.i-sens.com 64 www.i-sens.com www.i-sens.com 65 www.i-sens.com 65...
- Page 34 MEMO MEMO MEMO 64 www.i-sens.com 66 www.i-sens.com 64 www.i-sens.com www.i-sens.com 67 www.i-sens.com 67...
- Page 35 Off Saffron Lane, Leicester, LE2 6UP Customer Support Tel : 0800 881 5423 www.spirit-health.com i-SENS, Inc. Medical Technology Promedt 43, Banpo-daero 28-gil Consulting GmbH Seocho-gu, Seoul 06646, Korea Ernst-Heckel-Straße 7 www.i-sens.com 66386 St. Ingbert, Germany © 2024 i-SENS, Inc. All Rights Reserved. PGUAA-0000602 REV0 2024-10...
