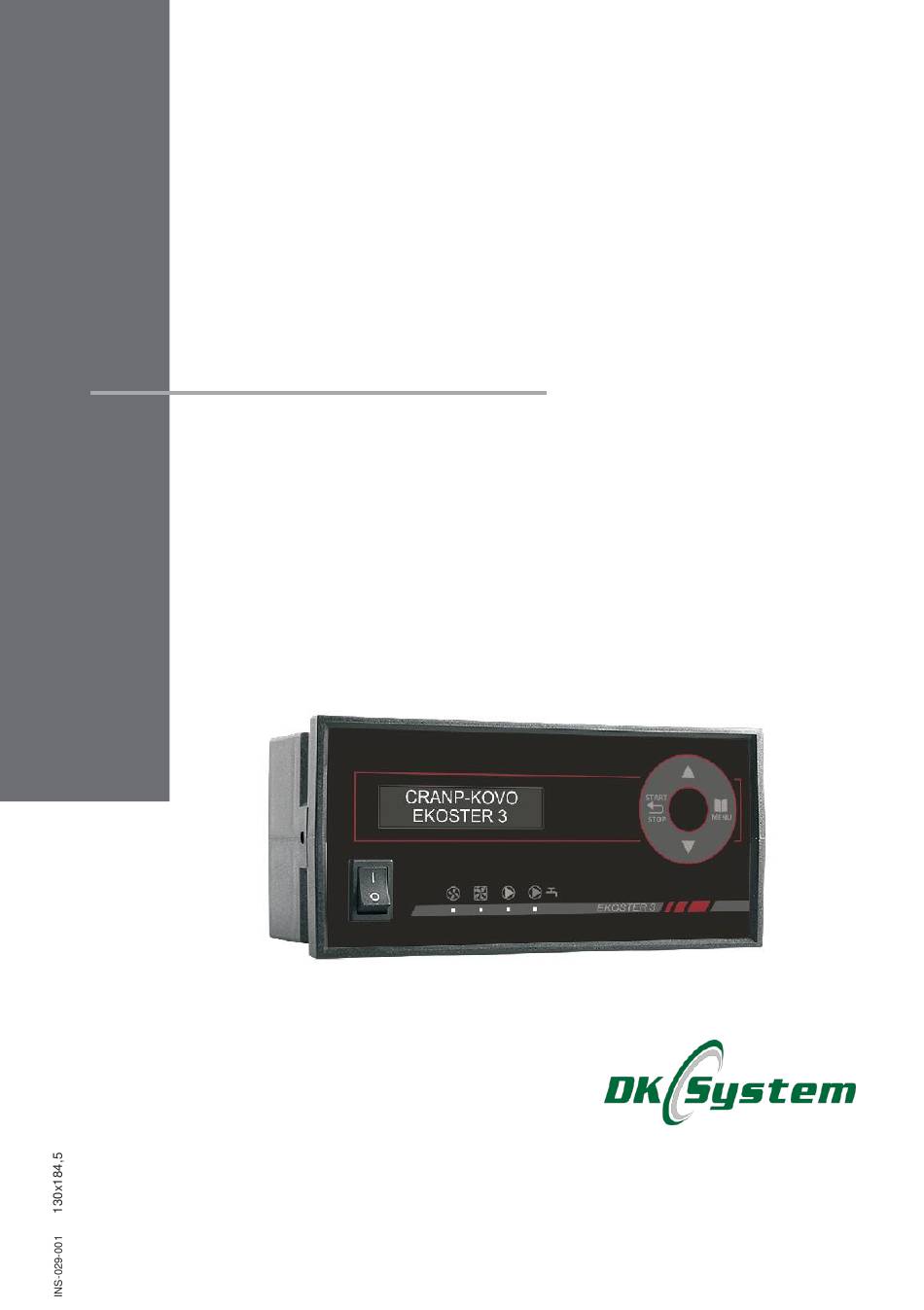

- Page 1 TEMPERATURE REGULATOR FOR WOOD GASIFICATION BOILER EKOSTER 3 CRANP KOVO User manual...
- Page 2 TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER Safety instructions and installation recommendations The regulator is designed to work with central heating wood gasification boilers The regulator should be installed by an authorized person. The regulator should be connected to a socket with a protective pin. It is required for the boiler to have its own protection against excessive increase in the boiler temperature caused by, e.g.
-
Page 3: Table Of Contents
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER Table of contents 1. Regulator description................... 4 2. Housing components ..................5 3. Connections ....................6 4. Regulator installation..................6 5. Connection of the regulator to the heating system......7 6. Main menu - structure ................... 8 7. -
Page 4: Regulator Description
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 1. Regulator description The EKOSTER 3 regulator is designed for controlling the operation of a wood gasification boiler, switching on the laddomat type central heating pump and warm utility water pumps in central heating installations. The regulator has the following functions: maintaining the set boiler temperature by controlling the blow and exhaust fan adjustable fan power and its smooth start... -
Page 5: Housing Components
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 2. Housing components 3 4 5 CRANP-KOVO EKOSTER 3 Description of signalling diodes Display Signalling diodes blower fan Return button / FEED exhaust fan Up button ( MENU button laddomat pump Down button ( domestic hot water pump Power switch Fig.1 Front panel of the regulator... -
Page 6: Connections
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 3. Connections yellow-green cable Brown cable L blue cable N Fig. 3 Diagrams showing connection of the power cable to pumps and fans. upper door flap lower door R 510 R 510 R 2,2 k... -
Page 7: Connection Of The Regulator To The Heating System
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 5. Connection of the regulator to the heating system 1. EKOSTER 3 regulator 7. Accumulation tank 2. Thermal fuse 8. Domestic hot water pump 3. Laddomat 9. Domestic hot water tank 4. Blower fan 10. -
Page 8: Main Menu - Structure
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 6. Main menu - structure MAIN MENU press Temp. settings Hot water settings: Exhaust temp. Temperature 60°÷97° 40°÷70° : 110°÷280° Okno niewidoczne Okno niewidoczne jeśli cwu nieaktywne jeśli opcja nieaktywna Ekoster 3 Software version ver. -
Page 9: Settings Table - Main Menu
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 8. Settings table - Main menu Manufacturer Settings Name Unit range settings TEMPERATURE °C 60÷97 Boiler temp. °C 40÷70 °C 110÷280 Exhaust temp. OPERATING PARAMETERS °C 1÷9 boiler hysteresis °C 60÷90 laddomat pump °C 10÷30 dt temp. -
Page 10: Description Of Home Screens
MAIN SCREEN 3 current regulator operating mode, access with the button‚ Tryb pracy Laddomat i CWU 11. First start and setting of the clock Turn the regulator on using the power DK SYSTEM switch screen will display EKOSTER 3 information:... -
Page 11: Setting The Boiler Operating Parameters And Heating Up
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 11. First start and setting of the clock (continued) The first start-up and setting of the regulator to local and construction conditions as well as training in operation is carried out by an installation company with appropriate authorizations. -
Page 12: Feeding Fuel To The Boiler
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 13. Feeding fuel to the boiler When feeding fuel to the boiler, stop the blower by pressing the button; .The screen with show the symbol with the countdown time to restart. The time required for feeding is set in the Service Menu / Service parameters / Feeding. -
Page 13: Main Menu - Software Version
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 15.1 Boiler pre-set temperature The parameter defines the pre-set Nastawy boiler temperature. After reaching it the Temperat. :65° fans will be turned off and the regulator will enter the "Maintenance" mode. Range of changes: 60° ÷ 97° Factory setting: 65°... -
Page 14: Main Menu - Factory Settings
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 17. Main menu – Factory settings < Nast. Fabr. > This function used delete parameters set by the user and return to the factory settings. Enter settings - Main menu / Factory settings Nast. Fabr. + Potwierdz. -
Page 15: Main Menu - Clock
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 19. Main menu - Clock The CLOCK function allows to change < Zegar > the set time and day of the week. The parameter to be changed is selected with the button and its value is changed with the buttons 12:00 After... -
Page 16: Service Menu - Service Parameters
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 20.3 Put-out – dt parameter The parameter determines how much lower the boiler temperature must be dt wygasz. : 10° than the set temperature, so that the put- out countdown begins and then the boiler Range of changes: 10°÷30°... - Page 17 TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 21.2 Service parameters - maintenance – blow force The parameter allows to set the force Podtrz.went with which the blower fan will work in Siła nadm :100% the Maintenance mode. Range of changes: 1% ÷ 100% Factory setting: 100% 21.3 Service parameters - maintenance –...
- Page 18 TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 21.7 Parametry pracy - Temperatura spalin The parameter enables or disables Temp. spalin exhaust gas temperature measurement : nie function. The parameter should be activated Range of changes: yes / after connecting the exhaust gas sensor.
-
Page 19: Service Menu - Factory Settings
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 22. Service menu – Factory settings < Fabr. Serwis> This function used delete parameters set by the user and return to the factory settings. The change of parameters to factory Fabr. Serwis settings should be confirmed with the + Potwierdz. - Page 20 TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 24.1 DHW Service - Legionella protection (continued) The function only works if domestic hot water service and the "legionella protection" functions are enabled (turned off in factory settings). The function is activated on Monday at 1:00. The boiler is heated to the maximum permissible regulation temperature (set in the service menu) .
-
Page 21: Service Menu - Alarms
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 25. Service menu - Alarms The menu allows to set the value, which will trigger an alarm when exceeded. Entering the settings- Service menu < Alarm > / Alarm 25.1 Alarm – Open door sensor The parameter enables to activate the Alarm alarm signalling open... -
Page 22: Service Menu - Maximum Temperature
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 26. Service menu – Maximum temperature The menu enables to set the maximum < Temp.max > boiler and exhaust gas temperature, “Main menu / which can be done in Temperatures” 26.1 Maximum temperature – Maximum boiler temperature The parameter allows to set the Temp. -
Page 23: Protection Against Freezing
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 29. Protection against freezing The regulator protects the heating system against freezing, causing both pumps to permanently switch on when the water temperature in the system drops to 4°C or lower (the domestic hot water pump will be started if the regulator works in the domestic hot water mode). - Page 24 TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 30.4 Exceeding exhaust gas temperature If the exhaust gas temperature exceeds 06:25 Temp:88° the value set in Max. temp. / Exhaust T.Spalin temp., a message "T.Spalin" will appear screen Clear the alarm with the button intermittent sound signal...
-
Page 25: Technical Specification
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 31. Technical specification from - 9 °C to + 99 °C Range of measured temperatures from + 60 °C to + 97 °C Range of setting temperatures for the boiler Temperature setting range for the hot water heater from + 40°C to + 70°C Temperature setting range for the laddomat pump from + 60 °C to + 90 °C Smooth fan start Adjustable maximum fan power... -
Page 26: Recycling Information
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 32. Disposing of used electrical and electronic equipment Disposal of electrical and electronic equipment waste (used in European Union countries and other European countries with their own collection systems). This symbol placed on the product or its packaging (in accordance with the Act of 29 July 2005 on used electrical and electronic equipment) states that this product may not be treated as municipal waste. -
Page 27: Notes
TEMPERATURE REGULATOR FOR EKOSTER 3 BOILER 33. Notes... - Page 28 Made by: DK System ul. Przyjaźni 141 53-030 Wrocław tel. 71 333 73 88 tel. 71 333 74 36 fax 71 333 73 31 e-mail: biuro@dksystem.pl www.dksystem.pl Registered no.: 000015633...
