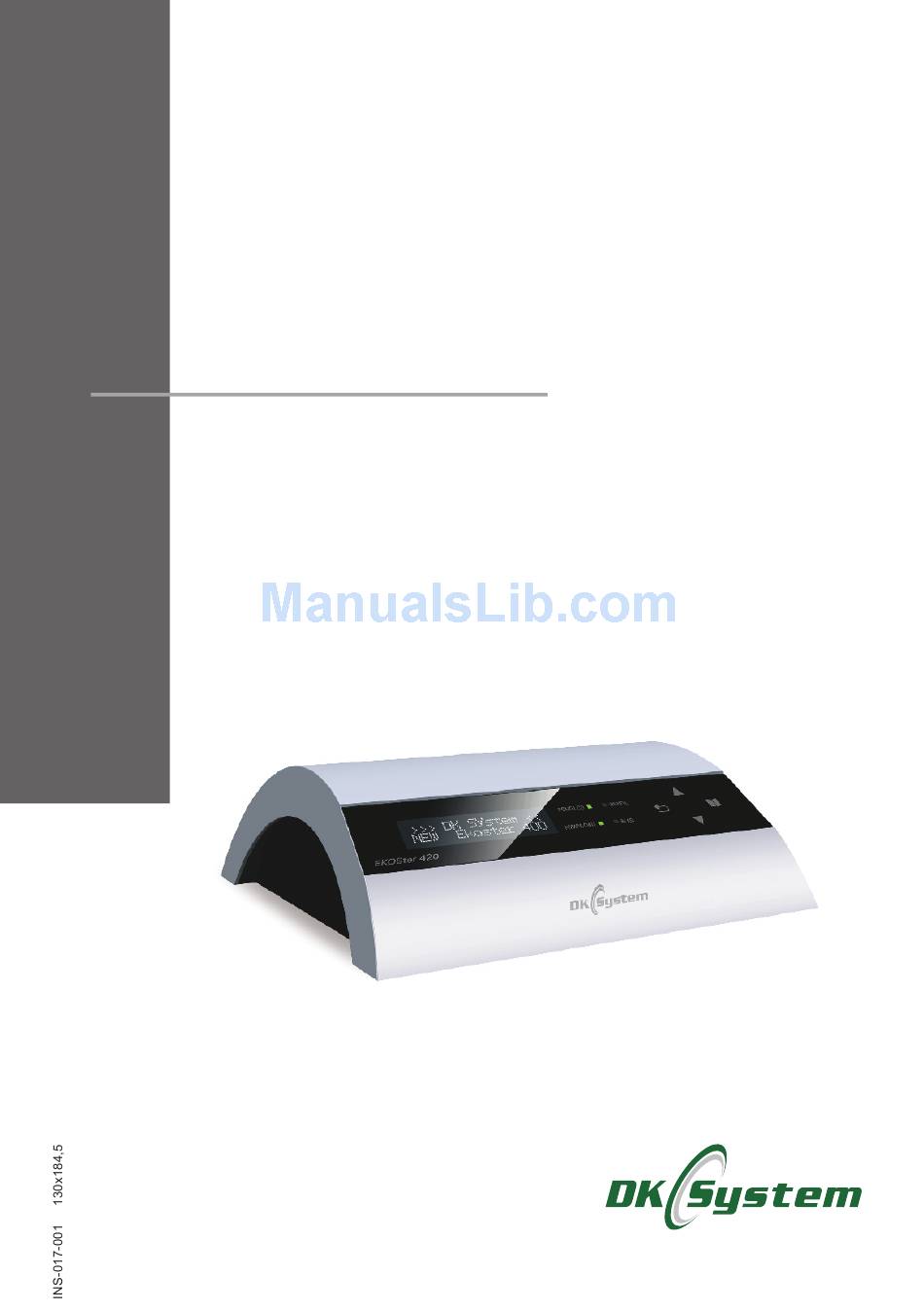

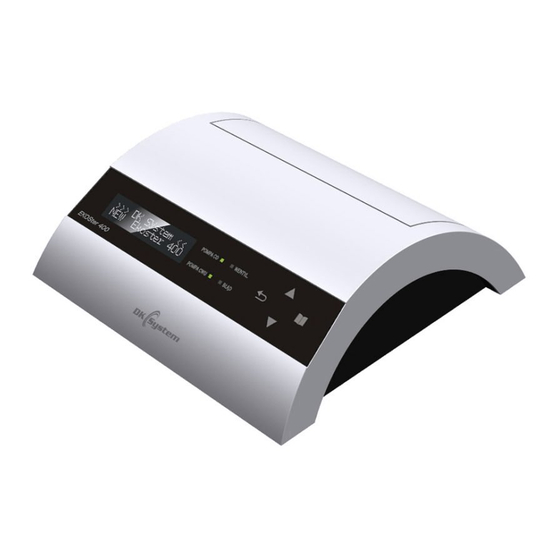

- Page 1 Boiler temperature controller EKOSter 420 Service Manual...
- Page 2 Boiler temperature controller EKOSter 420 Safety instructions and notes on installation The controller is designed to work with central heating boilers for solid fuels. The controller must be installed by an authorized person. The controller must be connected to a socket with a protective contact.
-
Page 3: Table Of Contents
Boiler temperature controller EKOSter 420 Spis treści 1. Description of a controller....................2. Description of the controller components............... 3. Description of connections Controller................4. Pump and blower connection diagram................5. Controller installation......................5.1 Connection of the controller to the electrical system............ -
Page 4: Description Of A Controller
1. Description of a controller Central heating boiler temperature controller with domestic hot water heater service EKOSter 420 is designed for boiler blow-in control, switching on the circulation pump in heating installations and domestic hot water heater charging pump (DHW). -
Page 5: Description Of The Controller Components
Boiler temperature controller EKOSter 420 2. Description of the controller components Opis diod sygnalizacyjnych Display Signal LEDs CH pump The back button / START / STOP DHW pump Adjust setting UP button ( MENU button error Adjust setting DOWN button ( Fig.1 Description of the controller components... -
Page 6: Pump And Blower Connection Diagram
Boiler temperature controller EKOSter 420 4. Pump and blower connection diagram yellow-green wire PE brown wire L blower pump blue wire N Fig. 4 Connection diagram of the Fig. 5 Connection diagram of blower cable the pump cable 5. Controller installation 1. -
Page 7: Diagram For The Connection Of Controller To The Hydraulic System
4. Central heating pump 9. TERMIK thermal fuse 5. DHW pump Fig. 6 Example of the heating installation diagram with a EKOSter 420 controller without the cutting off and protecting devices. It does not replace a professional project at the assembly spot. -
Page 8: Maintenance Menu - Structure
Boiler temperature controller EKOSter 420 7. Maintenance menu - structure Maintenance menu Press and hold approx. 5 seconds. Langua Work Factory Manual Alarms water parameters settings operation Fact. Sett. Language + Acknowl. polski/english Hysteresis: 00÷09 Manual operation Alarm Blow.Pow: 30%÷100% Pumpe T.:... -
Page 9: Switching The Controller On And Starting Operation
Boiler temperature controller EKOSter 420 9. Switching the controller on and starting operation Switch the controller on with the power DK SYSTEM switch - the display will show the follo- Ekoster wing information: Controller name and program number. 5.13 Then the display will start showing the... -
Page 10: Feeding Fuel To The Boiler
Boiler temperature controller EKOSter 420 10. Setting the boiler operating parameters and lighting up Note: The symbol that the display shows: indicates the current temperature change trend in the boiler: indicates the trend to reach the set temperature; indicates reduction of the temperature in the boiler to the value specified by the "HI"... -
Page 11: Summer Work Mode
Boiler temperature controller EKOSter 420 13. Summer work mode The controller can operate in the Sett:SUMM SUMMER mode, which means that out- side of the heating season the heating pump is not used and all the heat gener- ated by the boiler is used for the domes- Sett:SUMM tic hot water. -
Page 12: Work Parameters - Blower Type
Boiler temperature controller EKOSter 420 14.2 Work Parameters - Blower type The parameter for setting of one of two characteristics of adjustable blower Blow.Type : 01 power, depending on the type mounted on the boiler. Change range: 01 / 02 Factory setting: 1 Note: Blower type 1 - applies to RV05, RV14. -
Page 13: Work Parameters - Adjusting The Minimum Power Of The Blower
Boiler temperature controller EKOSter 420 14.5 Work Parameters - Adjusting the minimum power of the blower This parameter allows you to set the Blower minimum operating power of the blower. Min.Power: 30% Change range: 30% ÷ 70% Factory setting: 30% Note: Some types of blowers cannot be switched on at the lowest power setting parameter. -
Page 14: Work Parameters - Burn Out Time Adjustment
Boiler temperature controller EKOSter 420 14.7 Work Parameters - Blower START / STOP (cont.) Example: 2. During burning out of the boiler, - the temperat. set on the boiler: 50 °C when the temperature drops to the - “dt”: 10 °C level of 40 °C (50°C 10°C), the contro-... -
Page 15: Work Parameters - Blowing - Break Time
Boiler temperature controller EKOSter 420 14.10 Work Parameters - Blowing - break time This parameter specifies the break time Pulses in blower operation (in minutes) Pause<min>:15 between each blowing sequence. Change range: 1 min ÷ 60 min Factory setting: 15 min Note: The blowing functionality is activated when the boiler reaches the temperature set point. -
Page 16: Maintenance Menu - Hot Water
Boiler temperature controller EKOSter 420 15. Maintenance menu - HOT WATER The maintenance menu is used to set the specific equipment parameters, such as those regarding the domestic hot water pump. Entry into the HOT WATER maintena- <Heat Water> nce menu is done by pressing and holding the button ;... -
Page 17: Hot Water - Hysteresis Of The Dhw Pump
Boiler temperature controller EKOSter 420 15.3 Hot water - Hysteresis of the DHW pump A parameter that specifies the number Heat Water of degrees Celsius by which the Hysteresis:05° temperature must fall on the domestic hot water heater below the set point for the domestic hot water pump to turn on. -
Page 18: Alarm - Pump Temperature
Boiler temperature controller EKOSter 420 16.1 Alarm - pump temperature This parameter allows you to set the Alarm temperature above which both pumps Pump Temp: 90° will start in emergency mode (hot water pump starts, provided that the controller will operate in the domestic hot water Change range: 80 °C ÷... -
Page 19: Maintenance Menu - Manual Operation
Boiler temperature controller EKOSter 420 18. Maintenance menu - Manual operation This function is used testing the cor- < Manually > rectness of the connected equipment. Enter the menu MANUAL OPER. after pressing and holding the button The display will show the WORK. -
Page 20: Maintenance Menu - Factory Settings
Boiler temperature controller EKOSter 420 19. Maintenance menu - Factory settings This function is used to remove the < Fact.Sett. > parameters set by the user and return to the factory settings. To access the FACTORY SETTINGS maintenance menu press and hold the button Fact.Sett. -
Page 21: Remote Control - Optional
Boiler temperature controller EKOSter 420 23. Remote control - optional The controller is designed for remote control, which enables control of the current temperature of the boiler, changing the set temperature of the boiler and a number of other features which improve user comfort. Built-in beeper emits a sound when the temperature rises to a dangerous level specified by the user. -
Page 22: Alarms - Damaged Dhw Temperature Sensor
Boiler temperature controller EKOSter 420 24.3 Alarms - Damaged DHW temperature sensor When the DHW temperature sensor is Temp: 56° damaged or the temperature measured : -- ° is out of range, then instead of the temperature - will be shown and the red... -
Page 23: Technical Data
Boiler temperature controller EKOSter 420 25. Technical data Measured temperature range from - 9 °C to + 120 °C Boiler temperature setting range from + 45 °C to + 80 °C Hot water heater temperature range from + 40 °C to + 70 °C Temperature setting range for the CH pump from + 30 °C to + 70 °C... -
Page 24: Information On Waste Electrical And Electronic Equipment
Boiler temperature controller EKOSter 420 26. Information on waste electrical and electronic equipment Disposal of Waste Electrical and Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or its packaging (pursuant to the Act of July 29, 2005 on Waste Electrical and Electronic Equipment) states that this product may not be treated as household waste. - Page 25 Boiler temperature controller EKOSter 420 27. Notes...
- Page 26 Boiler temperature controller EKOSter 420 27. Notes...
- Page 27 Boiler temperature controller EKOSter 420 27. Notes...
- Page 28 ul. Przyjaźni 141 53-030 Wrocław tel. 71 333 73 88 tel. 71 333 74 36 fax 71 333 73 31 e-mail: biuro@dksystem.pl www.dksystem.pl...
