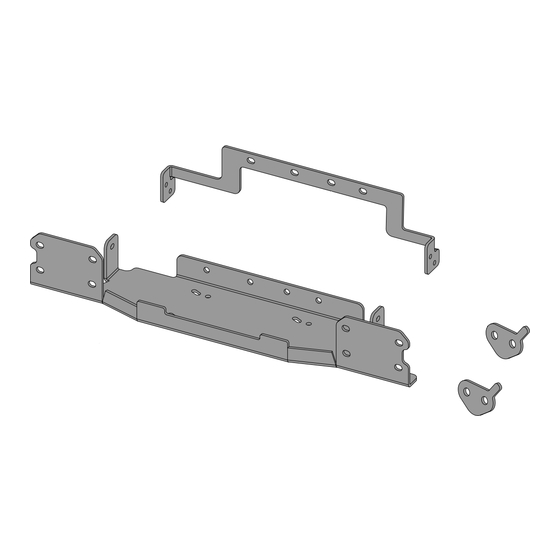

Winch Mount Plate; Gladiator, JL & JLU
1. Winch Plate
2. Bottom Plate
1/2" Bolt (4)
1/2" Washer (8)
1/2" Nut (4)
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | TICKET: webmaster@omixsupport.com
1
OMIX-ADA
Copyright © 2017 Omix-Ada
2
Components
(1)
3. Spacer
(1)
Nut Plate (2)
TECHNICAL SUPPORT
®
, Inc.
®
Part #11543.16
3
3/8" Bolt (6)
3/8" Washer (6)
Page 1/4
(2)
