EN - OPERATING INSTRUCTIONS
(Translation of the original instructions)

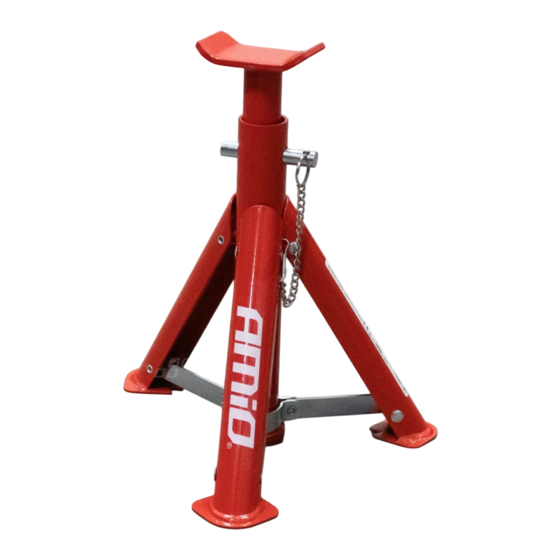

Jack stands
ATTENTION: Read this operating and use manual before use
or installation.
The supplier is not responsible for any damage or injury
resulting from incorrect use not in accordance with the
instructions.
GENERAL DESCRIPTION OF THE JACK STAND
1. Saddle
2. Upper column
3. Locating Pin
4. Retaining Pin
5. Lower column
EXPLANATION OF SYMBOLS USED
READ THIS OPERATING MANUAL BEFORE USING THE UNIT!
PROTECTIVE GOGGLES MUST BE WORN. Eye protection is
compulsory when using the device.
USE PROTECTIVE GLOVES. Protective gloves should be used
when carrying out certain jobs to increase operator safety.
GENERAL WARNING SIGN. The content preceded by the
warning sign shall contain important information on the safe
use of the device
PURPOSE
The device is not intended for professional factories, but rather for
personal, do-it-yourself use. The device is to be used to support
1
2
3
vehicles with a gross weight not exceeding the kg specified on the
specification. The support should only be used to support or lower
the vehicle. Use the device only for its intended purpose. Any use
other than that described in these instructions is not in accordance
with the intended use of the device. Do not use to support people.
Damage or injury resulting from improper use is the responsibility
of the user/owner and not of the manufacturer. Please note that
our device is not intended for professional, industrial use. The
warranty agreement does not apply if the device has been used in
craft, industrial or similar activities. The service life of the device is
intended to be 10 years.
PRELIMINARY STEPS
Open the packaging and pull out the appliance. Remove the
protective film and transport protection (if fitted). Check that the
appliance and accessories have not been damaged during transport.
Keep the packaging until the warranty period has expired.
WARNINGS
1.
object to be supported are suitable for the lift indicated.
2. Ensure that the vehicle is properly raised and stabilised at the
correct height before attempting to slide the supports under the
vehicle.
3. Keep all unauthorised persons away from the supported vehicle
when working.
4. Maintain correct balance and posture. Secure the floor check it is
not slipperyAnd wear non-slip shoes. Remove ill-fitting clothing.
5. Remove ties, watches, rings and other loose jewellery and tie up
long hair.
6. Ensure the vehicle is positioned horizontally and centrally on the
support saddle and the load is restrained before attempting to
raise, lower.
7. Lowering speed will vary depending on the weight of the load.
8. Care is required when working with the supports, constantly
monitor each operation until it is complete.
NOTE! The device and packaging are not for play! Keep out of the
reach of children! Danger of swallowing or suffocation!
GENERAL SAFETY INSTRUCTIONS
PERSONAL SAFETY
• Do not use the device when you are tired or under the influence
of drugs, alcohol or medication, as this can lead to permanent
damage to your health.
• Wear protective gloves and wear safety glasses.
• Ensure that the lift is placed on a sturdy and stable surface before
lifting.
• Keep children and bystanders out of areas where the jack is
being used.
Before use, ensure that the weight and dimensions of the
P/N: 04185, 04186
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 04185 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AMiO 04185

  • Page 1 P/N: 04185, 04186 vehicles with a gross weight not exceeding the kg specified on the specification. The support should only be used to support or lower the vehicle. Use the device only for its intended purpose. Any use other than that described in these instructions is not in accordance with the intended use of the device.
  • Page 2: Maintenance

    • These supports are designed for use on a hard, level surface Amio Sp z o.o., ul. Handlowa 3, 41-807 Zabrze that can support the load. USE on other surfaces may result in instability of the supports and possible loss of load, health.
  • Page 3: Ogólne Wskazówki Bezpieczeństwa

    5. Okresowo sprawdzaj tłok pompy i tłoczysko pod kątem oznak hará responsable. korozji. Oczyść odsłonięte obszary środkiem czyszczącym naoli- AMiO Sp z o. o., ul. Handlowa 3, 41-807 Zabrze wioną szmatka. DESCRIPCIÓN GENERAL DEL JACK SE LEVANTA 6. WAŻNE: Wszelkie inne prace konserwacyjne i naprawy (w tym wymiana oleju) mogą...
  • Page 4: Mantenimiento

    6. Asegúrese de que el vehículo está colocado en posición horizon- tal y centrado en el asiento de apoyo y que la carga está sujeta P/N: 04185 MODEL JS2S antes de intentar subir o bajar. • Capacidad: 2T 7.
  • Page 5 Za jakékoli škody nebo zranění vyplývající z nesprávného použití v rozporu s pokyny, dodavatel neodpovídá. OSOBNÍ BEZPEČNOST Amio Sp. z o.o., ul. Handlowa 3, 41-807 Zabrze • Zařízení nepoužívejte, pokud jste unavení nebo pod vlivem drog, OBECNÝ POPIS STOJANU alkoholu či léků, protože to může vést k trvalému poškození...
  • Page 6 Uchovávajte mimo dosahu detí! Nebezpečenstvo prehltnutia alebo Za akékoľvek škody alebo zranenia vyplývajúce z nesprávneho udusenia! použitia v rozpore s pokynmi, dodávateľ nezodpovedá. AMiO Sp. z o.o., ul. Handlowa 3, 41-807 Zabrze VŠEOBECNÉ BEZPEČNOSTNÉ POKYNY GENERAL DESCRIPTION OF THE JACK STAND OSOBNÁ BEZPEČNOSŤ...
  • Page 7 3. Pred každým použitím sa uistite, že súčasti sú v dobrom stave. постачальник не несе відповідальності. Ak sa zistí akákoľvek porucha - nepoužívajte výťah, kým sa neod- Amio Sp. z o.o., ul. Handlowa 3, 41-807 Zabrze stráni, alebo kontaktujte servisné stredisko, aby prijalo opatrenia na odstránenie problému.
  • Page 8 будь-якої несправності - не використовуйте підйомник до поставщик не несет ответственности. її усунення або зверніться до сервісного центру для вжиття Amio Sp. z o.o., ul. Handlowa 3, 41-807 Zabrze заходів щодо усунення проблеми. 4. НЕ використовуйте стійки, якщо ви вважаєте, що вони...
  • Page 9: Общие Указания По Безопасности

    P/N: 04185, 04186 ПОЯСНЕНИЯ К ИСПОЛЬЗУЕМЫМ СИМВОЛАМ ОБЩИЕ УКАЗАНИЯ ПО БЕЗОПАСНОСТИ ПРОЧТИТЕ ДАННОЕ РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ ЛИЧНАЯ БЕЗОПАСНОСТЬ ПЕРЕД ИСПОЛЬЗОВАНИЕМ УСТРОЙСТВА! • Не используйте прибор, когда вы устали или находитесь под воздействием наркотиков, алкоголя или лекарств, так как НЕОБХОДИМО НАДЕВАТЬ ЗАЩИТНЫЕ ОЧКИ. Защита глаз...
  • Page 10 ζημιάς ή τραυματισμού που προκλήθηκε από την λανθασμένη 6. Βεβαιωθείτε ότι το όχημα είναι τοποθετημένο οριζόντια και ή την χρήση που δεν συνάδει με τις παρούσες οδηγίες. Amio Sp κεντρικά στη σέλα στήριξης και ότι το φορτίο είναι συγκρατημένο z o.o., ul. Handlowa 3, 41-807 Zabrze πριν...
  • Page 11 μηχάνημα να πληροί τις απαιτήσεις για την προβλεπόμενη χρήση του. 14. Ελέγξτε ότι οι σημάνσεις στο μηχάνημα είναι οι ίδιες με αυτές που υπήρχαν κατά την έναρξη. ΠΡΟΔΙΑΓΡΑΦΗ P/N: 04185 MODEL JS2S • Χωρητικότητα: 2T • Ελάχ. Ύψος: 280cm • Μέγ. Ύψος: 365mm •...
  • Page 12 Xuhui District, Shanghai, China. Shanghai, China. Dokumentacja techniczna przechowywana jest w siedzibie firmy Amio Sp. z o.o., The technical documentation is stored at the registered office of Amio Sp. z o.o, ul. Handlowa 3, 41-807 Zabrze. 3 Handlowa Street, 41-807 Zabrze.
  • Page 13 Модель продукту / SEE ідентифікатор: 04185/ JS2S, 04186/ JS3S Meno a adresa výrobcu: AMiO Sp. z o.o. ul. Handlowa 3, 41-807 Zabrze Назва та адреса виробника: AMiO Sp. z o. o. вул. Handlowa 3, 41-807 Zabrze Toto vyhlásenie o zhode je vydané na výhradnú zodpovednosť producenta.
