Wurkkos TS22 Manual

Introduction

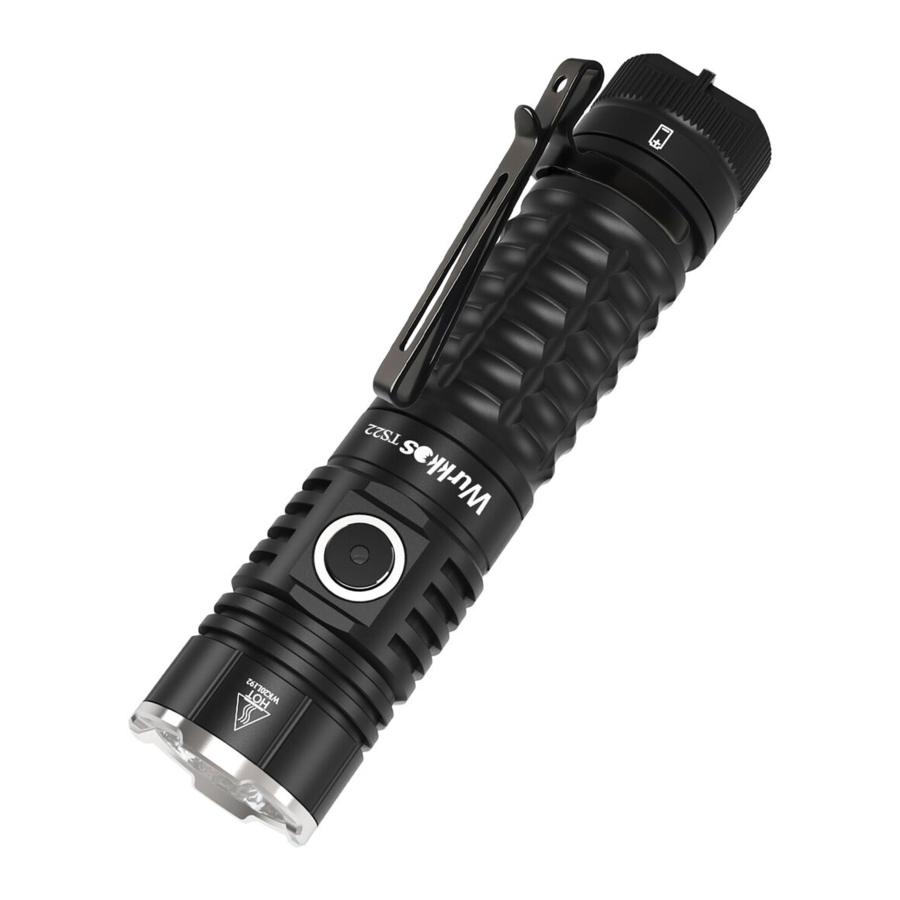

Wurkkos TS22 is a powerful, versatile EDC / outdoor flashlight, designed for home, EDC or outdoor activities. It is powered by a single 21700 Li-ion rechargeable battery, is rechargeable via USB-C and comes with a magnetic tailcap for flexible and convenient use. 5V 3A charging and reverse charging function, can be used as a power bank in emergency situations.

The flashlight features two mode groups: Group 1 with stepped modes and Group 2 with ramping mode.

ANSI/NEMA FL1 Chart

Group 1 Stepped Modes	Mode	Eco	Low	Mid	High	Turbo	Strobe
	Luminous Flux [lm]	10	100	500	1800	4500	4500
	Runtime	280h	24h	4.5h	1.8h	1.5h	-
	Beam Distance [m]	9	27	65	124	191	-
	Peak Intensity [cd]	23	178	1050	3775	9150	-
Group 2 Ramping Mode	Mode	Ramping: Eco to Turbo					Strobe
	Luminous Flux [lm]	10 – 4500					4500
	Runtime	depending on ramping level					n/a
Impact Resistance		2m
Water Resistance		IP68
Charging Specification		USB-C port, input/output 5V 3A
Notes		The above mentioned parameters are based on tests according to international flashlight testing standards (ANSI/NEMA FL1) using one 5000 mAh 21700 Li-ion battery in our laboratory. Results may vary with different battery or under different environmental conditions.

Specifications

Emitter: 1x XHP70.2
Boost constant current circuit
Reflector: Orange Peel reflector
Beam angle: Flood 80°, Spot angle 30°
Operating voltage: 2.7V – 4.2V
Dimension: 122mm (length) x 28mm (head diameter)
Weight: 95 ±1 gram (without battery)
Flashlight body: Aerospace grade 6061 grade aluminum alloy
Toughened mineral glass lens
Water resistance i.a.w. IP68
Mode Memory: memorizes the last brightness level used in the general modes (except Strobe turbo)
Reverse polarity protection to protect against improper battery installation.
Advanced Temperature Regulation (ATR) technology: ATR will reduce the brightness level automatically when the driver temperature reaches 55℃ to prevent overheating

Power Indicator

The LED indicator in the side switch shows the power status for 5 seconds after turning the TS22 on.
Green = remaining battery power is good (more than 30%).
Red = remaining battery power is poor (less than 30%).
Flashing Red = critical power, replace or recharge battery as soon as possible.

Low Voltage Protection: If the battery's voltage is lower than 2.7V, it turns off automatically to avoid battery damage by over discharge.

Button light: when off, fast click 5 times to turn on the button light (green), fast click 5 times to switch the button light mode (on -->> flashing -->> off; Cycle in turn). Note that after the button light is turned on, the auto lock function cannot be entered.

Battery Installation

Unscrew the tailcap to insert one 21700 battery with the anode side (+) towards the head, then screw the tailcap back on.

Charging and Reverse Charging

The TS22 has a USB-C port for convenient recharging of its battery. While charging the LED power indicator flashes red. Once finished the indicator will turn green to indicate a full battery. While Reverse charging, once the indicator flash red means poor power and stop reverse charging automatically.

Operation Instructions

Group 1: Stepped modes (default)
From OFF single click to turn ON. Press and hold to cycle through stepped modes ( Low – Mid – High). Single click to turn OFF.
Double click to activate Turbo mode. Another double click to cycle Eco-Turbo, single click to return to the previously used mode.
From OFF, press 1 second to Eco,then keep press and hold to cycle through stepped modes.

Group 2: Ramping mode
From OFF single click to turn ON. Press and hold to change brightness steplessly ("ramp"). Ramping changes its direction when the button is being pressed again within 1.5 seconds. The light flashes once when it reaches the lower or upper end of the ramp. From ON single click to turn OFF again.
Double click to activate Turbo mode. Another double click to cycle Eco-Turbo, single click to return to the previously used mode.
From OFF, press 1 second to Eco, then keep press will adjust brightness

Toggle between Group 1 and Group 2
When ON 4 clicks to switch between both mode groups. Two flashes will confirm the mode group change.

Strobe Mode
Triple click to activate Strobe mode. While in Strobe mode, single click to return to the previously used standard mode.

Electronic Lockout
TS22 comes with a lockout function to prevent accidental activation, e.g. in one's pocket or backpack.
From OFF quadruple click to active lockout. Another clicks(more than 2 clicks) to deactive lockout again and return to the previous mode setting. When the light is locked, the main LED only blinks two times to show the status of being locked.
When the flashlight is turned off for 3 minutes without any operation, it will automatically lockout, and it will be unlocked by two or more quick clicks.

Caution

Do not stare directly into the beam or point it directly into anyone's face.
Strobe mode may cause seizure in persons with photosensitive epilepsy.
Operating the TS22 for on high brightness modes will warm the flashlight up. This is normal.

Please contact us if you have any questions. If your product is defective please contact us for refund or replacement within warranty period.
