DL30 User Manual

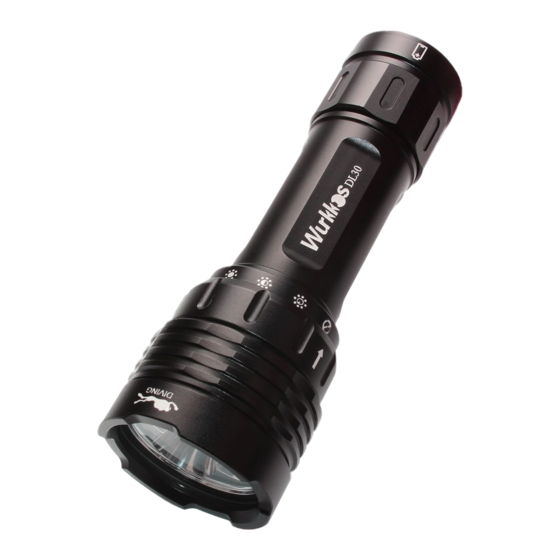

Wurkkos DL30 is a professional, bright diving flashlight, both powerful and
IPX-8 water resistant. It is powered by a single 21700 li-ion rechargeable
battery and comes with an adjustable lanyard. It is also compatible to
18650 batteries. Simple one hand operation via a magnetic control ring
guarantees super easy handling both above and below the waterline.
Moreover, DL30's simplified user interface with three brightness modes
enables quick and carefree interaction even under distress.
Using 3 pcs of Samsung's popular LH351D emitter makes DL30 not only
powerful with up to 3.600 lumens and a maximum beam distance of 220
meters (240 yards) but also great in terms of color rendition with its
neutralwhite tint (5000K 90CRI).
Advertisement
Table of Contents
Related Manuals for Wurkkos DL30
Summary of Contents for Wurkkos DL30

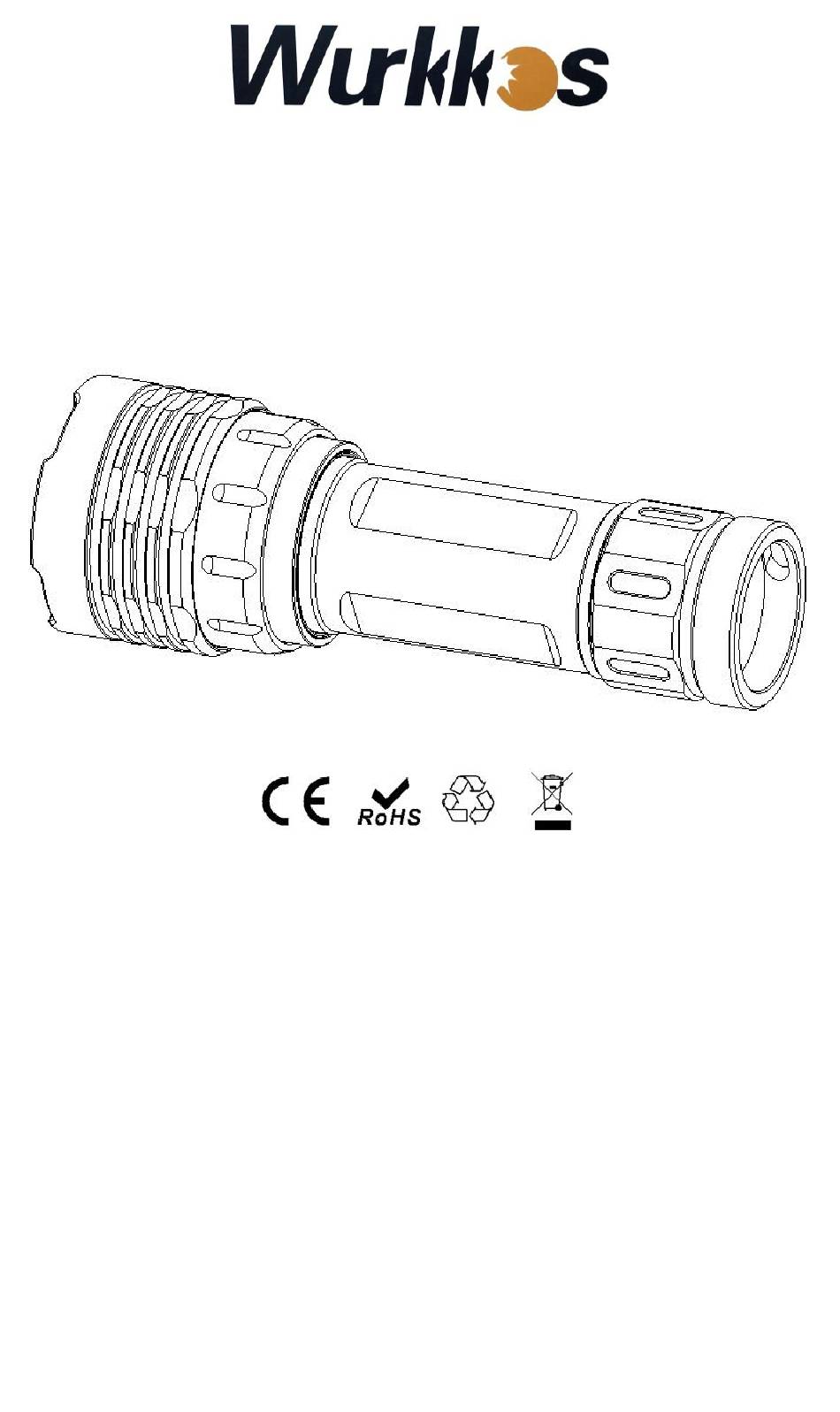

- Page 1 Moreover, DL30’s simplified user interface with three brightness modes enables quick and carefree interaction even under distress. Using 3 pcs of Samsung’s popular LH351D emitter makes DL30 not only powerful with up to 3.600 lumens and a maximum beam distance of 220 meters (240 yards) but also great in terms of color rendition with its neutralwhite tint (5000K 90CRI).
- Page 2 ANSI/NEMA FL1 Chart Mode Medium High Luminous Flux 1.300 3.600 [lm] Runtime 5h 52min 2h 09min 1h 28min Beam Distance 69/75 138/151 220/240 [m/yd] Peak Intensity 4.775 12.100 [cd] Impact 1m / 3.28 ft. Resistance Water Resistance IPX-8 (up to 100m / 164yd under water) The above mentioned parameters are based on tests according to international flashlight testing standards (ANSI/NEMA FL1) using Notes...
- Page 3 (+) of the charger. While charging the LED power indicator red. Once finished the indicator will turn green to indicate a full battery. Operation Instructions DL30 uses a magnetic control ring. Rotate the ring to turn the light on/off and to change modes between low, medium and high. Caution...
- Page 4 Do not stare directly into the beam or point it directly into anyone's face. Operating DL30 for a long time on high mode will warm the flashlight up. This is normal. Troubleshooting and Maintenance ...
- Page 5 If the above methods do not work please refer to the warranty policy before contacting your authorized distributor. Please contact us if you have any questions. If your product is defective please contact us for refund or replacement within warranty period. Wurkkos Limited: Tel: +86-137-28792565 E-mail: wurkkos@foxmail.com...
