Panasonic ES-LV9Q Manual

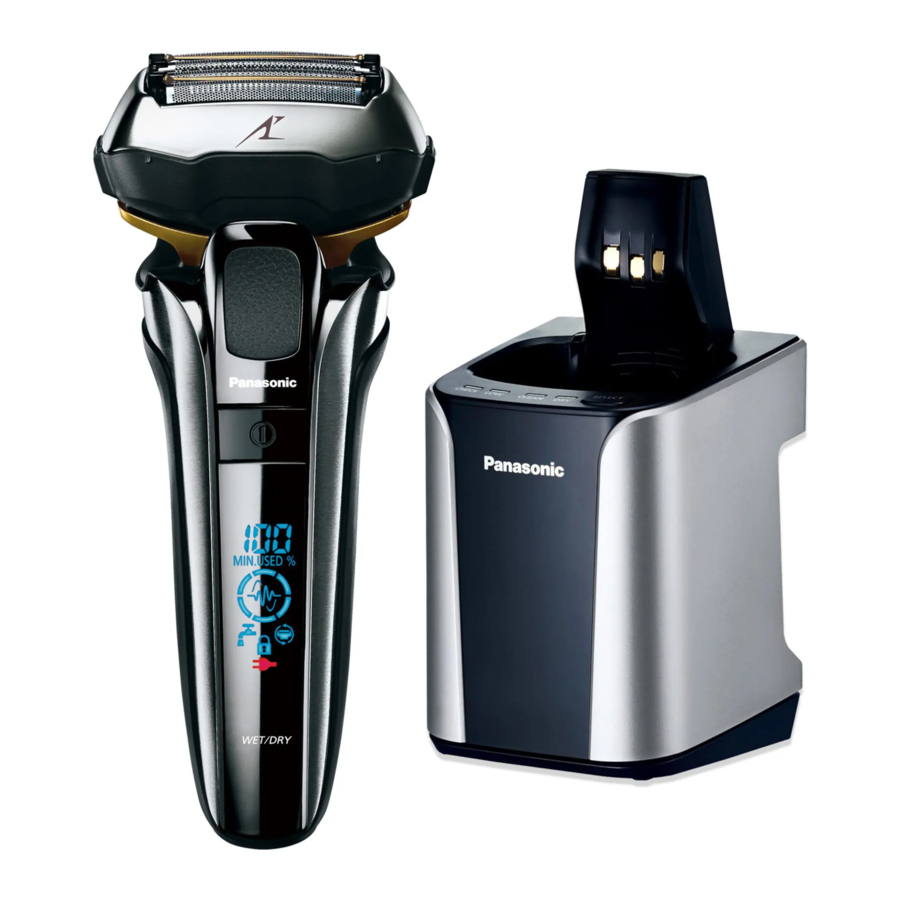

Parts identification

1. Main body

   1. Protective cap
   2. System outer foil
   3. Foil frame
   4. Smooth rollers
      • They help to glide over the skin more easily.
   5. Foil frame release buttons
   6. Power switch
   7. Lamp display
      1. Used time lamp
      2. Battery capacity lamp
      3. Shaving sensor lamp ()
      4. Clean lamp ( )
      5. Switch lock lamp ( )
      6. Foil/blade check lamp ()
      7. Charge status lamp ()
   8. Appliance socket
   9. Outer foil section
   10. System outer foil release buttons
   11. Inner blades
   12. Trimmer
   13. Trimmer handle
   14. Main body rear terminals
2. Self-cleaning recharger (RC9-22)

   15. Charging terminals
   16. Cleaning liquid unit removal button
   17. Intake port
   18. Self‑cleaning recharger socket
   19. Lock release lever
   20. Cleaning liquid filter
   21. Cleaning liquid unit
   22. STATUS lamp
   23. LOW lamp
   24. CLEAN lamp
   25. DRY lamp
   26. SELECT button
3. AC adaptor (RE7-87)

   27. Adaptor
   28. Power plug
   29. Cord
   30. Appliance plug

Accessories

4. Travel case
5. Cleaning brush
6. Oil
7. Special detergent (Detergent)

Preparation

Charging the shaver

• Turn the shaver off.
• Wipe off any water droplets on the main body rear terminals.

1. Insert the appliance plug into the self-cleaning recharger
2. Remove the protective cap while pressing the side of the cap and insert the shaver into the self-cleaning recharger
   • Slowly insert the shaver into the self‑cleaning recharger taking care not to damage the system outer foil.
3. Plug the adaptor into a household outlet
   • Check that the charge status lamp () is glowing.
   • Charging is completed after approx. 1 hour.
   • If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration.
4. Disconnect the adaptor after charging is completed
   While charging

   glows. The number of the battery capacity lamp will increase as charging progresses.
   After charging is completed

   All the battery capacity lamp and will glow and then turn off after 5 seconds.

Notes

• When charging the shaver for the first time or when it has not been in use for more than 6 months, the charging time may change or the charge status lamp () may not glow for a few minutes. It will eventually glow if kept connected.
• Recommended ambient temperature for charging is 10°C – 35°C (50°F – 95°F). It may take longer to charge, or the charge status lamp () will blink quickly and the battery may fail to charge properly in extremely high or low temperatures.
• The shaver can be used for approximately 2 weeks with a full charge. (Based on one 3‑minute dry‑shave usages per day in an ambient temperature range of 20°C – 30°C (68°F – 86°F).) The number of usable days varies depending on the following conditions.
  • Beard thickness
  • Pressure applied to the skin
  • Usage frequency of the sonic vibration cleaning mode
• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.

Charging without the self-cleaning recharger

• Turn the shaver off.
• Wipe off any water droplets on the appliance socket.

1. Insert the appliance plug into the shaver
2. Plug the adaptor into a household outlet
3. Disconnect the adaptor after charging is completed

Note
You cannot operate the shaver while charging.

Preparing the cleaning liquid
Cleaning can start right after the usage by preparing in advance.

• Remove the AC adaptor from the self‑cleaning recharger.

1. Press the cleaning liquid unit removal button () and remove the cleaning liquid unit () on a hard, flat surface.

   • When the self‑cleaning recharger is lifted, or on the soft surface such as carpets, the lock release lever will not fit in the recharger properly. In that case, the cleaning liquid unit cannot be removed.
2. Pour tap water () and detergent () into the cleaning liquid unit

   • Be careful not to let the water rise above the maximum water line ().
   • Pour the entire packet of detergent.
3. Slowly insert the cleaning liquid unit into the self-cleaning recharger until it clicks


Notes

• To replace the cleaning liquid.
• Only use self‑cleaning recharger detergent for Panasonic shavers.
  Not doing so may cause malfunction or failure.
• Do not tilt the self‑cleaning recharger.
  Doing so may cause spill or the number of days that cleaning liquid can be used reduce.
• You can use the cleaning liquid for approximately 30 days if used once per day.
  (This will differ depending on beard thickness and the ambient temperature.)

Tips for better shaving
Apply the whole system outer foil perpendicularly against the skin and shave by slowly gliding the shaver over the face against the grain of the beard.

• The beard under the chin and around the throat can be shaved better by stretching the skin so the beard will stand.

• To prevent damaging the system outer foil, do not shave with only a part of the system outer foil.


After use

The used time and remaining battery capacity blink alternately and then turn off after 8 seconds.
When the battery capacity is low

"10%" appears and " " blinks.
The appliance beeps twice after switched off.

• You can shave 1 to 2 times after "10%" appears. (This will differ depending on usage.)

Notes

• The appliance may not operate in an ambient temperature lower than approximately 5°C (41°F).
• The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.
• Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.
• To prevent erroneous operation, place your fingers on the thumb rest while using the shaver.
• The sonic vibration cleaning mode is activated when the power switch is pressed for more than 2 seconds while the shaver is not operating.
  You cannot shave in this mode.

Switching the shaver head
You can change the pivot action.

FREE
The shaver head is moved to prevent missed spots.

LOCK
You can lock the shaver head.

Using the trimmer

1. Slide the trimmer handle up to the " " position so that the trimmer stands upright.
2. Press and use.

Press and hold the top knob () and slide the trimmer handle down to lower the trimmer.

Tips for better usage
Apply the trimmer edge perpendicular to skin gently and move downward slowly.

Cleaning, drying, charging
We recommend cleaning the shaver after each use.

1. Insert the shaver into the self-cleaning recharger and plug the adaptor into a household outlet


• Check that the charge status lamp () is glowing.
• When the LOW lamp or the STATUS lamp lights up

2. Press
   The CLEAN lamp and the DRY lamp glow, and the "AUTO" mode will start after approximately 6 seconds.
   • It is not possible to change the mode after the "AUTO" mode has started.
     * When the ambient temperature of the self‑cleaning recharger is low (approx. 15°C (59°F) or lower), the drying process will take up to 170 min.

3. Remove the adaptor after the selected mode is completed
   Clean the shaver with water or with the cleaning brush once per month. The main unit neck section (), inner blade attachment part (), trimmer, system outer foil gaps, etc. cannot be cleaned with the self‑ cleaning recharger.


Changing the mode of self-cleaning recharger
The "Charge" mode starts when attaching the shaver, and the mode can be changed by pressing the SELECT button.

Notes

• Do not press the cleaning liquid unit removal button during cleaning as the cleaning liquid may spill causing a malfunction.
• The drying time may increase in an ambient temperature approximately 15°C (59°F) or lower.
  The Clean or Dry function may not operate under extreme low temperatures (approximately 0°C (32°F) or lower).
• A lubricant constituent is included in the detergent, so smooth shave is maintained without applying oil.

Cleaning thoroughly

Cleaning with water

• Turn the shaver off and disconnect the AC adaptor.

1. Apply some hand soap and some water to the system outer foil

2. Press for more than 2 seconds to activate the sonic vibration cleaning mode

   • Splashing of foam is suppressed.
   • The battery capacity lamps blink in order.
   • After about 20 seconds, it will be automatically turned off, or you can turn it off by pressing the power switch.
3. Remove the outer foil section and clean with running water

   • See attaching and removing the outer foil section.
   • Splashing is reduced by rinsing the shaver in sonic vibration cleaning mode.
   • After rinsing with water, shake the shaver up and down for a few times to remove excess moisture and then wipe off any drops of water with a dry cloth.
4. Attach the outer foil section and dry with the self-cleaning recharger

   1. Insert the shaver into the self‑cleaning recharger and plug the adaptor into a household outlet.
      • Check that the charge status lamp ( ) is glowing.
   2. Press twice.
      The DRY lamp glows, and the "Dry/Charge" mode will start after approximately 6 seconds.
      • It is possible to change to the "AUTO" mode even after the "Dry/Charge" mode has started.

   3. Remove the adaptor after the selected mode is completed.
5. Lubricate the shaver
   It will keep the movement of the blade smooth and maintain a comfort shave.

   1. Apply one drop of oil to each of the system outer foils.
   2. Raise the trimmer and apply a drop of oil.
   3. Switch the shaver on, and run it for approximately five seconds.
   4. Switch off the shaver, and wipe off any excess oil from the system outer foil with a soft cloth.

Drying the shaver without the self-cleaning recharger
Dry in a shade and apply oil.

Notes

• Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction.
• Do not wipe with thinners, benzine, alcohol etc. Doing so may cause malfunction, or cracking or discoloration of the parts.
  Wipe with diluted soapy water.
• Do not use any kitchen or bathroom detergents other than hand soap.
  Doing so may cause malfunction.
• Do not use the self‑cleaning recharger while droplets or soap remain on the shaver.
  Doing so may change the concentration level or composition of the cleaning liquid in the cleaning liquid unit, which may degrade cleaning, sterilization, lubrication and drying performance. This may also cause cleaning liquid to spill from the self‑cleaning recharger.

Cleaning with the brush
Remove the outer foil section and the inner blades.

Cleaning with the long brush
Clean the outer foil section, system outer foil, the shaver body and the trimmer using the long brush.

Cleaning with the short brush

• Clean the inner blades using the short brush by moving it in direction as illustrated.
• Do not move the short brush perpendicularly against the blades as it will damage the inner blades and affect their sharpness.

Replacing the system outer foil and the inner blades

appears on the lamp display once a year. (Based on one 3‑minute shave use per day)
We recommend checking the system outer foil and the inner blades when it appears.
Press the power switch for more than 30 seconds to turn off . Even if is not turned off right after the replacement, it will automatically turn off within approximately 7 uses.

Removing the outer foil section
Press the foil frame release buttons and lift the outer foil section upwards.

Attaching the outer foil section
After turning the foil frame mark ( ) to the front, securely attach the outer foil section to the shaver until it clicks.

Replacing the system outer foil

1. Press the system outer foil release buttons and pull down the system outer foil.
   • Do not press the system outer foil release buttons with excessive force. Doing so may bend the system outer foil, preventing complete attachment to the foil frame.
2. Align the foil frame mark ( ) and the system outer foil mark ( ) and securely attach together until it clicks.

Replacing the inner blades

1. Remove the inner blades one at a time.
2. Insert the inner blades one at a time.

Note
Do not throw away the foil frame.

Replacing the cleaning liquid

If the STATUS lamp glows for 5 seconds when the SELECT button is pressed, the cleaning liquid needs to be replaced.

• Even if the STATUS lamp does not light up, replace the cleaning liquid after 6 months have passed.

1. Remove the AC adaptor and remove the cleaning liquid unit

2. Wash away the old cleaning liquid

• It can be drained as sewage.

3. Rinse the cleaning liquid unit


• Pour water as illustrated while tilting the cleaning liquid unit and shaking it gently.
• You can clean with the cleaning liquid filter removed. After washing, be sure to attach the cleaning liquid filter.

4. Gently wipe off any beard trimmings attached to the inside of the cleaning tray () with a cloth or tissue paper dampened with water


• Clean the corners and uneven parts of the cleaning tray with a cotton swab dampened with water.

5. Prepare the new cleaning liquid

Notes

• The cleaning liquid will decrease every time it is used, but do not add detergent and water except when replacing the cleaning liquid. Doing so may deteriorate the cleaning function.
• Do not wash the self‑cleaning recharger unit with water.
• Do not wipe with thinners, benzine, alcohol etc. Doing so may cause malfunction, or cracking or discoloration of the parts.
  Wipe with diluted soapy water.
• Some cleaning liquid components and skin oil may separate and adhere to the cleaning liquid unit and cleaning liquid filter. This does not indicate a problem.

When the water does not drain from the cleaning tray

• Do not tilt the self‑cleaning recharger to pour out water. Doing so may cause the cleaning liquid in the cleaning liquid unit to spill or cause the self‑cleaning recharger to malfunction.
• Beard trimmings may clog the drain at the bottom of the cleaning tray.
  In this case, you cannot clean or dry the shaver.

1. Be sure to remove the AC adaptor from the self‑cleaning recharger.
2. Place the self-cleaning recharger on a flat surface, and push the beard trimmings down through the drain () with a toothpick etc.


Replacement parts
Replacement parts are available at your dealer or Service Center.

When the LOW/STATUS lamp glows

It indicates that the cleaning liquid is due for replacement when the LOW lamp or STATUS lamp glows for approximately 5 seconds when the SELECT button is pressed.

FAQ

Troubleshooting

Perform the following actions. If the problems still cannot be solved or all self‑cleaning recharger's lamps blink, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

Self-cleaning recharger

Shaver

Problem	Action
The power switch does not turn ON.	The appliance may not unlock depending on usage conditions. Place the appliance on the desk, then pick it up again. If it still does not operate, press and hold the power switch for more than 2 seconds to forcibly unlock the appliance.
The clean lamp ( ) glows. (It turns off in about 1 minute.)	Please clean the blades with the self‑cleaning recharger or the sonic vibration cleaning mode.
The shaving sensor does not respond.	Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.
	The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal.
	The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver.
	Apply oil. The shaving sensor may not respond when there is not enough oil on the blades.
The shaving sensor responds even though the shaver is not in contact with the skin.	Clean the beard trimmings from the shaver. When the shaver is extremely dirty, remove the foil frame and wash with water.
	Replace the system outer foil and/ or inner blades. Expected life of system outer foil and inner blades: System outer foil: Approximately 1 year Inner blades: Approximately 2 years
Operating time is short even after charging.	Apply oil.
	This can be improved by cleaning every time after shaving.
	When the number of operations per charge starts to decrease, the battery is nearing the end of its life.
Shaver does not operate even after charging.	Use the appliance in an ambient temperature approximately 5°C (41°F) or higher.
	The battery has reached the end of its life.
	The shaver will not operate with the AC adaptor connected. Please use the shaver after it has been sufficiently charged and the AC adaptor disconnected.
The driving sound changes while shaving.	The shaving sensor is operating. The sound changes depending on the beard thickness.
Makes a loud sound.	Apply oil. The blades will not move smoothly when there is no oil on the blades, requiring more power.
	The shaver makes a high‑pitched sound due to the linear motor drive. This does not indicate a problem.
	Confirm that the blades are properly attached.
	Clean the system outer foil with the brush.
The odor is getting stronger.	This can be improved by cleaning every time after shaving.
Shavings fly out in all directions.	This can be improved by cleaning every time after shaving. Clean the inner blades with the brush when shavings are adhering to the inner blades.
System outer foil gets hot.	Apply oil.
	Replace the system outer foil if it is damaged or deformed.
You do not get as close a shave as before.	This can be improved by cleaning every time after shaving.
	Replace the system outer foil and/ or inner blades. Expected life of system outer foil and inner blades: System outer foil: Approximately 1 year Inner blades: Approximately 2 years
	Apply oil.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V
Charging time	Approx. 1 hour

This product is intended for household use only.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols
The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

	Denotes a potential hazard that will result in serious injury or death.
	Denotes a potential hazard that could result in serious injury or death.
	Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions are required to always be followed, including the following:
Read all instructions before using this appliance.

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.
2. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
3. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
4. Unplug this appliance before cleaning.

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is required when this appliance is used by, on, or near children or invalids.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance when it has a damaged cord or plug, when it is not working properly, after it has been dropped or damaged, or after it has been dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with damaged shaving blades and/or foil, as it has the potential to result in facial injury.
8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to "off" then remove plug from outlet.

SAVE THESE INSTRUCTIONS

This product
This shaver has a built-in rechargeable battery Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment

• Doing so may cause overheating, ignition, or explosion.

Do not modify or repair

• Doing so may cause fire, electric shock, or injury. Contact an authorized service center for repair (battery change etc).

Never disassemble except when disposing of the product

• Doing so may cause fire, electric shock, or injury.

In case of an abnormality or malfunction
Immediately stop using and remove the adaptor if there is an abnormality or malfunction

• Failure to do so may cause fire, electric shock, or injury.
  <Abnormality or malfunction cases>
  • The main unit, self-cleaning recharger, adaptor or cord is deformed or abnormally hot
  • The main unit, self-cleaning recharger, adaptor or cord smells of burning
  • There is an abnormal sound during use or charging of the main unit, self-cleaning recharger, adaptor or cord
• Immediately request inspection or repair at an authorized service center.
