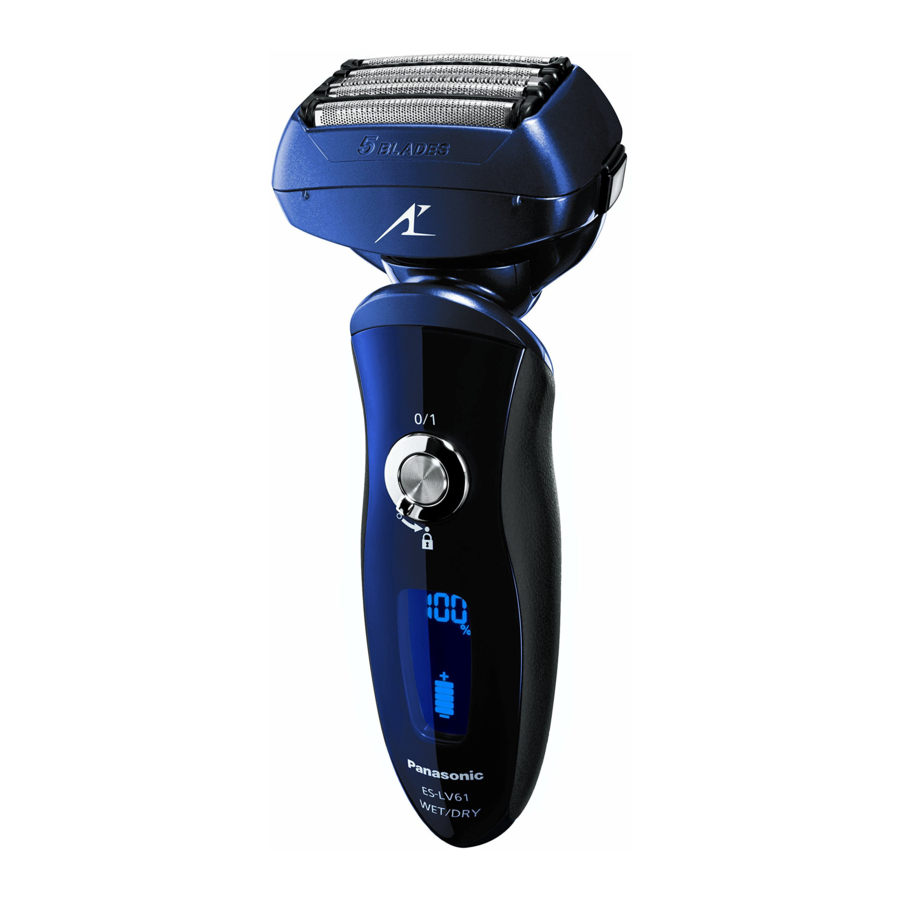

Panasonic ES-LV61 Manual

Important

This shaver has a built‑in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

• Before use
  This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.


Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.

• Using the shaver

The outer foil is very thin and can be damaged if not used correctly. Check that the foil is not damaged before using the shaver. Do not use the shaver if the foil is damaged as you will cut your skin.

• Terminate the usage when there is an abnormality or failure.
• Do not share your shaver with your family or other people. Doing so may result in infection or inflammation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Charging the shaver
  • Never use the AC adaptor in the bathroom or shower room.
  • Do not use any power cord or AC adaptor other than the AC adaptor (RE7‑59).
  • Plug in the AC adaptor into a household outlet where there is no moisture and handle it with dry hands.
  • Hold the AC adaptor when disconnecting it from the household outlet. If you tug on the power cord, you may damage it.
  • The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.
  • The AC adaptor is intended to be correctly oriented in a vertical or floor mount position.
• Cleaning the shaver

Disconnect the power cord from the shaver before cleaning it in water to prevent electric shock.

• Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.
• If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.
• Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water. Do not use thinner, benzine, alcohol or other chemicals.

• Storing the shaver
  • Store the shaver in a place with low humidity after use.
  • Do not store the shaver where it will be exposed to direct sunlight or other heat sources.
  • Disconnect the power cord when storing the shaver.
  • Do not bend the power cord or wrap it around the shaver.

Parts identification

1. Protective cap
2. Outer foil section
   1. Foil frame
   2. System outer foil
   3. System outer foil release buttons
3. Inner blades
4. Main body
   4. Foil frame release buttons
   5. LCD panel
      1. Used time
      2. Battery capacity (%)
      3. Charge status
      4. Sonic vibration
      5. Foil/blade check
      6. Clean
      7. Battery capacity scale
   6. Appliance socket
   7. Lock ring
   8. Power switch [0/1]
   9. Thumb rest
   10. Trimmer
   11. Trimmer handle
5. AC adaptor (RE7‑59)
   12. Power cord
   13. Appliance plug
6. Travel case

Using the lock ring
Use the lock ring to lock or unlock the power switch.
Rotate the lock ring until it clicks.

Rotate the lock ring to " " to unlock the power switch:
For when shaving, washing the shaver, lubricating the shaver.

Rotate the lock ring to " " to lock the power switch:
For when carrying the shaver.

Charge

Charging the unit

1. Insert the appliance plug into the shaver.
2. Plug in the AC adaptor into a household outlet.

• Turn the shaver off before attaching.
• Charging is completed after approx. 1 hour.
• If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration.

You cannot operate the shaver while charging.

Reading the LCD panel when charging

The LCD panel shows the remaining battery capacity from 0% to 100%, in 10% increments.

While charging
The indicators glow.

After charging is completed
Battery capacity and Charge status will light up and then turn off after 5 seconds.

• After charging is completed, turning the power switch ON with the shaver plugged in will cause Battery capacity and Charge status to light up and then turn off after 5 seconds. This shows that the shaver is fully charged.
• Recommended ambient temperature for charging is 5‑35°C (41‑95°F). The battery may not charge properly or not at all under extreme low or high temperatures. The indicators on the LCD panel blink when there is a problem with charging.
• When charging the shaver for the first time or when it has not been in use for more than 6 months, the indicators on the LCD panel may not glow. It will eventually glow if kept connected.

Shave

Using the unit

1. Rotate the lockring to unlock the power switch and press the power switch.

2. Hold the shaver as illustrated above and shave.


• We recommend using the shaver in an ambient temperature range of 5 ‑ 35°C (41 ‑ 95°F). If used outside this range, the appliance may stop operating.

Start out shaving by applying gentle pressure to your face. Stretch your skin with your free hand and move the shaver back and forth in the direction of your beard. You may gently increase the amount of pressure as your skin becomes accustomed to this shaver. Applying excessive pressure does not provide a closer shave.

• If you press the power switch for more than 2 seconds, the sonic vibration cleaning mode is activated. You cannot shave in this mode.
• Do not place your fingers on the power switch while using the shaver. This may cause the shaver to turn off or enter the sonic vibration cleaning mode. Place your thumb on the thumb rest while using the shaver.

Using the trimmer
You can change the pivot action. Slide the handle up to " " when using the trimmer.

FREE
You can move the shaver head.

LOCK
You can lock the shaver head.

Slide the trimmer handle up. Place at a right angle to your skin and move downwards to trim your sideburns.

Reading the LCD panel when using

During use
The used time is shown.

• The indicators turn off after 5 seconds.
• The shown time returns to [0'00"] after 10 minutes.

After use
The used time and the remaining battery capacity are shown alternately after turning off the shaver.

When the battery capacity is low

• You can shave 1 to 2 times after "10%" appears.
  (This will differ depending on usage.)

"10%" appears and blinks.

• A full charge will supply enough power for approx. 14 shaves of 3 minutes each. (This will differ depending on usage.)

Clean

Cleaning the unit

We recommend that you clean your shaver with the sonic vibration cleaning mode when the faucet symbol appears on the LCD panel.

1. Disconnect the power cord from the shaver.
2. Apply some hand soap and some water to the outer foil.
3. Rotate the lock ring to unlock the power switch.
4. Press the power switch for more than 2 seconds to activate the sonic vibration cleaning mode.

   • appears on the LCD panel.
   • After about 20 seconds, it will be automatically turned off, or you can turn it off by pressing the power switch.
5. Remove the outer foil section and press the power switch for more than 2 seconds to activate the sonic vibration cleaning mode and clean it with running water.

6. Wipe off any drops of water with a dry cloth.
7. Dry the outer foil section and the shaver completely.

8. Attach the outer foil section to the shaver.

Replacing the system outer foil and the inner blades

appears on the LCD panel once a year. (This will differ depending on usage.) We recommend checking the system outer foil and the inner blades when it appears.
Press the Power switch for more than 30 seconds to turn off .

Replacing the system outer foil

1. Press the foil frame release buttons and lift the outer foil section upwards.
2. Press the system outer foil release buttons and pull down the system outer foil.
3. Align the foil frame mark ( ) and the system outer foil mark ( ) and securely attach together.
   • The system outer foil cannot be reversely attached.
   • Always insert the system outer foil to the foil frame when attaching to the shaver.
4. After turning the foil frame mark ( ) to the front, securely attach the outer foil section to the shaver until it clicks.

Replacing the inner blades

1. Press the foil frame release buttons and lift the outer foil section upwards.
2. Remove the inner blades one at a time.
   • Do not touch the edges (metal parts) of the inner blades to prevent injury to your hand.
3. Insert the inner blades one at a time until they click.

Replacement parts

Replacement parts are available at your dealer or Service Center.

Removing the built‑in rechargeable battery

ATTENTION:
A lithium ion battery that is recyclable powers the product you have purchased. Please call 1‑800‑8‑BATTERY for information on how to recycle this battery.

Remove the built‑in rechargeable battery before disposing of the shaver. Do not dismantle or replace the battery so that you can use the shaver again. This could cause fire or an electric shock.
Please contact an authorised service center.
The battery replacing service is available only in the United States of America.

• Disconnect the power cord from the shaver when removing the battery.
• Perform steps to and lift the battery, and then remove it.


Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	3.6 V
Charging time	Approx. 1 hour

This product is intended for household use only.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.
2. Charger unit is not for immersion or for use in shower.
3. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
5. Unplug this appliance before cleaning.
6. Do not use an extension cord with this appliance.

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or invalids.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with damaged shaving blades and/or foil, as it has the potential to result in facial injury.
8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to "off" then remove plug from outlet.

SAVE THESE INSTRUCTIONS

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL‑FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1‑800‑332‑5368.
IN CANADA, CONTACT PANASONIC CANADA INC.
