Hahnel CAPTUR Manual

Contents

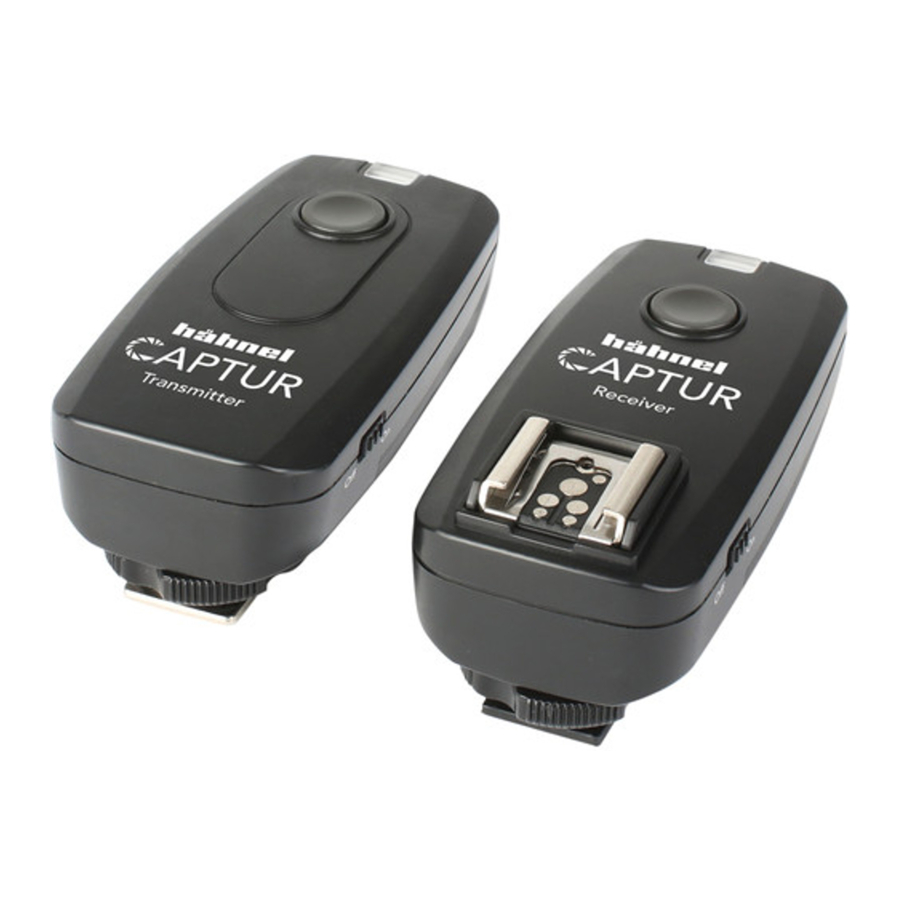

hähnel Captur - Transmitter & Receiver

Cables

Captur - Canon C1 & C3 Cables (Captur Canon only)
Captur - Nikon N1, N2 & N3 Cables (Captur Nikon only)
Captur - Sony S1 & S2 Cables (Captur Sony only)
Captur - Olympus/Pana O1, O2 & P1 Cables (Captur Olympus/Pana only)
Captur - Fujifilm F1 & F3 Cables (Captur Fujifilm only)
Please choose correct cable for your camera.

Please insert al batteries provided. Instructions in this manual assume that the Captur Receiver, Transmitter and any other equipment are a ready turned on.

Camera Remote Control

Identify contact (3 black lines) on cable

Flash Remote Control

Remote Flash Control
When using Remote Flash Control, the flash must be in Manual mode. TTL signals are not transmitted.

Continuous shootng and Bulb Function

For bulb mode and continuous shooting. Push and hold for 3 seconds to lock LED on transmitter flashes red while locked. Full push once to release lock.

Digital Channel Matching (DCM)

1. Transmitter - Press and hold button + Turn "ON". LED will flash green rapidly
2. Receiver - Press and hold button + Turn "ON". LED will show steady red
3. DCM is complete. Turn both Receiver and Transmitter "OFF" and "ON" to reboot

Note: For multiple Receivers repeat step "Ib" for all receivers without turning off transmitter

Open Channel Matching

1. Transmitter - Press and hold button + turn "ON". Hold button continuously down. LED will change from flashing rapidly green to solid red
2. Receiver - Press and hold button + turn "ON". Hold button continuously down. LED will change from flashing rapidly green to solid red
3. All devices are open channel now. Turn Reciever and Transmitter "OFF" and "ON" to reboot

Note: For multiple Transmitter repeat step "a"; for multiple receivers repeat step (b).

Camera & Flash Remote Control

Requires 2 separate sets of the Captur. Each must be synced separately on different channels.
Please note: To ensure camera and flash gun are in sync, flash receivers must be triggered from a camera mounted transmitter.

Accessories available for Captur

Captur Module Pro - Wireless Universal Trigger Remote

• Motion & Wildlife
• Time Lapse
• High Speed Photography
• 4 built-in sensors
• Infra-Red sensor

Captur Module Timer - Wireless Timer Remote

• Time Lapse & Long Exposure
• Self/lnterval
• Exposure count
• Fully Programmable

Captur Receiver - Trigger more than 1 flash
Trigger 2 or more receivers using 1 transmitter

Studio Light Cable - Connect and trigger studio lights.
(Note - It is not recommended to use a high sync voltage studio lights with the Captur as it may damage the Captur.)

• Do not modify product
• Keep receiver and transmitter dry at all times
• Do not use in the presence of flamable gas
• Keep out of the reach of children
• Do not expose to excessive temperatures or strong direct sunlight
• Do not leave the unit in the trunk or on the dashboard of a vehicle.
• Overheating can result in leaking, fire or explosion
• Observe correct polarity
• Dispose in accordance with appropriate environmental regulations
• Take battery out of unit if stored for an extended period of time
