Installing Codeplus Transcoder Cards - LG CodePlus HCS6700 Series Installation & Setup Manual Warranty

3 & 4
HCS6700
Slot 1 Slot 2
HCS6700 HCS6700
X PORT LINK
X PORT LINK X PORT LINK
SERVICE
SERVICE SERVICE
PORT PORT PORT
RESET RESET
RESET
STATUS STATUS
STATUS
ASI OUT ASI OUT
ASI OUT
S/N XXXXXXX S/N XXXXXXX
MAC ADDRESS MAC ADDRESS
XX XX XX XX XX XX XX XX XX XX
S/N XXXXXXX
MAC ADDRESS
XX XX XX XX XX
Note: All cards used in the card frame
must be inserted and removed by
qualified service personnel only.
Note: Use extreme care when handling an
HCS6700 card. Always observe proper
precautions with respect to static electricity
and mechanical shock. When not installed in a
card frame, return the HCS6700 card to the
anti-static bag in which it was shipped.
Note: The CodePlus series products are
NOT designed to be hot-swappable!!!
Power must be removed to the card frame
before any CodePlus transcoder cards are
inserted or removed.
Note: The card slots in the card frame
are NOT all identical!!! An HCS6700 card
can only be installed in Slots 1 to 6 and 7 to
12. The CONTROLLER slot between Slots 6
and 7 is dedicated for optional feature cards
and is not compatible with HCS6700 cards.
Note: When installing cards, remove
blank cover plates and insert new cards
as applicable. For ports that will not be used,
leave the blank cover plates in place for
proper ventilation and FCC and safety agency
compliance.
206-4120

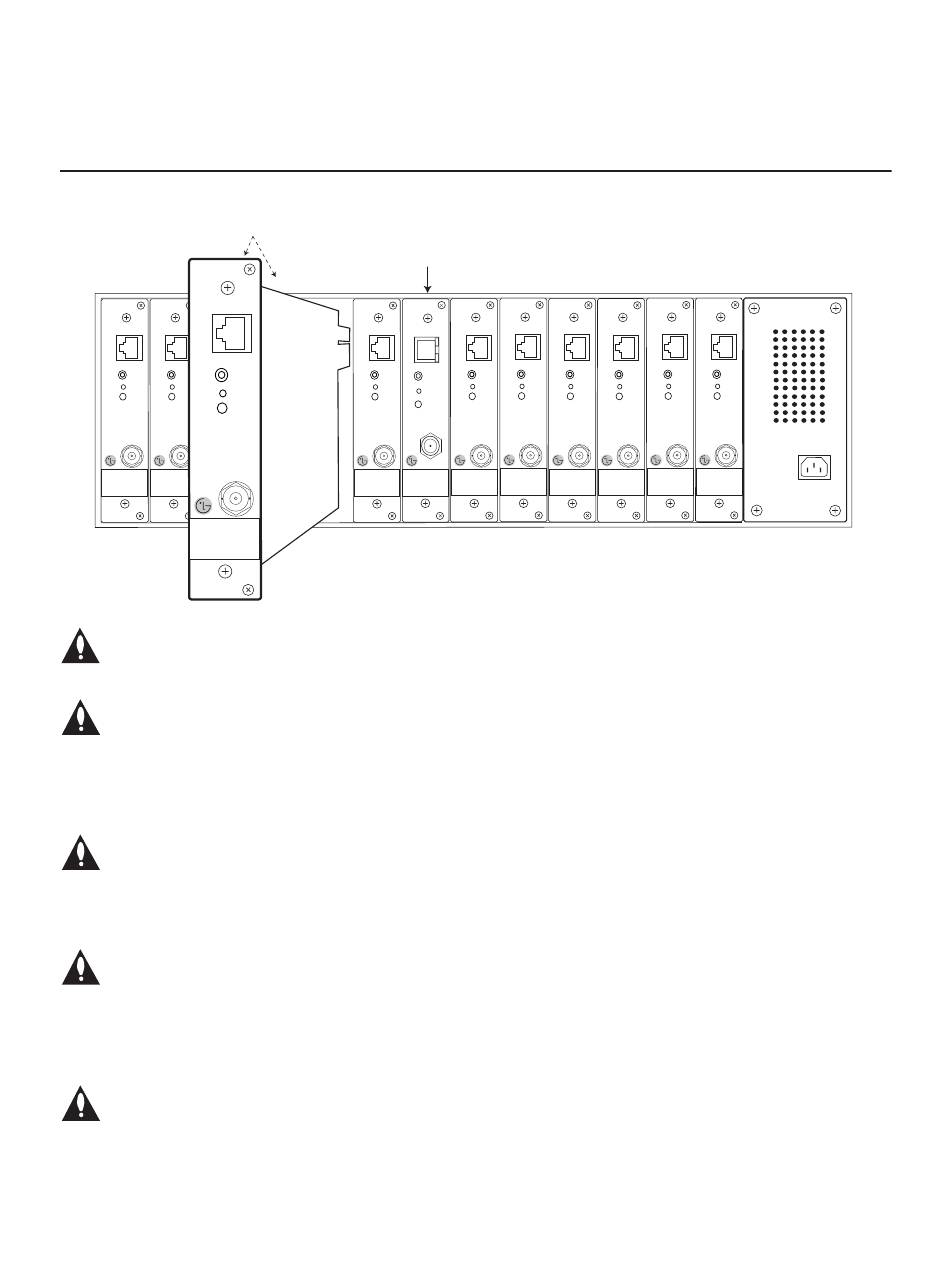

Installing CodePlus Transcoder Cards

Slots
CONTROLLER
Slot
Slot 5 Slot 6
HCS6700 HCS6300
X PORT LINK
ETHERNET
SERVICE
PORT
RESET
STATUS
ASI OUT
S/N XXXXXXX
MAC ADDRESS
XX XX XX XX XX
Slot 7 Slot 8 Slot 9 Slot 10 Slot 11
HCS6700
HCS6700 HCS6700
X PORT LINK
X PORT LINK X PORT LINK
SERVICE SERVICE SERVICE
SERVICE
PORT PORT PORT
PORT
RESET RESET RESET
RESET
STATUS
STATUS STATUS
STATUS
RF OUT
ASI OUT
ASI OUT ASI OUT
S/N XXXXXXX S/N XXXXXXX S/N XXXXXXX
MAC ADDRESS
MAC ADDRESS MAC ADDRESS
XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX
CONTROLLER Slot
The card in this slot may vary
depending on system features.
1. Unpack the HCS6700 unit(s) and all accessories.
Accessories provided: CAT 5E Shielded Cable
(Length = 1 meter)
2. Select the slot(s) in the card frame in which to
install the HCS6700. Note: All cards must be
used in an LG-approved card frame for this
product.
3. Remove the AC power cord for the card frame
from the power outlet.
4. Remove the blank cover plate from each slot
into which a card is to be inserted.
5. Without using force, slide each new card into
its designated slot, and ensure that it is fully
inserted.
6. Engage and tighten the top and bottom thumb-
screws securely. Note that the thumbscrews
should only be finger tight; overtightening may
damage the assembly.
7. Refer to the diagram on page 10 for cable
connections, and complete the system installa-
tion and test procedure on page 11.
Slot 12
HCS6700 HCS6700
HCS6700
X PORT LINK X PORT LINK
X PORT LINK
SERVICE SERVICE
SERVICE
PORT PORT PORT
RESET RESET RESET
STATUS STATUS
STATUS
ASI OUT ASI OUT
ASI OUT
S/N XXXXXXX S/N XXXXXXX S/N XXXXXXX
MAC ADDRESS MAC ADDRESS
MAC ADDRESS
XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX
9
