Summary of Contents for Xiaomi MI mjsxj09cm

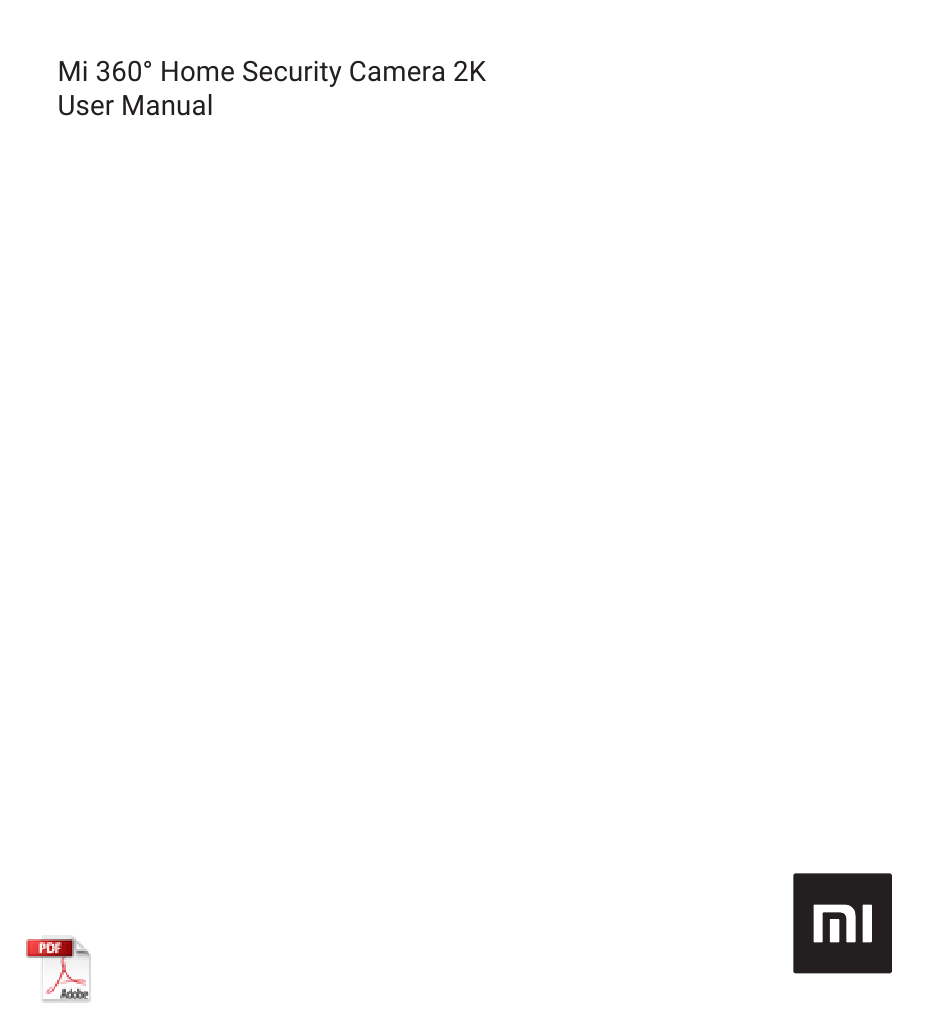

  • Page 1 All manuals and user guides at all-guides.com...

  • Page 2: Product Overview

    All manuals and user guides at all-guides.com Product Overview Read this manual carefully before use, and retain it for future reference. Indicator Loudspeaker Lens Microphone Micro-USB MicroSD Card Power Port Slot (Visible when lens is Reset facing upward) RESET Front View Rear View Package Contents: Mi 360°...

  • Page 3: Installation

    All manuals and user guides at all-guides.com Installation You can place the Mi 360° Home Security Camera 2K on horizontal surfaces, such as desks, dining tables, and coffee tables. You can also mount it on a wall. Mounting the camera on a wall: 1.
  • Page 4 All manuals and user guides at all-guides.com 3. Place the side of the base with arrows facing forward, and then align the holes. Insert the screws and then tighten them into the wall plugs with a Phillips head screwdriver. 4. Align the grooves on the bottom of the camera with the raised part on the base, and then turn it clockwise until it locks into place.

  • Page 5: How To Use

    All manuals and user guides at all-guides.com How to Use Installing a MicroSD card Make sure the camera is turned off. Push the lens upward to reveal the MicroSD card slot. Insert the microSD card into the card slot with its contact points facing downward.
  • Page 6 Note: When the camera is working, do not turn the lens of the camera nor force it to rotate. If the positioning of the lens is inaccurate, please calibrate it in the Mi Home/Xiaomi Home app. Indicator Blue: Connected successfully/Working properly...
  • Page 7 All manuals and user guides at all-guides.com Connect with Mi Home/Xiaomi Home App This product works with Mi Home/Xiaomi Home app*. Control your device with Mi Home/Xiaomi Home app. Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already.

  • Page 8: Real-Time Surveillance

    All manuals and user guides at all-guides.com Real-time Surveillance In the app, you can view the real-time surveillance, adjust the sharpness of the image, adjust the horizontal and vertical angles, capture and record, and make calls. Infrared Night Vision As the ambient light dims, the camera can automatically switch to night vision mode.
  • Page 9 Then you will get the app push notification. You can enable or disable the home surveillance assistant in the Mi Home/Xiaomi Home app. You can set 24-hour, daytime, nighttime, custom period surveillance, alert sensitivity and alert time intervals, etc.

  • Page 10: Video Sharing

    All manuals and user guides at all-guides.com Video Sharing In the app, you can select the device sharing option in the settings menu to share the camera with others. Users you share the camera with need to download the app and sign in with their Mi account. Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only.
  • Page 11 All manuals and user guides at all-guides.com Precautions The operating temperature range for this camera is between -10°C and 40°C. Do not use the camera in environments with temperatures above or below the specified range. The camera is a precision electronic product. In order to ensure its normal operation, do not install the camera in environments with high humidity levels nor allow water to get into it.

  • Page 12: Weee Information

    All manuals and user guides at all-guides.com WEEE Information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.

  • Page 13: Specifications

    All manuals and user guides at all-guides.com Specifications Name: Mi 360° Home Security Camera 2K Model: MJSXJ09CM Net Weight: 269 g Item Dimensions: 115 × 78 × 78 mm Input: 5 V Resolution: 2304 × 1296 Viewing Angle: 110° Video Codec: H.265 Aperture: F1.4 Operating Temperature: -10°C to 40°C Compatible with: Android 4.4 &...
