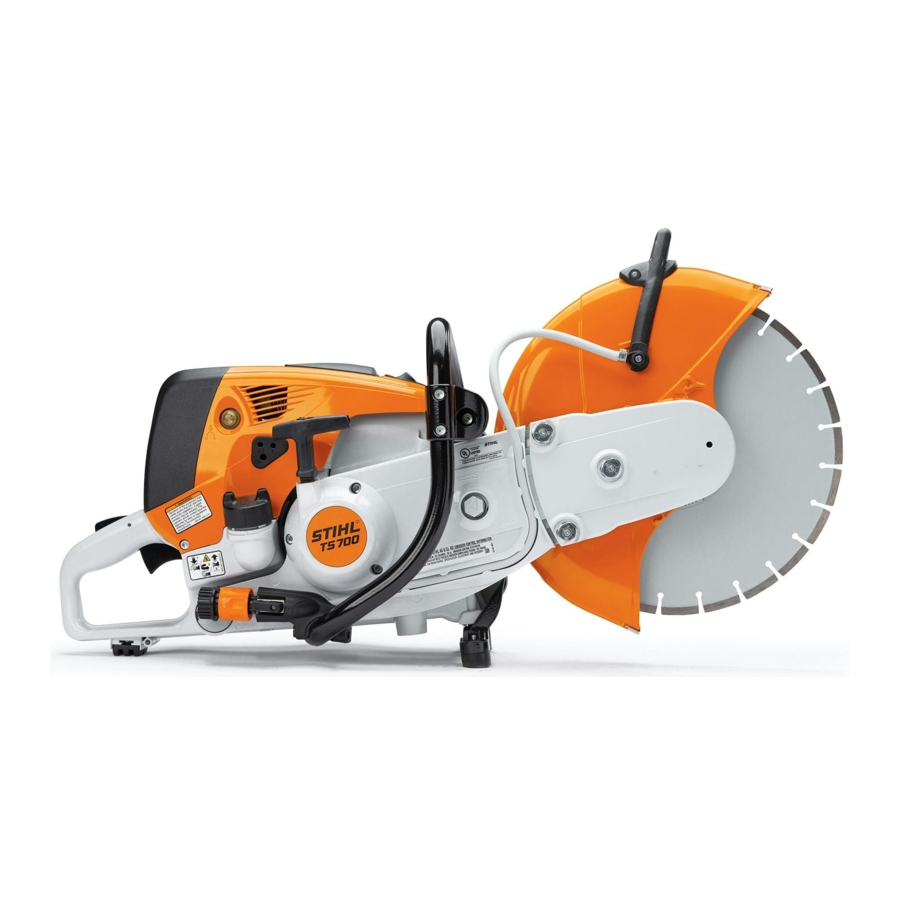

Stihl TS 700, TS 800 Manual

Guide to Using this Manual

Pictograms
Pictograms that appear on the machine are explained in this Instruction Manual.
Depending on the machine and equipment version, the following pictograms may appear on the machine.

	Fuel tank; fuel mixture of gasoline and engine oil
	Actuate decompression valve
	Actuate manual fuel pump
	Water connection, shutoff cock
	Tensioning nut for belt
	Pull starter grip

Symbols in text

Warning where there is a risk of an accident or personal injury or serious damage to property.
NOTICE
Caution where there is a risk of damaging the machine or its individual components.

Engineering improvements
STIHL's philosophy is to continually improve all of its products. For this reason we may modify the design, engineering and appearance of our products periodically.
Therefore, some changes, modifications and improvements may not be covered in this manual.

Safety Precautions and Working Techniques

Special safety precautions must be taken when working with the cut-off machine, due to the very high rotational speed of the abrasive wheel.

It is important you read and understand the User Manual before commissioning and keep it in a safe place for future reference. Non-observance of the safety precautions may result in serious or even fatal injury.
Observe all applicable local safety regulations, e.g. by trade organizations, social insurance institutions, labor safety authorities etc.
As for employers within the European Community, the provision 2009/104/EC is binding – Safety and health protection with the use of machines and devices by employees at work.
If you have never used a power tool before: have your STIHL dealer or other specialist show you how to operate the machine – or attend one of the special training courses.
Minors should never be allowed to use the machine – except for apprentices over the age of 16 when working under supervision.
Children, animals and bystanders must not be allowed near the machine.
When not using the machine, it must be laid down in such a way that it does not endanger anyone. Ensure that the machine cannot be used without authorization.
The user is responsible for accidents or risks involving third parties or their property.
Do not lend or rent your power tool without the User Manual. Be sure that anyone using it understands the information contained in this manual.
The use of machines that emit noise may be limited to certain hours of the day as specified by national and/or regional or local regulations.
Anyone operating the machine must be well rested, in good physical health and in good mental condition.
If you have any condition that might be aggravated by strenuous work, check with your doctor before operating a machine.
If you have a pacemaker: The ignition system of your machine produces an electromagnetic field of very low intensity. This field may interfere with some pacemakers. STIHL recommends that persons with pacemakers consult their physician and the pacemaker manufacturer to reduce any health risk.
Anyone who has consumed alcohol or drugs or medicines affecting their ability to react must not operate a power tool.
Postpone the work if the weather is bad (snow, ice, wind) – higher risk of accidents!
The machine may only be used for cutting. It is not suitable for cutting wood or wooden objects.
Asbestos dust is extremely toxic - the machine must therefore never be used to cut asbestos!
Other uses are not permitted and may lead to accidents or damage to the machine.
Never attempt to modify your power tool in any way since this may increase the risk of personal injury. STIHL excludes all liability for personal injury and damage to property caused while using unauthorized attachments.
Only use abrasive wheels or accessories which have been approved by STIHL for this machine or which are technically equivalent. If you have any questions in this respect, consult your dealer. Only use high-quality abrasive wheels and attachments. in order to avoid the risk of accidents and damage to the machine.
STIHL recommends the use of genuine STIHL abrasive wheels and accessories. They are specifically designed to match the product and meet your performance requirements.
Do not use a high-pressure washer to clean the power tool. The solid jet of water may damage parts of the unit.
Do not spray the power tool with water.

Never use circular saw blades, carbide, rescue or wood cutting attachments or saws of any kind – these may cause fatal injuries! Instead of uniformly removing particles as when cutting with an abrasive wheel, the teeth of a circular saw blade may snag in the material. This causes the machine to react in a highly aggressive manner with uncontrolled and extremely dangerous kickback.

Clothing and equipment
Wear proper protective clothing and equipment.

Clothing must be sturdy but allow complete freedom of movement. Wear close-fitting clothes such as a boiler suit, not a work coat.
When cutting steel, always wear clothing made of barely flammable material (e.g., leather or cotton with flame-retardant finish) – no man made fibers – risk of fire due to flying sparks!
Clothing must be free from flammable deposits (chips, fuel, oil, etc.).
Do not wear clothes that may be caught by moving parts – no scarf, no tie, no jewelry. Tie up and confine long hair above your shoulders.

Wear steel-toed safety boots with non-slip soles.

To reduce the risk of eye injuries, wear close-fitting safety glasses in accordance with European Standard EN 166. Make sure the safety glasses are a snug fit.
Wear face protection and make sure it is a good fit. Face protection alone is not sufficient to protect the eyes.
Wear a safety hard hat where there is a danger of head injuries from falling objects.
Dust (e. g., crystalline material from the object being cut), fumes and smoke may be produced while cutting - health hazard!
Always wear a dust mask if dust is generated.
If fumes or smoke are anticipated (e. g., when cutting composite materials), wear respiratory protection.
Wear "personal" hearing protection – for example, ear defenders.

Wear sturdy protective gloves made of a resistant material (e. g. leather).
STIHL can supply a comprehensive range of personal protective equipment.

Transporting the machine
Always stop the engine.
Carry the device by the handlebar only – abrasive wheel pointing to the rear – hot muffler away from the body.
To avoid serious burn injuries, avoid touching hot parts of the machine, especially the surface of the muffler.
Never transport the engine-driven device with attached abrasive wheel – risk of breakage!
By vehicle: When transporting in a vehicle, properly secure your machine to prevent turnover, damage and fuel spillage.

Refueling

Gasoline is highly flammable – keep away from fire or flame – do not spill any fuel – no smoking.
Always shut off the engine before refueling.
Do not fuel a hot engine – fuel may spill and cause a fire.
Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly and avoid fuel spillage.
Only refuel the machine in a well ventilated place. If fuel has been spilled, immediately clean the machine – do not allow your clothes to be splashed with fuel. If that happens, change your clothes at once.
Dust may collect on the engine unit, particularly around the carburetor. If dust gets mixed with fuel – risk of fire. For this reason, ensure that the dust is always removed.

Check for fuel leakage! Never start the engine if fuel has been spilled or is leaking – Fatal burns may result!
Different cut-off machines may be equipped with different fuel caps:

Bayonet-type fuel cap

Never use a tool to open or close the bayonet-type fuel cap. This could damage the cap and cause fuel to leak out.
Close the bayonet-type fuel cap carefully after refueling.

Threaded fuel cap

After fueling, tighten down the screw-type fuel cap as securely as possible.
This helps reduce the risk of unit vibrations causing an incorrectly tightened fuel cap to loosen or come off and spill quantities of fuel.

Cut-off machine, spindle bearing
Correct spindle bearings ensure the concentricity and axial running of the diamond abrasive wheel – if necessary, get it checked by an approved dealer.

Abrasive cutting wheels
Selecting the abrasive cutting wheels
Abrasive cutting wheels must be approved for freehand cutting. Do not use other cutting wheels and attachments – risk of accident!
Abrasive cutting wheels are suitable for different materials: Observe the identification of the abrasive cutting wheels.
STIHL generally recommends wet cutting.

	Observe the outer diameter of the abrasive wheel.
	Spindle hole diameter of the abrasive wheel and shaft of cut-off machine must match.

Check the spindle hole for damage. Do not use abrasive cutting wheels with a damaged spindle hole – risk of accident!

The permissible speed of the abrasive cutting wheel must be equal to or greater than the maximum spindle speed of the cut-off machine. – Refer to the chapter "Specifications".
Before fitting a used abrasive cutting wheel, check that it is not cracked, chipped, undercut or uneven, and does not display any signs of core fatigue or overheating (discoloration); check also the spindle hole is not damaged.
Never use cracked, chipped or bent abrasive cutting wheels.
Substandard and/or unapproved diamond abrasive wheels can shimmy during cutting. This shimmying can cause such diamond abrasive wheels to be abruptly braked or become stuck in the cut – Danger of kickback! Kickback can result in fatal injuries! Diamond abrasive wheels that shimmy constantly or even only intermittently must be replaced immediately.
Never straighten diamond abrasive wheels.
Do not use an abrasive cutting wheel which has fallen to the ground – damaged abrasive cutting wheels may break – risk of accident!
Observe the expiration date where composite resin abrasive cutting wheels are concerned.

Fitting abrasive cutting wheels
Inspect the spindle of the cut-off machine. Do not use a cut-off machine if the spindle is damaged – risk of accident!
Note the arrows indicating the direction of rotation on diamond abrasive wheels.
Position the front pressure plate – tighten up the tensioning screw – rotate the abrasive cutting wheel by hand and take a sight check for concentricity and axial running.

Storing cutting wheels
Store abrasive wheels in a dry and frostfree place, on an even surface, at constant temperature – risk of breakage and splintering!
Always protect cutting wheels against sudden impact with the floor or objects.

Before starting
Inspect the cut-off machine for safe-tooperate state – observe the respective chapters in the User Manual:

• Check the fuel system for leaks, especially the visible parts, e. g., fuel cap, hose connections, manual fuel pump (only in machines with a manual fuel pump). In case of leakage and damage, do not start the engine – risk of fire! Have the machine serviced by a dealer before using it
• The abrasive wheel must be suitable for the material to be cut. It must be in good condition and fitted correctly (direction of rotation, secure).
• Inspect the abrasive wheel guard for tight seat – if loose, contact your specialist dealer.
• Smooth action of throttle trigger and throttle trigger lockout – throttle trigger must return automatically to idle position
• Slide control / master control lever / stop switch must move easily to STOP or 0
• Check that the spark plug boot is secure – a loose boot may cause sparking that could ignite combustible fumes and cause a fire!
• Never attempt to modify the controls or safety devices
• Keep the handles clean, dry and free of oil as well as dirt – important for safe guiding of the cut-off machine.
• For wet applications, provide sufficient water

To reduce the risk of personal injury, do not operate your power tool if it is damaged or not properly assembled!

Starting the engine
Start the engine at least 3 meters from the fueling spot, outdoors only.
On even ground, ensure a firm and secure footing and hold the enginedriven device firmly – the abrasive wheel must not touch any objects or the ground and must not be in cutting action.
The abrasive wheel may begin to rotate as soon as the machine is started
The machine is operated by a single person only – do not allow any person to stay within the working area – nor with starting.
Do not drop start your machine – the correct starting procedure is described in the User Manual. After releasing the throttle trigger, the abrasive wheel keeps on running for a while – danger of injury due to coasting effect!

Holding and guiding the machine
The cut-off machine may only be used for hand-held cutting or when mounted on a STIHL Cutquik cart.

Hand-held cutting

Always hold the machine firmly with both hands: Right hand on the rear handle – even if you are left-handed. To ensure safe control, wrap your fingers tightly around both handles.

When a cut-off machine with an abrasive cutting wheel rotating is moved in the direction of the arrow, a force is produced which causes the machine to tip sideways.
The object to be cut off has to be firmly supported. Always guide the machine towards the workpiece – never the other way round.

Cutquik cart
STIHL cut-off machines can be mounted onto a STIHL Cutquik cart.

Deflector
The adjustment range of the guard is determined by a stop pin. Never push the guard over the stop pin.

Set the abrasive wheel guard correctly: Guide particles of material away from the user and machine.
Note the direction of flight of the removed particles of material.

While working
If there is imminent danger or in an emergency, immediately stop the engine – set the slide control / master control lever /stop switch to STOP or 0.
Check for correct idling, so that the cutting wheel is no longer driven when the throttle trigger is released and comes to a complete halt.
Check and correct the idle speed setting at regular intervals. Have the machine repaired by a STIHL dealer if the cutting wheel continues to turn nevertheless.
Keep clear the working area – bear in mind obstacles, holes and pitches.
Take special care in slippery conditions – damp, snow, ice, on slopes or uneven ground.
Don not work while standing on a ladder – not on an insecure support – not over your shoulder height – not with one hand only – risk of accident!
Make sure you always have good balance and secure footing.
Do not work alone – keep within calling distance of others in case help is needed.
Keep out further persons from the working area – maintain sufficiently large distance to additional persons to protect them from noise and flying objects.
Be particularly alert and cautious when wearing hearing protection because your ability to hear warnings (shouts, alarms, etc.) is restricted.
Take a break in good time before you get tired.
Work calmly and carefully – in daylight conditions and only when visibility is good. Proceed with caution, do not put others in danger.

As soon as the engine is running, the power machine generates toxic exhaust gas. These gases may be odorless and invisible and may contain unburned hydrocarbons and benzene. Never run the engine indoors or in poorly ventilated locations, even if your model is equipped with a catalytic converter.
Ensure proper ventilation when working in trenches, hollows or similar locations – risk of fatal injury from breathing toxic fumes!
Stop work immediately if you start suffering from nausea, headaches, impaired vision (e.g. your field of vision gets smaller), impaired hearing, dizziness, or impaired concentration – these symptoms may possibly be the result of too-high exhaust gas concentration – Risk of accidents!
To reduce the risk of fire, do not smoke while operating or standing near your power tool.
If your power tool is subjected to unusually high loads for which it was not designed (e.g. heavy impact or a fall), always check that it is in good condition before continuing work – see also "Before Starting". Check in particular that the fuel system has no leaks and the safety equipment is fully operative. Never use a power tool that is no longer safe to operate. In case of doubt, contact a dealer.
Do not operate your power tool in the starting throttle position – engine speed cannot be controlled in this position.
Never touch a rotating abrasive cutting wheel with your hand or any other part of your body.
Examine the workplace. Avoid all danger due to damaged piping or electrical wiring.
The machine must not be used near inflammable substances or gases.
Do not cut into pipes, metal tanks or other containers if you are not sure that they do not contain any volatile or inflammable substances.
Never leave the machine unattended with the engine running. Stop the engine before leaving the machine unattended (e. g. for breaks).
Before putting the cut-off machine down on the ground:

• Shut off the engine
• Wait until the abrasive cutting wheel has come to a standstill or brake the abrasive cutting wheel until it comes to a standstill by carefully touching a hard surface (e.g., concrete slab)

Frequently inspect the abrasive cutting wheel – replace it right away if there are visible cracks, buckling or other damage (for example, overheating) – risk of accident due to breakage!
In the event of changes in cutting behavior (e. g., increased vibration, reduced cutting performance), stop work and eliminate the causes of the changes.

Reactive forces
The most frequently occurring reactive forces are kickback and pull-in.

Danger of kickback – Kickback can result in fatal injuries.

Kickback occurs when the cut-off machine is suddenly thrown up and back in an uncontrolled arc towards the operator.
Kickback occurs if, for example, the abrasive cutting wheel

• gets jammed – primarily in its upper quarter, or
• is abruptly braked through friction contact with a solid object

To reduce the risk of kickback

• Work cautiously and avoid situations which could cause kickback.
• Hold the cut-off machine firmly with both hands and maintain a secure grip

• If possible, avoid using the upper quarter of the abrasive cutting wheel for cutting. Use extreme caution when guiding the abrasive cutting wheel into a cut, do not twist or push into the cut

• Avoid any wedge effect - the severed part must not brake the abrasive cutting wheel
• Always be aware that the object to be cut may move and other factors may cause the cut to close and jam the abrasive cutting wheel.

• The object to be cut must be secured and supported so that the kerf remains open during and after cutting
• Objects to be cut must therefore be fully supported and must be secured against rolling away, slipping off or vibrations

• Support an uncovered pipe stable and solid, if necessary, use wedges – always bear in mind a proper support and ground – material may crumble away,
• Always work with water and wet cutting when using diamond abrasive wheels
• Depending on the version, composite resin abrasive cutting wheels are suitable only for dry cutting or only for wet cutting. Always use wet cutting with composite resin abrasive cutting wheels that are suitable only for wet cutting

Pull away from

The cut-off machine pulls forward, away from the user, when the abrasive wheel touches the object to be cut from above.

Working – cutting off

The cutting wheel must be guided straight in the cut, without wedging. Never exert lateral pressure on the cutting wheel.

Do not use for lateral grinding or scrubbing.

Do not stand in line with the abrasive wheel. Ensure sufficient freedom of movement, especially in construction trenches there must be sufficient space for the user and for the part being cut to fall.
Do not lean too far forwards and never bend over the abrasive wheel when the guard has been pulled back.
Do not work above shoulder height.
The cut-off machine may only be used for cutting. It must not be used as a lever or shovel.
Do not press down on the cut-off machine
Always decide the cutting direction before positioning the cut-off machine. After that, do not change the cutting direction. Never push or hit with the device into the cutting gap – do not let the concrete cutter fall into the cutting depth – risk of breakage!
Diamond abrasive wheels: If cutting performance begins to deteriorate, check the sharpness of the diamond cutting wheel, resharpen as needed. To do this, briefly cut through abrasive material, e. g., sandstone, aerated concrete or asphalt.
At the end of the cut, the cut-off machine is no longer supported by the abrasive wheel in the cut. The user has to absorb the weight force – risk of loss of control!

When cutting steel: glowing metal particles may cause fires!
Keep water and sludge away from alive electrical cables – risk of electric shock!
Drag the abrasive wheel into the workpiece – do not push it into the material. Do not correct severing cuts with the cut-off machine. Do not re-cut – remove left webs or breaking edges (for example, with a hammer).
When applying diamond abrasive wheels, take a wet cut – for example, use the STIHL water connector.
Depending on the version, composite resin abrasive cutting wheels are suitable only for dry cutting or only for wet cutting.
When using composite resin abrasive cutting wheels which are suited for wet cuts only, take such wet cuts only – for example, use the STIHL water connector.
When using composite resin abrasive cutting wheels which are suited for dry cuts only, take such dry cuts only. If however composite resin abrasive cutting wheels of this type become wet, their cutting performance is reduced and they become dull. If composite resin abrasive cutting wheels of this type become wet while working (e. g., due to puddles or water in pipes), do not increase the cutting pressure, but continue working with the same pressure – risk of breakage! Use up such composite resin abrasive cutting wheels immediately.

Cutquik cart
Clear a path for the Cutquik cart. If the Cutquik cart is pushed over objects, the abrasive wheel may become wedged in the cut and shatter!

Vibrations
Prolonged use of the power tool may result in vibration-induced circulation problems in the hands (whitefinger disease).
No general recommendation can be given for the length of usage because it depends on several factors.
The period of usage is prolonged by:

• Hand protection (wearing warm gloves)
• Work breaks

The period of usage is shortened by:

• Any personal tendency to suffer from poor circulation (symptoms: frequently cold fingers, tingling sensations).
• Low outside temperatures.
• The force with which the handles are held (a tight grip restricts circulation).

Continual and regular users should monitor closely the condition of their hands and fingers. If any of the above symptoms appear (e.g. tingling sensation in fingers), seek medical advice.

Maintenance and repairs
The machine must be serviced regularly. Do not attempt any maintenance or repair work not described in the Instruction Manual. All other work should be carried out by a servicing dealer.
STIHL recommends that maintenance and repair work be carried out only by authorized STIHL dealers. STIHL dealers receive regular training and are supplied with technical information.
Use only high-quality replacement parts, in order to avoid the risk of accidents or damage to the machine. Contact a dealer if in doubt.
STIHL recommends the use of genuine STIHL spare parts. Such parts have been optimized for the machine and the user's requirements.
Before starting any maintenance or repair work and before cleaning the machine, always stop the engine and disconnect the spark plug boot – risk of injury if the engine starts up inadvertently! – Exception: adjustment of carburetor and idle speed.
To reduce the risk of fire due to ignition outside the cylinder, move the slide control / stop switch to STOP or 0 before turning the engine over on the starter with the spark plug boot removed or the spark plug unscrewed.
Do not service or store the machine near a naked flame – risk of fire due to the fuel.
Check fuel cap regularly for tightness.
Use only spark plugs that are in perfect condition and have been approved by STIHL – see Specifications.
Inspect ignition lead (insulation in good condition, secure connection).
Check that the muffler is in perfect working condition.
Do not use the machine if the muffler is damaged or missing - risk of fire! – Hearing damage!
Never touch a hot muffler – risk of burns!
Check the rubber buffers underneath the machine - the housing must not rub against the ground - risk of damage!
The condition of the antivibration elements influences vibration behavior – inspect antivibration elements periodically.

Sample Applications

Water must always be used for wet cutting when working with diamond abrasive wheels
Extend service life and increase cutting speed
Always ensure a supply of water to the abrasive wheel.

Binding dust
The abrasive wheel must be supplied with at least 0.6 liters of water per minute.

Water attachment

• Water attachment on the machine for all types of water supplies
• Pressurized water tank 10 l for binding dust
• water tank usable on the cut-off machine cart for binding dust

Use composite resin abrasive wheels with or without water – depending on version
Depending on the version, resin abrasive wheels are only suitable for dry cutting or only for wet cutting.

Composite resin abrasive wheels suitable only for dry cutting
During dry cutting, wear a suitable dust mask.
If fumes or smoke are anticipated (e. g., when cutting composite materials), wear respiratory protection.

Composite resin abrasive wheels suitable only for wet cutting

Use abrasive wheel only with water.
To bind dust, the abrasive wheel must be supplied with at least 1 liter of water per minute. To avoid a reduction in cutting performance, the abrasive wheel must be supplied with not more than 4 liters of water per minute.
After using the abrasive wheel, the wheel should be allowed to continue spinning at operating speed for approx. 3 to 6 seconds without water in order to spin off the water remaining on it.

• Water attachment on the machine for all types of water supplies
• Pressurized water tank 10 l for binding dust
• water tank usable on the cut-off machine cart for binding dust

Observe with diamond and composite resin abrasive wheels

Objects to be cut

• Must be fully supported
• Must be secured so it cannot roll or slip off
• Must be prevented from vibrating

Severed parts
With openings, recesses, etc., the sequence of the cuts is important. Always make the last cut so that the abrasive wheel does not become jammed and so that the operator is not endangered by the severed or separated part.
If necessary, leave small ridges that hold the part that is to be separated in position. Break these ridges later.
Before finally separating the part, determine:

• how heavy the part is
• how it can move after separation
• whether it is under tension

When breaking out the part, do not endanger assistants.

Cut in several passes

• Mark cutting line (A)

• Work along the cutting line. When making corrections, do not tilt the abrasive wheel, but always set the abrasive wheel against the workpiece anew – the cutting depth for each operation should not exceed 5 to 6 cm. Cut thicker material in multiple operations


Cutting plates

• Secure the plate (e. g. on a non-slip surface, sandbed)



• Make the cut (B) deeper
• Leave a "hinge" (C)
• First sever the plate at the cut ends so that no material breaks away
• Break plate

• Make curves in multiple operations – make certain that the abrasive wheel does not tilt

Cutting pipes, round and hollow bodies

• Secure pipes, round and hollow bodies against vibrations, slipping and rolling away
• Note direction of fall and weight of the severed part
• Determine and mark the cutting line, avoid reinforcement, especially in the direction of the severing cut
• Determine sequence of severing cuts
• Grind a guide groove along the line marked
• Make cut deeper along the guide groove – observe the recommended cutting depth for each operation – for small corrections of direction, do not tilt the abrasive wheel, but always position it anew instead – if necessary, leave small ridges that hold the part that is to be separated in position. Break these ridges after the last planned cut

Cutting concrete pipe

The procedure is dependent on the outer diameter of the pipe and the maximum possible cutting depth of the abrasive wheel (A).

• Secure pipe against vibrations, slipping and rolling away
• Note weight, tension and direction of fall of the part to be severed

• Determine and mark direction of cut
• Determine sequence of cuts

Outer diameter is smaller than the maximum cutting depth

• Make one cut from the top to the bottom


Outer diameter is greater than the maximum cutting depth
Plan first, then cut. Several cuts are needed – correct sequence is important.

• Turn guard at rear stop

Concrete pipe – cut recess
Sequence of cuts (1 to 4) is important:

• First, cut hard-to-reach areas

• Always make severing cuts so that the abrasive wheel is not pinched

• Use wedges and/or leave ridges that are broken after cutting

• If the severed part remains in the recess after cutting (due to wedges, ridges used), do not make any further cuts – break the severed part


Cutting Wheels

Abrasive wheels are exposed to extremely high loads especially during freehand cutting.
Therefore only for use of approved and correspondingly labeled abrasive wheels with hand-held machines as per EN 13236 (diamond) or EN 12413 (composite resin). Note maximum permissible speed of the abrasive wheel – risk of accident!
The abrasive wheels, which have been developed by STIHL in cooperation with renowned manufacturers of abrasive wheels, are of high quality and tailored precisely to the respective intended use as well as the engine performance of the cut-off machine.
They are of consistently outstanding quality.

Transport and storage

• Do not expose abrasive wheels to direct sunshine or other thermal stresses during transport and storage
• Avoid jolting and impacts
• Stack abrasive wheels flat on a level surface in the original packaging in a dry place where the temperature is as constant as possible
• Do not store abrasive wheels in the vicinity of aggressive fluids
• Store abrasive wheels in a frost-free place

• for dry applications
• for wet applications

The proper selection and use of composite resin cutting wheels ensures economical use and avoids accelerated wear. The product code which appears

• on the label and
• on the packaging (table with recommendations for use) is an aid to selection

STIHL composite resin cutting wheels are suitable, depending on the version, for cutting the following materials:

• Asphalt
• Concrete
• Stone
• Ductile cast iron pipes
• Steel; STIHL composite resin cutting wheels are not suitable for cutting railway tracks

Do not cut any other materials – risk of accident!

Diamond Abrasive Wheels

For wet applications.
The proper selection and use of diamond abrasive wheels ensures economical use and avoids accelerated wear. The product code which appears

• on the label and
• on the packaging (table with recommendations for use) is an aid to selection

STIHL diamond abrasive wheels are suitable, depending on the version, for cutting the following materials:

• Asphalt
• Concrete
• Stone (hard stone)
• Abrasive concrete
• Fresh concrete
• Clay brick
• Clay pipe
• Ductile cast iron pipe

Do not cut any other materials – Risk of accident!
Never use diamond abrasive wheels with side plating as they jam in the cut and can result in extreme kickback – Risk of accident!

Troubleshooting

Abrasive wheel

^[1] STIHL recommends STIHL servicing dealers

Assembling the bearing and guard

The "support with guard" is mounted on the inboard side by the manufacturer.
The "support with guard" can also be mounted on the outboard side depending on requirements.
Assembly on the inboard side is recommended for freehand cutting on account of the better balance.

Outboard mounting (TS 700)

• Disassemble the abrasive wheel (see "Fitting / replacing an abrasive wheel")

Removing the water attachment

• Unscrew the banjo bolt (1) with the combination wrench – in the process, remove the square nut from the inside of the guard from the guide
• Remove the water hose (2) with connector from the adjusting lever (3)

Removing the adjusting lever

• Unscrew the banjo bolt (1) with the combination wrench and remove it together with the seal – in the process, remove the square nut from the inside of the guard from the guide
• Unscrew the screw (2)
• Turn the adjusting lever (3) upwards and remove

Slackening the V-belt

• To relax the poly V-belt, loosen the nuts (1) – do not unscrew the nuts (1) from the studs
• Turn the tensioning nut (2) counterclockwise with the combination wrench – approx. 1/4 turn, as far as it will go = 0
• Unscrew nuts (1) from the studs – nuts (1) are fastened to the belt guard so that they are secured against loss

Removing the V-belt guard

• Turn the guard so that it is in the position shown (see picture)

• Screw in and tighten the stop pin (3)
• Insert limit stop (2) – align the hole in the limit stop with the hole in the bearing
• Insert and tighten the screw (1)
• Move the adjusting lever (4) to position A
• Insert and tighten the screw (5)

• Turn the "support with guard" so that the guard is on the outboard side

• Insert the square nut into the guide in the guard and hold it in place
• Screw in the shorter banjo bolt (6) and washer at the adjusting lever and tighten up with the combination wrench

Mounting "support with guard" – guard on the outboard side

• Fit the "support with guard" (1) on the outboard side of the cast arm - at the same time, guide the V-belt over the belt pulley

NOTICE
The belt action must run smoothly.

• Position the V-belt guard (2)
• Align studs (3) in support with nuts (4) in the V-belt guard
• Screw nuts (4) onto studs (3) – do not tighten them yet

Connecting the water connection

• Insert the longer banjo bolt (1) through the connector (2) of the water attachment – observe the position of the connector
• Insert the square nut into the guide in the guard and hold it in place
• Fit the support with the longer banjo bolt on the adjusting lever (3) – screw in the banjo bolt and tighten with the combination wrench

Checking the adjustment range of the guard

• Rotate the guard forwards and backwards as far as possible – adjustment range (A) must be limited by the stop pin

Continue as described in the chapter "Tensioning the V-belt".

Inboard mounting (TS 700)

• Disassemble the abrasive wheel (see "Fitting / replacing an abrasive wheel")
• Remove the water attachment
• Remove the adjusting lever
• Slacken the V-belt
• Remove the V-belt guard
• Remove "support with guard"

Preparing the "support with guard" for inboard mounting

• Unscrew the screw (1) of the limit stop (2)
• Remove the limit stop (2)
• Unscrew the stop pin (3)

• Turn the guard so that it is in the position shown (see picture)
• Screw in and tighten the stop pin (3)
• Insert limit stop (2) – align the hole in the limit stop with the hole in the bearing
• Insert and tighten the screw (1)
• Install the adjusting lever
• Mount "support with guard" – guard on the inboard side
• Install the V-belt guard
• Connect the water connection

Checking the adjustment range of the guard

• Rotate the guard forwards and backwards as far as possible – adjustment range (A) must be limited by the stop pin

Continue as described in the chapter "Tensioning the V-belt".

Outboard mounting (TS 800)

• Disassemble the abrasive wheel (see "Fitting / replacing an abrasive wheel")

Slackening the V-belt

• To relax the poly V-belt, loosen the nuts (1) – do not unscrew the nuts (1) from the studs
• Turn the tensioning nut (2) counterclockwise with the combination wrench – approx. 1/4 turn, as far as it will go = 0
• Unscrew nuts (1) from the studs – nuts (1) are fastened to the belt guard so that they are secured against loss

Removing the V-belt guard

• Pull the V-belt guard (1) off and remove the V-belt (2) from the front pulley (3)
• Remove the "support and guard" (4)

Preparing the "support with guard" for outboard mounting

• Unscrew the stop pin (1)
• Remove the sealing plug (2)

• Turn the guard so that it is in the position shown (see picture)
• Screw in and tighten the stop pin (1)
• Insert the sealing plug (2)
• Move the adjusting lever (3) to position A
• Insert and tighten the screw (4)

• Turn the "support with guard" so that the guard is on the outboard side
• Insert the square nut into the guide in the guard and hold it in place
• Screw in the shorter banjo bolt (5) and washer at the adjusting lever and tighten up with the combination wrench
• Insert the sealing plug (2)
• Insert and tighten the screw (4)

Mounting "support with guard" – guard on the outboard side

• Fit the "support with guard" (1) on the outboard side of the cast arm - at the same time, guide the V-belt over the belt pulley

NOTICE
The belt action must run smoothly.

• Position the V-belt guard (2)
• Align studs (3) in support with nuts (4) in the V-belt guard
• Screw nuts (4) onto studs (3) – do not tighten them yet

Connecting the water connection

• Insert the longer banjo bolt (1) through the connector (2) of the water attachment – observe the position of the connector
• Insert the square nut into the guide in the guard and hold it in place
• Fit the support with the longer banjo bolt on the adjusting lever (3) – screw in the banjo bolt and tighten with the combination wrench

Checking the adjustment range of the guard

• Rotate the guard forwards and backwards as far as possible – adjustment range (A) must be limited by the stop pin

Continue as described in the chapter "Tensioning the V-belt".

Inboard mounting (TS 800)

• Disassemble the abrasive wheel (see "Fitting / replacing an abrasive wheel")
• Remove the water attachment
• Remove the adjusting lever
• Slacken the V-belt
• Remove the V-belt guard
• Remove "support with guard"
• Remove the sealing plug

Checking the adjustment range of the guard

• Rotate the guard forwards and backwards as far as possible – adjustment range (A) must be limited by the stop pin

Continue as described in the chapter "Tensioning the V-belt".

Mounting an Abrasive Wheel

The engine must be switched off for fitting or replacement – set Master Control lever to STOP or 0.

Blocking the shaft

• Slide the locking pin (1) through the bore in the V-belt guard
• Turn the shaft with the combination wrench until the locking pin (1) engages in a bore behind the guard

Removing an abrasive wheel

• Use the combination wrench to loosen and remove the hexagon head screw (2)
• Remove the front thrust washer (3) from the shaft together with the abrasive wheel

Never use two abrasive wheels at the same time. The uneven wear creates a risk of breaking and an injury hazard!

Fuel

Your engine requires a mixture of gasoline and engine oil.

For health reasons, avoid direct skin contact with gasoline and avoid inhaling gasoline vapor.

STIHL MotoMix
STIHL recommends the use of STIHL MotoMix. This ready-to-use fuel mix contains no benzol or lead, has a high octane rating and ensures that you always use the right mix ratio.
STIHL MotoMix uses STIHL HP Ultra two-stroke engine oil for an extra long engine life.
MotoMix is not available in all markets.

Mixing Fuel
NOTICE
Unsuitable fuels or lubricants or mix ratios other than those specified may result in serious damage to the engine. Poor quality gasoline or engine oil may damage the engine, sealing rings, hoses and the fuel tank.

Gasoline
Use only high-quality brand-name gasoline with a minimum octane rating of 90 – leaded or unleaded.
Gasoline with an ethanol content of more than 10% can cause running problems in engines with a manually adjustable carburetor and should not be used in such engines.
Engines equipped with M-Tronic deliver full power when run on gasoline with an ethanol content of up to 25% (E25).

Engine Oil
If you mix the fuel yourself, use only STIHL two-stroke engine oil or another high-performance engine oil in accordance with JASO FB, JASO FC, JASO FD, ISO-L-EGB, ISO-L-EGC or ISO-L-EGD.
STIHL specifies STIHL HP Ultra twostroke engine oil or an equivalent highperformance engine oil in order to maintain emission limits over the machine's service life.

Mix Ratio
STIHL 50:1 two-stroke engine oil: 50 parts gasoline to 1 part oil

Examples

• Use a canister approved for storing fuel. Pour oil into canister first, then add gasoline and mix thoroughly.

Storing Fuel
Store fuel only in approved safety-type fuel canisters in a dry, cool and safe location protected from light and the sun.
Fuel mix ages – only mix sufficient fuel for a few weeks work. Do not store fuel mix for longer than 30 days. Exposure to light, the sun, low or high temperatures can quickly make the fuel mix unusable.
STIHL MotoMix may be stored for up to 2 years without any problems.

• Thoroughly shake the mixture in the canister before fueling your machine.

Pressure may build up in the canister – open it carefully.

• Clean the fuel tank and canister from time to time.

Dispose of remaining fuel and cleaning fluid properly in accordance with local regulations and environmental requirements.

Fueling

Refueling
Take care not to spill fuel while fueling and do not overfill the tank. STIHL recommends use of the STIHL filling system for fuel (special accessory).

Closing the filler cap

• Fit the cap and turn it until it engages in the bayonet catch
• Press the cap down as far as possible with your hand and turn it clockwise (approx. 1/8 of a turn) until it engages properly

Checking the lock

• Grip the cap – the cap is closed properly if it cannot be removed and the markings (arrows) on the cap and fuel tank are aligned

If the cap can be removed or the markings do not align, close the cap again – see sections "Closing the cap" and "Checking the lock".

Changing the fuel pickup body every year

• Drain the fuel tank
• Pull the fuel pickup body out of the tank with a hook and disconnect it from the hose
• Connect a new fuel pickup body to the hose
• Return the fuel pickup body to the tank

Starting / Stopping the Engine

• Note the safety instructions. Refer to the chapter headed "Safety precautions and working techniques".
• Press throttle trigger lockout (1) and throttle trigger (2) simultaneously
• Hold both triggers down
• Move the master control lever (3) to START and hold it in position too
• Release the throttle trigger, master control lever and throttle trigger lockout in succession = starting throttle position

• Set the choke (4) according to the engine temperature

  	If engine is cold
  	if the engine is warm (even if the engine is already running but is still cold or if the warm engine was shut off for less than 5 min)
  	if the engine is hot (if the hot engine was switched off for longer than 5 min)

• Press the button (5) of the decompression valve before each starting procedure
• Press the bulb (6) of the manual fuel pump 7-10 times – even when the bulb is still filled with fuel

Starting

• Place the cut-off machine carefully on the ground, ensuring that the abrasive wheel cannot touch the ground or any objects. There must not be anyone within the swivel range of the cut-off machine
• Make sure you have a firm footing
• Press the cut-off machine firmly against the ground, holding the handle with your left hand, thumb wrapped round the handle
• Place your right foot into the rear handle
• Pull the starter grip slowly with your right hand until you feel it engage – then give it a brisk strong pull – do not pull out the starter rope all the way

NOTICE
Do not let the starter grip snap back – it may break! Guide it back into the housing in the opposite direction so that it can rewind properly.

When the engine has turned over for the first time

• Set choke lever (4) to – press the button of the decompression valve again before each starting attempt and continue cranking

Once the engine is running

• Squeeze throttle trigger fully and let engine run at full throttle for approx. 30 s
• When it has warmed up, set the choke lever to

• The master control lever (3) moves to the normal positionF when the throttle trigger is squeezed

If the carburetor has been set correctly, the abrasive wheel should not rotate when the engine is idling.
The cut-off machine is now ready for use.

Switching off the engine

• Slide the master control lever (3) to STOP or 0

Additional hints on starting
If the engine does not start
The choke lever was not returned to in time after the engine turned over for the first time.

• Move the master control lever to START = starting throttle position
• Set the choke lever to = warm start, even if the engine is cold
• Pull the starter rope through 10-20 times to ventilate the combustion chamber
• Restart the engine

If the tank has been drained completely

• Refueling
• Press the manual fuel pump bulb 7-10 times – even if it is full of fuel

• Set the choke lever in accordance with the engine temperature
• Restart the engine

• Pull main filter (5) out of the filter housing
• Set choke lever to c
• Remove the auxiliary filter (6) from filter base – ensuring that dirt does not enter the intake area
• Clean the filter area
• Remount main filter and new auxiliary filter with the remaining filter components
• Refit filter cover
• Tighten down the locking screw

Only high-quality air filters should be used, to protect the engine against ingress of abrasive dust.
STIHL recommends the use of genuine STIHL air filters. The high quality of these parts will ensure troublefree operation, a long service life for the engine and extremely long filter life.

Abrasive cutting wheel rotates when idling

• Turn the idle speed adjusting screw (LA) counterclockwise until the abrasive cutting wheel stops rotating – then give the screw 1/4 turn in the same direction
• If the cutting wheel still rotates while idling: Turn the idle speed screw (LA) another 1/4 turn counterclockwise

If the abrasive cutting wheel continues to rotate in idle even after adjustment, have the cut-off machine checked by a servicing dealer.
Speed erratic when idling; poor acceleration (despite adjustment to LA setting)
The idle setting is too lean.

• Turn the low speed adjusting screw (L) approx. 1/4 turn counterclockwise until the engine runs and accelerates smoothly – max. up to the stop

Idle speed cannot be increased sufficiently via the idle speed adjusting screw (LA), engine stops when changing from part-load to idle speed
The idle setting is too rich.

• Turn low speed adjusting screw (L) approx. 1/4 turn clockwise

Whenever the low speed adjusting screw (L) has been adjusted, it is usually also necessary to readjust the idle speed adjusting screw (LA).

Correcting the carburetor setting for use at high altitudes
The setting may have to be marginally corrected if engine performance is unsatisfactory at high altitudes:

• Carry out the standard setting
• Allow engine to warm up
• Turn the high speed adjusting screw (H) slightly clockwise (leaner) – max. up to the stop

NOTICE
After descending from a high altitude, restore the carburetor setting to the standard setting.
If you make the setting too lean it will increase the risk of engine damage through lack of lubrication and overheating.

Spark Plug

• If the engine is down on power, difficult to start or runs poorly at idle speed, first check the spark plug.
• Fit a new spark plug after about 100 operating hours – or sooner if the electrodes are badly eroded. Install only suppressed spark plugs of the type approved by STIHL – see "Specifications".

Removing the spark plug

• Switch off the engine – move stop switch to STOP or 0

• Unscrew the screw (1) and remove cap (2) – screw (1) is secured in the cap (2) to prevent loss

• Remove the spark plug boot (3).
• Unscrew the spark plug (4).

• Carefully fit a new poly V-belt (7) in the cast arm and insert it in the front poly V-belt pulley (8) on the engine
• Fit the starter cover
• Position the "support with guard" against the cast arm
• Fit the poly V-belt in the front poly V- belt pulley (9)
• Position belt guard
• Align the studs in the support with the nuts in the V-belt guard
• Screw the nuts onto the studs – do not tighten them yet
• Place hose in the guide of the starter cover

Continue as described in the chapter "Tensioning the V-belt".

Cut-off Machine Cart

The cut-off machine can be mounted on the STIHL cut-off machine cart FW 20 (special accessory) in a few easy steps.
The cut-off machine cart makes it easier to

• repair damaged roadways
• apply roadway markings
• cut expansion joints

Storing the Machine

If the machine is to remain out of use for approx. 3 months or more

• Drain and clean the fuel tank in a well ventilated place
• Dispose of fuel in accordance with the regulations and having regard for the environment
• Run the engine until the carburetor is dry, this helps to prevent the carburetor diaphragms sticking together
• Remove the abrasive wheel
• Thoroughly clean the machine, especially the cylinder fins
• Store machine in a safe and dry place. Protect against unauthorized use (e. g., by children)

Maintenance and Care

¹⁾ STIHL recommends the STIHL servicing dealer

Minimize Wear and Avoid Damage

Observing the instructions in this manual helps reduce the risk of unnecessary wear and damage to the power tool.
The power tool must be operated, maintained and stored with the due care and attention described in this owner's manual.
The user is responsible for all damage caused by non-observance of the safety precautions, operating and maintenance instructions in this manual. This includes in particular:

• Alterations or modifications to the product not approved by STIHL.
• Using tools or accessories which are neither approved or suitable for the product or are of a poor quality.
• Using the product for purposes for which it was not designed.
• Using the product for sports or competitive events.
• Consequential damage caused by continuing to use the product with defective components.

Maintenance Work
All the operations described in the "Maintenance Chart" must be performed on a regular basis. If these maintenance operations cannot be performed by the owner, they should be performed by a servicing dealer.
STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer. STIHL dealers are regularly given the opportunity to attend training courses and are supplied with the necessary technical information.
If these maintenance operations are not carried out as specified, the user assumes responsibility for any damage that may occur. Among other parts, this includes:

• Damage to the engine due to neglect or deficient maintenance (e.g. air and fuel filters), incorrect carburetor adjustment or inadequate cleaning of cooling air inlets (intake ports, cylinder fins).
• Corrosion and other consequential damage resulting from improper storage.
• Damage to the machine resulting from the use of poor quality replacement parts.

Wear parts
Some parts of the machine are subject to normal wear and tear even when the machine is used in conformity with its intended use. These parts must be replaced in due time, depending on the nature and duration of use. These include, among others:

• Clutch, V-belt
• Abrasive wheels (all types)
• Filters (air, fuel)
• Rewind starter
• Spark plug
• Components of anti-vibration system

1. Screw plug
2. Filter cover
3. Manual fuel pump
4. Starter grip
5. Carburetor adjusting screws
6. Filler cap
7. Water connection
8. Tensioning nut
9. Deflector
10. Adjusting lever
11. Abrasive cutting wheel
12. Front thrust washer
13. Muffler
14. Handlebar
15. Decompression valve
16. Cap for spark plug boot
17. Choke shutter lever
18. Master Control lever
19. Throttle trigger
20. Throttle trigger lockout
21. Rear handle
    # Machine number

TS 800

Specifications

Engine
STIHL single cylinder two-stroke engine

TS 700

TS 800

Ignition system
magneto ignition

Air filter
Main filter (paper filter) and flocked wire mesh auxiliary filter

Weight
Without fuel, without abrasive wheel, with water attachment

Abrasive wheels
The quoted maximum permissible operating speed of the abrasive wheel must be greater than or equal to the maximum spindle speed of the cut-off machine used.

Abrasive wheels (TS 700)

Composite resin abrasive wheels

¹⁾ For Japan 118 mm
²⁾ For Australia 118 mm
³⁾ When using thrust washers with an outside diameter of 118 mm, the maximum cutting depth is reduced to 116 mm

Diamond abrasive wheels

¹⁾ For Japan 118 mm
³⁾ When using thrust washers with an outside diameter of 118 mm, the maximum cutting depth is reduced to 116 mm

Abrasive wheels (TS 800)

Composite resin abrasive wheels

Diamond abrasive wheels

¹⁾ For Japan 140 mm
³⁾ When using thrust washers with an outside diameter of 140 mm, the maximum cutting depth is reduced to 130 mm

Sound and Vibration Levels
For further details on compliance with Vibration Directive 2002/44/EC see www.stihl.com/vib

Sound pressure level L_peq to ISO 19432
TS 700: 101 dB(A)
TS 800: 101 dB(A)

Sound power level L_w to ISO 19432
TS 700: 113 dB(A)
TS 800: 114 dB(A)

Vibration level a_{hv, eq} to ISO 19432

The K-factor in accordance with Directive 2006/42/EC is 2.0 dB(A) for the sound pressure level and sound power level; the K-factor in accordance with Directive 2006/42/EC is 2.0 m/s² for the vibration level.

REACH
REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.
For information on compliance with the REACH regulation (EC) No. 1907/2006 see www.stihl.com/reach.

Exhaust Emissions
The CO₂value measured in the EU type approval procedure is specified at www.stihl.com/co2.
The measured CO₂value was determined on a representative engine in accordance with a standardized test procedure under laboratory conditions and does not represent either an explicit or implied guarantee of the performance of a specific engine.
The applicable exhaust emission requirements are fulfilled by the intended usage and maintenance described in this instruction manual. The type approval expires if the engine is modified in any way.

Maintenance and Repairs

Users of this machine may only carry out the maintenance and service work described in this user manual. All other repairs must be carried out by a servicing dealer.
STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer. STIHL dealers are regularly given the opportunity to attend training courses and are supplied with the necessary technical information.
When repairing the machine, only use replacement parts which have been approved by STIHL for this power tool or are technically identical. Only use highquality replacement parts in order to avoid the risk of accidents and damage to the machine.
STIHL recommends the use of original STIHL replacement parts.
Original STIHL parts can be identified by the STIHL part number, the { logo and the STIHL parts symbol K (the symbol may appear alone on small parts).
