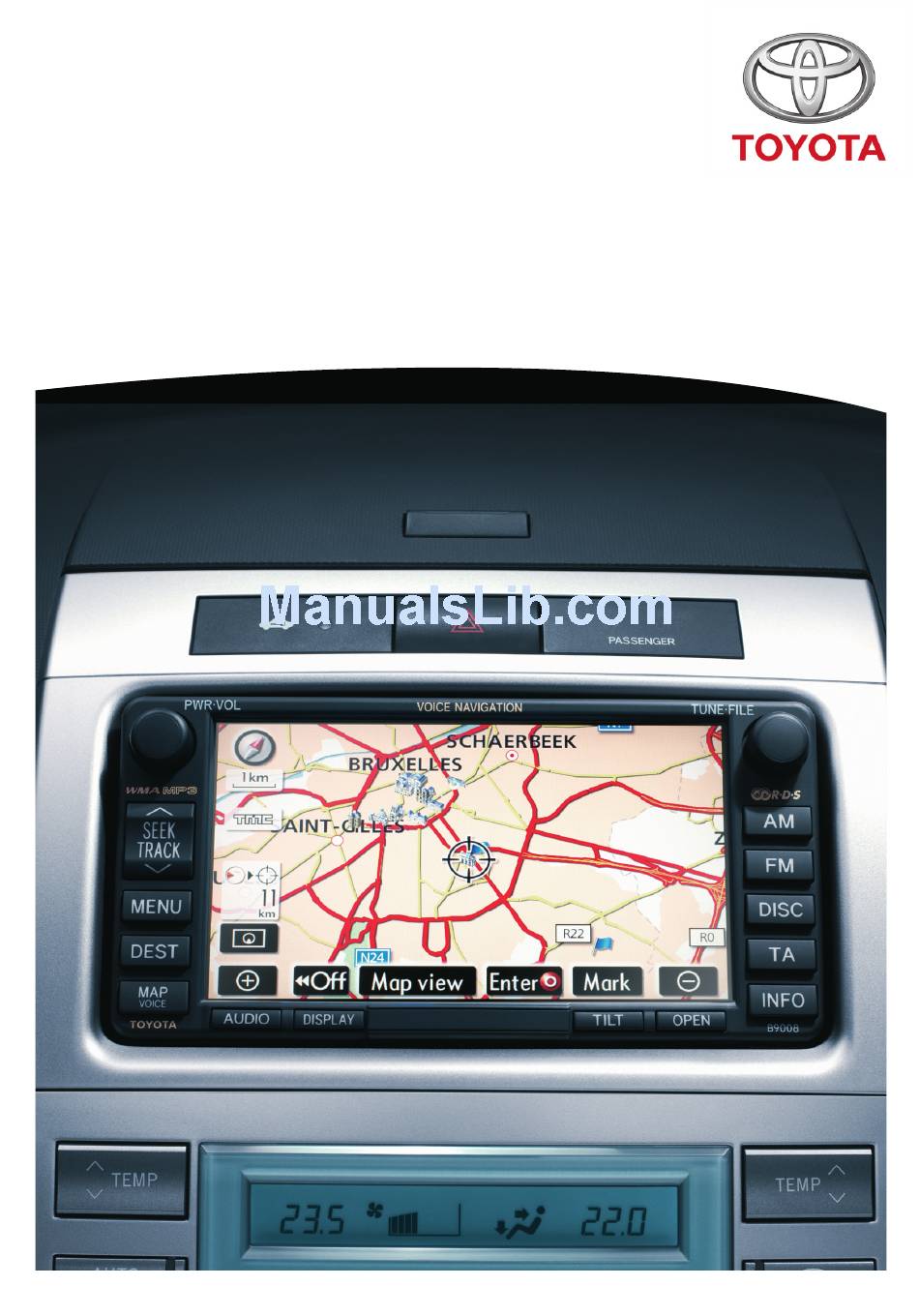

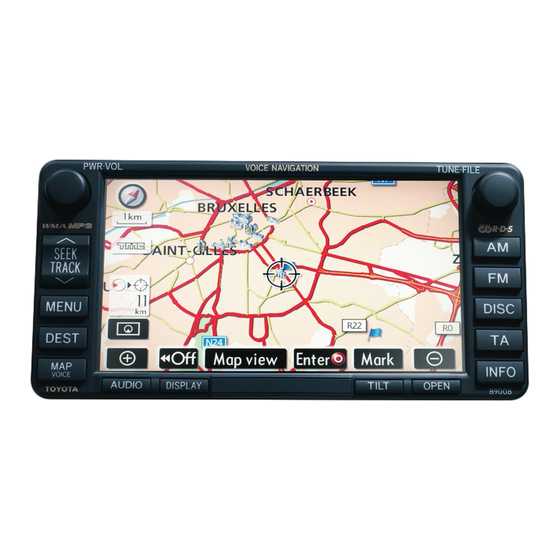

  • Page 1 TNS700 Owner’s manual...
  • Page 2 Introduction Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this manual in your vehicle at all times. The Navigation System is one of the most technologically advanced ve- hicle accessories ever developed. The system receives satellite signals from the Global Positioning System (GPS) operated by the U.S.
  • Page 3 152 through 154. Order map update direct from www.toyota- -mapupdates.eu 2007 TOYOTA MOTOR CORPORATION All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota Motor Corpora- tion.

  • Page 4: Safety Instruction

    Important information about this manual Safety Instruction For safety reasons, this manual indicates items requiring particular attention with the following marks. CAUTION This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to To use this system in the safest possible...
  • Page 5 While driving, listen to the voice instructions CAUTION as much as possible and glance at the screen briefly and only when it is safe. However, do For safety, the driver should not oper- not totally rely on voice guidance. Use it just ate the navigation system while he/ for reference.

  • Page 6: Table Of Contents

    Table of Contents Your navigation system — — Navigation system function index ....— Quick reference ....... —...
  • Page 7 II Destination Search Destination search ......... . . Selecting the search area .
  • Page 8 IV Advanced Functions Descriptions of functions for more effective use á ñ Suspending and resuming guidance ......Volume .
  • Page 9 VI Audio System Quick reference ..........

  • Page 11: Your Navigation System - - Navigation System Function Index

    Your navigation system — — Navigation system function index hMapi Displaying maps Page Viewing the map screen Displaying the current vehicle position Viewing the current position vicinity map Changing the scale Changing the map orientation Displaying POIs Displaying the estimated travel/arrival time to the destination Selecting the dual map screen Deleting map screen touch--screen buttons Displaying the traffic information (RDS--TMC)
  • Page 12 During route guidance Page Suspending route guidance Adjusting route guidance volume Deleting the destination Displaying the entire route map hUseful functionsi Memory points Page Registering memory points Marking icons on the map Information Page Displaying vehicle maintenance Displaying the calendar...

  • Page 13: Quick Reference

    — Quick reference North- -up or heading- -up symbol Zoom out switch This symbol indicates a map view with north-- Touch this switch to reduce the map scale. up or heading--up. Touching this symbol ........changes the map orientation.
  • Page 14 “Map view” switch “GPS” mark (Global Positioning System) Touch this switch to obtain information re- Whenever your vehicle is receiving signals garding the route to the destination and infor- from the GPS, this mark is displayed. mation about the POI (Points of Interest) on .

  • Page 15: Destination" Screen

    — “Destination” screen “Address” “Memory” A street address and a house number can be The location can be selected from the regis- input by using the input keys... tered “Memory points”. (To register memory points, see “...
  • Page 16 “Motorway ent./exit” The name of a motorway entrance or exit can be entered......“?” Function help for the “Destination” screen can be viewed on this screen.

  • Page 17: Menu" Screen

    — “Menu” screen “Suspend guidance” and “Resume “Select user” guidance” Up to 3 different settings for different users Suspends or resumes guidance..can be memorized....“Volume”...

  • Page 18: Setup" Screen

    — “Setup” screen “Distance” “ function” The distance units “km” or “miles” can be The choice whether to display each touch-- selected......screen button and current street name on the map screen can be set.
  • Page 19 “Traffic notification” Notification of seasonal restrictions can be selected......“Voice guide in all modes” Voice guidance can be set in all modes.

  • Page 20: Basic Functions

    BASIC FUNCTIONS SECTION BASIC FUNCTIONS Basic information before operation D Display operation ..........D Initial screen .

  • Page 21: Display Operation

    BASIC FUNCTIONS Display operation Initial screen When the ignition switch is set at ACC or ON, the initial screen will be displayed and the system will begin operating. You can adjust the angle of the display by pushing the “TILT” button. Each push of CAUTION the “TILT”...
  • Page 22 BASIC FUNCTIONS Maintenance information This system informs about when to replace certain parts or components and shows deal- er information (if registered) on the screen. When the vehicle reaches a previously set driving distance or date specified for a scheduled maintenance check, the “Infor- mation”...

  • Page 23: Touch Screen Operation

    BASIC FUNCTIONS Touch screen operation Memo information This system is operated mainly by the touch-- screen buttons on the screen. This system notifies about a memo entry. At the specified date, the memo information will To prevent damage to the screen, lightly be displayed when the navigation system is touch buttons on the screen with the fin- in operation.

  • Page 24: Inputting Letters And Numbers/List Screen Operation

    BASIC FUNCTIONS Inputting letters and numbers/List screen operation To input letters When searching for an address or a name, or entering a memo, letters and numbers can To display the alphabet keys, touch “A- -Z” or be input via the touch screen. “...
  • Page 25 BASIC FUNCTIONS To input numbers and symbols To display the list To display the number keys and symbol keys, touch “0- -9”. To search for an address or a name, touch “List”. Matching items from the database are listed even if the entered address or Enter numbers and symbols by touching the name is incomplete.
  • Page 26 BASIC FUNCTIONS List screen operation Sorting When a list is displayed, use the appropriate The order of a list displayed on the screen button to scroll through the list. can be rearranged. TYPE A To shift to the next or previous page. 1.

  • Page 27: Function Help

    BASIC FUNCTIONS Function help TYPE B Explanations for the functions of the “Des- tination”, “Setup” and “Menu” screens can be viewed. “Dist. sort”: To sort in the order of distance from the current vehicle location. The dis- tance from current vehicle position up to the Touch destination is displayed to the right of the name.

  • Page 28: Map Screen Operation

    BASIC FUNCTIONS Map screen operation — — Current position display rected after the vehicle receives signals from the GPS. When starting the navigation system, the current position is displayed first. INFORMATION This screen displays the current vehicle position and a map of the surrounding local D After battery disconnection, or on a area.

  • Page 29: Screen Scroll Operation

    BASIC FUNCTIONS — Screen scroll operation (one- -touch scroll) To set the cursor position as a destina- When any point on the map is touched, that tion point moves to the centre of the screen and is shown by the cursor mark ( A specific point on the map can be set as a destination using the one--touch scroll func- tion.
  • Page 30 BASIC FUNCTIONS To register the cursor position as a The registered point is shown by on the memory point map. Memory point registration enables easy ac- To change the icon or name, etc., see cess to a specific point. “ — Editing memory points” on page 74. Up to 106 memory points can be registered.
  • Page 31 BASIC FUNCTIONS To see information about the icon POI INFORMATION where the cursor is set When the cursor is set on a POI icon, the name and “Info.” are displayed on the top of the screen. To display information about an icon, set the cursor on it.
  • Page 32 BASIC FUNCTIONS If there is already a set destination, “Add to MEMORY POINT INFORMATION ” and “Replace ” are displayed. When the cursor is set on a memory point icon, the name and “Info.” are displayed on “Add to ”: To add a destination. the top of the screen.

  • Page 33: Switching The Screens

    BASIC FUNCTIONS — Switching the screens DESTINATION INFORMATION Any one of the screen configurations can be selected. When the cursor is set on a destination icon, the name and “Info.” are displayed on the top of the screen. 1. Touch this button to display the fol- lowing screen.
  • Page 34 BASIC FUNCTIONS Depending on the conditions, certain screen Screen configurations configuration buttons cannot be selected. SINGLE MAP : To display the single map screen. This is a regular map screen. (See page 15.) While on a different screen, touching : To display the dual map screen. will display the single map screen.
  • Page 35 BASIC FUNCTIONS DUAL MAP COMPASS MODE A map can be displayed split in two. Current vehicle position is indicated with a compass, not with a map. While on a different screen, touching While on a different screen, touching will display the dual map screen. will display the compass mode screen.

  • Page 36: Map Scale

    BASIC FUNCTIONS — Map scale — Orientation of the map " North- -up screen Touch to change the scale of the map display. The scale bar and indicator at the bottom of the screen indicates the map scale menu. The scale range is 50 m (50 yards) to 500 km (300 miles).

  • Page 37: Example Of Navigation System Operation

    BASIC FUNCTIONS Example of navigation system operation — — Guiding the route Guidance to a destination occurs by specify- ing the destination using the “POI”. 1. Push the “DEST” button. 3. Enter the name of the destination. Every touch on a letter key narrows the selection.
  • Page 38 BASIC FUNCTIONS 5. Touch “Enter”. 6. Touch “Guide”. The system starts route search and displays Route guidance starts. recommended routes. Guidance is done by both the screen and voice. (See “Route guidance screen” and “Typical voice guidance prompts” on pages 48 and 51.) INFORMATION It is possible to change the route.

  • Page 39: Registering Home

    BASIC FUNCTIONS — Registering home The home button on the “Destination” screen can be used if your home has been regis- tered. (See “ — Destination search by Home” on page 26.) 1. Push the “MENU” button. 5. Enter the street name. Every touch on a letter key narrows the selection.
  • Page 40 BASIC FUNCTIONS 6. Select the street name from the dis- Registered “Home” information will be played list. displayed. The icon, quick access, name, location, and phone number can be changed. (See “ — Editing memory points” on page 74.) 7. Enter the house number. 8.
  • Page 41 BASIC FUNCTIONS...
  • Page 42 DESTINATION SEARCH SECTION DESTINATION SEARCH D Destination search ........Selecting the search area .

  • Page 43: Destination Search

    DESTINATION SEARCH Destination search — — Selecting the search area Push the “DEST” button and the “Des- SELECTING THE SEARCH AREA ON THE tination” screen appears. DESTINATION SCREEN You can use one of 12 different methods to 1. Touch the search area touch- -screen search your destination.
  • Page 44 DESTINATION SEARCH SELECTING THE SEARCH AREA ON THE Button Countries INPUT SCREEN “A” Austria* Change the search area in order to set a des- tination from a different area by using “Ad- “AND” Andorra dress”, “POI”, “Motorway ent./exit”, “Inter- “B” Belgium section”...

  • Page 45: Destination Search By Home

    DESTINATION SEARCH — Destination search by — Destination search by Home Quick access Touch the home touch- -screen button on Touch any of the quick access touch- - the “Destination” screen. screen buttons on the “Destination” screen. The screen changes and displays the map location for home and the road preference.

  • Page 46: Destination Search By "Address

    DESTINATION SEARCH — Destination search by “Address” (a) Inputting a street name There are 2 ways to input a destination by ad- dress. Touch “Address” on the “Destination” screen. 1. Input the street name. 2. Touch the button of the desired street name.
  • Page 47 DESTINATION SEARCH (b) Selecting a town to search 3. Select or enter the desired town. “Input name”: To narrow down the listed Touch “Town”. items by inputting the town name. To search by town, the following four meth- 4. Input the house number. ods are possible.
  • Page 48 DESTINATION SEARCH INPUTTING THE TOWN NAME SELECTING FROM THE NEAREST 5 TOWNS 1. Touch “Input town name”. 1. Touch “Nearest 5 towns”. 2. Input the town name. 2. Touch the button of the desired town name from the displayed list. The current screen changes to the screen for inputting a street name.
  • Page 49 DESTINATION SEARCH INPUTTING THE POSTAL CODE SELECTING FROM THE LAST 5 TOWNS 1. Touch “Input postal code”. Touch the button of the desired town name. 2. Input the postal code. If the navigation has never been used, no towns will be displayed on the screen. The current screen changes to the screen for inputting a street name.

  • Page 50: Destination Search By "Poi

    DESTINATION SEARCH — Destination search by “POI” 1. Touch “POI” on the “Destination” screen. Touch the button of the desired destina- tion. 2. Input the name of the Point of Interest. If the same name exists in more than one town, a search can be performed more easily with “Town”...
  • Page 51 DESTINATION SEARCH INPUTTING THE TOWN NAME (a) Selecting a town to search 1. Touch “Input town name”. Touch “Town”. 2. Input the town name. To search by town, the following four meth- ods are possible. 3. Touch the button of the desired town name from the displayed list.
  • Page 52 DESTINATION SEARCH SELECTING FROM THE NEAREST 5 INPUTTING THE POSTAL CODE TOWNS 1. Touch “Input postal code”. 1. Touch “Nearest 5 towns”. 2. Input the postal code. 2. Touch the button of the desired town name. 3. Touch the button of the desired postal code from the displayed list.
  • Page 53 DESTINATION SEARCH SELECTING FROM THE LAST 5 TOWNS (b) Selecting from the categories Touch the button of the desired town Touch “Category”. name. If the navigation has never been used, no towns will be displayed on the screen. If the desired POI category is on the screen, touch the name to display a detailed list of the POI category.

  • Page 54: Destination Search By "Poi Near Cursor

    DESTINATION SEARCH — Destination search by “POI near cursor” INPUTTING THE TOWN CENTRE The destination can be set by selecting the search point and the POI category. 1. Touch “Input town centre”. Touch “POI near cursor” on the “Destina- tion” screen. 2.
  • Page 55 DESTINATION SEARCH SETTING THE CURRENT POSITION AS SETTING THE SEARCH POINT FROM THE SEARCH POINT DESTINATIONS Touch “Current position”. 1. Touch the destination buttons at the bottom of the screen. The search point is set at the current posi- tion, and the “POI near cursor” screen is dis- played.
  • Page 56 DESTINATION SEARCH To search POIs near the search point When the search point is set, the “POI near cursor” screen will be displayed. “Select category”: To return to the POI category selection screen. “Show list”: To display the list of POIs in the selected categories.

  • Page 57: Destination Search By "Memory

    DESTINATION SEARCH — Destination search by — Destination search by “Memory” “Previous” 1. Touch “Memory” on the “Destination” 1. Touch “Previous” on the “Destina- screen. tion” screen. To displays your list of registered memory points. (To register or edit memory points, see “Memory”...

  • Page 58: Destination Search By "Map

    DESTINATION SEARCH — Destination search by — Destination search by “Map” “Intersection” Touch “Map” on the “Destination” 1. Touch “Intersection” on the second screen. page of the “Destination” screen. The screen changes and displays the map 2. Input the name of the two intersecting location that was previously displayed just streets which are located near the des- before the destination input operation and...

  • Page 59: Destination Search By "Motorway Ent./Exit

    DESTINATION SEARCH — Destination search by “Motorway ent./exit” 1. To input a motorway entrance or exit, touch “Motorway ent./exit” on the second page of the “Destination” screen. If the same two streets cross at more than Be sure to use the complete name of the mo- one intersection, the screen changes and torway, when entering the destination.

  • Page 60: Destination Search By "Coordinates

    DESTINATION SEARCH — Destination search by “Coordinates” 1. Touch “Coordinates” on the second page of the “Destination” screen. 4. Touch the button of the desired en- trance or exit name. The screen changes and displays the map 2. Input the latitude and the longitude. location of the selected destination and the 3.

  • Page 61: Destination Search By "Phone No

    DESTINATION SEARCH — Destination search by “Phone no.” Starting route guidance 1. Touch “Phone no.” on the second After inputting the destination, the screen page of the “Destination” screen. changes and displays the map location of the selected destination and the road prefer- ence.
  • Page 62 DESTINATION SEARCH INFORMATION Guidance can be suspended or re- sumed. (See “Suspending and re- suming guidance” on page 68.) If “Guide” is touched until a beep sounds, demo mode will start. Push the “MAP/VOICE” button to finish demo mode. The route for returning may not be the Current position same as that for going.
  • Page 63 DESTINATION SEARCH To change the route before starting 3 ROUTES SELECTION guidance ROAD PREFERENCE 1. To select the desired route from three routes, touch “3 routes”. 1. You can change road preference by touching “Road preference”. 2. Touch “Quick1”, “Quick2” or “Short” to select the desired route.
  • Page 64 DESTINATION SEARCH Time necessary for the entire trip Distance of the entire trip Toll road Motorway Ferry Car train...
  • Page 65 DESTINATION SEARCH...

  • Page 66: Route Guidance

    ROUTE GUIDANCE SECTION ROUTE GUIDANCE D Route guidance screen ........D Typical voice guidance prompts .

  • Page 67: Route Guidance Screen

    ROUTE GUIDANCE Route guidance screen During motorway driving During route guidance, various types of guid- ance screens can be displayed depending During motorway driving, this screen dis- on conditions. plays the distance to the next junction and exit, or POIs in the vicinity of the motorway Screen layout exit.
  • Page 68 ROUTE GUIDANCE When approaching a motorway exit or When approaching an intersection junction When the vehicle approaches an intersec- When the vehicle approaches the exit or tion, the intersection guidance screen will be junction, the guidance screen on the motor- displayed.
  • Page 69 ROUTE GUIDANCE Other screens ARROW SCREEN TURN LIST SCREEN On this screen, information about next turns on the guidance route can be viewed. On this screen, the list of turns on the guid- ance route can be viewed. Touching during guidance displays the arrow screen.

  • Page 70: Typical Voice Guidance Prompts

    ROUTE GUIDANCE Typical voice guidance prompts 4.2 miles 0.25 miles The following guidance will be narrated when “Proceed about 4 miles, on the current the navigation system recognizes the next road.” action of the vehicle is a U--turn. “In quarter of a mile, heading left at the “In half a mile, make a U--turn.”...
  • Page 71 ROUTE GUIDANCE Bern “Your destination is ahead.” “In 1 mile, keep right.” “Keep right, then keep right, towards Bern.” “The route guidance will discontinue ahead.” INFORMATION “You have arrived at your destination. The route guidance is now finished.” D Voice guidance may be made early or delayed.

  • Page 72: Distance And Time To Destination

    ROUTE GUIDANCE Distance and time to destination When the vehicle is on the guidance route, the distance and the estimated travel/arrival time to the destination are displayed. When The route including the IPD roads the vehicle is not on the guidance route, the distance and the direction of the destination IPD (in--process data) roads are roads that are displayed.

  • Page 73: Setting And Deleting Destination

    ROUTE GUIDANCE Setting and deleting destination — — Adding destinations The distance, the estimated travel time and Adding destinations and searching again for the estimated arrival time from the current the routes can be done. position to the selected destination are dis- played.

  • Page 74: Reordering Destinations

    ROUTE GUIDANCE — Reordering destinations 4. After selecting the destinations, touch When more than one destination is set, you “OK”. can change the arrival order of the destina- tions. The system searches for the guidance route again, and displays the entire route. Even if “OK”...

  • Page 75: Deleting Destinations

    ROUTE GUIDANCE — Deleting destinations 4. To delete the destination(s), touch A set destination can be deleted. “Yes”. If “Yes” is touched, the data cannot be re- covered. If “No” is touched, the previous screen will return. 5. If more than one destination is set, touch “OK”...

  • Page 76: Setting Route

    ROUTE GUIDANCE Setting route — — Search condition You can designate the road conditions of the route to the destination. The entire route from the starting point to the destination is displayed. “Guide”: To start guidance. 1. Touch “Route”. “Route”: To change a route. (See pages 54 and 57.) 2.

  • Page 77: Detour Setting

    ROUTE GUIDANCE — Detour setting While the route guidance is operating, you can change the route to detour around a sec- tion of the route where a delay is caused by road repairs, or an accident, etc. 3. Select the button below to select the desired detour distance.

  • Page 78: Road Preference

    ROUTE GUIDANCE — Road preference A number of choices are provided on the conditions which the system uses to deter- mine the route to the destination. This picture shows an example of how the 1. Touch “Route”. system would guide around a delay caused by a traffic jam.

  • Page 79: Starting Route From Adjacent Road

    ROUTE GUIDANCE — Starting route from Map view — adjacent road — Display POI icons You can start the route guidance from the ad- Points of Interest such as petrol stations and jacent road. restaurants can be displayed on the map screen.
  • Page 80 ROUTE GUIDANCE Selecting POIs to be displayed Touch “Other POI’s” on the “Display POI icons” screen. Up to 5 categories of icons can be displayed on the screen. When a Point of Interest category is selected from either the limited list or the complete list, the screen will display symbols of those loca- tions on the map screen.
  • Page 81 ROUTE GUIDANCE To display the local POI list Points of Interest that are within 30 km (20 miles) of the current position will be listed from among the selected categories. Select the desired POI categories from the list. The selected category icon appears on the top left of the screen.

  • Page 82: Route Overview

    ROUTE GUIDANCE — Route overview To set a POI as a destination You can select one of the Points of Interest icons on the map screen as a destination and use it for route guidance. 1. Touch “Map view”. 1. Directly touch the Point of Interest icon that you want to set as a destination.

  • Page 83: Route Preview

    ROUTE GUIDANCE — Route preview You can scroll through the list of roads by 1. Touch “Map view”. touching . However, not all road names in the route may appear on the list. If a road changes its name without requiring a turn (such as on a street that runs through two or more towns), the name change will not appear on the list.

  • Page 84: Route Trace

    ROUTE GUIDANCE — Route trace It is possible to store the traveled route up to : To indicate the next destination. 200 km (124 miles) and retrace the route on : To preview the route to the next des- the display. tination.
  • Page 85 ROUTE GUIDANCE “Record”: To start recording the route trace. “Stop”: To stop recording the route trace. If you touch “Stop”, the following screen will be displayed. Touching “Yes” stops recording and the route trace remains displayed on the screen. Touching “No” stops recording and the route trace is erased.

  • Page 86: Advanced Functions

    ADVANCED FUNCTIONS SECTION ADVANCED FUNCTIONS Descriptions of functions for more effective use D Suspending and resuming guidance ......D Volume .

  • Page 87: Suspending And Resuming Guidance

    ADVANCED FUNCTIONS Suspending and resuming guidance To resume guidance To suspend guidance 1. Push the “MENU” button. 1. Push the “MENU” button. 2. Touch “Resume guidance”. 2. Touch “Suspend guidance”. INFORMATION Without route guidance, the “Suspend guidance” cannot be used. The screen will change to the current position map with route guidance.

  • Page 88: Volume

    ADVANCED FUNCTIONS Volume The voice guidance volume can be adjusted INFORMATION or switched off. 1. Push the “MENU” button. During route guidance, the voice guid- ance continues even if the navigation screen is changed to other screens. “Adaptive volume control”: By turning “Adaptive volume control”...

  • Page 89: User Selection

    ADVANCED FUNCTIONS User selection To register The system can memorize the following set- tings for up to three users. Map direction Map scale Map configuration Guidance mode Setup Volume Language Route trace 1. Touch “Memorise”. Travel time/arrival time The confirmation screen will be displayed. Right screen of dual map Road preference Maintenance notification...
  • Page 90 ADVANCED FUNCTIONS To change user To delete user Touch “User number”. 1. Touch “Delete”. The confirmation screen will be displayed. The above message appears, then the map screen will be displayed. 2. To delete, touch “Yes”. To return to the previous screen, touch “No”...

  • Page 91: Memory

    ADVANCED FUNCTIONS Memory — Points or areas on the map can be regis- tered. The registered points can be used on the “Destination” screen. (See “ — Destination search by Home” on page 26 or “ — Destina- tion search by Quick access” on page 26 and “...

  • Page 92: Registering Memory Points

    ADVANCED FUNCTIONS — Registering memory points To edit registered information, see “ — Edit- ing memory points” on page 74. INFORMATION Up to 106 memory points can be regis- tered. 1. Touch “Register”. 2. Enter the location in the same way as for a destination search.

  • Page 93: Editing Memory Points

    ADVANCED FUNCTIONS — Editing memory points The icon, attribute, name, location and/or telephone number of a registered memory point can be edited. 3. Touch the button to be edited. “Icon”: To select icons to be displayed on the map. (See page 75.) 1.
  • Page 94 ADVANCED FUNCTIONS To change “Icon” SOUND ICONS 1. Touch “Icon” on the “Memory points” When the vehicle approaches the memory screen. point, the selected sound will be heard. 1. Touch “With sound” on the “Change icon” screen. 2. Touch the desired icon. Turn the page by touching “Page 1”, “Page 2”...
  • Page 95 ADVANCED FUNCTIONS To change “Quick access” DELETING “Quick access” It is possible to change attributes of the quick access points. Memory points with a set at- tribute can be used as a “Quick access” or “Home” touch--screen button. (See “ — Des- tination search by Home”...
  • Page 96 ADVANCED FUNCTIONS To change “Name” To change “Location” 1. Touch “Name” on the “Memory 1. Touch “Location” on the “Memory points” screen. points” screen. 2. Enter the name using the alphanumer- 2. Touch the eight directional touch- - ic keys. screen button to move the cursor the desired point on the map.

  • Page 97: Deleting Memory Points

    ADVANCED FUNCTIONS — Deleting memory points To change “Phone no.” (telephone number) 1. Touch “Phone no.” on the “Memory points” screen. 1. Touch “Delete”. 2. Enter the number using numeral keys. 3. Touch “OK”. The previous screen will be displayed. 2.

  • Page 98: Registering Home

    ADVANCED FUNCTIONS — Registering home — Deleting home If home has been registered, that information can be recalled by using the “Home” touch-- screen button on the “Destination” screen. (See “ — Destination search by Home” on page 26.) 1. Touch “Delete”. 2.

  • Page 99: Registering Area To Avoid

    ADVANCED FUNCTIONS — Registering area to avoid Areas you want to avoid because of traffic jams, construction work or other reasons can be registered as areas to avoid. 5. Touch either to change the size of the area to be avoided. 6.

  • Page 100: Editing Area To Avoid

    ADVANCED FUNCTIONS — Editing area to avoid The name, location and/or area size of a reg- istered area can be edited. 3. Touch the button to be edited. “Name”: To edit the name of the area to avoid. The names can be displayed on the 1.
  • Page 101 ADVANCED FUNCTIONS To change “Name” To change “Location” 1. Touch “Name” on the “Edit area to 1. Touch “Location” on the “Edit area to avoid” screen. avoid” screen. 2. Enter the name using alphanumeric 2. Touch the eight directional touch- - keys.

  • Page 102: Deleting Area To Avoid

    ADVANCED FUNCTIONS — Deleting area to avoid To change “Area size” 1. Touch “Area size” on the “Edit area to avoid” screen. 1. Touch “Delete”. 2. Touch either to change the size of the area to be avoided. 3. Touch “OK”. The previous screen will be displayed.

  • Page 103: Deleting Previous Points

    ADVANCED FUNCTIONS — Deleting previous points Setup The previous destination can be deleted. Setting the items shown on the “Setup” screen can be done. 1. Push the “MENU” button. 1. Touch “Delete previous points”. 2. Touch “Setup”. 2. Touch the button to be deleted. “Del.
  • Page 104 ADVANCED FUNCTIONS Distance unit Estimated travel time Distance unit can be changed. The speed that is used for the calculation of the estimated travel time and the estimated 1. Touch “Setup” on the “Menu” screen. arrival time can be set. 1.
  • Page 105 ADVANCED FUNCTIONS Input keyboard layout INFORMATION Keyboard layout can be changed. 1. Touch “Setup” on the “Menu” screen. D The displayed time to the destination is the approximate driving time that is calculated based on the selected speeds and the actual position along the guidance route.
  • Page 106 ADVANCED FUNCTIONS LAYOUT TYPE Time zone Time zone can be changed. 1. Touch “Setup” on the “Menu” screen. " “ABC” type 2. Touch “Change” of “Time zone”. The “Change time zone” screen will be dis- played on the display. " “QWE” type 3.
  • Page 107 ADVANCED FUNCTIONS POI category change Screen layout function ( function) (Display POI icons) Each touch--screen button and current street Select from among the 6 icons displayed on name on the map screen can be displayed or the “Display POI icons” top screen, so that hidden.
  • Page 108 ADVANCED FUNCTIONS 3D landmark When the “3D landmark” feature is turned on, the system will display the 3D landmark on the map. To turn the “3D landmark” mode on: 1. Touch “Setup” on the “Menu” screen. Then touch to display page 2 of the “Set- up”...
  • Page 109 ADVANCED FUNCTIONS Traffic notification Voice guide in all modes When the “Traffic notification” feature is When the “Voice guide in all modes” feature turned on, the system notifies you of traffic or is turned on, the voice guide in all modes can seasonal restrictions.
  • Page 110 ADVANCED FUNCTIONS Auto voice guidance Pop- -up message When the “Automatic voice guidance” fea- When the “Pop--up message” is turned on, ture is turned on, the voice guidance can be the pop--up message will be displayed. heard automatically. To turn the “Pop--up message” on: When the “Automatic voice guidance”...
  • Page 111 ADVANCED FUNCTIONS When the “Pop--up message” is turned off, Current position/tyre change calibra- the following messages will not be displayed. tion The current vehicle position mark can be ad- justed manually. Miscalculation of the dis- tance caused by tyre replacement can also be adjusted.
  • Page 112 ADVANCED FUNCTIONS POSITION/DIRECTION CALIBRATION When driving, the current vehicle position mark will be automatically corrected by GPS signals. If GPS reception is poor due to loca- tion, you can manually adjust the current ve- hicle position mark. 4. Touch either the to adjust the direction of the current vehicle posi- tion mark.

  • Page 113: Rds--Tmc

    ADVANCED FUNCTIONS RDS- - TMC (Radio Data System Traffic Message Channel) TYRE CHANGE CALIBRATION This system has a function by which you can receive the traffic information from the RDS-- The tyre change calibration function will be TMC station based on FM--multiple broad- used when replacing the tyres.
  • Page 114 ADVANCED FUNCTIONS (a) Show RDS- -TMC information 1. Push the “MENU” button to display the “Menu” screen and touch the “RDS- - TMC”. " On map screen 2. Touch “Show RDS- -TMC info.”. " On “Motor way mode” screen 3. Touch “All on” or “All off” and “OK”.
  • Page 115 ADVANCED FUNCTIONS RDS- -TMC icon (b) Auto avoid traffic Icons are displayed on the map. To display Using RDS--TMC information, the system information, touch the corresponding icon on automatically calculates a new route. the screen. RDS- -TMC information arrow Using TMC information, the system displays arrows along a route.
  • Page 116 ADVANCED FUNCTIONS (c) RDS- -TMC voice guidance (d) Change area The system includes TMC voice guidance. The system automatically changes the area When there are some traffic events on the according to the current vehicle position. It is guidance route, the system will guide you us- also possible to manually select a country as ing voice.
  • Page 117 ADVANCED FUNCTIONS (e) Select RDS- -TMC station RDS- -TMC text information The system automatically selects a station When you touch the RDS--TMC icon on the that transmits RDS--TMC information based map. “RDS--TMC info.” bar appears on the on the signal strength. It is also possible to top of the screen.
  • Page 118 ADVANCED FUNCTIONS (g) Traffic on route 1. Push the “MENU” button to display the “Menu” screen and touch “RDS- - TMC”. 3. Touch “Map” to display the map around the traffic event. 2. Touch “Traffic on route” to display the “Traffic on route”...
  • Page 119 ADVANCED FUNCTIONS (h) All traffic events When the system receives RDS- -TMC info. from two or more countries, the 1. Push the “MENU” button to display screen below appears. the “Menu” screen and touch “RDS- - TMC”. Touch the country name from the list. When the system receives RDS- -TMC 2.
  • Page 120 ADVANCED FUNCTIONS 4. All traffic information which the sys- tem can receive from RDS- -TMC station is displayed, regardless of the guidance route. 5. Touch “Map” or “Detail”. (See “(f) RDS--TMC text information” on page 98.)
  • Page 121 ADVANCED FUNCTIONS...

  • Page 122: Other Functions

    OTHER FUNCTIONS SECTION OTHER FUNCTIONS D Maintenance information ....... . . Maintenance information setting .

  • Page 123: Maintenance Information

    OTHER FUNCTIONS Maintenance information — — Maintenance information setting If “On” is selected, the system gives mainte- When the navigation system is turned on, the nance information with the “Information” “Information” screen displays when it is time screen and voice sound when the system is to replace a part or certain components.
  • Page 124 5. Touch “OK”. The screen then returns to the “Mainte- nance” screen. INFORMATION For scheduled maintenance informa- tion, please refer to the “Toyota Ser- vice Booklet” or “Toyota Warranty Booklet”. Depending on driving or road condi- tions, the actual date and distance may differ from the stored date and distance in the system.

  • Page 125: Dealer Setting

    OTHER FUNCTIONS — Dealer setting It is possible to register a dealer in the sys- tem. With dealer information registered, route guidance to the dealer is available. 1. Touch “Set dealer” on the “Mainte- nance” screen. 3. Touch the button to be edited. “Dealer”: To enter the name of a dealer.
  • Page 126 OTHER FUNCTIONS To edit “Dealer” or “Contact” To edit “Location” 1. Touch “Dealer” or “Contact” on the 1. Touch “Location” on the “Set dealer” “Set dealer” screen. screen. 2. Enter the name using the alphanumer- 2. Touch the eight directional touch- - ic keys.

  • Page 127: Calendar With Memo

    OTHER FUNCTIONS Calendar with memo — To edit “Phone no.” It is possible to enter memos for particular dates on the calendar. The system informs 1. Touch “Phone no.” on the “Set dealer” you of the memo entry when the system is screen.

  • Page 128: Adding A Memo

    OTHER FUNCTIONS — Adding a memo If a memo is added, the system informs of the memo entry when the system is started on the memo date. (See page 4.) 1. Touch the date you want to add a memo on the “Calendar” screen. Memos can be edited by touching the list but- ton.

  • Page 129: Editing A Memo

    OTHER FUNCTIONS — Editing a memo The registered memo can be edited. 1. Touch the day you want to edit a memo on the “Calendar” screen. 4. Enter text using the keys. Up to 24 letters can be entered. After entering the text, touch “OK” at the bot- tom right of the screen.

  • Page 130: Memo List

    OTHER FUNCTIONS — Memo list It is possible to display a memo list by setting a condition. 1. Touch “List” on the “Calendar” screen. 3. To delete and/or edit the memo, touch the desired memo button. “Del. all”: To delete all the displayed me- mos.

  • Page 131: Screen Adjustment

    OTHER FUNCTIONS Screen adjustment To display memos for a specified peri- The brightness or contrast of the screen can od of time be adjusted depending on the brightness of your surroundings. You can also turn the dis- 1. Touch “Period” on the “Search List” play off.

  • Page 132: Screen Setting

    OTHER FUNCTIONS Screen setting 1. Push the “INFO” button to display the “Information” screen. Depending on the position of the headlight switch, the screen changes to the day mode or night mode. 2. Touch “Screen setting”. To display the screen in the day mode even with the headlight switch on, touch “Day mode”...
  • Page 133 OTHER FUNCTIONS (a) Automatic transition (b) Switch colour You can select a function that enables auto- You can select the colour of the touch-- matic return to the navigation screen from the screen buttons. audio screen. Select “Green” or “Orange” and then Select “On”...
  • Page 134 OTHER FUNCTIONS (c) Delete personal data The following personal data can be deleted or returned to their default settings: Maintenance conditions Maintenance information “off” setting Memory points Areas to avoid Previous points Route trace 1. Touch “Delete personal data”. User selection settings The “Delete personal data”...

  • Page 135: Beep Setting

    OTHER FUNCTIONS Beep setting Selecting a language You can set a beep sound off. The language of the touch--screen buttons, pop--up messages and the voice guidance 1. Push the “INFO” button. can be changed. 1. Push the “INFO” button. 2. Touch “Beep off”. “Beep off”...
  • Page 136 OTHER FUNCTIONS 4. Touch “ I agree” on the “CAUTION” screen. If a screen other than for the navigation sys- tem is displayed, the current screen would change to the “CAUTION” screen by pushing the “MAP/VOICE”, “DEST” or “MENU” but- ton.
  • Page 137 OTHER FUNCTIONS...

  • Page 138: Audio System

    AUDIO SYSTEM SECTION AUDIO SYSTEM D Quick reference ......... . . D Using your audio system .

  • Page 139: Quick Reference

    AUDIO SYSTEM Quick reference “TUNE·FILE” knob “DISC” button Turn this knob to move up or down the Push this button to turn the CD player station band or file. For details, see on. For details, see pages 122 and 133. pages 126 and 138.

  • Page 140: Using Your Audio System

    Push the “ ” or “ ” button to seek up tures on Toyota audio systems. Some infor- or down for a station, or to access a de- mation may not pertain to your system. sired program, track or file. For details, Your audio system works when the ignition see pages 127, 134 and 137.
  • Page 141 AUDIO SYSTEM Turning the system on and off Switching between functions “PWR·VOL”: Push this knob to turn the au- Push “AM”, “FM” or “DISC” button to dio system on and off. Turn this knob to ad- turn on the desired mode. The selected just the volume.
  • Page 142 AUDIO SYSTEM INFORMATION D If the system does not respond to a touch of a touch- screen button, move your finger away from the screen and then touch it again. D You cannot operate dimmed touch- screen buttons. D Wipe off fingerprints on the surface of the display using a glass cleaning cloth.
  • Page 143 AUDIO SYSTEM Tone and balance How good an audio program sounds to you is largely determined by the mix of the treble, midrange, and bass levels. In fact, different kinds of music and vocal programs usually sound better with different levels of treble, midrange, and bass.
  • Page 144 AUDIO SYSTEM DSP control Your CD player To display the DSP control mode screen, When you insert a disc, insert it with the label touch “DSP” on the audio control mode side up. The CD player will play from track screen.

  • Page 145: Radio Operation

    AUDIO SYSTEM — Radio operation Presetting a station Listening to the radio 1. Tune in the desired station. 2. Touch one of the channel selector but- tons (1 — 6) you want and hold it until a Push these buttons to choose either an beep is heard.
  • Page 146 AUDIO SYSTEM Selecting a station RDS (Radio Data System) Tune in the desired station using one of the AF (Alternative Frequency) function: following methods. A station providing good reception is auto- Preset tuning: Touch the channel selector matically selected if current reception wors- (1 —...
  • Page 147 AUDIO SYSTEM EON (Enhanced Other Network) system — If the RDS station (with EON data) you are listening to is not broadcasting a traffic infor- mation program in the TA (Traffic Announce- ment) mode, the radio will be switched to the traffic information program automatically by using the EON AF list.
  • Page 148 AUDIO SYSTEM program type currently being received ap- pear on the screen. “ALARM” (Emergency broadcasting) This type of announcement warns of national or local emergencies. You will not be able to turn off alarm announcements. Alarm an- nouncements will come on even if RDS mode is turned off.

  • Page 149: Cd Player Operation

    AUDIO SYSTEM — CD player operation (a) Inserting or ejecting disc The CD player can play audio CDs, CD text, WMA discs, MP3 discs. The ignition switch must be set at ACC or Audio CD, CD text ... Setting a disc: MP3/WMA disc .
  • Page 150 AUDIO SYSTEM NOTICE Do not obstruct the display while it is moving. It could damage your audio system. INFORMATION Under extremely cold conditions, the display may react slowly or operation sound may become louder. 2. Insert a disc. 3. Push the “OPEN” button to close the display.
  • Page 151 AUDIO SYSTEM Ejecting a disc: 2. Push the “CD ” button for the disc 1. Push the “OPEN” button briefly. The briefly. display opens. At this time, the orange indicators of the slot start blinking and the disc is ejected. 3.
  • Page 152 AUDIO SYSTEM (b) Playing a disc (c) Operating an audio CD Playing an audio CD Push the “AUDIO” button to display this screen. Push the “DISC” button if the disc are al- CD text only — The disc title and track title ready loaded in the CD player.
  • Page 153 AUDIO SYSTEM Selecting a desired track Touch the desired track number. The CD player will start playing the selected track from the beginning. : By touching this button, the list moves SELECTING A DESIRED TRACK up by 6 track groups. If this button is touched “SEEK/TRACK”...
  • Page 154 AUDIO SYSTEM Searching for a desired track Other functions While the disc is playing, touch “SCAN” “RPT”: Use it for automatic repeat of the briefly. track you are currently listening to. “SCAN” appears on the screen. The CD While the track is playing, touch “RPT” player will play the next track for 10 seconds, briefly.
  • Page 155 AUDIO SYSTEM “RAND”: Use it for automatic and random (d) Operating a MP3/WMA DISC selection. Playing a MP3/WMA disc While the disc is playing, touch “RAND” briefly. “RAND” appears on the screen. The system selects a track on the disc being listened to in random order.
  • Page 156 AUDIO SYSTEM Selecting a desired folder Selecting a desired file “FOLDERY”: Touch this button to go to the next folder. “FOLDERB”: Touch this button to go to the previous folder. “FOLDER LIST”: The desired folder can be selected in a list. This function is available only when the vehicle is not moving.
  • Page 157 AUDIO SYSTEM “FILE”: The desired file can be selected in a list. This function is available only when the vehicle is not moving. “TUNE·FILE” knob: Use for direct access to Touch “FILE”. The file list is displayed. a desired file in the disc. Turn the “TUNE·FILE”...
  • Page 158 AUDIO SYSTEM Searching for a desired file Touch the desired file number. The CD play- er will start playing the selected file from the While the disc is playing, touch “SCAN” beginning. briefly. : By touching this button, the list moves “SCAN”...
  • Page 159 AUDIO SYSTEM Searching for a desired folder Other functions While the disc is playing, touch “SCAN” “RPT”: Use it for automatic repeat of the file and hold it until the “FLD·SCAN” appears or folder you are currently listening to. on the screen. Repeating a file —...
  • Page 160 It indicates that the disc has no play- able data. If the malfunction is not rectified: Take your vehicle to authorized Toyota dealer or repairer and most auto parts stores or anoth- er qualified professional. If an MP3/WMA disc contains CD--DA files, only CD--DA files are played.

  • Page 161: Audio Remote Controls

    AUDIO SYSTEM Audio remote controls — — Steering switches Volume control switch Push “+” side to increase the volume. The volume continues to increase while the switch is being pressed. Push “- -” side to decrease the volume. The volume continues to decrease while the switch is being pressed.

  • Page 162: Audio System Operating Hints

    AUDIO SYSTEM Audio system operating hints NOTICE Fading and drifting stations — Generally, the effective range of FM is about 40 km (25 To ensure correct audio system opera- miles). Once outside this range, you may no- tions: tice fading and drifting, which increase with the distance from the radio transmitter.
  • Page 163 AUDIO SYSTEM MP3/WMA files The sound quality of MP3/WMA files gen- erally improves with higher bit rates. In MP3 (MPEG Audio Layer 3) and WMA order to achieve a reasonable level of (Windows Media Audio) are audio com- sound quality, discs recorded with a bit pression standards.
  • Page 164 AUDIO SYSTEM CD- -R and CD- -RW discs CD--R/CD--RW discs that have not been subject to the “finalizing process” (a pro- 001.mp3 cess that allows discs to be played on a 002.wma conventional CD player) cannot be Folder 1 played. 003.mp3 It may not be possible to play CD--R/CD-- Folder 2...
  • Page 165 AUDIO SYSTEM Caring for your CD player and discs CD player Your CD player is intended for use with 12 cm (4.7 in.) discs only. Extremely high temperature can keep your CD player from working. On hot Audio CDs days, use air conditioning to cool the ve- hicle interior before you listen to a disc.
  • Page 166 AUDIO SYSTEM " Special shaped discs " Labeled discs NOTICE Do not use special shaped, transpar- ent/translucent, low quality or la- beled discs such as those shown in the illustrations. The use of such discs may damage the player or changer, or it may be impossible to eject the disc.
  • Page 167 AUDIO SYSTEM " Correct " Wrong To clean a disc: Wipe it with a soft, lint--free Handle discs carefully, especially when cloth that has been dampened with water. you are inserting them. Hold them on the Wipe in a straight line from the centre to the edge and do not bend them.
  • Page 168 AUDIO SYSTEM TERMS MP3— Packet write— MP3 is an audio compression standard de- termined by a working group (MPEG) of the This is a general term that describes the pro- ISO (International Standard Organization). cess of writing data on--demand to CD--R, MP3 compresses audio data to about 1/10 etc., in the same way that data is written to the size of that on conventional discs.
  • Page 169 AUDIO SYSTEM...

  • Page 170: Appendix

    APPENDIX SECTION APPENDIX D Limitations of the navigation system ......D Map database information and updates .

  • Page 171: Limitations Of The Navigation System

    APPENDIX Limitations of the navigation system This navigation system calculates the current vehicle position using satellite signals, various vehicle signals, map data, etc. However, the accurate position may not be shown depending on the sat- ellite condition, road configuration, ve- hicle condition or other circumstances.
  • Page 172 APPENDIX...
  • Page 173 APPENDIX (a) Accurate current vehicle position (b) Inappropriate route guidance may may not be shown in the following cases: occur in the following cases: When driving on a small angled Y-- When turning at an intersection off the shaped road. designated route guidance.

  • Page 174: Map Database Information And Updates

    The map database is normally updated once of all four tyres are correct. a year. Contact any authorized Toyota deal- er or repairer and most auto parts stores or another qualified professional, for informa- tion about the availability and pricing of an update.
  • Page 175 4. Push the “OPEN” button to close the display. The map database is normally updated once a year. Contact any authorized Toyota deal- er or repairer and most auto parts stores or another qualified professional for information about the availability and pricing of an up- date.
  • Page 176 To display the disc coverage area, touch “Covered area”. Confirm the covered area on the screen. Contact any authorized Toyota dealer or re- pairer and most auto parts stores or another qualified professional, to find out if there is a...
  • Page 177 APPENDIX...
  • Page 178 PZ420-00332-DE Publication no. AOM 000 160-0 Printed in Belgium (September 2007)

Table of Contents

Save PDF
