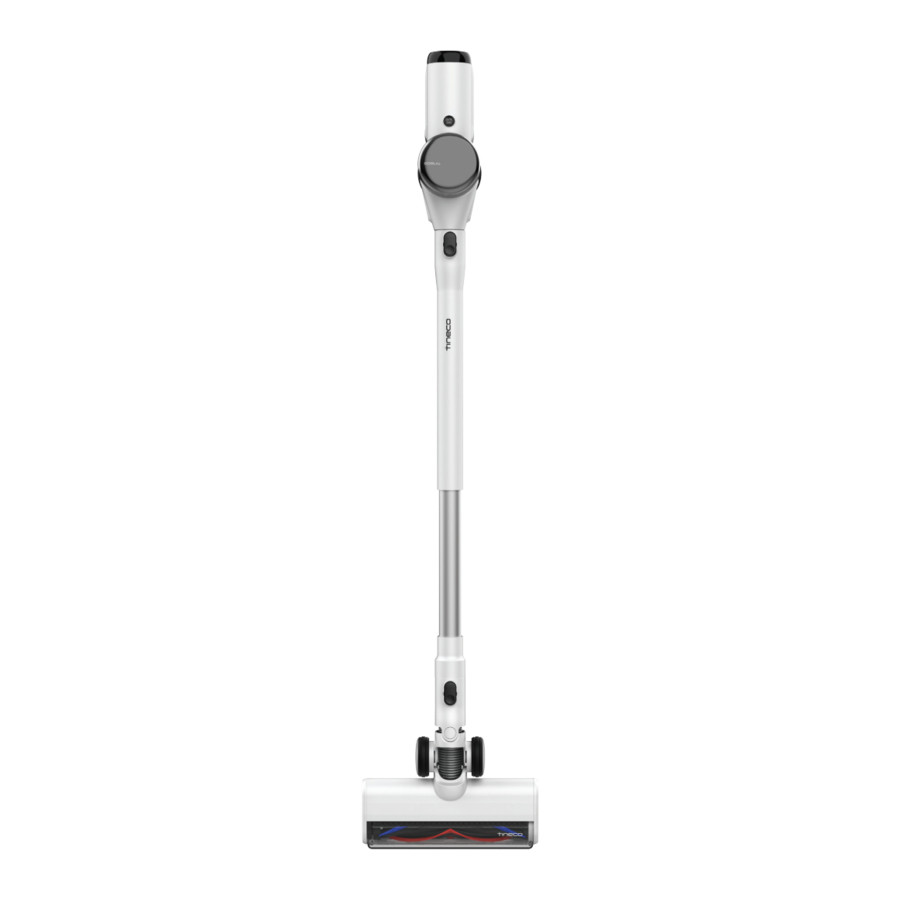

Tineco PURE ONE AIR PRO Series Manual

1. Dust Monitoring Loop (Blue to red according to the dust amount)
2. Max Mode
3. WiFi Indicator
4. Air Channel Blocked
5. Battery Level
6. Auto Mode
7. Dust Sensor Malfunction
8. Brush Roller Tangled
9. Tineco Logo

Accessories

Note:

• Test an accessory on a small, inconspicuous area before use on sensitive surfaces.
• To identify what should be included with your purchase, please refer to the packaging box.
• As shown below, there are many components compatible with this model. If you require more accessories, please go to www.tineco.com or store.tineco.com.

	Anti-tangle full-size power brush Ideal for both hard floors and carpets. Picks up ground-in dirt with no hair wrap.
	Mini power brush For vacuuming upholstered furniture, mattresses etc. Vacuums pet hair and removes ingrained dirt.
	2-in-1 dusting brush Switches between a wide and a soft brush by pressing the release button. The soft brush is most effective on hard-surface furniture while the wide brush is effective for upholstered furniture, curtains, etc.
	Crevice tool For corners, nooks, and other hard-to-reach places such as around car seats, picture frames, and cupboards.
	Hair cleaning tool Use the end with the small blade to remove hair and debris wrapped around the roller. Use the end with the brush to clean the brush window, and the dustbin, as required.
	Soft dusting brush Angled bristles on a slender, oval-shaped rim provide anti-static, cushioned contact. Suitable for dusting shelves, lighting, delicate surfaces, electronics and more.
	Flexible long crevice tool Easy to bend, easy to reach tight spots. Suitable for cleaning dust behind and beneath furniture, around refrigerators, and many other tight gaps.
	Multi-angle folding tube An articulated joint makes it adjustable to allow for flexibility when cleaning from high to low.
	Flexible extension hose Excellent extension and flexibility to access hard-to-reach spaces; perfect for in-care use. Compatible with all non-motorized Tineco accessories.

Assembly

Tube Installation

Insert tube.

Insert to the main body.

Press the release button to remove the tube.

Brush Installation

Insert the power brush.

Press the release button to remove the power brush.

Charging Dock Installation

Lift up the charging post to the upright postion.

Press hard to fix the charging post firmly on the dock.

For easy storage, pull up the charging post and then press down.

Operation

Preparing for Use
Note:

• Before the first use, please charge the appliance (see "Charging the Battery") for 3-3.5 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F (40°C).
• Select an accessory and attach it to the appliance before use (see "Accessories").

Press the button to activate the suction. Press it again to turn off the appliance.

The appliance will start in AUTO mode by default. Press the button to switch between AUTO and MAX mode.

Place the appliance and attachments on the charging dock for convenient storage after use.

Cleaning Mode Selection
AUTO Mode

• In AUTO mode, the color of dust monitoring loop change according to the amount of dust detected.
• The red dust monitoring loop indicates more dust is detected whereas the blue loop indicates less is detected. This mode automatically provides the best cleaning solution.

To enter AUTO mode:

Press the power button to activate the suction. The default setting on startup is AUTO mode.

When in MAX mode, press the button to enter AUTO mode.

MAX Mode

In AUTO mode, press the button to enter MAX mode.
Note:
Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

APP

• All the functions can be performed using the Tineco app. Download the Tineco app from App Store, Google Play and Tineco Official Site.





Turn On/Off WiFi

• Turn on WiFi: During work, long press the button for 3 seconds and connect to network.

• Turn off WiFi: Long press the button for 20 seconds to turn off.


Emptying the Dustbin

Press the release button on the side of the dustbin to empty the contents.

Close and click the dustbin flap back into place.

Charging the Battery

Plug the adaptor into the charging port at the bottom of the dock.

Place the appliance on the charging dock and plug the adaptor into a wall outlet.

• Only use the Tineco-provided adapter to charge the appliance.
• To avoid trip hazards, please place the appliance securely on the charging dock, near a wall during charging.
• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range:
  39.2°F (4°C)~104°F (40°C).

Runtime

• When in AUTO mode, the runtime is approximately 30 minutes. When MAX power is used, the runtime is approximately 10 minutes.
• Estimated runtime data was obtained by Tineco Laboratory using one battery and non-motorized accessories.

Charging Time

• A full charge takes approximately 3-3.5 hours.
• Estimated data was obtained by Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C).

Indicator
When in Use

	Max indicator illuminated: Max mode.
	AUTO indicator illuminated: Auto mode.
	Five solid green lights: full power.
	Three solid green lights: medium power.
	One solid green light: low power.
	Blinking green light: battery level<5%.
	LED loop blinking with a beep: charging failure, check the troubleshooting.
	Blinking: brush roller has a blockage.
	Blinking: appliance has a blockage, either in the filter or the dustbin.
	Blinking: sensor inside the dustbin is obstructed.
	Illuminated: WiFi has successfully connected.
	Blinking: WiFi is connecting.
	Off: WiFi is not connected, please connect.

During Charging

Successively blinking: charing.

Fully Charged

Battery level: 100%.

Maintenance

Note:

• Clean the dustbin and filters after each use.
• Wash and dry the HEPA filter every 3 months, replacing it every 12 months.

Dustbin and Mesh Filter

Turn counter-clockwise to remove the mesh filter.

The mesh filter can be washed under cold running water and must be completely dry before reinstalling.

Do not turn the appliance upside down when removing or installing the mesh filter to prevent dust from entering the motor.

After cleaning, install the clean filter back into the main body, then close the dustbin flap.

HEPA Filter

Pull out the HEPA filter (in magnetic design) for cleaning. Do not use the appliance without first installing the HEPA filter.

Brush Roller

With the power off, slide the switch to open the brush roller end cover, and rotate it counter-clockwise to pull out the brush roller.

Important Safety Instructions

SAVE THESE INSTRUCTIONS
Household use only.
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not block openings. Stop use if openings become blocked. Clean and remove any blocked objects according to the manual instructions.
9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without a filter.
14. Prevent unintentional activation. Ensure the switch is in the off position before connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or powering on the appliance with the switch on may cause accidents.
15. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
16. For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
18. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
19. Under improper usage, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
20. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
21. Do not expose a battery pack or appliance to fire or excessive heat. Exposure to fire or temperatures above 266°F (130°C) may cause an explosion.
22. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
23. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
24. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
25. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
26. Do not charge or store the appliance outdoors or inside a car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only.
27. The appliance is only to be used with the unit provided. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
28. Use only with <KL-WE180100-R / S018-1B180100HE> supply unit. This appliance contains batteries that are non-replaceable.
29.
    For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

Symbols:

	Read the instruction manual
	Class II
	Short-circuit-proof safety isolating transformer
	Switch mode power supply
	For indoor use only
	Direct current
	Alternating current

Specifications

Product	PURE ONE AIR PRO SERIES
Voltage	14.4V
Rated Power	230W
Dustbin Capacity	0.3L
Charging Time	3-3.5 hrs
AC Input	100-240V~
WiFi Frequency Bands	2.4G
WiFi Maximum Output Power	19dBm
