Braun ExactFit 3 (BUA6150) Manual

Intended use and contraindications

This device is intended to be used by adults (+18 years old) to measure people's blood pressure that includes systolic, diastolic and heartbeat pulse rate. This device is to be used for intermittent measurements only. For home usage only.

The use of this blood pressure monitor is not intended as a substitute for a consultation with your doctor. This device has not been tested for and hence is not intended for neonatal and infant subjects, pregnant, including pre-eclamptic users.

What you should know about blood pressure

Blood pressure constantly changes throughout the day. It rises sharply in the early morning and declines during the late morning. Blood pressure rises again in the afternoon and finally drops to a low level at night. Also, it may vary in a short period of time. Therefore, readings from successive measurements can fluctuate.

This device will display your blood pressure reading referring to two values: systolic and diastolic through the principle of pressure oscillation. The systolic blood pressure (the upper number) indicates how much pressure your blood is exerting against your artery walls when the heart beats. The diastolic blood pressure (the lower number) indicates how much pressure your blood is exerting against your artery walls while the heart is resting between beats. The pulse value is also displayed after each measurement.

Blood pressure measured in a doctor's office only provides a momentary value. Repeated measurements at home better reflect one's actual blood pressure values under everyday conditions.

Moreover, many people have a different blood pressure when they measure at home, because they tend to be more relaxed than when in the doctor's office. Regular blood pressure measurements taken at home can provide your doctor with valuable information on your normal blood pressure values under actual «everyday» conditions.

The ESH (European Society of Hypertension) and WHO (World Health Organisation) have set up the following standard blood pressure values when measured with a resting pulse at home:

Safety information and important precautions

To ensure accurate measuring results, read the complete instructions for use carefully.

People suffering from cardiac arrhythmia, vascular constriction, arteriosclerosis in the extremities, diabetes or users of cardiac pacemakers should consult their doctor before measuring their blood pressure themselves. Deviations in blood pressure values may occur in such cases.

If your blood pressure reading is in the severe hypertension range with values of 180 mmHg systolic and above, and/or 110 mmHg diastolic and above; and you find you have one or two readings in this range - please see your doctor straight away.

If you are under medical treatment or taking any medication, please consult your doctor first.
Avoid compression or restriction of the connection tubing. Continuous cuff pressure due to the connection tubing kinking can affect blood flow and cause possible injury to the user.
It is not recommended to use this device on the arm of the same side of the body on which the user had a mastectomy.

Measuring blood pressure too frequently can cause injury to the user due to blood flow interference.
It is not recommended to apply the cuff to a limb on which there is intravascular access or on which an arterio-venous (A-V) shunt is present. This can cause temporary interference of blood flow and potential injury to the user.

DO NOT apply the cuff over a wound as this can cause further injury.
It is not recommended to use the device while simultaneously using other medical electrical (ME) equipment on the same limb.

Key rules for accurate blood pressure measurement

Always take readings at the same time of day, under the same conditions.

Do not take a measurement within 30 minutes of smoking, drinking coffee or tea or any form of exertion. These factors will influence the measurement.

Always measure on the same arm. The left arm is recommended. Do not move or speak. Sit comfortably, keep your legs uncrossed and feet flat on the floor, back and arm supported. Place the cuff in direct contact with the skin. Do not wrap the cuff over a jacket, sweater or shirt. If you want to take multiple measurements, wait approximately 3 minutes before repeating a measurement.

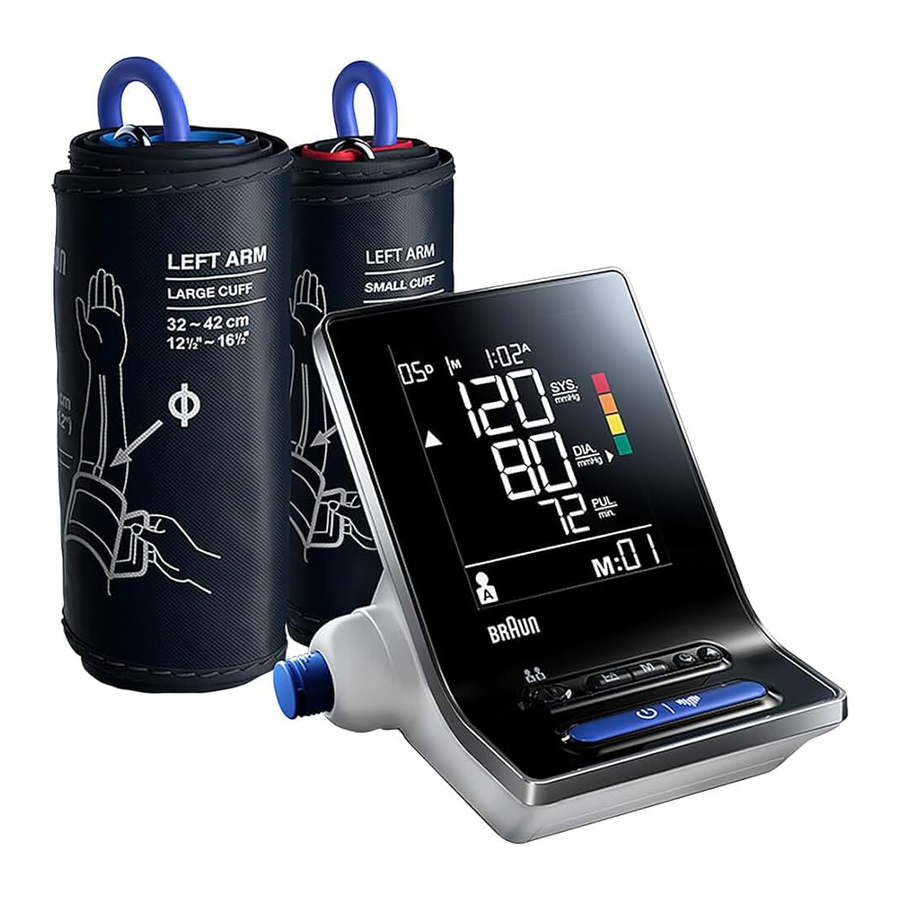

Product description

Fig. 1

1. Start button
2. Memory button
3. Date / time adjust button
4. Set button
5. Average button
6. User A / B switch
7. LCD display
8. Hose port
9. Connector
10. Arm cuff (supplied with 2 cuffs)
11. Air hose
12. Battery compartment cover (4 X 1.5V type AA (LR6) batteries)

Inserting batteries

• Remove the battery compartment cover at the bottom of the unit and insert 4 AA LR6 alkaline batteries with correct polarity (see symbol in the battery compartment).

• Note: always re-set date and time after replacing new batteries to make sure the measurement results are stored with correct date and time.


Choosing the right cuff

For accurate measurement, it is important to choose the correct size cuff which best fits your upper arm. Choose the cuff size according to your arm circumference and make sure the bottom of the cuff is 2~3cm above your elbow.

• Small/Medium Cuff = 22~32cm arm circumference
• Large/XLarge Cuff = 32~42cm arm circumference
• This cuff is suitable for use if the <<index>> mark falls within the <<ok range>> marked by two arrows when the cuff is tightened around your arm (Fig. 4).


Applying the arm cuff

1. Slide the end of arm cuff furthest from the tube through the metal ring to a loop. The smooth cloth should be on the inside of the cuff.
2. Plug the air hose into the connector (Fig. 5).

3. If the cuff is located correctly, the velcro will be on the outside of the cuff and the metal ring will not touch the skin (Fig. 6).

4. Put your left arm through the cuff loop. The bottom of the cuff should be approximately (2~3 cm) above elbow (Fig. 7).

5. The tube should lie over the brachial artery on the inside of the arm (Fig. 8).

6. Pull the cuff so that the top and bottom edges are tightened around your arm.
7. When the cuff is positioned properly, press the Velcro firmly against the pile side of the cuff.
8. Sit on a chair and place your arm on the table so that the cuff is at the same level as your heart (Fig. 9).


Display BUA6150

How to select user A /user B

• Make sure the Product is in power off mode.
• Slide the user switch to user A or user B, the current user mode will flash on the LCD display.

The WHO/ESH indicator to evaluate blood pressure data

This device has a blood pressure level indicator established according to WHO and the European Hypertension Society Guidelines (ESH). For every measurement displayed on the screen, the cursor will indicate the blood pressure level with the corresponding color code, from green to red. You can use this classification daily to guide you to understand your blood pressure level. If you are really concerned by the classification level, you should consult your doctor as soon as possible.

If your blood pressure reading is in the severe hypertension range with values of 180 mmHg systolic or above, and/or 110 mmHg diastolic and above, and if you find you have one or two readings in this range - please see your doctor straight away.

Setting month, date and time

1. Switch off the device for the date/time setting.
2. Press set button (4) to start the year setting, then the "year" will blink on display. Press (3) to adjust year by 1 step.
3. Press set button (4) to start the month setting, then the "month" will blink on display, user can press adjust (3) to adjust month by 1 step.
4. Press set button (4) to start the day setting, then the "day" will blink on display, user can press adjust (3) to adjust day by 1 step.
5. Press set button (4) to start the hour setting, then the "hour" will blink on display, user can press adjust (3) to adjust hour by 1 step.
6. Press set button (4) to start the minute setting, then the "minute" will blink on display, user can press adjust (3) to adjust minute by 1 step.
7. Press set button (4) to end all the date/time setting, all blinking stops.

Note: Holding the adjust button will scroll the value.

Taking a measurement

Wrap the cuff around the arm (see "applying the arm cuff" section above).

Do not wrap the cuff too tightly, it is the best to easily insert a finger.

1. Sit upright on the chair to have a correct posture.
2. Press and release start button (1), date/time and current user will be displayed.
3. Set user A/B switch (6) to A for user A or B for user B, LCD display will show user A or B symbol.
4. Press and release the start button (1), all icons on display will be shown for 2 seconds. Air pressure will automatically pump up to certain pressure level and start measurement.
   Do not move or talk in the midst of taking blood pressure measurement. During the measurement, keep your legs uncrossed and feet flat on the floor.
5. After the air pressure has increased, the pulse is detected, the heart rate symbol will start flashing.
6. LCD Display will show the results and WHO indicator arrow after measurement.
   After using the device, turn it off by pressing the start button (1) or automatically after 1 minute.

Memory function

Your blood pressure monitor can store the latest 40 readings for each user.

Storing measurement data

After each blood pressure measurement, the systolic pressure, diastolic pressure, pulse rate and the time & date of specific day will be automatically stored. Memory #01 is always the most recent one. Once the memory is full, the oldest values will be overwritten.

Press memory button (2) to review the stored data. The last memory data (sys/dia/pul) with measurement date/time, IHB and WHO indicator will show on LCD. Press memory button (2) again to show the previous data. Ensure that the correct user; A or B, is selected before use.

This device is not intended as a substitute for regular check-ups by your doctor, please continue to visit your doctor on a regular basis for a professional reading.

Average function

Press the average button (5) to show last 3 readings average on LCD.

Erasing data

Switch off the device, press and hold memory button (2) for more than 5 seconds, LCD display will blink "dEL ALL". Ensure that the correct user; A or B, is selected before use.

Press memory button (2) again, LCD will display "---" to show all the stored data of corresponding user have been deleted.

Irregular heart beat detector

The appearance of this symbol signifies that a certain pulse irregularity was detected during the measurement. Talking, moving, shaking or an irregular pulse during the measurement can result in the appearance of this icon. Usually this is not a cause for concern, however if the symbol appears often, we recommend you seek medical advice. The device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Low battery indicator

When the low battery indicator flashes on the display, it means the battery is low and the four batteries need to be replaced with alkaline LR6 (AA) batteries.

** After replacing batteries, ExactFit 3 will go into time-setting mode automatically and show the last measurement time on screen. Please set the current date / time before taking the next measurement to get correct average result.

Storage and cleaning

• Always keep the unit in the carrying case after its use.
• Do not put the item directly under the sunlight, in high temperature or humid and dusty places.
• Do not store in extremely low (less than -20°C) or high (more than 60°C) temperature.
• Use a piece of cloth with water or mild cleansing agent to clean the case and then use a piece of dry cloth to wipe it dry. Use a piece of dry cloth to wipe the cuff when it is dirty.
• Do not use any strong cleansers to clean it.
• When the unit is not to be used for a long time, remove the batteries. (Batteries may leak or cause harm).
• Do not modify the device. NEVER open the device! This will make the manufacturer's warranty invalid.

What to do if...

Problem	Reason	Solution
Heart rate symbol	Appears in the measurement condition and flashes when pulse is detected.	Measurement in progress, remain quiet.
Low battery indicator	Appears when the battery voltage is excessively low or the positions of the batteries are incorrect.	Replace all four batteries with new ones. Insert the batteries in the correct positions. Be aware of +/- positions.
Measuring error	Appears when the accurate blood pressure and pulse could not be obtained.	Press "start/stop" button again and remeasure. Check if cuff is wrapped according to instructions. Check that there are no kinks in tube. Check that hand is relaxed. Check if talking or moving during measurement. Check if posture is correct.
E1 shows	The cuff is not secure.	Refasten the cuff and then measure again.
E2 shows	The cuff is very tight.	Refasten the cuff and then measure again.
E 10 or E 11 shows	The monitor detected motion, talking or the pulse is too poor while measuring.	Relax for a moment and then measure again.
E 20 shows	The measurement process does not detect the pulse signal.	Loosen the clothing on the arm and then measure again.
E 21 shows	Measure incorrectly.	Relax for a moment and then measure again.
EE 3 - EE15	Error while measuring.	Retake the measurement. If the problem persists, contact the retailer or our customer service department for further assistance. Refer to the warranty for contact information and return instructions.

Specifications

If the device is not used within the specified temperature, humidity and atmospheric pressure ranges, the technical accuracy of the measurement cannot be guaranteed. Subject to change without notice.

Symbols

Not suitable for use in the presence of flammable anaesthetic mixtures with air, oxygen or nitrous oxide. Continuous operation with short-time loading.
