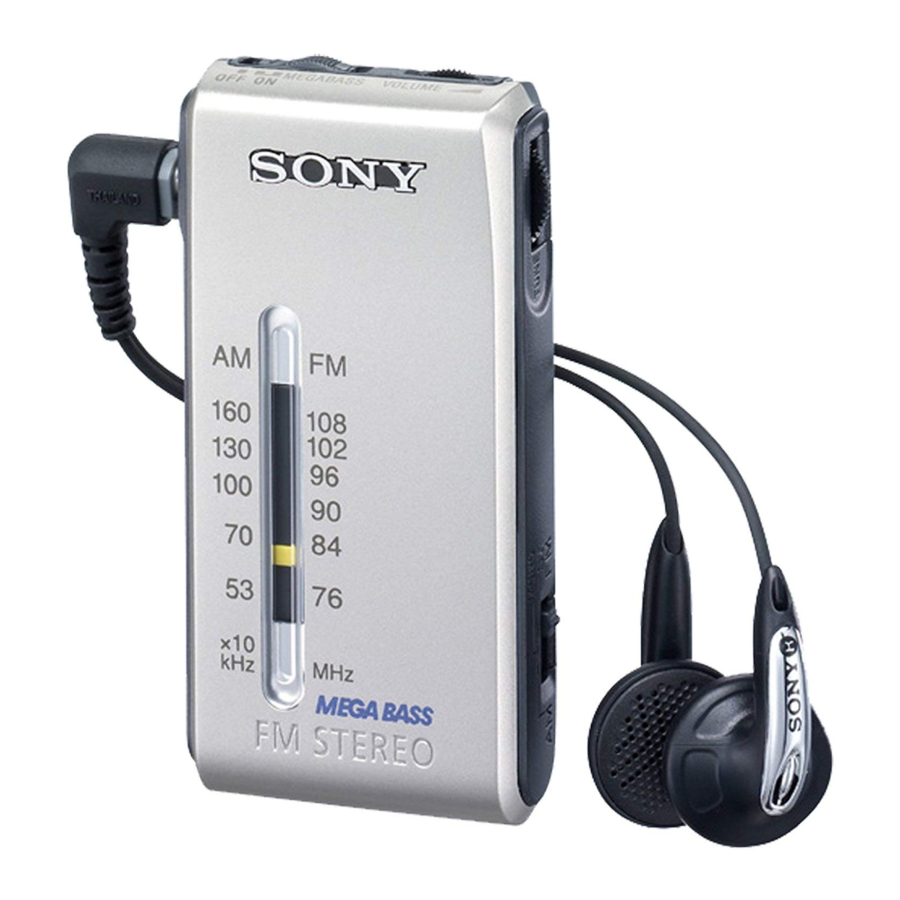

Sony WALKMAN SRF-S84 Manual

Product Overview

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Installing the Battery

(See Fig. )

1. Open the battery compartment lid at the rear of the radio.
2. Insert one R03 (size AAA) battery (not supplied) with the and marks aligned correctly.
3. Close the battery compartment lid.

Insert the side of the battery first.

* Measured by JETTA (Japan Electronics and Information Technology Industries Association) standards. The actual battery life may vary depending on the circumstance of the unit.

When to replace the battery

Replace the battery when the sound becomes weak or distorted. Remove the old battery and insert a new one.

Notes on battery

• Do not charge the dry battery.
• Do not carry the dry battery with coins or other metallic objects. It can generate heat if the positive and negative terminals of the battery are accidentally contacted by a metallic object.
• When you are not going to use the unit for a long time, remove the battery to avoid damage from battery leakage and corrosion.

If the battery compartment lid comes off

(See Fig. B)
The battery compartment lid is designed to come off when opened with excessive force. To put it back on, see the illustrarion.

1. Insert the right hook of the lid into the right hole in the unit.
2. Hang the left hook on the left upper part of the compartment.
3. Slide the left hook toward the left hole in the unit.

Operating the Unit

1. Connect the supplied stereo earphones to (stereo earphones) jack.
2. Set OFF/ON/MEGABASS to ON to turn on the radio.
3. Set AM/FM MONO/FM ST to FM ST (stereo)*, FM MONO (monaural), or AM.
4. Turn TUNE to tune in a station.
5. Adjust VOLUME.

* You will hear the sound in stereo only if the program of the station you are tuned into is in stereo.

To turn off the unit

Set OFF/ON/MEGABASS to OFF.

To Improve the Reception

(See Fig. )

FM
Extend the stereo ea rphones cord which functions as an FM antenna.

AM
The ferrite bar antenna is built into the unit. Rotate the unit horizontally for optimum reception.
When the FM recept ion is poor, set AM/FM MONO/FM ST to FM MONO (monaural). Although the sound will not be heard in stereo, noise will be reduced.

To Enjoy Powerful Bass Sound

Set OFF/ON/MEGABASS to MEGABASS to emphasize bass sound.

Specifications

Frequency range
FM: 87.5-108 MHz
AM: 526.5 - 1 606.5 kHz (Italy)/ 530 - 1 605 kHz (Other countries)

Output
(stereo earphones) jack (ø 3.5 mm stereo minijack) load impedance 16 Ω

Power output
3.6 mW + 3.6 mW (at 10% harmonic distortion)

Power requirements
1.5 V DC, one R03 (size AAA)

Dimensions
Approx. 39.5 x 78.5 x 16.5 mm (w/h/d) (Approx. 1 ⁹/₁₆ x 3 ¹/₈ x ²¹/₃₂ inches) not incl. projecting parts and controls

Mass Approx.
61.2 g (2.16 oz) incl. a battery and stereo earphones

Accessories supplied
Stereo earphones (1)

Design and specifications are subject to change without notice.

Precautions

• Operate the unit only on 1.5 V DC with one R03 (size AAA) battery.
• The nameplate indicating operating voltage, etc. is located on the rear exterior.
• Avoid exposure to temperature extreme, direct sunlight, moisture, sand, dust, or mechanical shock. Never leave the unit in a car parked in the sun.
• Should any solid object or liquid fall into the unit, remove the battery and have the unit checked by a qualified personnel before operating it any further.
• In vehicles or in buildings, radio reception may be difficult or noisy. Try listening near a window.
• To clean the casing, use a soft cloth dampened with a mild detergent solution.
• This product is not designed to be splash-resistant, so you should take care to use the unit when raining, snowing or in a water-splash place.

Notes on Stereo Earphones
Road safety
Do not use stereo earphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

Preventing hearing damage
Avoid using stereo earphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.

Caring for others
Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you.

If there is lightning when you are using the unit, take off the stereo earphones immediately.
If you have any questions or problems concerning your unit, please consult your nearest Sony dealer.

http://www.sony.net/
