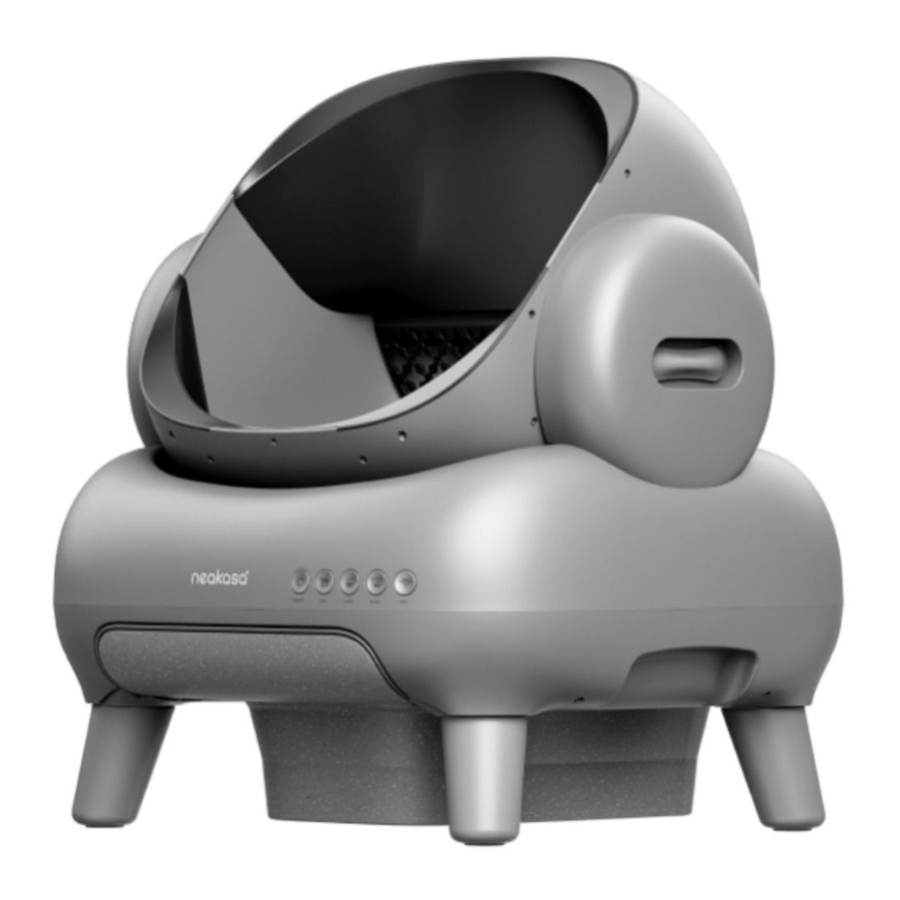

neakasa M1 (PS0120) Manual

Package Contents

Parts Name

Get Started

1. Turn the cardboard tray upside down, place the machine on the tray, and insert the four legs into the round holes at the bottom in the outward direction. Then, flip it over.
   • Do not forcefully rotate the litter chamber; the machine will automatically return to its original position after powering on.

2. Pull out the drawer, press down on the bottom to unfold the collapsible waste bin, tear off a trash bag, unfold it, and fit it onto the waste bin following the diagram. Thread one end of the strap through the buckle slot to secure the bag in place. Place the waste bin into the bottom of the machine.

3. Move the machine to the desired location (it is recommended to hold the bottom of the machine body). Plug in the power adapter.

   • Please place the machine on a flat surface, preferably in the same location or nearby where the previous cat litter box was positioned. Avoid placing it outdoors. After turning on the power, the device will automatically detect the position of the litter chamber and adjust it to the initial position.

4. Add cat litter up to the indicated line, ensuring it does not fall below the minimum line or exceed the maximum line. We recommend using high clumping bentonite cat litter. If using tofu cat litter, set the automatic cleaning time to more than 10 minutes to ensure proper clumping. Avoid using large-grain cat litter (grain diameter exceeding 8mm, length exceeding 18mm), as it may result in unnecessary wastage of cat litter.

5. After pouring in the cat litter, you can use the "Level" button to flatten the litter instantly. Alternatively, you can wait a few minutes for the machine to automatically perform the leveling process.

6. Scan the QR code to download the Neakasa app. Long-press the WIFI button for 3 seconds and wait for the WIFI indicator light to flash white. In the Neakasa app, select "Add" and choose the cat litter box. Proceed to the pairing page, then select your home WIFI and input the password. Wait for the prompt on the screen, and once the connection is successful, follow the system's instructions to set a name and verify the remaining cat litter level.






7. The default setting enables automatic cleaning after the cat uses the litter box for 10 minutes. Additionally, it will remind you every month to disassemble and clean the litter chamber and waste bin. If desired, you can easily modify this setting in the system settings.

Guidance for Cat's Transition to the New Litter Box

1. Take some used cat litter from the previous litter box and place it in the new litter box to familiarize your cat with the scent. You can also put a few favorite treats near the litter box's entrance to help your cat discover the new litter box.
2. For timid cats, you can start with manual cleaning mode for the first few days after introducing the new litter box. Once your cat becomes comfortable with it, you can switch to the automatic cleaning mode.
3. If your cat seems hesitant to use the new litter box, you can pause the cleaning of the old litter box for two days.
4. When you initially replace the litter box, it's best to continue using the same type of cat litter that your cat is already accustomed to.

Cat Litter Level Calibration

• The innovative design of the M1 litter box allows us to measure the remaining cat litter in the litter compartment. Please ensure there are no objects placed on the litter box to avoid inaccurate weight measurement.
• Calibration is only required once if you don't change the brand or type of cat litter.
• The litter chamber is marked with calibration lines to assist you in the process.
• Refer to the diagram below for the specific calibration steps.
• If you change the brand or type of cat litter, you'll need to recalibrate the litter level.

Button Function Description

		Basic Functions	Interrupt	Indicator Lights
Button Definitions / Indicator Light Definitions during Normal Operation	ON/OFF Button	Long press for 3 seconds to turn on or off	During the cleaning, leveling, and emptying litter processes, pressing any button once will interrupt the operation, and the machine will initiate a reset action. While the reset is ongoing, the buttons will be inactive unless there is a malfunction.	Powered on: Steady white light; Powered off: Not lit
	Clean Button	Press once to start a cleaning cycle		Normal state: Not lit; Cleaning in progress: Green light breathing; Interrupted: White light blinking
	Level Button	Press once to level the cat litter		Normal state: Not lit; Leveling in progress: Green light breathing; Interrupted: White light blinking
	Empty Button	Long press for 3 seconds to dump all the cat litter		Normal state: Not lit; Dump litter in progress: Green light breathing; Interrupted: White light blinking
	WIFI Button	Long press for 3 seconds to reset the network		WIFI connected: White light; WIFI disconnected: Orange light; Connecting to the network: White light blinking
	Factory Reset	Long press the Cleaning Button for 10 seconds		Five green lights blinking for 2 seconds indicating a successful factory reset.

Indicator Light for Malfunctions

Indicator Lights for Malfunctions	Light Positions	Indicator Lights for Malfunctions (sorted by severity, red blinking > steady red > yellow blinking > steady yellow)
	ON/OFF	Red blinking: Weight sensor overloaded. Steady red: Left/right litter chamber fixed cover not installed.	Weight sensor error: Five lights blinking together in red.
	Clean	Red blinking: Chamber door motor blocked Steady red: Litter chamber motor blocked Yellow blinking: Cleaning interrupted by the cat, and the light will go off after resuming.
	Level	Red blinking: Insufficient cat litter Steady red: Litter chamber not in position Yellow blinking: Leveling interrupted by cat, yellow light continues blinking until interruption resolved Yellow steady: Excessive cat litter
	Empty	Red blinking: Waste bin full Steady red: Waste bin not in position
	WIFI	Network disconnected: Steady orange light

Specifications

Safety Instructions

• Place the product in a stable, indoor, cool, and dry location, avoiding exposure to direct sunlight to prevent component aging.
• Keep out of reach of children. Children and those with disabilities should use the product under adult supervision.
• Do not use gasoline or other organic solvents to clean the product. Avoid washing or immersing the entire product in water.
• To save electricity, turn off the power switch and clean out any remaining litter when the product is not in use for an extended period.
• Do not connect the boost transformer to the power plug.
• The product must not be used in areas with water splashes.
• Ensure the product is securely installed before use. Always place the product on a clean and flat hard surface.
• When cutting off the power supply, please do not directly pull the power cord to avoid damaging it.
• Keep flammable and volatile substances away from the product.
• During transportation and handling, handle with care to prevent collisions and scratches on the product and accessories. - The product is not suitable for outdoor use. It should be placed in a well-ventilated, dry environment with a temperature between 4-40°C and a relative humidity not exceeding 90%, and free from corrosive gases in the surroundings.
• It is recommended to use bentonite cat litter. Empty the litter chamber and trash bin after the product is not in use.
• Keep the power plug clean and avoid unplugging it with wet hands.
• When the litter chamber rotates, the machine may produce slight vibrations and noise, which is normal.
• Damp or dusty areas may cause circuit damage.
• Strong magnetic objects nearby may cause fires, product damage, or circuit malfunctions.
• When moving the product, handle it gently and avoid dragging it.
• Do not place other items on top of the product, as it may affect its normal operation.
• Use only the dedicated accessories provided by our company with the product.

If your cat weighs less than 1kg, we recommend disabling the automatic cleaning function and instead, manually clean the litter box while under supervision.
