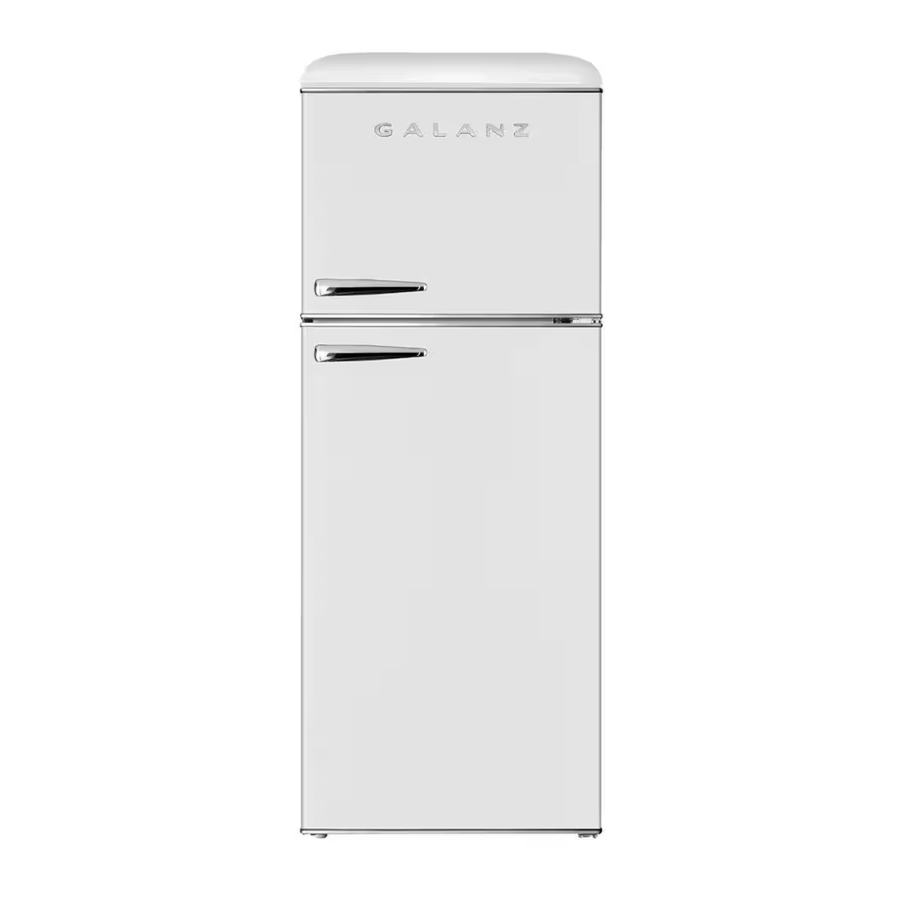

Galanz GLR10TWEEFR Manual

NAMES OF THE PARTS

• Please read this manual carefully before using. Follow instructions and keep it for future reference.
• Please follow the operating instructions and safety notices in the manual.
• If any trouble arise, do not fix it yourself or hand it to the after sales service center which has not been authorized. Please contact the local authorized service center.

1. Shelves
2. Wind tunnel knob
3. Lamp and temperature Control button
4. Crisper glass cover

5. Vegetable
6. Rod
7. Cola bar
8. Bottle protector

• The refrigerator you purchased may be improved, which maybe not completely consistent with the manual, However the functions and operating methods will not change. Please feel free to use!
• If you use the refrigerator for the first time, remove the adhesive tapes of the drawers, balconies, egg tray, and the drain tube plug.
• Do not pull or push the drawers and balconies fiercely during use to avoid any damage.
• Adjusted the temperature control as higher as you could accept, which will save the energy consumption of the refrigerator and your money;
• Don't open the refrigerator door continually if it is in the normal working situation.
• Keep the combination of drawers, baskets and shelves of the refrigerator consistent with its original standard.

INSTALLATION INSTRUCTIONS

1. The refrigerator should be located on a completely flat surface, Leave 5~10 cm between each side of the appliance and the wall, and leave 30 cm between the top of the appliance and the ceiling.
2. Choose a location which is not exposed to sunlight, high temperature or humidity, as humidity maycause stain.
3. Pull out the bottom panel before installation.
4. The appliance can be adjusted by rolling its two legs in front the bottom when it is unstable. Rolling in clockwise can rise up the machine.
5. The location should be firm and flat. An un-securely position may cause noise and libration:
   1. The noise may be increased if the floor is not firm.
   2. Put a sheet under the appliance for solving the heat emission if you need to locate it onto a carpet.
6. Make sure the adjustable legs are clung to the floor, and set the appliance slope backward slightly for keeping the doors closed tightly.

INSTALL THE HANDLES

1. Take out the handle accessories bag: handle base (2 pcs), handle cover (2 pcs), screw(6pcs), screw lever(1cps);
2. Tear the sealing tape stick on the handle hole position.

3. Fixed the handle base with 3 pcs screws by screw lever.

4. Assemble the handle cover.

   1. Buckle up the right side of handle first
   2. The buckle up the left side fastener of handle
   3. Finally press the middle of handle until all the buckle of handle are well seized.

OPERATION INSTRUCTIONS

PLACEMENT OF FOOD

1. There should always be some space between items inside for air circulation.
2. Food should be kept in sealed package to avoid becoming dry or with odour.
3. Hot food should be cooled down before placing into the appliance. Otherwise, interior temperature and electronic consumption will increase.
4. Reduce the frequency of door opening can efficiently low down the electronic consumption.

Do not use any electronic equipment inside the appliance.

INSTRUCTION FOR USAGE

REFRIGERATOR CONTROL
The temperature of refrigerator can be controlled manually by the display. However, the number shown on the display does not directly represent the temperature. Instead, the larger the number is the lower the interior temperature will be. Initially set the refrigerator control on the middle setting (number 3). If you want to set the refrigerator temperature to a coulder temperature pressing the set button until the state on 4 or 5. Each time the set button is pressed, the state increases by 1. When the state is in the highest state, press the button again and return to the first state.

FREEZER CONTROL
If the freezer lower tempreature is needed, please regulate the konb along the"COLDER"direction; contrarily, regulate the konb along the"COLD"direction. Note: Regulate the konb to set the freezer temperature as you desire. Always wair 24 hours after any adjustment to reach the desired temperature.

PACKING AND MOVING

1. Unpack, repack and carry
   Please memorize the position of each accessory of the appliance when unpack it, repack the product and check it carefully before transportation.
2. Do not lift or pull the door or the door handle during transportation.
3. When moving, the appliance can not be sloped over 45 degrees (the angle to the vertical direction). Please avoid strong vibration and hit.

MAINTENANCE

The appliance should be maintained and cleaned frequently. For your safety, do please pull the plug out of the socket before the cleaning.

1. Interior maintenance
   Clean the interior of the appliance with clean water or neutral abluent. Scour it with clean water and wipe it with a piece of dry cloth.
2. Maintenance of door gasket
   It is easy to damage if the door gaskets are polluted by the stain like oil, sauce and etc., so it is better to clean them carefully.
3. Outer maintenance
   Wipe the dusty with a piece of dry cloth, clean it with neutral abluent if necessary.

DEFROST

Defrost of refrigerator will be executed automatically during product running, so it is no requirement for manual defrost. The defrost water flows into the vaporization plate and will be vaporized by the heat of compressor. So its drain tube must be cleaned.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer

DISCONNECTING THE APPLIANCE

After power failure, even in summer, the refrigerator can store food normally in several hours.

1. Discontinuation during power failure
   After power failure, do not put additional food in the appliance and reduce the frequency of door opening. Make several ices in a container if know the power failure beforehand, and put it in the top of the fridge.
2. Discontinuation during vacation
   Please fetch out the easy-rot food in fridge before leaving on vacation. After confirmation, close the door firmly. If have a long vacation, please fetch out all the food and cut off the power. After defrosting, clean up the liner of the appliance and wipeit dry, and leave the door open.
3. Stop using
   If the refrigerator may be stopped using for a long time, please unplug the outlet and clean up the appliance. The door should be kept open in order to prevent unpleasant smell caused by food leavings.

Attention
In a general condition, do not stop the appliance in case of affecting its life. After unplugging the power, please leave at least 5 minutes before resumption.

USER NOTIFICATIONS

1. Do not splash water on the refrigerator, as it will cause oxidation and malfunction. Electronic component such as on/off button should be wiped dryly.
2. Cleansers such as soap powder, abrasive cleaning powder, alkali cleansers, chemical cloth, thinner, alcohol, acid petroleum productand hot water should not be used to clean the refrigerator as they may damage the painted cover and plastics.
3. Smear can damage the interior plastic component, so wipe it as soon as possible.
4. Please check the points below after maintenance:
   1. Is there any damage or loss of the electronic wire?
   2. Can the plug be put in the socket reliably and smoothly?
   3. Is the plug heating unconventionally?

Please get rid of the gasket of the door before the disposal.
The disposed apparatus should be handled by professional staff, as it may be harmful to the environment.

TROUBLESHOOTING TIPS

The refrigerator does not work

It may not be connected to the power supply(plug, power cut or fuse); Voltage is too low.

The refrigerator does not work efficiently as expected

It may be caused by heavy frost, or by warm temperature setting, or by frequently door operating.

It makes unusual noise

It may be caused by an imbalance or loose ground locating the appliance, or by resonation between the appliance and other ambient objects.

The compressor keeps working for a long period

The environment temperature may be too high. The doors may be opened frequently or even they are left open. The temperature control knob setting in (4-5) state may increase the working time of compressor.

Disgusting odour happens

Food with strong odour should be packed tightly before being put inside the appliance. Please check whether there is any deteriorated item or whether the liners are left dirty for a long time.

Water leaks from the bottom of the refrigerator

The drain tube is jammed. Please use a proper tool to solve it.

Heavy frost occurs on the rear of the appliance

Putting humid or hot food into the appliance may cause this problem. Or it may be caused by the heavy environment moisture.

No	Defect	LED1-LED5	Description
1	Refrigeration Sensor Failure		Indicated LEDs will flash intermittently at 0.5s intervals.
2	Defrost Sensor Failure
3	Fan Failure
4	Overheating Failure		One of Indicated LEDs will flash intermittently at 0.5s intervals.

The follow cases are not malfunction

1. Moisture may form dew on the outside of the product during the humid season, just get it wiped.
2. The flow of refrigerant through the pipeline coil can cause a bicker.
3. It is normal that the sides of product get warm as a result of the cooling pipeline working.
4. The frame of the appliance will be warm during working by the defrost pipeline inside it.

Please check the points above first.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SPECIFICATIONS AND PARAMETERS

PACKING LIST

Note: Product and parts are subject to change without notice.
