Thank you for purchasing a Galanz product please read this manual carefully for correct usage and safety,
and keep for future reference.For service,support and warranty information,call 800-562-0738.
REFRIGERATOR INSTRUCTION MANUAL
©2019 Galanz Americas Limited Company

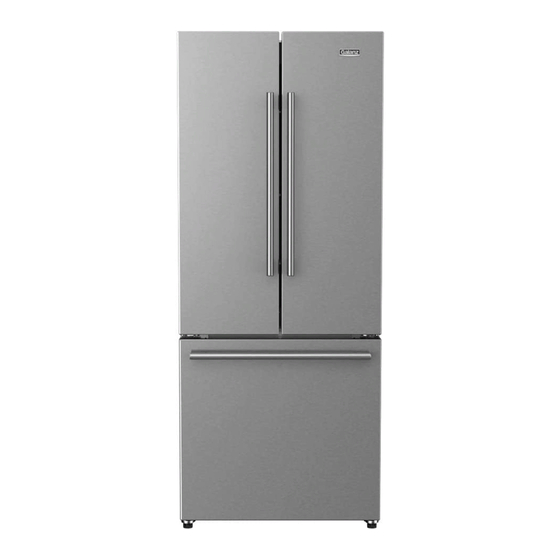

Model# GLR16FS2K16
@2020 Galanz Americas Limited Company .
nce,
using
rom
ted
ore
e
e
n it is
at
e for
cturing
ng.
moke
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Galanz GLR16FS2K16
Summary of Contents for Galanz GLR16FS2K16
- Page 1 Thank you for purchasing a Galanz product please read this manual carefully for correct usage and safety, and keep for future reference.For service,support and warranty information,call 800-562-0738. ©2019 Galanz Americas Limited Company @2020 Galanz Americas Limited Company .
-
Page 2: Table Of Contents
CONTENT Product Overview ................Safety Warnings ................Installation Instructions ..............Reversing the Door................Install the Handles................Operation Instructions..............Packing and Moving................. Maintenance..................Defrost....................Disconnecting the Appliance............User Notifications................Troubleshooting Tips................. Specifications and Parameters............Packing List..................Warranty.................... -
Page 3: Product Overview
PRODUCT OVERVIEW 1. Door Bin 2. Glass shelf 3. Crisper 4. Freezer upper drawer 5. Freezer lower drawer... -
Page 4: Safety Warnings
SAFETY WARNINGS SAFETY WARNINGS It is recommended that electrical The refrigerator you purchased uses a appliances such as power outlets, power supply voltage of 120V single- regulators, microwave ovens and phase AC, with a frequency of 60HZ. It unstable items (heavy objects, must be operated with a dedicated containers containing water) socket (above 10A) and reliably... - Page 5 SAFETY WARNINGS Strictly prohibit self dismantling Watch out for children USE METHOD AND PRECAUTIONS OF and transforming the refrigerator and make sure they don't DIFFERENT COMPARTMENTS as well as damaging the refrigerant play in the refrigerator. line of refrigerator. When it is found Besides, do not let TIPS FOR USE OF REFRIGERATOR COMPARTMENT that the refrigerant line is damaged...
- Page 6 PRODUCT INTRODUCTION HANDLING PLACEMENT Refrigerator should be placed in a > dry, well ventilated place. The The refrigerator should be placed on a sides and back of the refrigerator > 1/4 inch flat and solid surface. should be retained more than 1/4 inch Do not use the foam pad of the of space, and the top to retain refrigerator to make it higher.
- Page 7 PRODUCT INTRODUCTION DANGER. Risk of child entrapment: When discarding Note: Refrigerators cannot be transported upside a refrigerator, make sure to take off the door and the down or laying flat. If they are transported incorrectly, spring action or bolt catch. Leave the shelves in refrigerators must be placed upright for 2 hours before place so that children cannot easily climb in, get they can be plugged in.
- Page 8 PRODUCT INTRODUCTION Please do not rush to connect the power supply after the The amount of fresh food placed in the freezer should not stable placement and cleanness of the refrigerator. It exceed the freezing capacity listed in the technical should be stand for at least 2 hours, and then switch on the parameters of the refrigerator.
-
Page 9: Maintenance
PRODUCT INTRODUCTION INSTRUCTION USAGE Cleaning The refrigerator should be cleaned often to avoid When the refrigerator is not in use, please open the door to unpleasant smells. prevent the bad smell from the residue of the food in the refrigerator. - Page 10 PRODUCT INTRODUCTION DOOR HANDLE INSTALLATION 1. Before the refrigerator door handle is installed (note: 2. Screw the locating bolt into the bolt the anchor bolts of the handle are in the accessory hole of the door body and secure it bag, and all steps should be performed at the right and left two mounting positions simultaneously.
- Page 11 INSTRUCTION FOR USAGE Door Mullion When the door mullion is positioned unfolded as illustrated in figure 1, the door will not close properly. Please fold the door mullion inside as shown in figure 2 before closing the door. In order to prevent damage, do not try to close the door when the mullion is unfolded as shown in figure 1.
- Page 12 CONNECT WATER SUPPLY (GLR16FS2K16) What you need: 1. Basic tools:adjustable wrench,flat blade screwdriver,and water supply line Plastic water tubing Phillips TM screwdriver. to ice maker fill tube 2. Access to a household cold water line with water pressure between 20 and 120 psi.
- Page 13 USAGE The ice maker is not producing ice or not Ice Maker (on some models) enough ice. After turning on your refrigerator, the ice will start to be made between 12 and 24 hours. - If it is new installation. Wait 12 to 24 hours after Power Button icemaker installation for ice production to begin.
- Page 14 INSTRUCTION FOR USAGE BUTTON INSTRUCTION DISPLAY THE SETTING OF THE REFRIGERATOR COMPARTMENT The LED display turns bright when the door is open. Push the The below picture is a schematic diagram of an electronic “Fridge” button. The buzzer rings. Then the refrigerating room display.
- Page 15 INSTRUCTION FOR USAGE The setting of the functions Warning: Push the “Select” button, exit the smart mode, and all selects pattern disappear, then it exit the setting The LED display turns bright when the door is open. Push of select modes. regulate the temperature automatically. the “Select”...
- Page 16 INSTRUCTION FOR USAGE LIGHTING AND ITS REPLACEMENT 2.Take out the lamp shade and thermostat downwards. the arrow. When the door of refrigerating chamber opens, the LED light turns on. When the lighting is damaged, please remove the lampshade first and then replace the LED lighting. The specific operations are shown in the following diagram: 3.Pull the connection terminal, use the screwdriver to remove the LED light board and replace it.
- Page 17 TROUBLESHOOTINGS Note: If detected by the above method, your The refrigerator doesn't work. refrigerator is still abnormal, please contact our Is the refrigerator power connected (plugs, after-sales service department or local sockets.)? authorized maintenance department in time. Lighting doesn't work. Is the supply voltage too low? Is LED lamp (bulb) damaged? There is an unusual smell in the refrigerator.
-
Page 18: Specifications And Parameters
SPECIFICATIONS AND PARAMETERS SPECIFICATIONS AND PARAMETERS Climate class Electric shock protection type Capacity( cu.ft) Voltage( V) Frequency( Hz) Current( A) < Voice [dB( A) ] R600a/2.3oz Refrigerant Weight( lbs) Freezer 5 ~ -8 Interior temperature ( ºF) Refrigerator 33~45 Width 28.35 Dimension( inch) Depth... -
Page 19: Packing List
PACKING LIST Number Parts Shelf bar 6pcs Crisper 2pcs Freezer upper drawer 1pcs Freezer lower drawer 1pcs Glass shelf 3pcs Ice Bucket 1pcs Owner's manual 1pcs... -
Page 20: Warranty
LIMITED WARRANTY For 12 months from the date of original retail purchase, Galanz will repair or replace any part free of charge, including labor, that fails due to a defect in materials or workmanship. Galanz may replace or owner’ s manual. - Page 21 WARRANTY REGISTRATION...
- Page 22 ©2020 Galanz Americas Limited Company...
