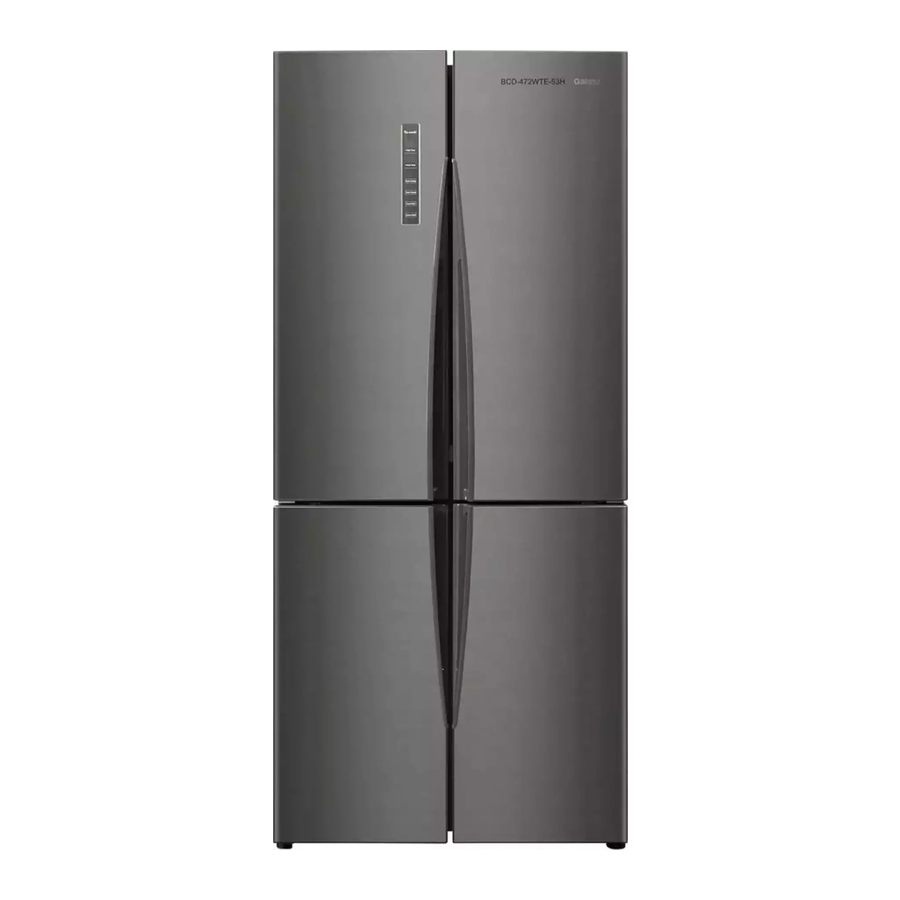

Galanz BCD-472WTE-53H - Refrigerator Manual

INTRODUCTION

PRODUCT DESCRIPTION

Main functions

• Large compartments: the product has a refrigerator compartment, a quick freezer compartment and a multipurpose variable temperature compartment with high capacity. If the variable temperature compartment isn't used for other purposes, it can be used as freezer compartment.
• Smart Mode: Based on temperature of environment, let machine keep in optimal status, and keep foods in fresh best.
• Vacation Mode: Let machine keep in reasonable temperature or status before long vacation, which can make refrigerator much more energy-saving.
• Large crisper drawer: the special large crisper drawer can store many diversified foods.
• Movable shelf: the door of fridge compartment is equipped with height adjustable shelves.

SAFETY PRECAUTIONS

Please carefully read the following precautions before using.

• Keep the plug clean and firmly contact. Don't press the power plug by the refrigerator. Don't damage the power cord. Don't let the power cord close to compressor to avoid failure of insulation.

• If the power cord is damaged, contact the professional maintenance personnel for avoiding danger.
• If the gas is leaked, don't touch the refrigerator. Firstly, close the gas valve and open the window for ventilation. If the power plug is immediately plugged out at this time, the spark may generate.

• Don't use other appliances in the refrigerator.
• Don't disassemble or modify by yourself. Please the manufacturer or professional maintenance personnel.
• If the refrigerator is scrapped, dismantle the door seal to avoid suffocation of child in the refrigerator.

• Plug out the power cord for cleaning, repairing or disusing in a long term.
• If tingling electricity, abnormal sound, peculiar smell, smoke and other abnormalities are found during using, immediately disconnect the power and stop using and contact the After-sales Service Department of our company in a timely manner.

• Don't use the refrigerator outdoor or expose to rain.
• Never store the flammable, explosive and corrosive goods in the refrigerator. It isn't recommended to store the drugs and chemicals which have strict temperature requirement.

• Never store the glassed, canned or sealed liquid food in the freezer compartment or the variable temperature compartment for preventing from cracking.
• If the light is abnormal, don't dismantle by yourself. Contact the after-sales service personnel to replace after checking.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance, cleaning and user maintenance shall not be made by children without supervision.

NAME OF COMPONENTS

This figure is only the schematic diagram. The actual product shall prevail. Because this product is the improved product, the product may differ from the instructions. However, the performance and use method will not be changed. You can rest assured to use.

1. Overturning beam
2. fridge compartment light
3. Refrigerator compartment frame
4. Crisper drawer cover
5. Crisper drawer
6. Upper shelf of fridge compartment
7. Adjustable shelf of fridge compartment
8. component of cooling room ventilating duct
9. Bottle shelf of fridge compartment
10. Upper drawer of freezer compartment
11. Middle drawer of freezer compartment
12. Lower drawer of freezer compartment
13. Adjusting foot

USAGE

PREPARATION

• Please use 220-240V/50HZ single-phase AC power supply and use the independent socket equipped with 10A fuse. If the refrigerator is used in a place with high humidity, connect the grounding wire and install the leakage protection switch. Don't lengthen the power cord. The socket shall be equipped with grounding wire.
• Top of refrigerator shall not be placed with heavy article or container with water to avoid falling caused by vibration during opening the door.
• Because electricity leakage and rust may occur, try not to install in place with high humidity.
• The tilting angle of the refrigerator during moving shall not be higher than 45°.
• The refrigerator shall not be installed outdoor or exposed to rain.
• The refrigerator cannot be near the gas, gasoline, alcohol, paint and other flammables. Those dangerous goods cannot be stored in the refrigerator.
• The floor shall be flat and firm. Otherwise, noise and vibration may generate. If the floor isn't flat, properly adjust height of the adjusting foot.
• If any abnormal smoke or sound occurs, immediately plug out the power plug and contact the after-sales service personnel.
• In order to protect the internal electrical device, the interval between power failure and power reconnection is at least 7 minutes.
• At the beginning, the refrigerator may have slight peculiar smell which will disappear gradually.

DEVICE HANDLING

• Plug out the power plug for disconnecting the power. Fix the plug on refrigerator body by adhesive tape to avoid dragging on the ground.
• All interiors shall be fixed by adhesive tape.
• Close the refrigerator door and fix by adhesive tape to avoid opening during moving.
• Push the refrigerator or handle the refrigerator in tilting way. (The bottom is designed with the handle for handling).

NOTICE

• Try to adjust the adjusting foots at bottom of refrigerator to the highest level (turn left) to avoid the bottom touching grounding during pushing.
• During handling, the refrigerator tilts backward, so residual water in the evaporating dish of machine chamber may spill out. Don't worry. Be careful to avoid dirtying the floor.
• It is prohibited to lay down the refrigerator. The tilting angle during handling shall not be more than 45°.

• After tilting handling, power on the refrigerator after at least 2 hours.

CORRECT INSTALLATION OF DEVICE

• The refrigerator shall be placed in the ventilated place, avoid direct sunlight and be away from heat source. In addition, heat dissipation is required during operation, so a certain space shall be reserved around the refrigerator.

  Enough space between refrigeration and wall

  Avoid direct sunlight
• If the floor isn't flat, rotate the adjusting foot at bottom of refrigerator by the method in following figure until the refrigeration is stably placed.

  Turn left for refrigerator rising; turn right for refrigerator falling It may be easier to adjust with slotted screwdriver.
• If the heavy bottles or foods are stored in the refrigerator, the left door and the right door may not be aligned. In such situation, adjust the door position again after 2 or 3 days after placement of the refrigerator.


NAME OF BUTTONS ON CONTROL PANEL

• The following figure is the schematic diagram of control panel.


OPERATION METHOD OF CONTROL PANEL

Power on at the first time

• After the refrigerator is powered on at the first time, the default refrigerating temperature is 4°C, the default freezing temperature is -19°C.

Fridge Temp adjusting

• When we adjust the temperature, if press the [Fridge Temp adjusting button] one time, temperature change is 1°C within the range 1°C~7°C in a circulation manner.
• If the button isn't pressed within 10s or other button is pressed, the indicator light stops flashing and the setting takes effect.


Freezer Temp adjusting

• When we adjust the temperature, if press the [Freezer Temp adjusting button] one time, temperature change is 1°C within the range -15°C~-23°C in a circulation manner.
• If the button isn't pressed within 10s or other button is pressed, the indicator light stops flashing and the setting takes effect.


Power Cooling function

• While setting the function, if press the [Power Cooling button], the indicator light will be illuminated and the quick refrigerating function will be enabled to quickly cool the foods in the refrigerator compartment. In the quick refrigerating state, if press the [Power Cooling button] again, the indicator light will be off and the quick refrigerating function will be disabled. After reaching the set condition, the refrigerator will automatically exit the quick refrigerating function.


Power freezing function

• While setting the function, if press the [Power Freezing Button], the indicator light will be illuminated and the quick freezing function will be enabled to quickly freeze the foods in the freezer compartment. In the quick freezing state, if press the [Power Freezing Button] again, the indicator light will be off and the quick freezing function will be disabled. After reaching the set condition, the refrigerator will automatically exit the quick freezing function.


Smart mode function

• While setting the mode, if press the [Smart Mode button], indicator light would be lighting. Cooling and freezing room would adjust their own temperature automatically based on environment temperarue, realizing best preservation effect. If machine is already being in"Smart Mode",press key [Smart Mode button] again, indicator light would be out and machine would log out current mode automatically.


Vacation mode function

• While setting the mode, if press the [Vacation Mode Button], the indicator light will turn on, so does the holiday mode, and refrigeration temperature will be automatically set at 17°C, which cannot be changed under holiday mode; after exiting the holiday mode, the product will run as per parameters set before entering holiday mode.


Door opening alarm

• If the refrigerator compartment door is in open state for more than 2 minutes, the buzzer will send ten times of alarm at the interval of 0.5s. And if the door still open, the buzzer will send ten times of alarm in each minutes at the interval of 0.5s.

Over-temperature alarm

• If temperature of the refrigerator compartment and freezer compartment is higher than the alarm limit for 60 minutes, the displayed temperature of freezer compartment will flash and the buzzer will send alarm at the frequency of 1 time/s for lasting 30s. Then, the buzzer will send three times of alarm at interval of 0.5s for every 60s. Press any button to stop the audio alarm (flashing alarm will continue). When temperature of the freezer compartment is lower than the alarm limit, the refrigerator will exit the alarm mode.

Power-off memory

• The refrigerator can reserve the setting before power off: refrigerating setting, variable temperature mode, freezing setting and function mode.

Display control

• In off state of display, press any button to illuminate the display. After 60s, the display will be off.

Fault display

• If any fault code is displayed in English letters, in order to guarantee normal freezing, contact the after-sales service personnel as soon as possible.

USE METHOD AND PRECAUTIONS OF DIFFERENT COMPARTMENTS

Fridge Temp

• The refrigerator compartment is mainly for storage of foods which are stored for short term or will be eaten an any time.
• According to ambient temperature and setting temperature, temperature in the refrigerator compartment shall be maintained within 0°C~10°C. It cannot keep the food fresh in long term, but is only used for storage in short term.

• Precautions for using refrigerator compartment
  • The hot foods shall not be placed in the refrigerator compartment before cooling. The foods can be placed in different boxes by classification.
  • The foods with dirt and other foreign matters shall not be placed in the refrigerator compartment before cleaning to avoid contamination of the refrigerator.
  • Wall of the refrigerator compartment is equipped with temperature sensor. Don't cover the sensor by foods.

  • Too many foods in the refrigerator may cause poor air circulation and keep temperature in high value.
  • Try to reduce the door opening and closing frequency.
• Use of adjustable shelf
  • The shelf may be moved up and down only by pressing and holding hooks below the two ends of shelf.

• Overturning beam
  When the overturning beam as shown in Figure 1, the door is unable to close normally, it must press the top guide block of the overturning beam as shown in Figure 2, firstly closed the top guide block, then close the door. Prohibit turning the overturning beam to the state shown in figure 1, otherwise the overturning beam may be damaged.


Notice: in order to prevent condensation, the overturning beam is provided with heater for heating. Overturning beam heating is normal phenomenon and has no effect on frozen food.

• TIPS FOR USE OF REFRIGERATOR COMPARTMENT

1. Vegetables
   Potato––normal temperature preservation, please do not use cold storage (it may promote starch turn into sugar)
   Potato shall be stored separately from other foods (moisture and gas diffused from potato will speed up food rot); apple may prevent potato from sprouting when stored together.
   Onion––before peeling the onion, preserve it under normal temperature; after peeling it, put it into sealed container for cold storage.
   Radish––choose refrigerated preservation after removing soil and leaves (prevent nutrition from being absorbed by leaves).
   Garlic, fresh ginger, water chestnut, rhizome, and radish––store them at room temperature, do not choose cold storage (when room temperature is high, radish shall be firstly wrapped with paper before using cold storage).
   Cucumber––firstly wrap them with newspaper then apply cold storage. Green pepper and pepper--wash them with water and put them into sealed container or freshness protection package for storage.
   Tomato--after they get squashy at room temperature, put them into refrigerator for cold storage.
2. Fruits
   Watermelon––uncut ones shall be stored at room temperature and cut ones shall be put in sealed container or plastic bag for preservation.
   Banana and kiwi fruit--they will get mature naturally amid normal temperature preservation and cold storage will make them soft rotten. Apple will accelerate their ripening when they are stored together.
   Apple––put them in plastic bag for cold storage (ethylene gas diffused by apple may accelerate metamorphism of other foods).
   Pineapple–– use cold storage with root upward (root has the highest sugar content which may transmit downward).
   Strawberry--do not clean and do not remove stalk, directly put them into plastic bag for cold storage and eat them up within one week as far as possible. (Strawberry stalk may evaporate and take away water content, put them in water no more than 3 seconds as far as possible when cleaning them).
   Peach-preserve them at room temperature, cold storage will reduce their sweetness.
   Muskmelon and pawpaw––store them at room temperature.
3. Others
   Honey––preserve them at room temperature, do not use cold storage (low temperature will make it solidify).
   Bread––preserve them at room temperature, do not choose cold storage (water loss will make them taste hard).
   Coffee bean––preserve them at room temperature, do not choose cold storage (foreign taste will cause them change flavor).
   Salad dressing––room temperature preservation (lipolysis during cold storage will make it easier to rot).
   Olive oil––preserve at room temperature (cold storage will make it freeze into butter shape).
   Tofu––put it in salt water and keep it in cold storage.

Freezer Temp

• General use method of freezer compartment
  • Low temperature of freezer compartment enable it may store foods for long but not exceeding the valid period indicated on food package.
  • The shelf in freezer compartment is suitable for food temporarily stored or frequently taken for use, opening/closing of door make it suffer maximum temperature change influence and food if stored for long term is easy to go bad.
• Precautions for use of freezer compartment
  • Foods shall be packed separately or packed as per dosage per time and stored.
  • There shall not be too much food stored in freezing drawer.
  • Unfrozen food shall not be frozen repeatedly.
  • Hot food must cool down to room temperature before being put into freezer compartment.
  • Do not store bottled or canned foods.
  • Do not put in liquid food contained in plastic bag.
  • Take out the lower drawer and directly stack foods may lead to problem caused by bad air circulation.

Notice: freezing will increase volume of liquid foods, therefore glass bottle including liquid food or sealed plastic bag packing foods may crack.

Energy saving method

• Refrigerator shall be installed at well-ventilated places far away from heat source as far as possible, and it shall be protected from direct sunshine.
• Reduce door opening/closing times and avoid energy loss.
• Foods shall be sorted and stored according to category so as to reduce the times of opening/closing door.
• Hot food shall be put in refrigerator only after they cools down.
• To ensure smooth air circulation, the refrigerator shall not be filled to the full by foods.
• Foods to be unfrozen may be firstly put in refrigerator compartment, which will prolong unfreezing time but is helpful to reduce temperature of the refrigerator compartment.

CLEANING

Cleaning method

• Please pull out attaching plug before cleaning.
• Take out all interior trim parts.
• Parts taken out shall be wiped with wet cloth dipped in neutral detergent, then wash with water, next wipe them dry with dry cloth and place them at ventilated place and wait them to dry naturally.
• Use the same method to clean interior of the refrigerator.
• Door seal shall be firstly taken down and cleaned with neutral detergent and after getting dry in the air it shall be embedded into door again. Firstly fix the four corners for such method may facilitate installation.

Precautions for cleaning

• It is required to regularly clean refrigerator according to use condition.
• Oil stain adhered onto door seal surface must be removed, otherwise door seal will harden, which will reduce refrigerator airtightness and result in temperature rise inside the compartment.
• It is forbidden to clean refrigerator with boiled water, gasoline, diluent, ethyl alcohol and other organic solvents. They will make plastic material surface deformation and cause fracture.
• Do not wash refrigerator with water directly so as to prevent rusting and electrical insulation reduction which may lead to electric shock.
• Power line and plug may not be affected with damp, plug in only after check.
• It refrigerator is to be left unused for long, please pull up power line, and when close refrigerator door after interior cleaning, ensure certain gap is reserved. Keep interior smooth air circulation and place refrigerator at well-ventilated place.
• Refrigerator surface shall be wiped with soft cloth, do not use gasoline, diluent, ethyl alcohol or other organic solvent because they may cause damage to refrigerator surface.

Defrosting method

• This refrigerator is air-cooled automatic defrosting product and requires no operation by users.
• Water produced after defrosting will flow into evaporation pan behind the refrigerator and evaporate there.

TROUBLESHOOTING

Problems and solutions

Notice: refrigerating fluid and foaming agent left in refrigerator are combustibles, when maintain or scrap the refrigerator, please contact specialized company for treatment so as to avoid fire disaster.

PRECAUTIONS FOR UNIT OUT OF SERVICE

Power outage

• For 2〜3 h power outage, stored foods will not be significantly affected if refrigerator door is not opened.
• After power outage, please do not put in foods, reduce door opening times to the greatest extent
• If power outage is known in advance, prepare some ice cubes and put them in plastic bag or plastic case which shall be placed on top of freezer compartment and refrigerator compartment to help maintain refrigerator interior temperature.

Cease to use (refrigerator will be left unused for long)

1. Pull up plug to disconnect power supply.
2. Take out foods in refrigerator and clean the interior.
3. For long time storage, in order to prevent interior peculiar smell, please keep door slightly opened.

Notice

• After cutting power supply, the refrigerator may operate normaly at least 7 min later. This measure is used to protect refrigerator from damage. Therefore, after disconnecting power supply, please wait at least 7 min to recover it.
• Please do not frequently open/close refrigerator, which may shorten refrigerator's life.
• When refrigerator suffers some damage and shall be scraped, please contact special personnel for treatment. To avoid environment damage or leading to other hazard, do not discard it at will.

Reference

• For cleaning method applicable to long time storage, please refer to contents described in the column of "cleaning".

TECHNICAL PARAMETERS

Model		BCD-472WTE-53H
Climate type		SN/N/ST/T
Anti-electric shock protection type		I
Fridge compartment volume (L)		322
Freezer compartment volume (L)		150
Star level mark
Freezing capacity (kg/24h)		12
Rated voltage (V)		220-240
Rated frequency (Hz)		50
Rated current (A)		1.6
Noise [dB (A)]		<42
Refrigerant type/ Refrigerant charge (g)		R600a/67
Net weight (kg)		103
Temperature of fridge compartment (°C)		1~7
Temperature of freezer compartment (°C)		-15~ -23
Dimension	Width	825
	Depth	673
	Height	1903

PACKING LIST

We reserve the right to change parts of different models of refrigerators along with continuous research and improvement without further notice.
