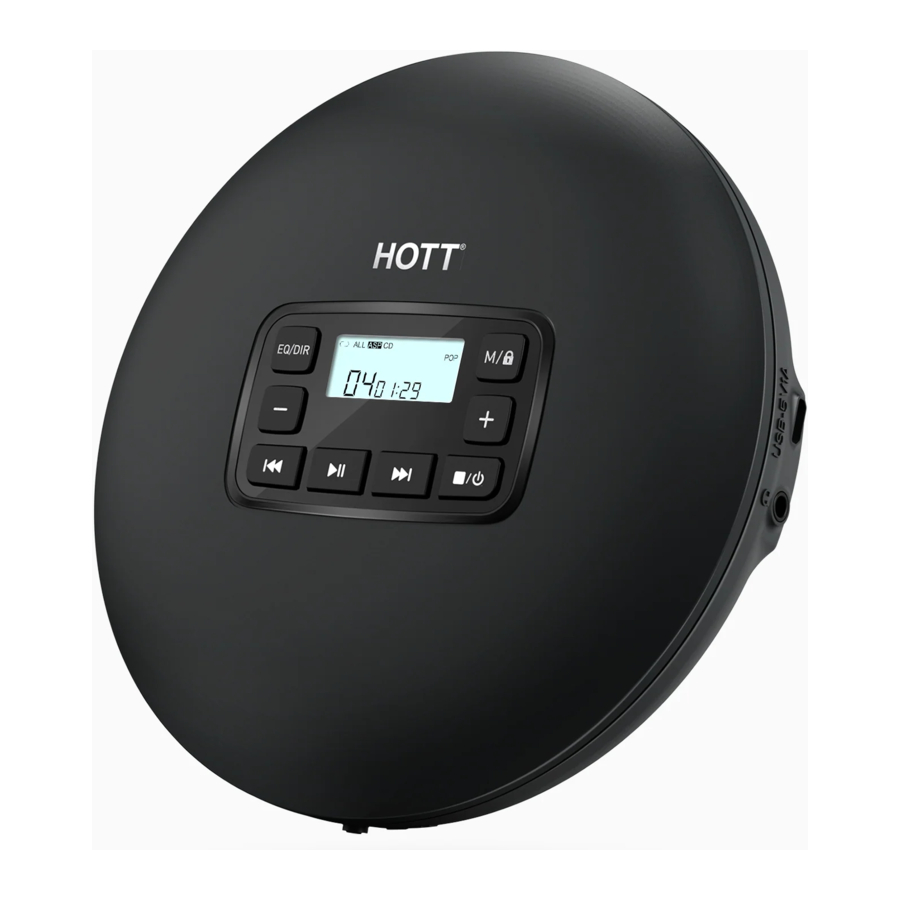

Hott CD204 Manual

Accessories

Specifications

Startup Procedures

Button functions

: Power-on/Power-off/Stop
Press and hold it for more than 3s to power ON/OFF this product. In case of no operation in 30s after this button is pressed, the product will be automatically shut down.

: Next/Fast Forward mode
In the playback status, press it once to play next song. Press and hold it to enable the Fast Forward mode.

: Play/Pause
In the playback status, press it once to pause and again to continue playback.

: Previous/Fast Rewind mode
In the playback status, press it once to replay the current song or twice to play the previous song. Press and hold it to enable the Fast Rewind mode.

: Volume +
In the playback status, press it once to increase the volume.

: Volume -
In the playback status, press it once to decrease the volume.

: EQ sound/MP3 song selection
In the playback status, press it to change as follows: (BASS) → (POP) → (JAZZ) → (ROCK) → (CLASS) →

(Reset).。
Press and hold it to select and play a DIR song. For DIR-free CDs, the DIR function of this product will be unavailable.

: Playback/key locking
In the playback status, press it to change as follows:
1: single play loop;
ALL: play all in loop;
DIR: select and play songs;
INTRO: introscan;
SHUF: play at any sequence and disable the playback mode.
( Note: All modes are applicable to MP3 songs. For CDs, all modes are applicable except for DIR.

In the playback status, press and hold it until "HOLD" appears on the screen, and all buttons will be locked. Then, press and hold it until "HOLD" disappears, and the buttons will be unlocked for normal operation.

Back Buttons

Power supply

Tips:

• Do not apply any disc with serious scratches, fingerprints and dirt on surfaces; otherwise, discs cannot be played, the CD player may fail, or the service life of the laser head may be affected

Analysis of Common Faults

Fault	Possible Cause	Solution
Failure in startup	Check whether the power cable is connected properly.	Please connect it properly.
	The product cannot be started due to low power.	Install new batteries. Install the batteries correctly.
Failure to read disc	Check the disc for serious scratches, cracks, fingerprints, dirt, etc.	Use a new or clean disc.
	Check whether the disc format is supported by the CD player.	Use a disc supported by the CD player.
No sound	The headphone is not properly plugged into the headphone port.	Re-plug or replace the headphone.
	Check whether the volume of the CD player is the lowest.	Increase the volume by pressing Volume +.
Button failure	Check whether "HOLD" appears on the screen in the playback mode.	Press and hold the button in the playback mode for unlocking ("HOLD" on the screen disappears).
Playback stop or automatic shutdown	Check whether the ALL mode is enabled.	If this mode is not enabled, the CD player will stop working or automatically shut down after playing the
Song skipping	Check whether the disc is clean without scratches.	Replace the disc.
OPEN	The upper cover is not closed properly.	Close the upper cover again.
dlSC	The product fails to read the disc or no disc is available.	Put the disc in again.
	The product is running out of power.	Replace AA batteries in a timely manner.

Aftermarket Information

Web Address: www.hottaudio.com

E-mail: info@hottaudio.com

Are you satisfied with the product? if you have any question, please contact us by Email message.
We will reply all within 24 hours.

Attentions

Please read this manual carefully before use and keep it with you for further reference.

In order for you to use this CD player safely and correctly, please read and observe the following attentions carefully:

• Do not knock the product violently.
• Do not keep this product close to any strong magnetic field or electric field.
• Do not heat the battery or put it into a fire.
• Do not apply a too high volume to avoid hearing loss.
• Keep this product away from moisture, rain, sand, heat sources and chemicals (e.g. benzene and diluent).
• Clean this product with soft wet cloth. Do not clean it with alcohol, benzene solvents and other chemicals.
• Do not use this product and any headphone while riding a bicycle or motorcycle or driving a car, in order to avoid danger.
• Do not disassemble, repair or modify this product by yourself. If the CD player is damaged due to authorized operation, the consequences arising therefrom will be borne by users.
• Please classify and properly dispose of the discarded packages, batteries, used electronic parts, etc.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Hott CD204 Manual
