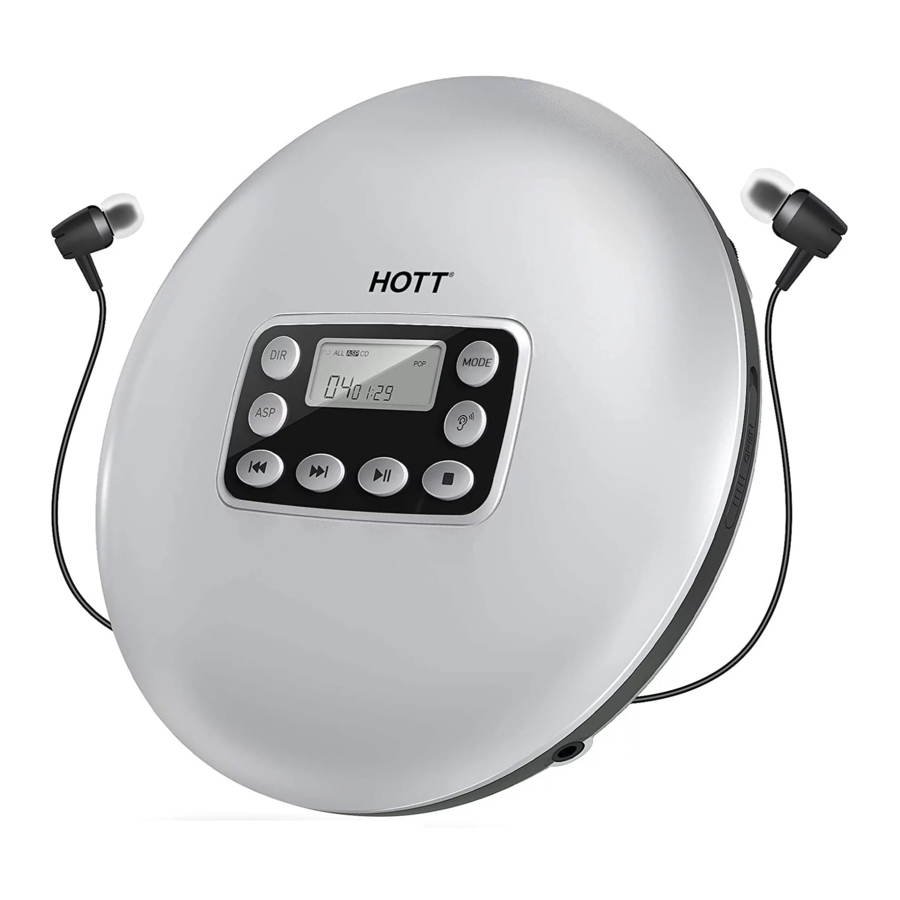

Hott CD711, CD711T Manual

Accessories

Start Step

Key Function Description

Power on/play/pause

• After power supply, press and hold for 3 seconds to turn on and play, while playing, short press to pause.

Stop/shut down

• Press once, ends playback; press twice switches the device off.

Press once to replay the current song.

• Short press twice to select previous song.
• Long Press to fast backward.

Short press to select the next song; long press to fast forward.

Switch the anti-shock system on/off.

• Open by default.
• CD: 40 seconds.
• MP3 disc: 120 seconds.

Select the next album (Only for MP3 format).

Select sound effect.

• You can choose five sound effects: BBS (Bass), Pop, Jazz, Rock, Classic.

Select Play mode

• 1
  Current track loop Playback.
• ALL
  All tracks will be looped.
• DIR
  All the files of the current album are played back repeatedly (Only MP3 DISC).
• INTRO
  The first 10 seconds of each title or file are played.
• SHUF
  All files or tracks are played back in random order.

Bluetooth Functions

Function 1: Short press to select Play mode.

• 1
  Current track loop Playback.
• ALL
  All tracks will be looped.
• DIR
  All the files of the current album are played back repeatedly (only MP3 DISC).
• INTRO
  The first 10 seconds of each title or file are played.
• SHUF
  All files or tracks are played back in random order.

Function 2:Bluetooth mode

1. Long press to turn on the Bluetooth transmission, the icon will flash in the LCD display. Then CD player will try to pairing with your Bluetooth device automatically.
2. When CD player had paired with your Bluetooth device, the icon stop flash, you will hear the music from your Bluetooth device.
3. In Bluetooth mode, long press to disconnect the Bluetooth transmitter, the Bluetooth icon disappears.
4. Notes:
   1. Before the CD player connects to the Bluetooth speaker/earphone, make sure that your Bluetooth speaker/earphone is not connected to other devices.
   2. Pairing lead time would be around 15-50 seconds.
   3. When playing in Bluetooth mode, please make sure the wire earphone is unplugged.
   4. CD player only can be paired with one Bluetooth device at a time. If there is more than one Bluetooth device around the CD player, it may randomly pair one of them.
   5. The paired device is automatically connected when it restarts.

Back Function Introduction

HOLD: Lock/Unlock the status (turn it to the UNHOLD position before turning on this product)

• HOLD: Lock
• UNHOLD: Unlock

VOL -/VOL+: Adjust the volume
PHONES: Earphone jack
USB 5V: USB power supply
RESET: Reset/shutdown

Charging Instructions

Attention
The power adaptor for the equipment: the voltage and power should be 5V-1A by USB. An adaptor over 5V will damage the equipment.

1. When is visible, the charge is low and a power source is needed for further use.
2. Adaptor with 5V - 1A is required. The USB provided works for charging.

The light turns red when charging.
The light turns blue when the charge is completed (after 2~3 hours).

Specifications and Parameters

Power input: USB - 5V 1A
Supporting disc format: CD original disc, MP3 disc, CD-R, CD-RW;
Support music formats: CD-DA, MP3, WMA
Charging time: 2-3 hours
Play time: 6-8 hours
Overall dimensions: ∮142X29mm
Bluetooth transmit distance: 10 m

Safety Precautions

Please read carefully and follow the notes for optimal use of the CD Player.

• Do not put heavy objects on top of the CD Player and protect it from impact.
• Do not place CD Player close to strong magnetic fields or electric fields.
• Do not expose battery to flame or extreme heat.
• Do not play at high volumes to protect hearing.
• Do not expose the CD Player to excessive dust or sand, moisture, rain, or mechanical shock.
• Do not use ethyl alcohol or benzene solvent to clean, instead, use slightly damp fabric.
• Do not use headphones or car player when driving, cycling, or using any motorized vehicle.
• Do not take apart, attempt repair or modify the equipment yourself. HOTT will not be responsible for damages resulting from these behaviors.
• Do not improperly discard the package, battery and the electronic equipment.


Cracked discs may cause the player to malfunction. Do not use it. For example, serious scratches on the signal surface of the disc, fingerprints and dirt may cause equipment malfunction or shorten the life of the laser head.
