Hyundai Tucson Hybrid Manual

Identification/Recognition

Initial response: Identify, Immobilise and Disable
The following procedures should be used whenever you are dealing with a TUCSON HEV at an emergency scene. However, all operations should be consistent with your department's standard operating procedures, guidelines, and any applicable laws. When a HEV is damaged in a crash, the high-voltage safety systems may have been compromised and present a potential high-voltage electrical shock hazard. Exercise caution and wear appropriate personal protective equipment (PPE) safety gear, including high-voltage safety gloves and boots. Remove all metallic jewellery, including watches and rings.

Identify

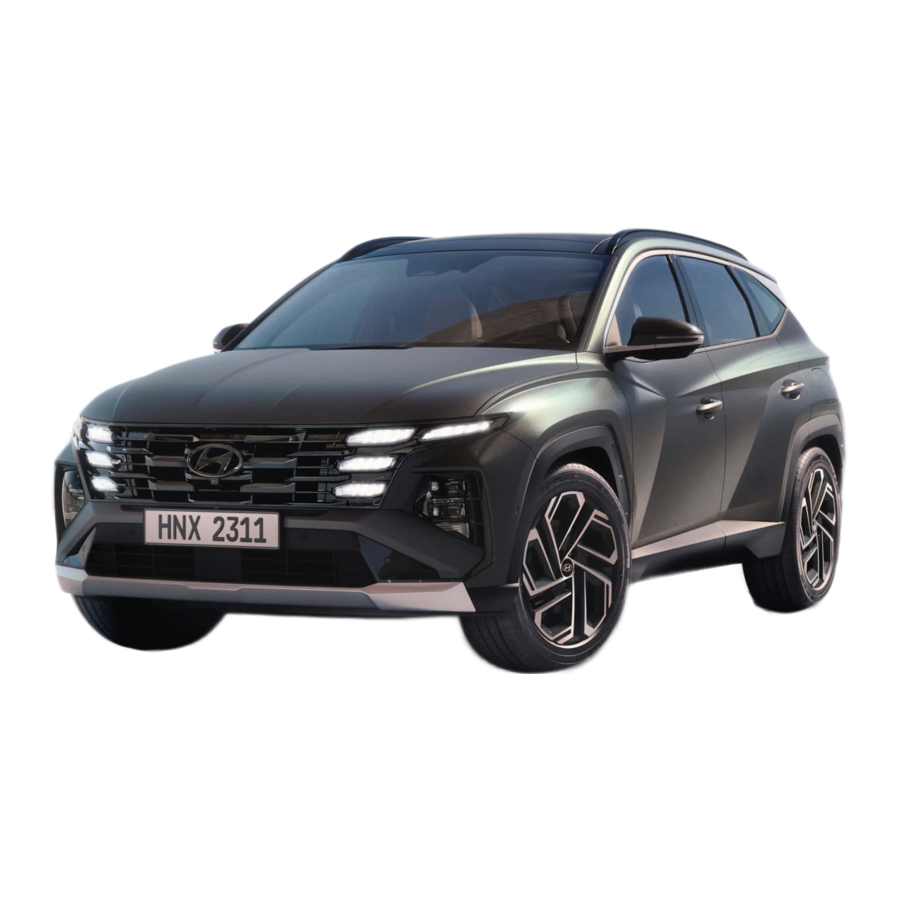

The TUCSON HEV is built on a conventional TUCSON chassis and therefore the appearance looks very similar to the internal combustion engine model.
Emergency responders should assume that any TUCSON you respond to is a Hybrid vehicle and respond to emergency scenarios involving the TUCSON HEV accordingly, exercising extreme care and caution to avoid contact with the highvoltage system within the vehicle.

Engine Compartment and Underside

The TUCSON HEV has a plastic cover with "Hybrid" clearly shown on it.
Additionally, there are orange coloured high-voltage electrical cables in the motor compartment and underside.

VIN Label

The VIN (Vehicle Identification Number) identifies a hybrid car with a "1" displayed in the 8th position, as shown in the below picture.

The VIN can be found:

1. Underneath the front passenger seat (or driver seat).
2. On the vehicle certification label attached to the driver's side (or passenger) center pillar.


Immobilisation/Stabilisation/Lifting

Immobilisation

The next step is to immobilise the vehicle to prevent any accidental movement that can endanger response personnel or civilians. When the TUCSON HEV is damaged in a crash, the vehicle may appear to be shut off when it is not due to no engine sounds.

When the "READY" mode light is illuminated on the instrument panel, the vehicle can move silently using the electric motor. Responders should approach the vehicle from the sides and stay away from the front or rear as they are potential paths for vehicle movement. Be sure to immobilise the vehicle in the following manner.

Put the vehicle in P (Park) position by pressing the 'P' button on the rotary shifter

Engage Parking Brake

Chock the Wheels

Stabilisation

Use standard stabilisation (lift) points, as shown above. Always be sure to connect to a structural member of the vehicle and avoid placing cribbing under high-voltage cables, and other areas not normally considered acceptable.

Disable direct hazards/Safety regulations

The final step in the initial response process, conducted after immobilising the vehicle, is to disable the vehicle, its SRS components and the high-voltage electrical system. To prevent current flow through the system, use the following procedure to disable the vehicle.

*In case the vehicle cannot be disabled using the "power" button.

Disabling the Smart Key System and POWER START/STOP Button

1. Confirm the status of the READY light on the instrument panel. If the READY light is illuminated, the vehicle is ON.
   1. If the READY light is NOT illuminated, the vehicle is off. Do not push the "POWER" START/STOP button because the vehicle may start (go into READY mode).
   2. To turn OFF the system, press the 'P' (Park) button, and press the POWER button.


Without depressing the brake pedal
Pressing POWER button	Button Position/LED	Vehicle Condition
One time	ACC/ON	Electrical accessories are operational.
Two times	ON/ON	The warning lights can be checked before the vehicle is started.
Three times	OFF	Off
While depressing the brake pedal
Pressing POWER button	Button Position/LED	Vehicle Condition
One time	START/OFF	Ready to drive

2. If necessary, lower the windows, unlock the doors and open the tailgate as required, before disconnecting the 12V battery. Once the 12V battery is disconnected, power controls will not operate (refer to below "4." for 12V battery disconnection).
3. Before disconnecting the 12V battery, remove the Smart Key at least 2 metres away from the vehicle to prevent accidental restart.
4. Disconnect the 12V auxiliary battery Positive(+) terminal (A).

5. In case of emergency, disconnect or cut the service interlock connector cable (A) to isolate the high-voltage of the battery.
   1. Remove the service interlock connector (A)

   2. If the Service Interlock connector cannot be located at the engine room left side. disconnected, cut the wire attached the yellow


Electrocution risk

• Before engaging in emergency response procedures, ensure the vehicle is disabled and wait for more than 5 minutes to allow the capacitor in the high-voltage system to discharge to avoid electrocution.
• Exposed cables or wires may be visible inside or outside the vehicle. To prevent injury or death due to electrical shock, never touch the wires or cables before disabling the system, to prevent injury or death due to electrical shock.

Failure to follow any of these instructions may result in serious injury or death by electrocution

Explosive risk

• SRS components may remain powered and active for up to 3 minutes after the 12V electrical system is shut off or disabled. Disconnect the battery cable and wait for at least 3 minutes before beginning work.

Failure to follow any of these instructions may result in serious injury or death from accidental deployment of the airbag system.

Ignition Fuse Removal

1. Open the hood.
2. Remove the engine room fuse box cover.
3. In the event the vehicle cannot be disabled using the "Power" START/STOP button, pull the IG1, IG2 fuses or relays from the engine compartment room fuse box. If the IG fuses cannot be located, pull out all the fuses and relays in the fuse box.

4. Disconnect the positive (+) 12V battery cable (A), located at the engine room to further prevent the risk of accidental restart.

5. In case of emergency, disconnect or cut the service interlock connector cable (A) to isolate the high-voltage of the battery.
   1. Remove the service interlock connector (A)

   2. If the Service Interlock connector cannot be located at the engine room left side. disconnected, cut the wire attached the yellow warning label.


If both methods of disabling system are unsuccessful, the vehicle is not secured from accidental deployment of airbags and electric shock from high-voltage components.

Electrocution risk

• Before engaging in any emergency response procedures, ensure the vehicle is disabled and wait 5 minutes to allow the capacitor in the high-voltage system to discharge to avoid electrocution.
• Exposed cables or wires may be visible inside or outside the vehicle. Never touch the metal chassis wires, cables, connectors, or any electric components before disabling the system, and/or shorted to the vehicle chassis.

Failure to follow any of these instructions may result in serious injury or death by electrocution

Access to the occupants

Extraction operations

The TUCSON is a Hybrid model. Because of the high-voltage components contained therein, first responders should pay special attention when they extract occupants in the car. Before performing any extraction operations, the first responders should "Identify, immobilise and disable" the vehicle as discussed in sections on emergency procedures.

Stabilisation

Use standard stabilisation (lift) points, as shown above. Always be sure to connect to a structural member of the vehicle and avoid placing cribbing under high-voltage cables, and other areas not normally considered acceptable.

Extraction tools and procedure

When responding to an incident involving a TUCSON HEV, we recommend that the first responders follow their organisation's standard operating procedures for dealing with vehicle emergencies.
When the first responders cut the vehicle, they should always pay special attention to the airbag system, orange coloured high-voltage cables and other high-voltage components so that the parts are not damaged and to prevent a risk of explosion.

Location of ultra-high strength steel

In these images, high strength steel is used in the areas coloured in blue and ultra-high strength steel is used in the red-coloured areas. Depending on the tools used, ultra-high strength steel can be challenging or impossible to cut. If necessary, use a workaround technique.

Mild steel
High strength steel
Ultra-high strength steel

Occupants rescue guide

When dealing in an emergency situation, check the components as above.

Stored energy/Liquid/Gases/Solids

High-voltage system

HPCU	Hybrid Power Control Unit
Motor	When current flows through the coil. It generates a rotating magnetic field and generates motor torque.
H.V. Battery	Supplies electric energy to traction motor and stores generated electric energy.
H.V. Cable	The high-voltage cabling is orange per the SAE standard.

•
  There is the capacitor inside the HPCU. Wait 5+ minutes for the capacitor to discharge after disabling the vehicle.

High-voltage battery

The HV lithium-ion polymer battery supplies and stores electric energy, to the traction motor, and is located under the TUCSON HEV chassis.

Specification

Motor		Type	Permanent Magnet Synchronous Motor
		Max. Output (kW)	44.2
		Max Torque (Nm)	264
HPCU	Inverter	Input Voltage(V)	200 ~ 310
	LDC	Max. Output (kW)	2.1
High-voltage Battery		Type	Lithium-ion polymer
		Rated Voltage (V)	270
		Energy (kWh)	1485
		Quantity for Pack (Cell/Module)	72 cells/9 modules

High-voltage orange cabling

The high-voltage cabling is orange, per Society of Automotive Engineers (SAE) standards. Cables run under the floor of the vehicle and connect the high-voltage battery to the HPCU, Motor, LDC, Inverter, A/C compressor and other high-voltage components located towards the front of the vehicle.
The presence of orange cables under the hood, in the under-floor battery compartment, or HV cables under the car, identifies the vehicle as an electric vehicle.

• Never cut or disconnect the high-voltage orange cabling and connectors without first disabling the HV system (refer to "Disable direct hazards/Safety regulations" section).
• Exposed cables or wires may be visible inside or outside the vehicle. Never touch the metal chassis wires, cables, connectors, or any electric components before disabling the system, and; or shorted to the vehicle chassis.

Failure to follow these instructions will lead to serious bodily injury or death by electrical shock.

Fuel

The TUCSON HEV has a petrol engine. Unleaded fuel is stored in the fuel tank. When dealing with an emergency situation, be careful not to rupture the fuel line and/or fuel tank.

In case of fire

Firefighting operations

Strict precautions must be taken while conducting firefighting operations due to following reasons:

• Lithium-ion batteries contain electrolytes that can vent, ignite, and produce sparks when subjected to temperatures above 150°C.
• Vehicle may burn rapidly with a flare-burning effect.
• Even after the high-voltage battery fire appears to have been extinguished, renewed or delayed fire can occur.
  • Use a thermal imaging camera to ensure the high-voltage battery is completely cooled before leaving the incident.
  • Always advise second responders that there is a risk of the battery re-igniting.
  • In a fire, submersion or a collision that has compromised the high-voltage battery, always store it in an open area with no exposures within 15 metres.
• A burning battery could release hydrogen fluoride, carbon monoxide, and carbon dioxide gasses. Use NIOSH/MSHA approved full-face self-contained breathing apparatus (SCBA) with full protective gear. Even if the high-voltage battery pack is not directly involved in a vehicle fire, approach the vehicle very carefully.

Extinguishers

• Small fires that do not involve the high-voltage battery should be extinguished using an ABC fire extinguisher (ex. fire caused by wiring harnesses, electrical components etc.).
• Do not attempt to extinguish fires that involve the high-voltage battery with small amounts of water as this can result in electrocution. Fires that involve the high-voltage battery should be extinguished using large amounts of water (max. 10,000 litres) to cool the high-voltage battery. Firefighters should not hesitate to pour larger amounts of water on the vehicle in such scenarios. Make sure the battery is fully cooled to avoid fire re-ignition.

How to deal with the situation

*If electrolyte solution leakage, or any damage to the HV battery casing is observed

Vehicle fire

• Use a large volume of water (max. 10,000 litres). The water must cool down the battery.

• If water is put into the high-voltage battery casing, it will be better to cool down the battery (but never attempt to penetrate the HV battery or its casing to apply water).
• If it is possible, soaking the vehicle in the container filled with water can be an effective way to extinguish the fire.

High-voltage battery damage and fluid leaks

If electrolyte solution leakage, or any damage to the lithium-ion battery casing is observed, the first responders should attempt to neutralise the battery by applying a large volume of water to the battery pack while wearing appropriate Personal Protective Equipment (PPE). The neutralisation process helps stabilise the thermal condition of the battery pack but does not discharge the battery.

• Do not put any smoke, spark, flame around the vehicle.
• Do not touch or step on the spilled electrolyte.
• If electrolyte leak occurs, wear appropriate solvent resistant PPE and use soil, sand, or a dry cloth to clean up the spilled electrolyte. Be sure to adequately ventilate the area.

Electrolyte irritation
The high-voltage battery contains electrolyte solution. To avoid exposure to electrolyte solution and serious personal injury, always wear appropriate solvent resistant PPE (Personal Protective Equipment) and SCBA (Self-Contained Breathing Apparatus).

• Electrolyte solution is an eye irritant. In the event of contact with eyes, rinse with plenty of water for 15 minutes.
• Electrolyte solution is a skin irritant. Therefore, in the event of contact with skin, wash off with a soap.
• Electrolyte liquid or fumes coming into contact with water will create vapours in the air from oxidisation. These vapours may irritate skin and eyes. In the event of contact with vapours, rinse with plenty of water and consult a doctor immediately.
• Electrolyte fumes (when inhaled) can cause respiratory irritation and acute intoxication. Inhale fresh air and wash mouth with water. Consult a doctor immediately.

High-voltage battery re-ignition by stranded energy

Damaged cells in the high-voltage battery can experience thermal runaway* and reignition.
To prevent reignition, the first responder and second responder need to be aware of the risk of stranded energy* which remains in the damaged cells and lead to reignition.

*Thermal runaway: The originating cause of thermal runaway is generally short-circuiting inside a battery cell and a resulting increase in the cell's internal temperature. Battery produces heat with thermal runaway, and it can spread from one battery cell to many cells, in a domino effect.

*Stranded energy: Energy remains inside any undamaged battery cells after the accident. That stranded energy can cause a high-voltage battery to reignite multiple times after firefighters treat a fire.

How to prevent reignition

Mitigating stranded energy risk
Use a thermal imaging camera to ensure the high-voltage battery is completely cooled before leaving the incident. Always advise second responders that there is a risk of the battery re-igniting.

1. 12V battery terminal disconnection (to depower battery management system)
2. High-voltage shut off (refer to "Disable direct hazards/Safety regulations" section)
3. Discharging the high-voltage battery (refer to "Storage of damaged product with the damaged battery" section)

In case of submersion

Submerged or partially submerged vehicles
Some emergency responses can involve a submerged vehicle. A TUCSON HEV that is submerged does not have high-voltage components on the vehicle's body or framework. It is safe to touch the vehicle's body or framework if there is no severe damage to the vehicle, whether it is in water or on land.
In the event of the vehicle being submerged or partially submerged, remove the vehicle from the water before attempting to disable the vehicle. Drain the water from the vehicle. Use one of the methods described in "Disable direct hazards/Safety regulations" section to disable the vehicle. Then, discharge the battery by referring to "Storage of damaged product with the damaged battery" section)

• If severe damage causes high-voltage components to become exposed, responders should take appropriate precautions and wear appropriate insulated personal protective equipment.

Failure to follow these instructions can lead to death or serious injury by electrocution.

Towing/Transportation/Storage

Towing and transportation

In the event of an accident, the high-voltage system must be disabled. The safety plug must be removed from the highvoltage battery according to one of the methods described in "Disable direct hazards/Safety regulations" section to disable the vehicle.
Towing the TUCSON HEV is not different from towing a conventional electric vehicle.
If emergency towing is necessary, we recommend having it done by an authorised Hyundai dealer or a commercial tow-truck service. Proper lifting and towing procedures are necessary to prevent damage to the vehicle.
The use of wheel dollies or flatbed is recommended.

• Do not tow with sling-type equipment. Use wheel lift or flatbed equipment.

• Never tow the vehicle with the front wheels on the ground (forward or backward), as this may cause fire or damage to the motor.


Storage of damaged product with the damaged battery

• Drain fluids and water, then disconnect the positive(+) terminal of the 12V battery before storing a damaged vehicle.
• In addition, remove the water inside the battery or vehicle, then remove the service interlock connector before storing a damaged vehicle.
• Place the vehicle in an open space away from any structure, vehicle, or building.
• Then, keep on eye on the vehicle until the discharging procedures are completed.
• If the battery can be removed from the vehicle by moving the vehicle on the lift, remove and discharge the battery.
• If the battery can't be removed, set the water pool and pouring water until the entire battery is submerged.
  • Water pool condition: tap water or pond water that does not contain salt
• Maintain this water level for at least 90 hours.
• Put salt into the water pool to make 3.5% salt water.
• Wait for additional 48 hours in salt water.
• Then, drain the water and dry it.

• DO NOT USE SALT WATER FOR THE FIRST STEP.
• A large volume of flammable gas can be generated in salt water due to electrolysis.
• After submerging the vehicle in pure water for at least 90 hours, put salt in the water pool.

Battery storage

• To store the damaged battery safely, the battery must be discharged.
• If the battery can be removed from the vehicle, using 1% salt water, discharge the battery.

• Extinguish all smoke, spark, flame around the vehicle.
• Electrolyte solution is a skin irritant.
• Do not touch or step on the spilled electrolyte.
• If electrolyte leak occurs, wear appropriate solvent resistant PPE and use soil, sand, or a dry cloth to clean up the spilled electrolyte. Be sure to adequately ventilate the area.

• Prepare water that does not contain salt such as tap or pond water.
• Leave the battery in water for at least 90 hours.

• Then put salt into the water pool to make 3.5% salt water.
• Wait for additional 48 hours in salt water.
• Then take out the battery from the water pool and drain and dry it.

Important additional information

Emergency starting

Before Jump starting

1. Press the 12V Battery Reset switch to reconnect the 12V battery.
2. Start the vehicle within 15 seconds of pressing the 12V Battery Reset switch.
3. After starting vehicle (READY indicator on), operate the vehicle safely outdoors in ready mode stopped and/or drive it for 30 minutes total to charge the 12V battery fully.

• Do not connect the cables to or near any part that moves when the vehicle is started.
• Do not allow the jumper cables to contact anything except the correct battery terminals or the correct ground.
• Do not lean over the battery when making connections.
• Do not jump start another vehicle with a hybrid vehicle. Jump starting another vehicle will damage the hybrid vehicle's 12V battery (lithium polymer type).

Jump starting

If the 12V battery is over discharged to a point that the reset does not work, try to jumpstart the vehicle.

1. Position the vehicles close enough that the jumper cables will reach, but do not allow the vehicles to touch.
2. Avoid any moving parts in the engine compartment at all times, even when the vehicles are turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning, etc. Put the vehicles in P (Park) and set the parking brakes. Turn both vehicles OFF.
4. Connect the jumper cables in the exact sequence shown in the illustration. First connect one jumper cable to the red, positive (+) jumper terminal of your vehicle (1).
5. Connect the other end of the jumper cable to the red, positive (+) battery/jumper terminal of the assisting vehicle (2).
6. Connect the second jumper cable to the black, negative (-) battery/chassis ground of the assisting vehicle (3).
7. Connect the other end of the second jumper cable to the black, negative (-) chassis ground of your vehicle (4). Do not allow the jumper cables to contact anything except the correct battery or jumper terminals or the correct ground.
8. Start the engine of the assisting vehicle and let it run for a few minutes.
9. Press the 12V Battery Reset switch.

10. Start your vehicle as soon as possible. After starting vehicle (READY indicator on), operate the vehicle safely outdoors in ready mode stopped and/or drive it for 30 minutes total to charge the 12V battery fully

• Do not attempt to jump start the high-voltage battery.
• Failure to follow these instructions will lead to serious bodily injury or death by electrical shock.

Airbag SRS system

SRS: Supplemental Restraint System

Airbag

Six airbags are installed in the TUCSON HEV, located in the areas shown in the image below. Before performing any emergency procedure, make sure the vehicle ignition switch is turned off and disconnect the 12V auxiliary battery (located in the left side motor compartment) to prevent accidental deployment of undeployed airbags.

1. Driver front airbag
2. Passenger front airbag
3. Passenger side airbag
4. Driver side airbag
5. Passenger curtain airbag
6. Driver curtain airbag

❈ The actual air bags and seats in the vehicle may differ from the illustration.

Seat Belt Pretensioner

In the TUCSON HEV, the driver's and front passenger's seat belts are equipped with pretensioners. When the seat belt pretensioners are activated in a collision, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger compartment. These are normal operating conditions and are not hazardous. The seat belt pretensioner assembly mechanisms may become hot during activation and may need several minutes to cool down after they have been activated.

Airbag system components

1. Driver's front airbag
2. Passenger's front airbag
3. Seat Belt Pretensioner (FBPT)
4. Emergency Fastening Device (EFD)
5. Side airbag (Driver, Passenger side)
6. Curtain airbag (Driver, Passenger side)
7. Supplemental Restraint System Control Module (SRSCM)

Seat belt system

Undeployed airbags

To avoid injuries caused by accidental deployment of undeployed airbags:

• Do not cut the red coloured part shown in the image above.
• Make sure the vehicle ignition switch is turned off, disconnect the 12V auxiliary battery (located in the left side of engine room) and wait 3 minutes or longer to allow the system to deactivate.

Failure to follow any of these instructions may result in serious injury or death from accidental deployment of the airbag system.

Warning

• If severe damage causes high-voltage components to become exposed, emergency responders should take appropriate precautions and wear appropriate insulated personal protective equipment.
• Do not attempt to remove the safety plug while standing in the water.
• Never cut or disconnect the high-voltage orange cabling and connectors without first disabling the system by removing the safety plug.
• Exposed cables or wires may be visible inside or outside the vehicle. Never touch the wires, cables, connectors, or any electric components before disabling the system, to prevent injury or death due to electrical shock.

Failure to follow any of these instructions may result in serious injury or death by electrocution.

• Do not cut through any component of the Airbag (SRS) system (Supplementary Restraint System)
• SRS components may remain powered and active for up to 3 minutes after the 12V electrical system is shut off or disabled.

Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
Failure to follow any of these instructions may result in serious injury or death from accidental deployment of the airbag system.

Hyundai Premium Roadside Support.
1800 186 306

Hyundai Motor Company Australia
394 Lane Cove Road, Macquarie Park, NSW Australia 2113.
hyundai.com/au/en

Documents / Resources

References

• Hyundai Australia | Models, Offers, Financing & Dealerships

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Hyundai Tucson Hybrid Manual
