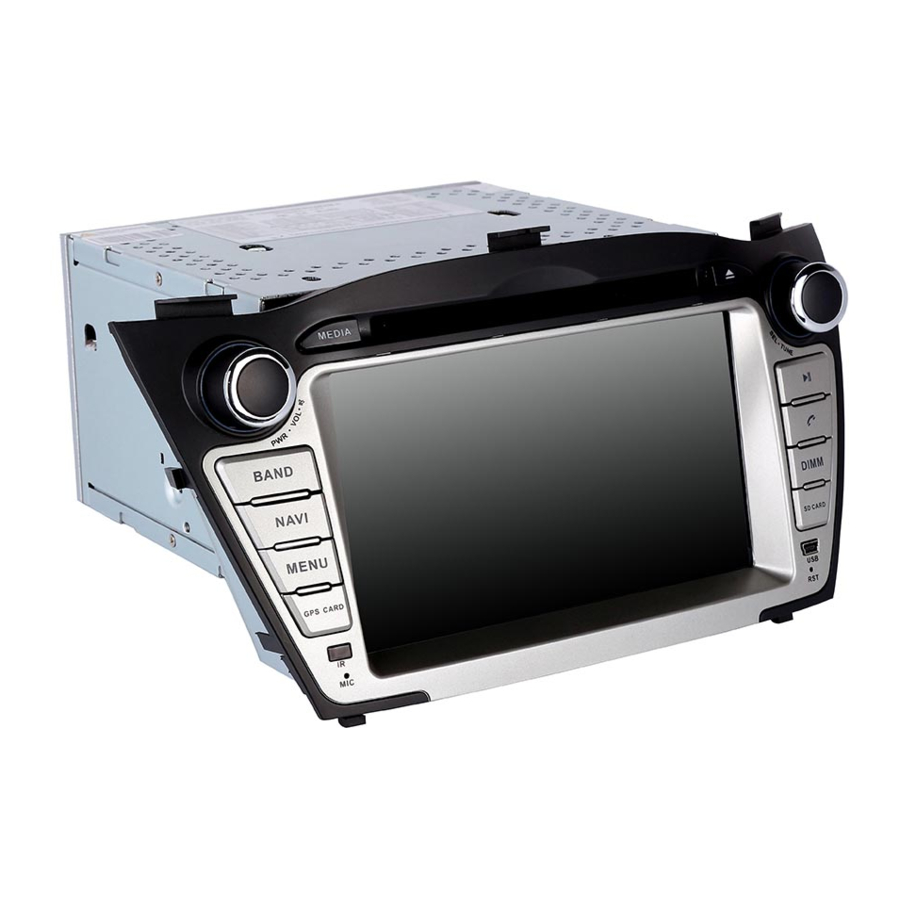

Hyundai ix35 Installation Manual

Also See for ix35:

Table of Contents

Installation Guide

Prepare the tool to disassemble the car, to take some measures to protect the car.
Please use the spanner to loose the deco above the HIFI, then take it out.
Use the spanner to loose Emergency stop trim under the HIFI, please pay attention to the cable of the bottom.
Take out the Emergency stop trim and deco, pull off all the cables.
Please use the screwdriver to take down the fixed screw of the hi-fi.
Please take out the Hi-fi carefully, and pay attention to the cable of the bottom

Please take out all of the cables of the Hi-fi.
Removed with a screwdriver to remove just the upper and lower installation bracker audio host, install the mounting bracket to the system host.
Please take out the cable from the enclosed box which please combine the original jack with the new system.(please refer to the picture)
The other end of the special adapter cable and other cables plugged in with the host system, and then gently pushed into the mounting position.
Adjust the installation position, screw on the fixed screw.
Restore the system host top deco cover to the original location.
Please connect all of the emergency stop trim of the back to restore the original position, then to check it.
When you finished the installation, please test it, and do some basic setting.
