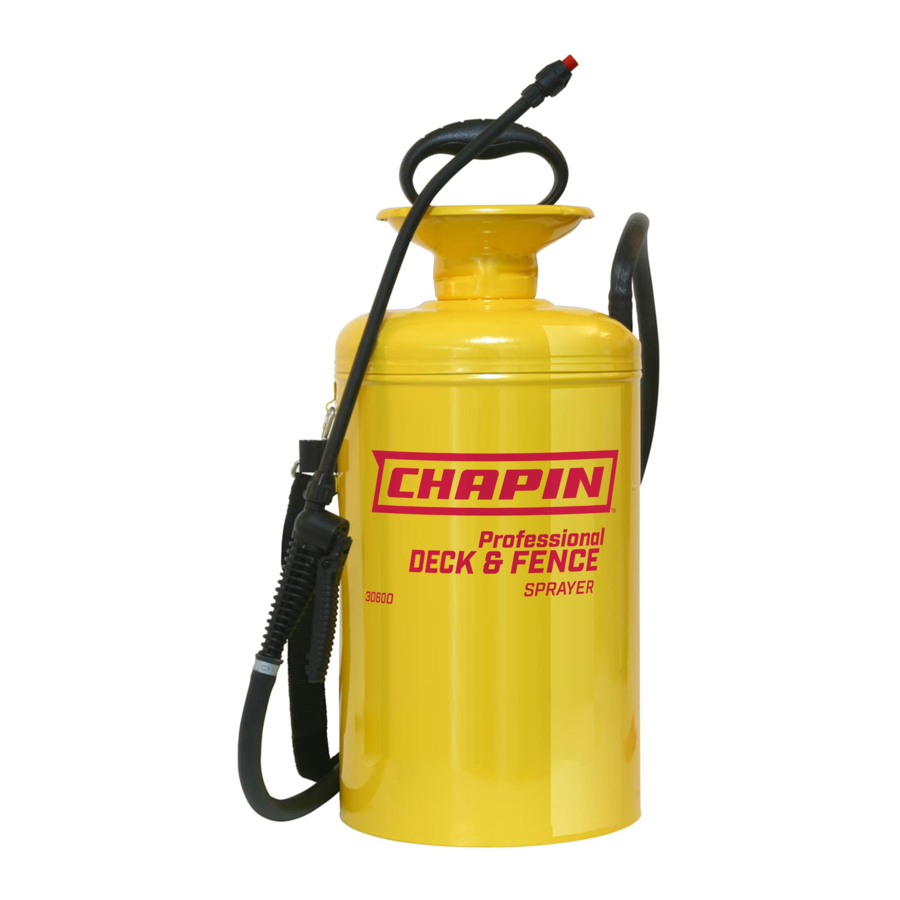

Chapin 30600 Manual

Parts

Note: Your particular sprayer may not include all parts pictured above.
Repair Parts Kit Gaskets and Seals (not included)

Hose to Tank

Make sure hose is pushed all the way to the tank. Make sure hose clamp is tight and below the hose barb. Turn clockwise with a screwdriver to tighten.

Nozzle

Attach nozzle to shut-off handle or extension wand.

Insert Filter.

Insert O-ring.

Insert appropriate nozzle into cap.

Attach cap with nozzle to end of housing.

Pre-Use Check

1. Do: Check tightness of hose nut to be sure hose is securely attached to the tank outlet.
2. Do: Inspect hose for deterioration, cracks, softness, or brittleness. If any of these conditions are found, replace hose before using. Replace with original manufacturer's parts only.
3. Do: Remove pump (see Filling, Pressurizing and Spraying Instructions), inspect interior and exterior of tank for signs of deterioration of body and bottom. Any sign of deterioration indicates possible tank weakening and could result in explosive bursting under pressure. If any of these signs are found, discard tank immediately and replace. Do not attempt to patch leaks, etc., as this could result in serious injury.
4. Do: Follow Filling, Pressurizing and Spraying Instructions, except use water only (Pump plunger 10-20 strokes and inspect for leaks).
5. Do: Direct shut-off away from you and open to make sure discharge is not clogged.
6. Do: If unit passes this test, release pressure (see Pressure Releasing Instructions), empty tank, and proceed with Filling, Pressurizing and Spraying Instructions.
7. Do: Inspect all metal parts including the wand, nozzle and fittings for rust, corrosion and pitting. If any of these conditions are found, replace affected part with original manufacturer's part before using.

Filling

1. Do: Turn pump handle counterclockwise and remove pump
2. Do: Prepare spray solution following all directions and safety warnings on chemical label.
3. Do: Fill tank to no more than the proper gallon marker. Do NOT: overfill to accommodate pump.
4. Do: Check pump to make sure that no grass or dirt is stuck to barrel. Replace pump in tank and tighten securely.

Pressurizing and Spraying

Turn handle clockwise to tighten. Push handle down, turn 1/4 turn counterclockwise to release.

Pump until you feel resistance.

Push handle, down, turn 1/4 turn clockwise to lock. Begin spraying. Repump sprayer as required to maintain spray force.

Adjust spray pattern by turning nozzle cap. Do not turn cap more than 2 turns or cap may come off allowing spray material to spray back on you.

To Release Pressure

1. Do: With pump facing away, turn locked handle counterclockwise until air begins to escape. Stop turning handle when you hear air escaping.
2. Do: Stay away from the sprayer until all air has escaped.

Care, Storage and Maintenance

1. Do: Rinse tank thoroughly with water only, empty, refill with water. Follow Filling, Pressurizing and Spraying Instructions, except pump unit only 8-10 strokes. Be sure that the wand and nozzle are thoroughly rinsed with water after each use.
2. Do: Open shut-off and allow water to run through discharge assembly.
3. Do: Release pressure (Follow Pressure Release Instructions), remove pump and empty sprayer.
4. Do: Store sprayer tank upside down, with pump removed, in a warm dry location.
5. Do: Periodically oil pump by dropping 10-12 drops of light oil down pump rod through opening in cover.

Troubleshooting

Tank pressurizes but does not spray

Release pressure in tank before troubleshooting.

Clean shut-off
Pull handle straight up.

Insert notches from underside of handle into plunger grooves and turn counterclockwise.

Remove plunger, diaphragm and spring. Wash diaphragm with mild detergent. Reassemble:
Hold shut-off upright as shown, place spring in hole, place diaphragm on top of spring.
Reassemble plunger and tighten.

Tighten plunger clockwise until flush to top of shut-off body. Do not over-tighten or unit may not spray. Slide forks under plunger, push handle down until it snaps into place.

Clean Nozzle Assembly
Remove housing. Remove filter. Clean and re-assemble

Improper use or failure to follow instructions can result in explosive failure causing serious eye or other injury. For safe use of this product you must read and follow all instructions. Do not leave a pressurized sprayer in the hot sun. Heat can cause pressure build-up resulting in possible explosion. Do not store or leave solution in tank after use. Always wear goggles, gloves, long sleeve shirt, long pants and full foot protection when spraying. Never use any tool to remove pump if there is pressure in sprayer. Never stand with face or body over top of tank when pumping or loosening pump to prevent ejecting pump assembly and/or solution from striking and injuring you. Never pressurize sprayer by any means other than the original pump. Do not attempt to modify this sprayer. Replace parts only with manufacturer's original parts. Never spray flammable, caustic, acidic, chlorine, bleach or other corrosive solutions or heat, pressure, or gas producing chemicals. Always read and follow chemical manufacturer's instructions before use with this sprayer as some chemicals may be hazardous when used with this sprayer.

This product contains chemicals, including lead, known to the state of California to cause birth defects and other reproductive harm. Wash hands after handling.
