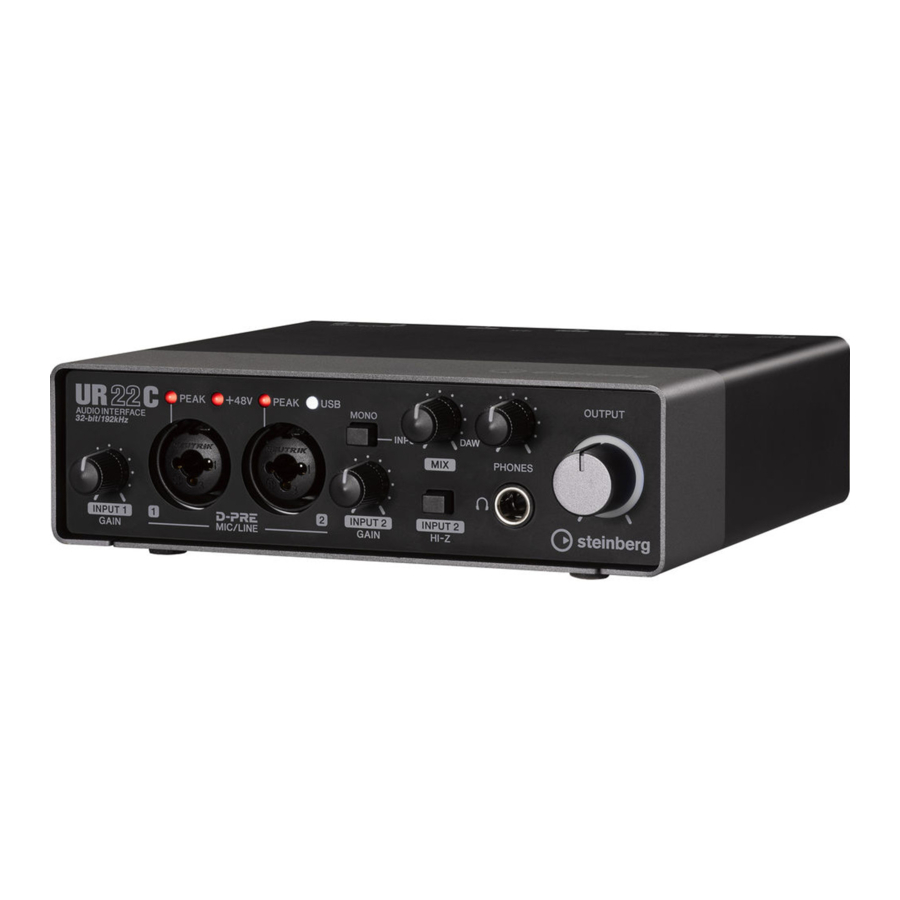

Steinberg UR22C Manual

Package contents

(check first after unpacking)

Conventions in this manual

Windows or Mac

When the procedures or explanations are specific to only one of the platforms, Windows or Mac, this is properly indicated in the manual. When the platforms do not appear, procedures or explanations are for both Windows and Mac. This manual predominantly uses screenshots of Windows. However, Mac screenshots are used when instructions of the function apply only to the Mac.

Cubase series

The phrase "Cubase" in this manual applies to all Cubase programs and versions (except Cubase LE). If a specific version is indicated, the version is described in the text. This manual uses screenshots of Cubase Pro 10 series. If you are using another version of Cubase, the actual screenshots might not be the same. For details, refer to the Cubase manuals.

Cubasis series

This manual uses screenshots of Cubasis 2. If you are using another version of Cubasis, the actual screen shots might not be the same.

Procedures

An arrow "➔" is shown for some procedures in the manual. For example, the string [Studio] ➔ [Studio Setup] ➔ [VST Audio System] indicates that you should perform the procedures in the following order.

1. Click the [Studio] menu.
2. Select the [Studio Setup] option.
3. Click the [VST Audio System] button.

Version information

The letters "x.x.x" and "x.xx" indicate the version number.

TOOLS for UR-C

The software TOOLS for UR-C is necessary for proper connection and use of the device with a computer. Make sure to install it before initially using the device. You will need to download TOOLS for UR-C beforehand from the Steinberg website below.
https://www.steinberg.net/en/support/downloads/

When you install the TOOLS for UR-C, the following three software programs will be installed.

NOTE

• TOOLS for UR-C does not support iOS devices.
• For the latest information on TOOLS for UR-C, see the Steinberg website.

Yamaha Steinberg USB Driver

This software allows communication between the device and a computer.

Steinberg UR-C Applications

This software allows setting the parameters of the device from a computer or using the Link function between the device and Cubase series software. The software consists of the following two components.

• Steinberg dspMixFx UR-C
  This editing software lets you set the device when using the device independently, or when using it with a DAW (Digital Audio Workstation) software other than Cubase series. You can use Cubase and dspMixFx UR-C at the same time.
• Steinberg UR-C Extension
  This software allows you to link the device with Cubase series (for versions which supports the link function). To use this link function, see the Steinberg web site below. https://www.steinberg.net/

Basic FX Suite

Basic FX Suite is software consisting of Plug-ins of various effects and sound processing developed by Yamaha, some of which fully utilize modeling technology. When you install the Basic FX Suite, the following three software programs will be installed.

• Sweet Spot Morphing Channel Strip
  This processing effect is a multi effect that features a compressor and equalizer.
• REV-X
  This is a digital reverb developed by Yamaha for professional audio devices.
• Guitar Amp Classics
  This is a guitar amp simulator developed by Yamaha that fully utilizes modeling technology.

Preparation before using with a computer

The following three setup procedures are required before you can use the device with a computer.

• Installing TOOLS for UR-C
• Activating Basic FX Suite
• Downloading Cubase AI (DAW)

Installing TOOLS for UR-C

Download TOOLS for UR-C previously from the Steinberg website. Follow the steps below to install the TOOLS for UR-C.

NOTE

• You are only permitted to use this software pursuant to the terms and conditions of the "License Agreement" shown during the installation.
• Future upgrades of application and system software and any changes in specifications and functions will be announced at the following website.https://www.steinberg.net/
• The eLicenser Control Center (eLCC) for controlling the product license is installed at the same time.

Windows

1. Disconnect all USB devices other than the mouse and keyboard from the computer.
2. Start the computer and log on to the Administrator account.
   Exit any open applications and close all open windows.
3. Extract the previously downloaded TOOLS for UR-C.
4. Double click the [setup.exe] file in the extracted folder to start the installation.
5. Follow the on-screen instructions to install the software.
   NOTE
   • While installing the software, the "eLicenser Control Center" installation message appears. Follow the onscreen instructions to install the software.
   • You can select the desired software to be installed on the installation screen.
     • Yamaha Steinberg USB Driver
     • Steinberg UR-C Applications
     • Basic FX Suite (VST3 Plug-ins)
6. When installation has been completed, click [Finish].
   If a window requiring you to restart your computer appears, follow the onscreen instructions and restart the computer.

Confirmation of Installation

7. Move the [POWER SOURCE] switch to the left and then connect the device to a USB 3.0 jack on the computer with the included USB cable.
   Make sure not to connect it to a USB hub.

8. Open the [Device Manager] window as follows.
   [Control Panel] ➔ ([Hardware and Sound]) ➔ [Device Manager]
9. Click on the [>] mark next to "Sound, video and game controllers."
   Confirm that the device name is listed.

Installation of the TOOLS for UR-C is now complete.

Mac

1. Disconnect all USB devices other than the mouse and keyboard from the computer.
2. Start the computer and log in to the Administrator account.
   Exit any open applications and close all open windows.
3. Extract the previously downloaded TOOLS for UR-C.
4. Double click the [TOOLS for UR-C V**.pkg] file in the extracted folder to start the installation.
   The characters *** represent the version number.
5. Follow the on-screen instructions to install the software.
   NOTE
   • While installing the software, the "eLicenser Control Center" installation message appears. Follow the onscreen instructions to install the software.
   • You can select the desired software to be installed on the installation screen.
     • Yamaha Steinberg USB Driver
     • Steinberg UR-C Applications
     • Basic FX Suite (VST3/AU Plug-ins)
6. When installation has been completed, click [Restart] or [Close].

Confirmation of Installation

7. Move the [POWER SOURCE] switch to the left and then connect the device to a USB 3.0 jack on the computer with the included USB cable.
   Make sure not to connect it to a USB hub.

8. Open the "Audio MIDI Setup" window as follows.
   [Applications] ➔ [Utilities] ➔ [Audio MIDI Setup]
9. Confirm that the device name is listed in the left column.

Installation of the TOOLS for UR-C is now complete.

Activating Basic FX Suite

To use the Basic FX Suite programs which are installed in "Installing TOOLS for UR-C," you will need to download the licenses for them via the Internet. Use the Activation Code provided on the Essential Product License Information.

1. Launch the "eLicenser Control Center" as follows.
   Windows
   [All Programs] or [All apps] ➔[eLicenser] ➔ [eLicenser Control Center]
   Mac
   [Applications] ➔ [eLicenser Control Center]
2. Click [Enter Activation Code].
3. Enter the Activation Code described on the included Essential Product License Information.
4. Follow the on-screen instructions to download the licenses.

NOTE
If you connect a USB-eLicenser (USB protection device) to your computer, a USBeLicenser is displayed for the destination of the license storage. Select whether to save the license to USB-eLicenser or Soft-eLicenser. Once you save the license to USB-eLicenser, you cannot transfer the license back from USB-eLicenser to Soft-eLicenser.

Downloading Cubase AI

Cubase AI is software for music production that allows you to record, play, and edit sounds on a computer. In order to download the software, you'll need to first create a MySteinberg account on the Steinberg website. For the latest information, see the Steinberg website below. https://www.steinberg.net/getcubaseai/

NOTE
A valid "Download access code" is required for Cubase AI download. It is printed on the included Cubase AI Download Information.

The setup is now complete.

For detailed instructions and information on the functions of the product, read the operation manual.

Preparation before using with an iOS device

The following preparations are required before you can use the device with an iOS device.

Apple accessories

These may be necessary for connecting the device to an iOS device.

• iOS devices equipped with Type-C port
  USB-C charge cable in the Apple product box.
• iOS devices not equipped with Type-C port
  Lightning to USB Camera Adapter (optional)
  or
  Lightning to USB 3 Camera Adapter (optional)

Downloading Steinberg dspMixFx UR-C (mixing app)

Download from the App store.

Downloading DAW app as necessary

Download from the App Store.

NOTE

• Installing the TOOLS for UR-C is not necessary when connecting the device to an iOS device.
• For the latest information on compatible iOS devices, refer to the Steinberg Website: https://www.steinberg.net/

The setup is now complete.

For detailed instructions and information on the functions of the product, read the operation manual. In the operation manual, you can refer to the basic instructions for operating with Cubasis (an iPad app sold by Apple) as an example.

Setting up the power supply

Setting up the power supply

Before turning the power of all devices on or off, set all volume levels to minimum.
Failing to do so may result in hearing loss, electric shock, or device damage.

Connecting the USB cable (bus-powered)

When using the device by bus power, connect the included USB cable to the USB 3.0 jack on a computer.

1. Move the [POWER SOURCE] switch on the rear panel to the left.

2. Connect the included USB cable to the [USB 3.0] jack on the rear panel.
3. Connect the included USB cable to the USB 3.0 jack on the computer.
   The POWER indicator on the front panel lights when the power is turned on.


Connecting the USB power adaptor or the USB mobile battery

This is necessary for connecting the device to a USB 2.0 jack on a computer or to iOS devices.

1. Move the [POWER SOURCE] switch on the rear panel to the right.

2. Insert the plug of the USB power adaptor or USB mobile battery into the DC IN [5V] jack on the rear panel.
   The POWER indicator on the front panel lights when the power is turned on.


NOTICE
To avoid generating unwanted noise, make sure there is adequate distance between the power adaptor and the device.

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

If you notice any abnormality

• If any of the following problems occur, immediately unplug the USB cable from the computer.
  • Unusual smells or smoke are emitted.
  • Some object, or water has been dropped into the product.
  • There is a sudden loss of sound during use of the product.
  • Cracks or other visible damage appear on the product. Then have the product inspected or repaired by qualified Yamaha service personnel.

Do not open

• This product contains no user-serviceable parts. Do not attempt to disassemble the internal parts or modify them in any way.

Water warning/Fire warning

• Do not expose the product to rain, use it near water or in damp or wet conditions, or place on it any containers (such as vases, bottles or glasses) containing liquids which might spill into any openings.
• Do not place any burning items or open flames near the product, since they may cause a fire.

Hearing loss

• Before connecting the product to other devices, turn off the power for all devices. Also, before turning the power of all devices on or off, make sure that all volume levels are set to the minimum. Failing to do so may result in hearing loss, electric shock, or device damage.
• When turning on the AC power in your audio system, always turn on the power amplifier LAST, to avoid hearing loss and speaker damage. When turning the power off, the power amplifier should be turned off FIRST for the same reason.
• Do not use headphones for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the product or other property. These precautions include, but are not limited to, the following:

Location and connection

• Do not place the product in an unstable position where it might accidentally fall over and cause injuries.
• Keep the device out of reach of children. This product is not suitable for use in locations where children are likely to be present.
• Do not place the product in a location where it may come into contact with corrosive gases or salt air. Doing so may result in malfunction.
• Before moving the product, remove all connected cables.

Maintenance

• Remove the USB cable from the computer when cleaning the product.

Handling caution

• Do not rest your weight on the product or place heavy objects on it.

Yamaha/Steinberg cannot be held responsible for damage caused by improper use or modifications to the product, or data that is lost or destroyed.

Notice

To avoid the possibility of malfunction/ damage to the product, damage to data, or damage to other property, follow the notices below.

Handling and Maintenance

• Do not use the product in the vicinity of a TV, radio, AV equipment, mobile phone, or other electric products. Otherwise, the product, TV, or radio may generate noise.
• Do not expose the product to excessive dust or vibration, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day), in order to prevent the possibility of panel disfiguration, unstable operation, or damage to the internal components.
• Condensation can occur in the product due to rapid, drastic changes in ambient temperature—when the product is moved from one location to another, or air conditioning is turned on or off, for example. Using the product while condensation is present can cause damage. If there is reason to believe that condensation might have occurred, leave the product for several hours without turning on the power until the condensation has completely dried out.
• Do not place vinyl, plastic or rubber objects on the product, since this might discolor the panel.
• When cleaning the product, use a dry and soft cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

Connectors

• XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (-).

List of distributors
If you need support or further product information please contact the distributor in your country. A list of distributors is available at this website.
For assistance in determining who to contact, please contact "Headquarter SMTG."

Steinberg Website:
https://www.steinberg.net/
