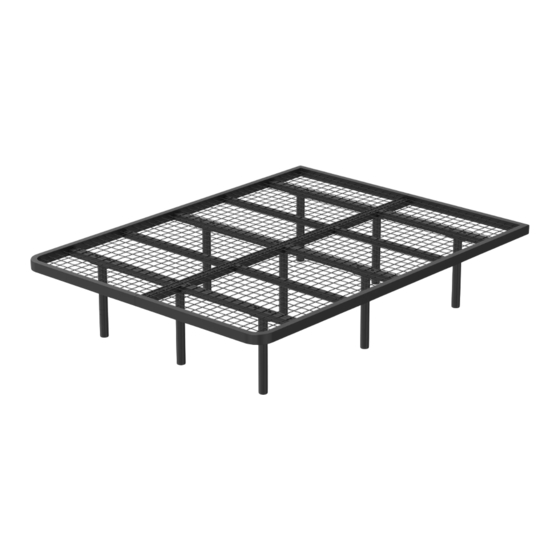

Apex Platform Bed
INCLUDED PARTS
Right Frame
1 pc
Left Frame
1 pc
Leg
9 pcs
Allen Wrench
1 pc
Bolts
18 pcs
Side Panels
2 pcs
Foot Panel
1 pc
Panel Clips
13 pcs
Connector Plugs
4 pcs
REV: 03.31.23
2
3
1.
Lay out left and right
sections so the grid
is facing down and
the holes in the cross
supports are facing
upward.
2.
Join left and right
sections by inserting the
extended tabs into the
opposite section.
3.
Attach 3 legs along
the center of the two
sections using 6 bolts.
Tighten fully with Allen
Key.
4.
Attach the other 6 legs
around the perimeter
using 12 bolts. Tighten all
bolts with Allen Key.
5.
Carefully lift and flip/
invert the base over so it
is resting on the 9 legs.
